Fuel Evaporation System: Maintenance

No adjustments are required with this system. Air inlet filter in bottom of charcoal canister should be replaced every 30,000 miles. Regular inspection of system components should be made and defective components replaced as necessary.

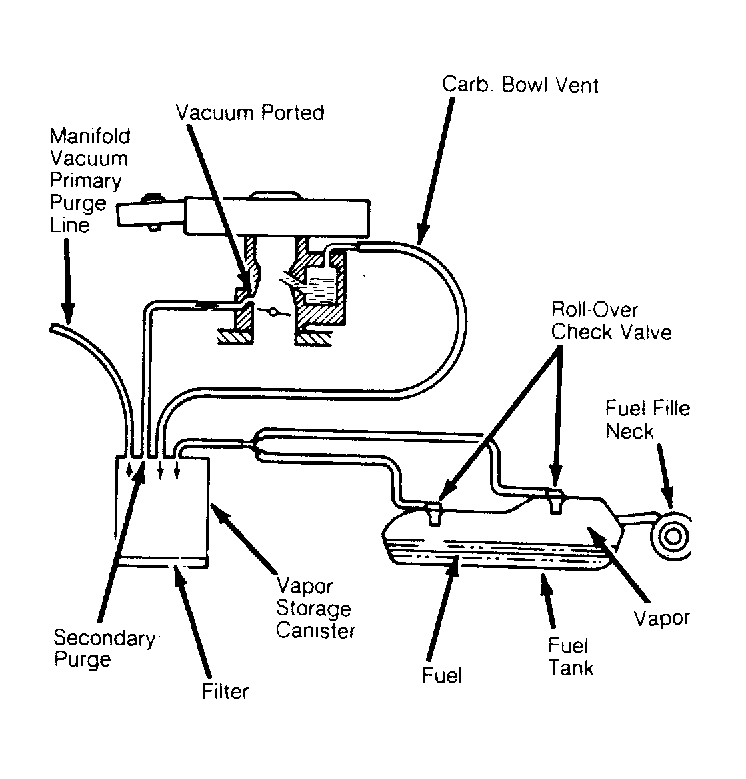

Fig 1: Evaporation Control System (Typical)
G8749
