2.5L TBI System
>>
Component Testing
>>
Notes
Component Testing: Notes
NOTE:
When test calls for volt-ohmmeter, use of a high impedance digital type is required.

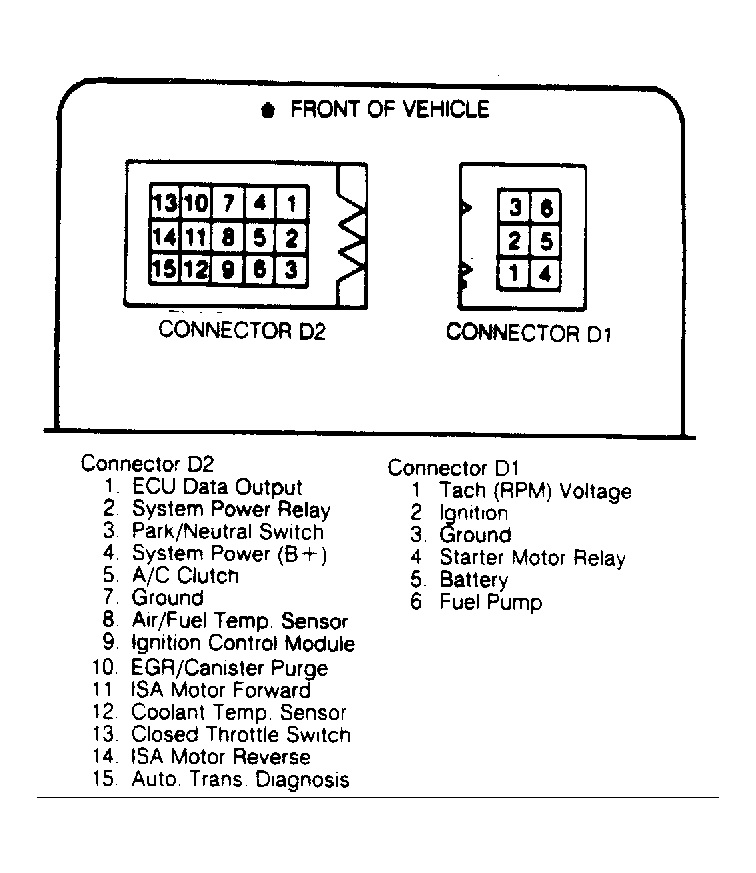

Fig 1: Diagnostic Connectors D1 and D2 Terminal Identification
