Glow Plug System Test

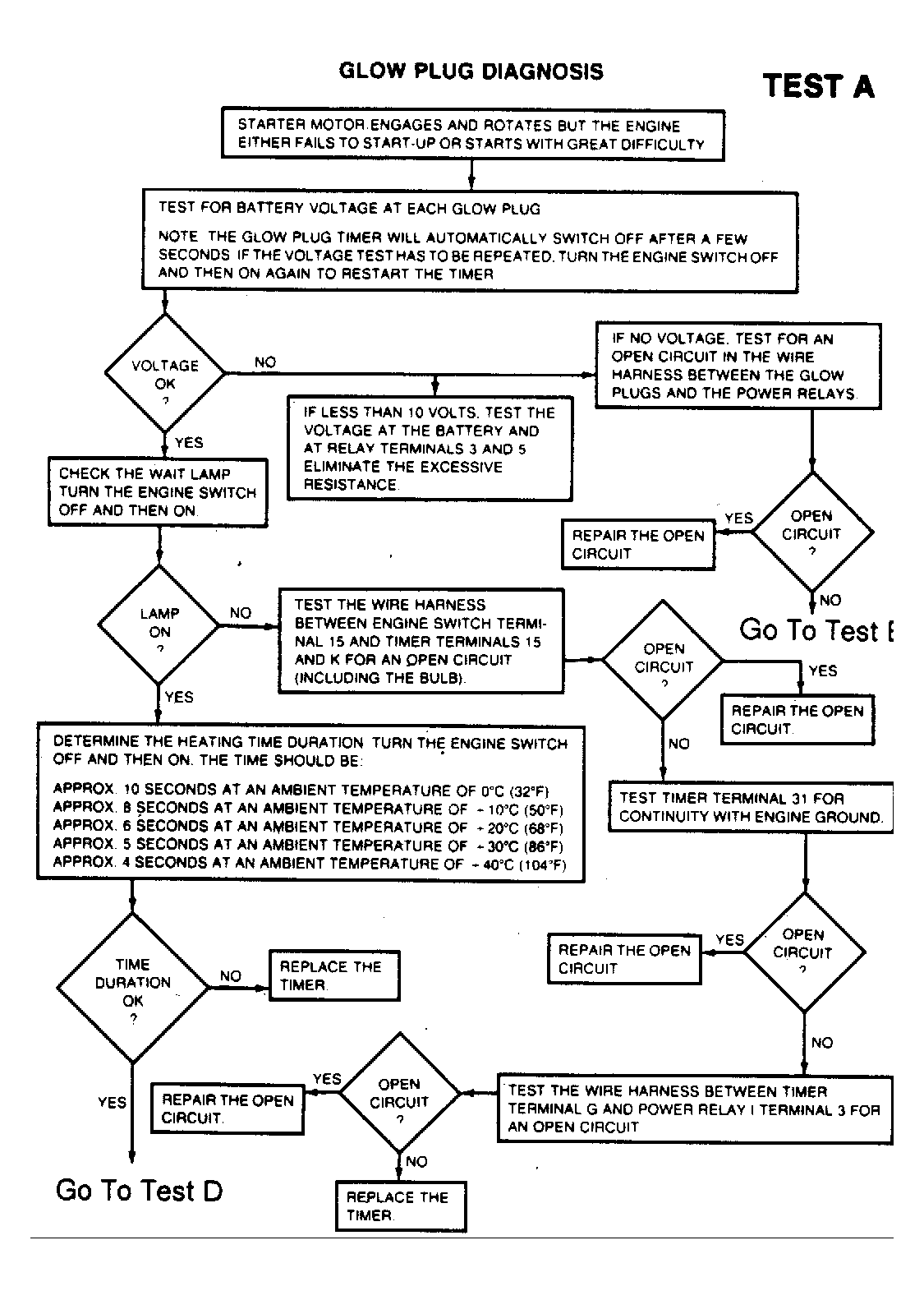

Fig 1: Glow Plug Diagnosis - TEST A

G6766

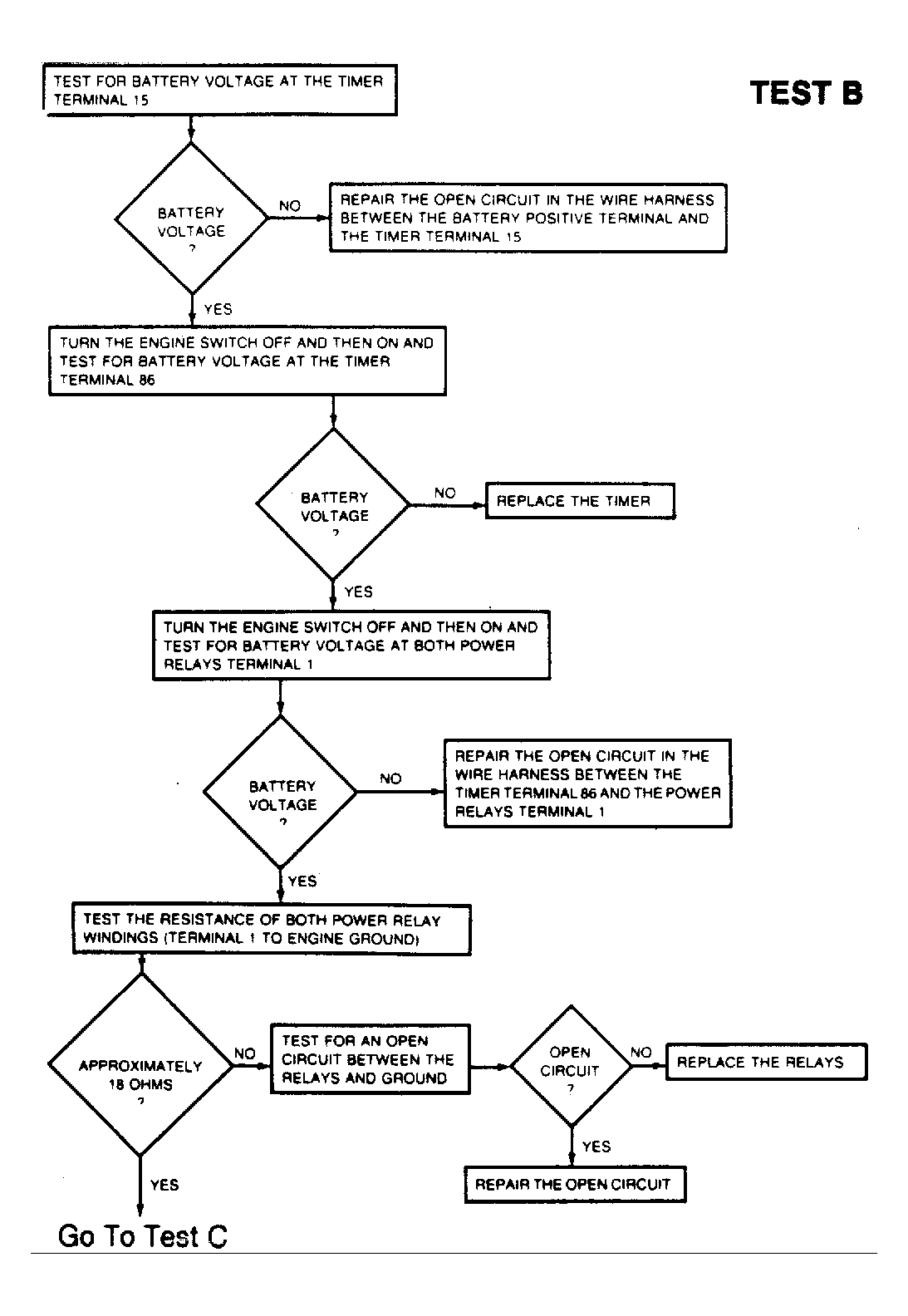

Fig 2: Glow Plug Diagnosis - TEST B

G6768

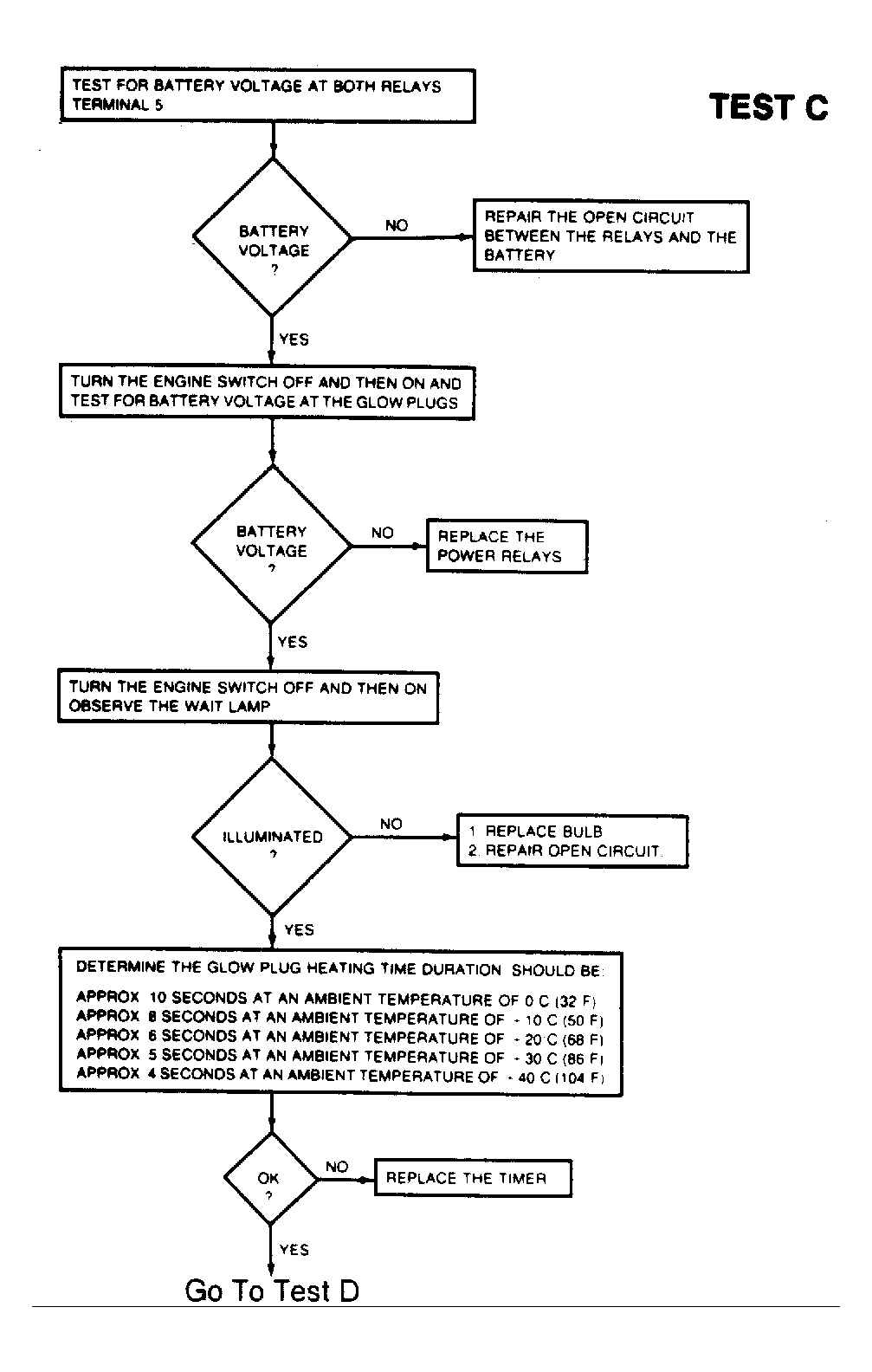

Fig 3: Glow Plug Diagnosis - TEST C

G6767

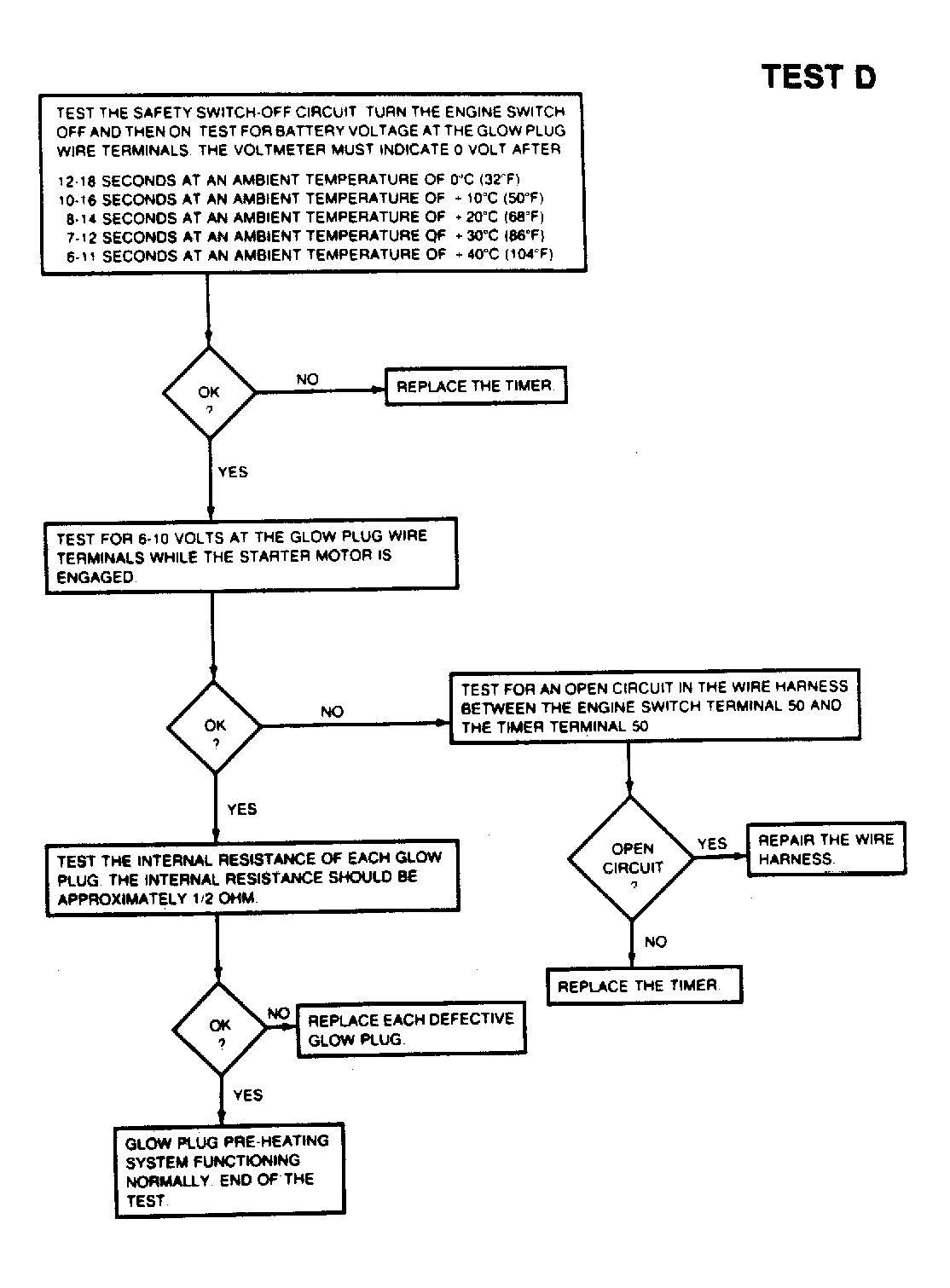

Fig 4: Glow Plug Diagnosis - TEST D

G6769
