Control Units

CONTROL UNITS LOCATION

Component Location
Audio Alarm Module On side of fuse block.
Cruise Control Regulator Module Under dash, above brake pedal.
Elect. Control Unit (ECU) Under dash, above accelerator pedal. See Figure .

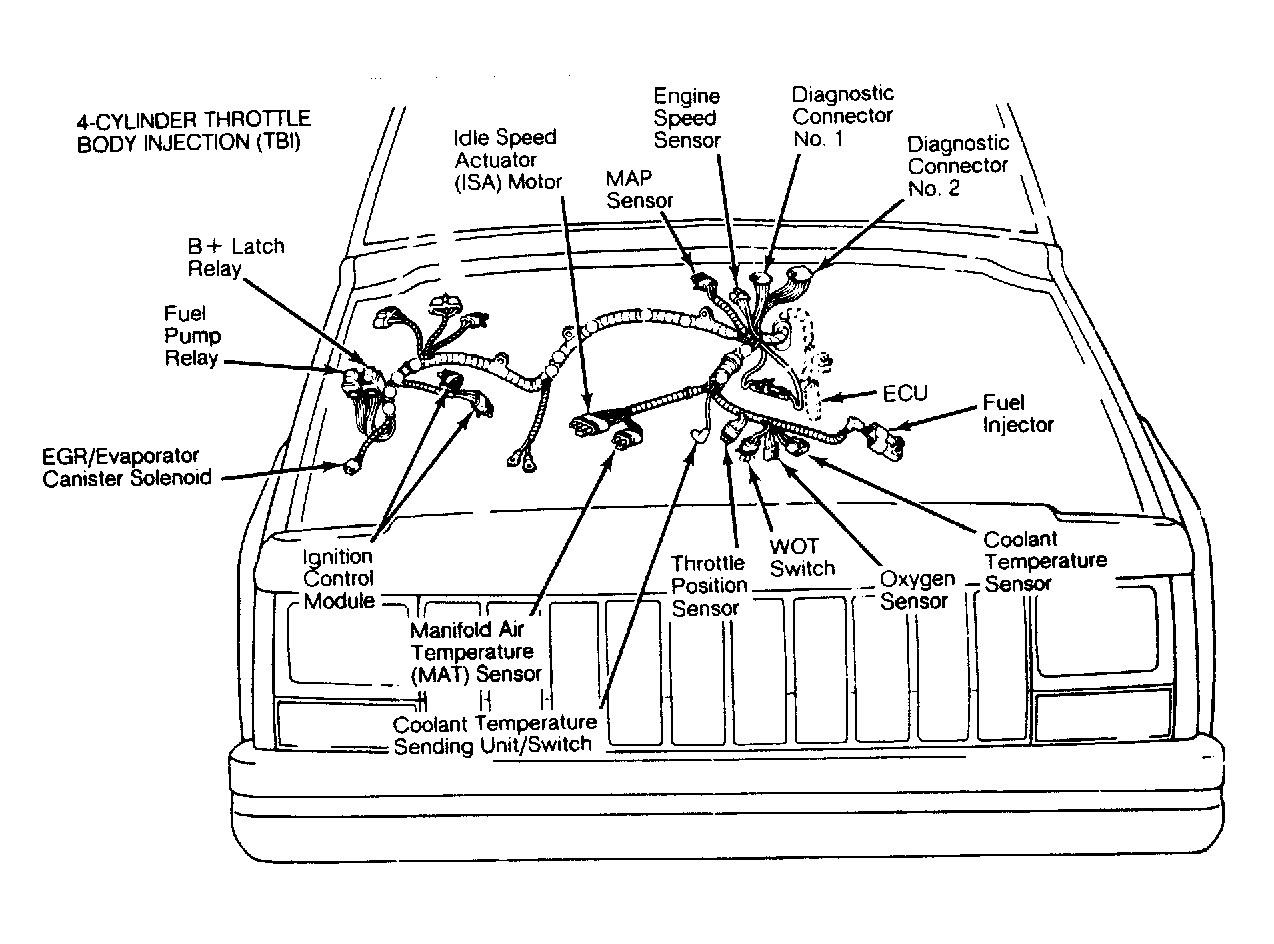

Ignition Control Module In engine bay, on right wheelwell. See Figure .
Intermittent Wiper Module Under left side of dash, above brake pedal.
Keyless Entry Receiver Between sun visors.

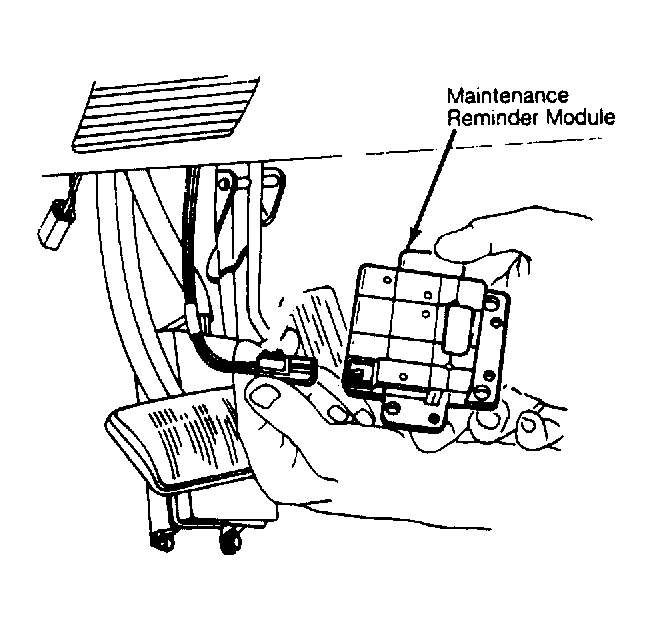

Maint. Reminder Module Under dash, to right of steering column. See Figure .
Sentinel Light Module Under left side of dash, near headlight switch.
System Sentry Control Module Under dash, to right of steering column.
