Ignition System: Description: Notes

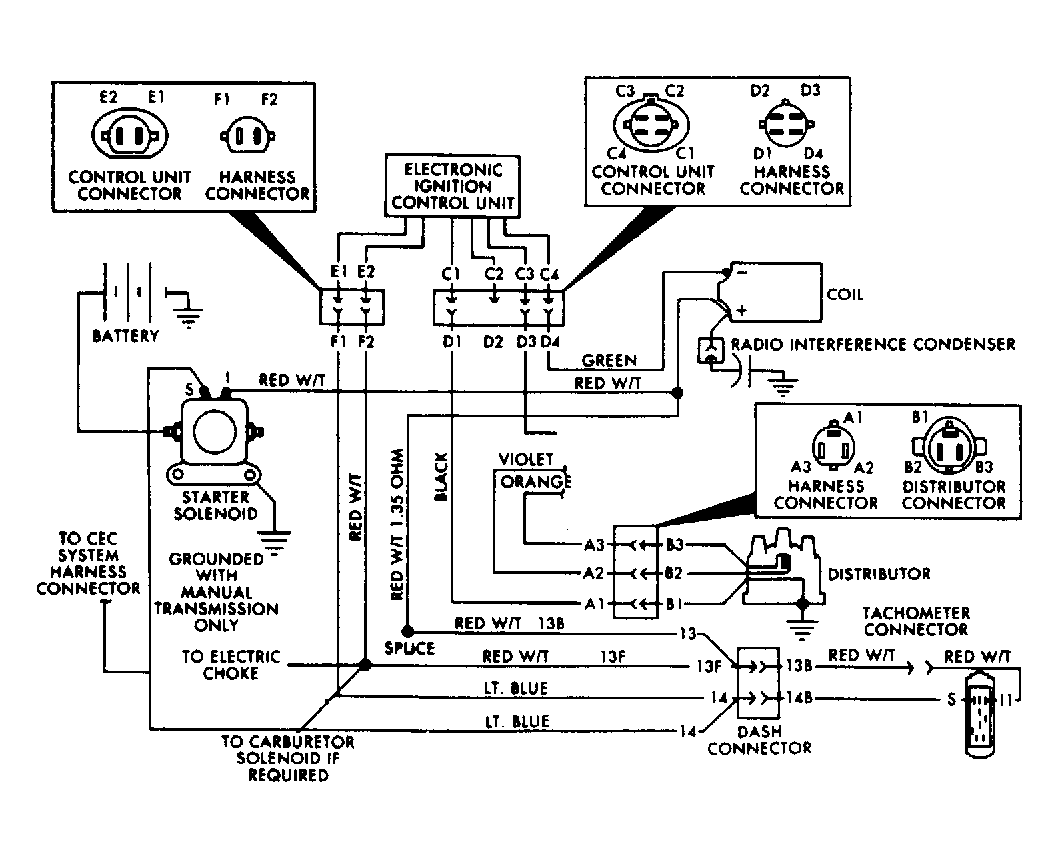

The Solid State Ignition (SSI) system consists of the following major components: Micro Computer Unit (MCU), electronic ignition control unit, ignition coil, resistance wire, distributor, knock sensor, cap, rotor, spark plugs and ignition wires. See Figure.
