Instrument Panel: Testing: Notes
NOTE:

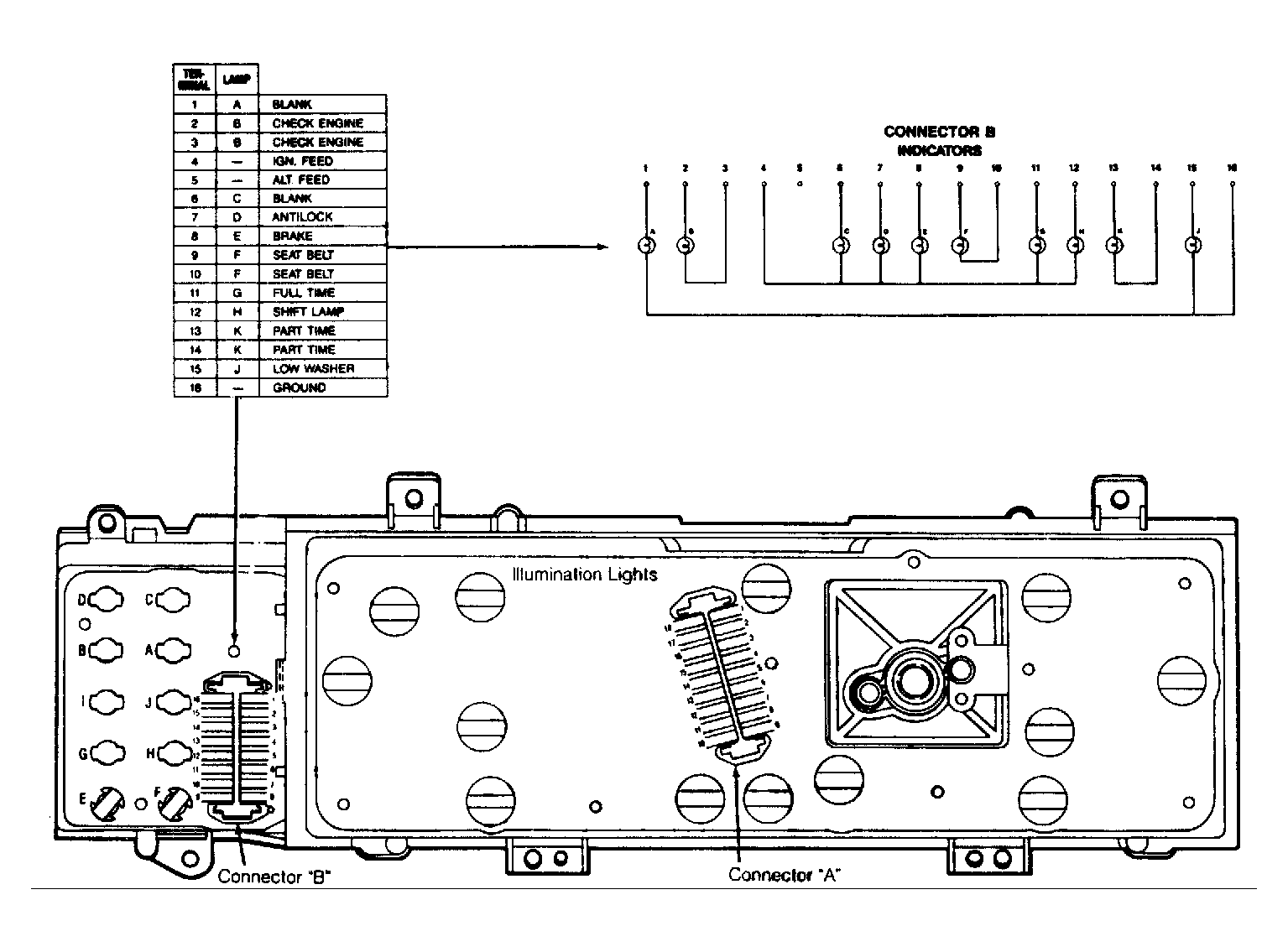

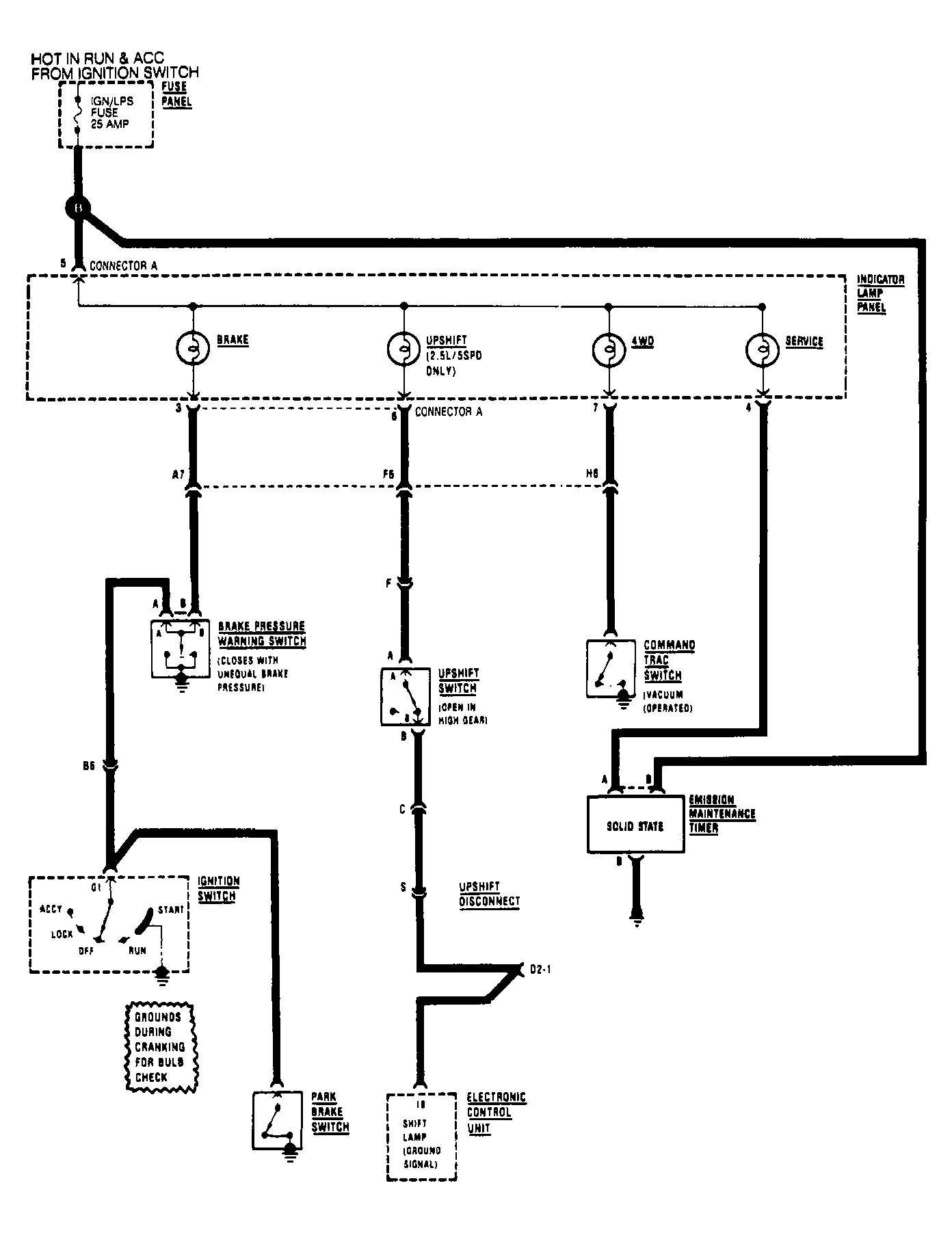

For additional testing and wiring schematics of Jeep switches and instrument panel components, See
Figure
through
Figure
.
