Control Units
CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|

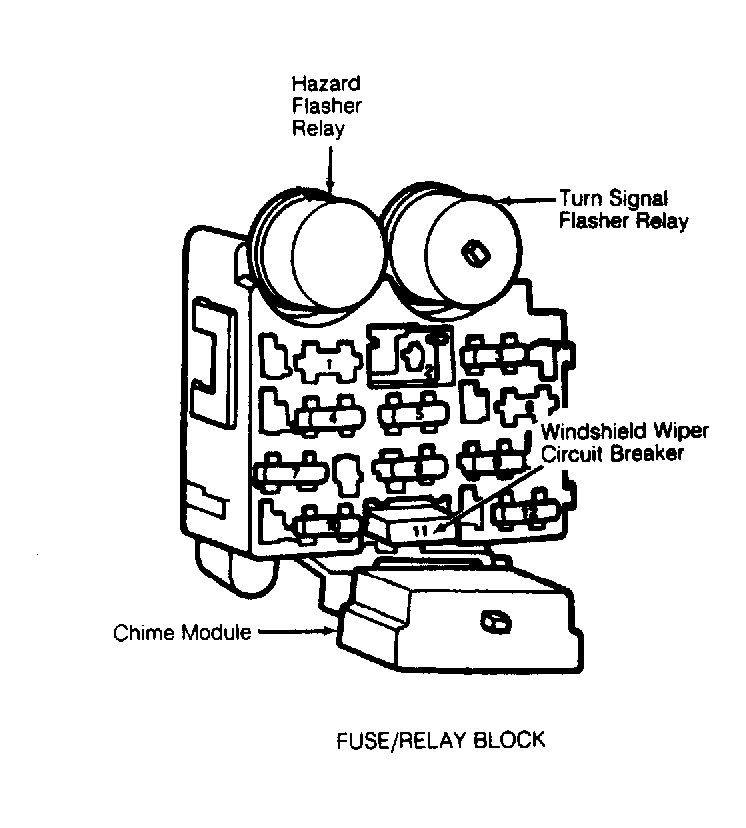

| Chime Module | On fuse/relay block. See Figure . | ||
| Cruise Control Module | Below fuse/relay block. | ||
| Daytime Running Lights Module (1990 Only) | On left rear fenderwell, brake master cylinder. | ||
| Electronic Control Module (ECM) (1990 Only) | Under right side of dash, above blower motor. | ||
| Ignition Module (1989) | |||

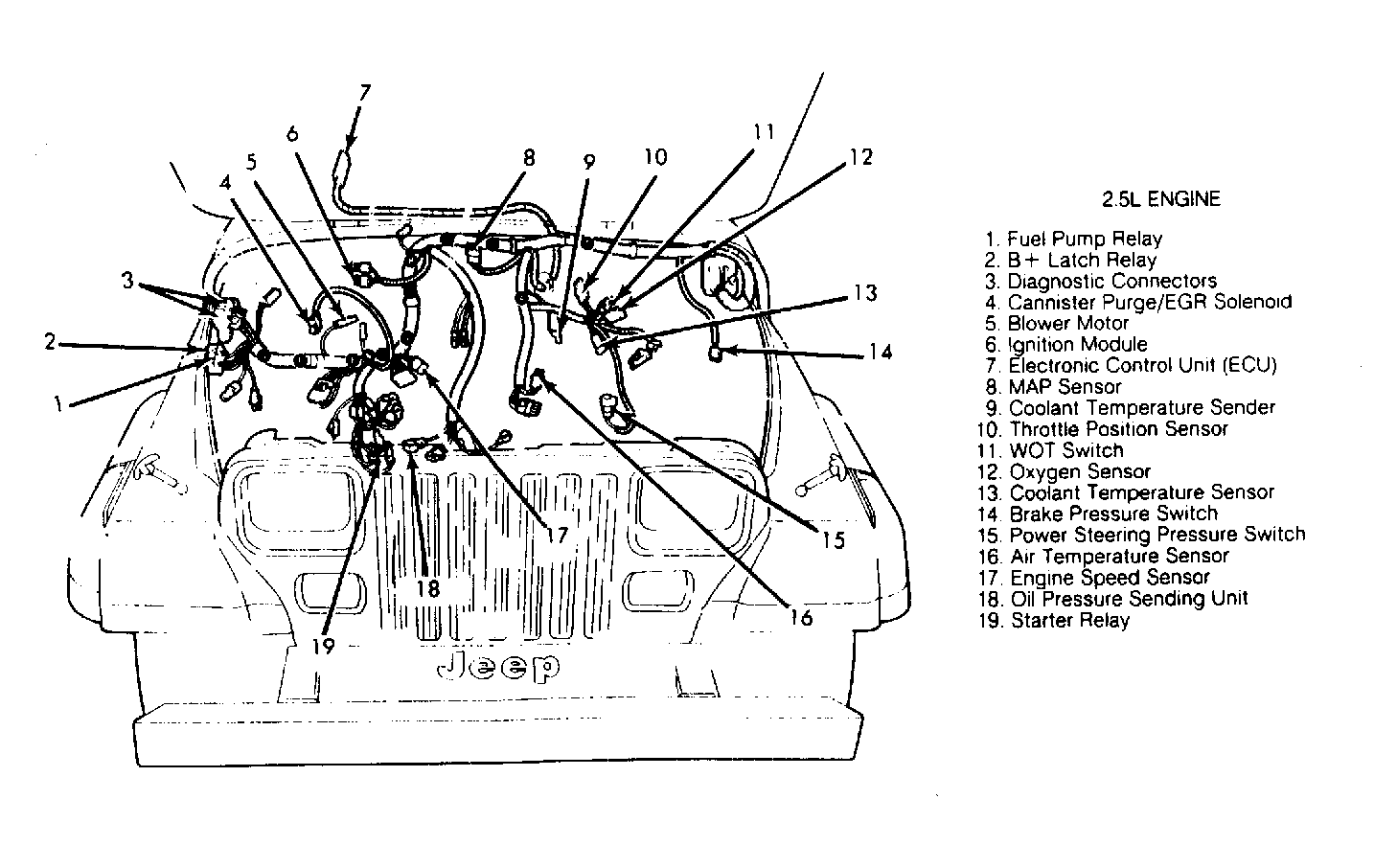

| 2.5L | Mounted on firewall, to left of battery. See Figure . | ||
| 4.2L | On left inner fender panel, below washer fluid level. | ||
| Ignition Control Module (1990) | |||
| 4-Cyl. | |||

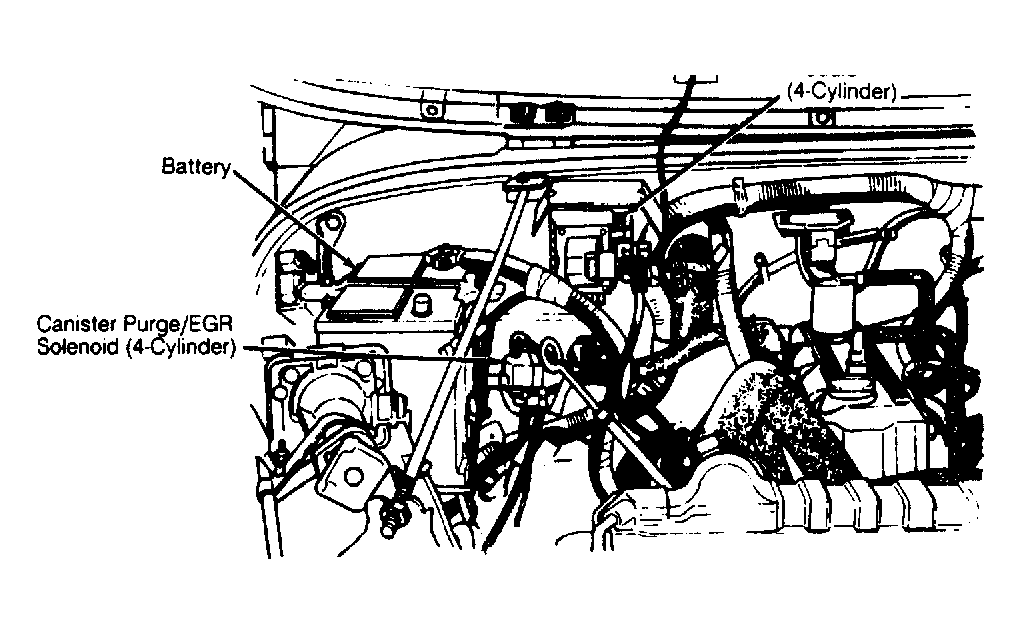

| Left View | Mounted on firewall, to left of battery. See Figure . | ||

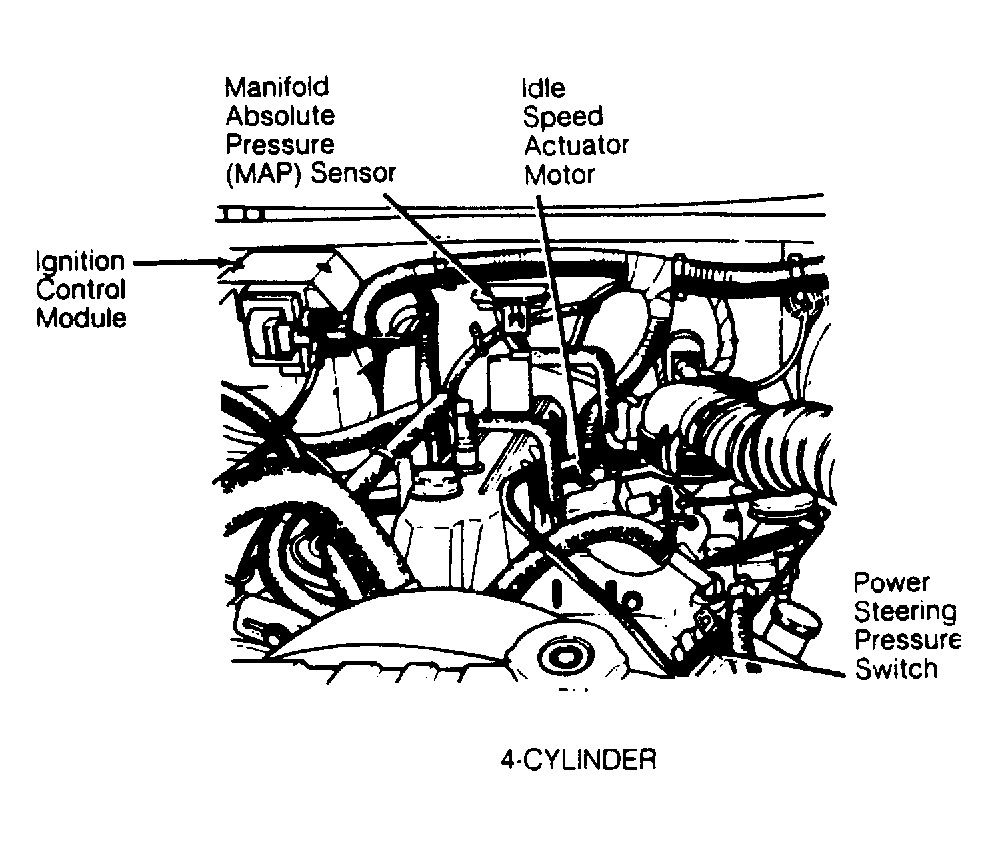

| Right View | Mounted on firewall, to left of battery. See Figure . | ||
| ECU | Left hand side of engine bay, below coolant reservoir. | ||
| MCU | Under center of dash. | ||
| Maintenance Reminder Module | Under left side of dash, on dash bracket. | ||
