Dr-32A: Checking Park/Neutral Switch Input

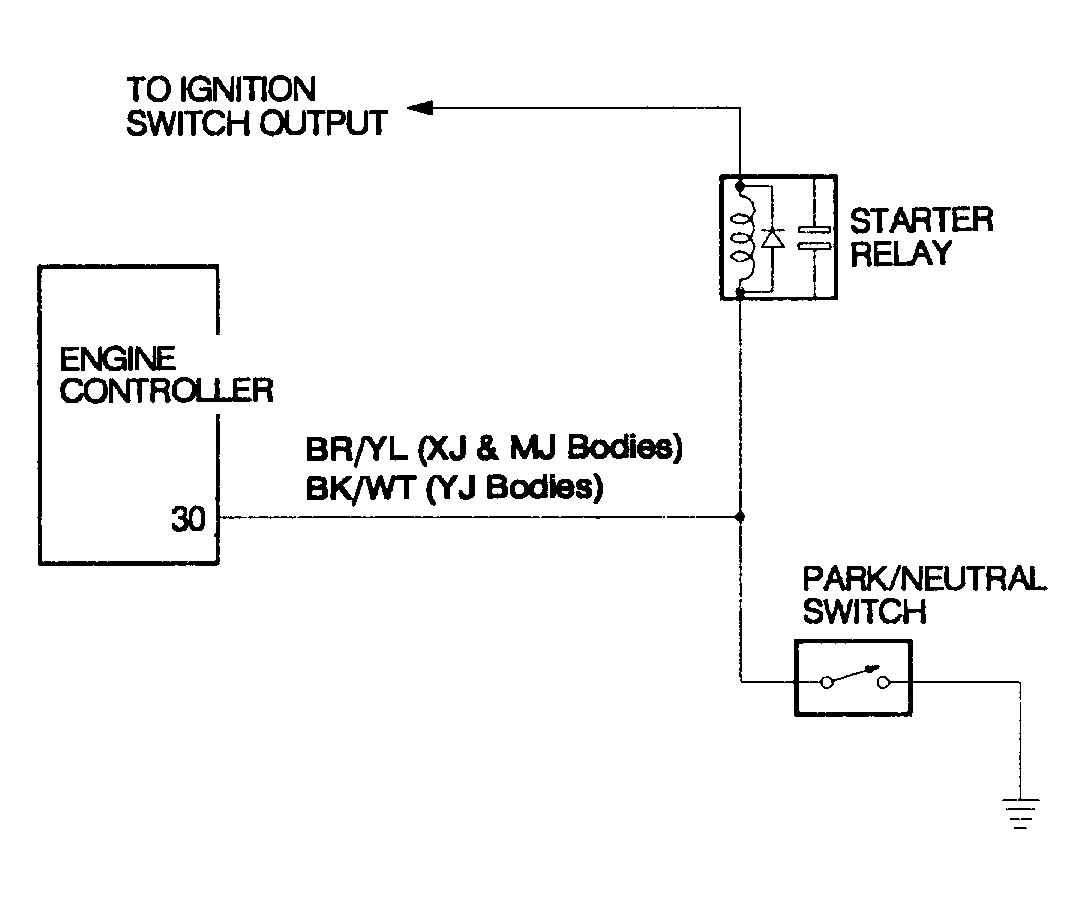

Fig 1: Test DR-32A Schematic, Checking Park/Neutral Switch Input

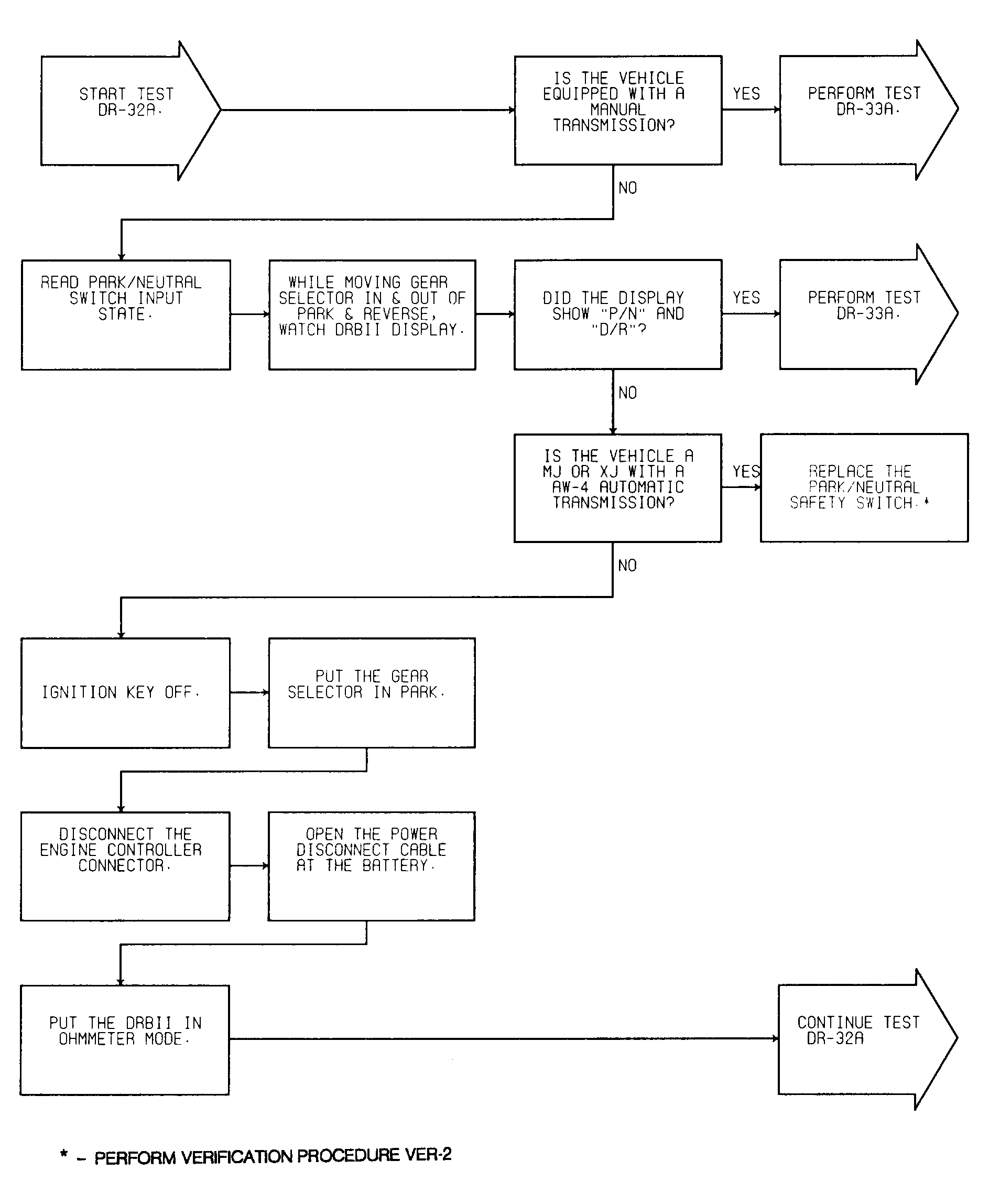

Fig 2: Test DR-32A (1 of 2) Checking Park/Neutral Switch Input

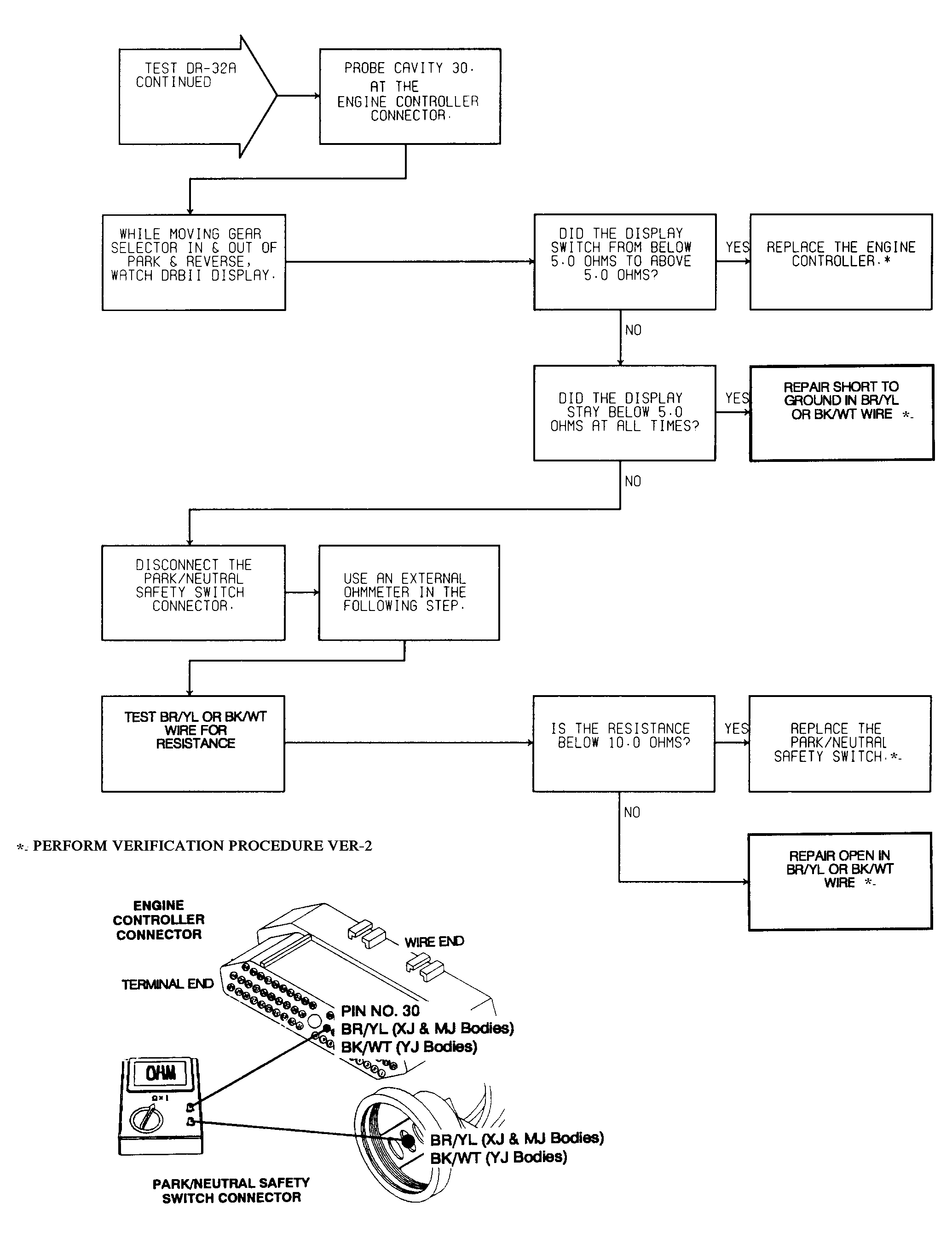

Fig 3: Test DR-32A (2 of 2) Checking Park/Neutral Switch Input
