Dr-7A: Repairing O2 Signal Stays At Center

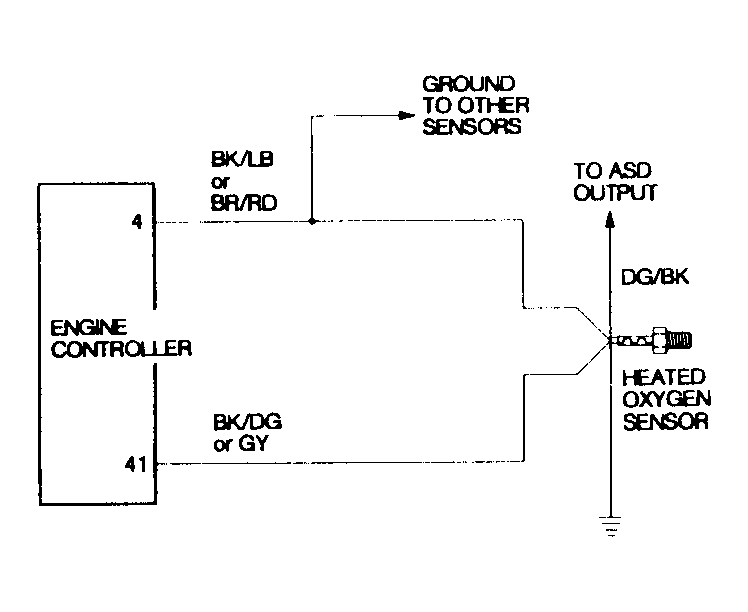

Fig 1: Test DR-7A, Schematic, O2 Signal Stays At Center

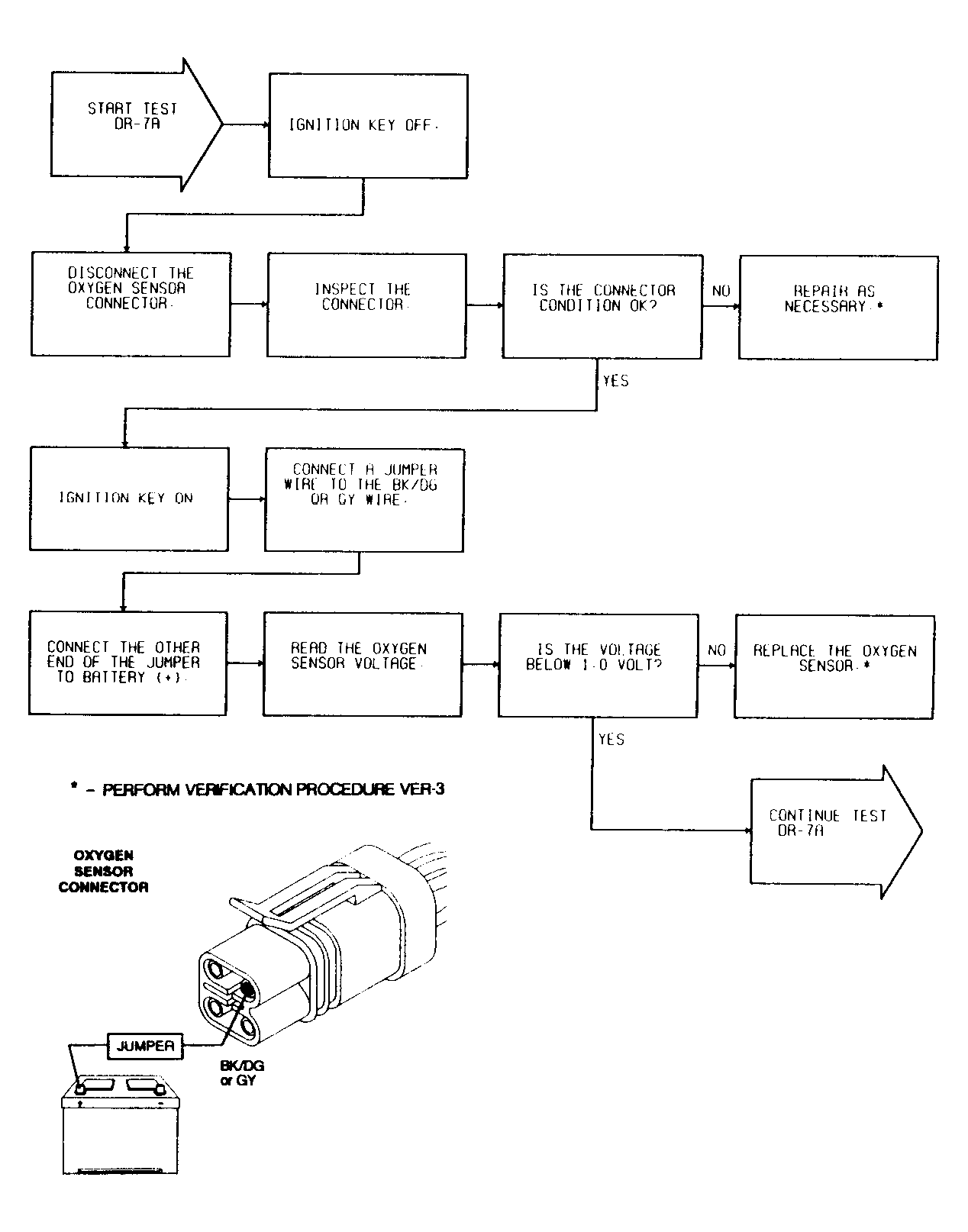

Fig 2: Test DR-7A (1 of 2) O2 Signal Stays At Center

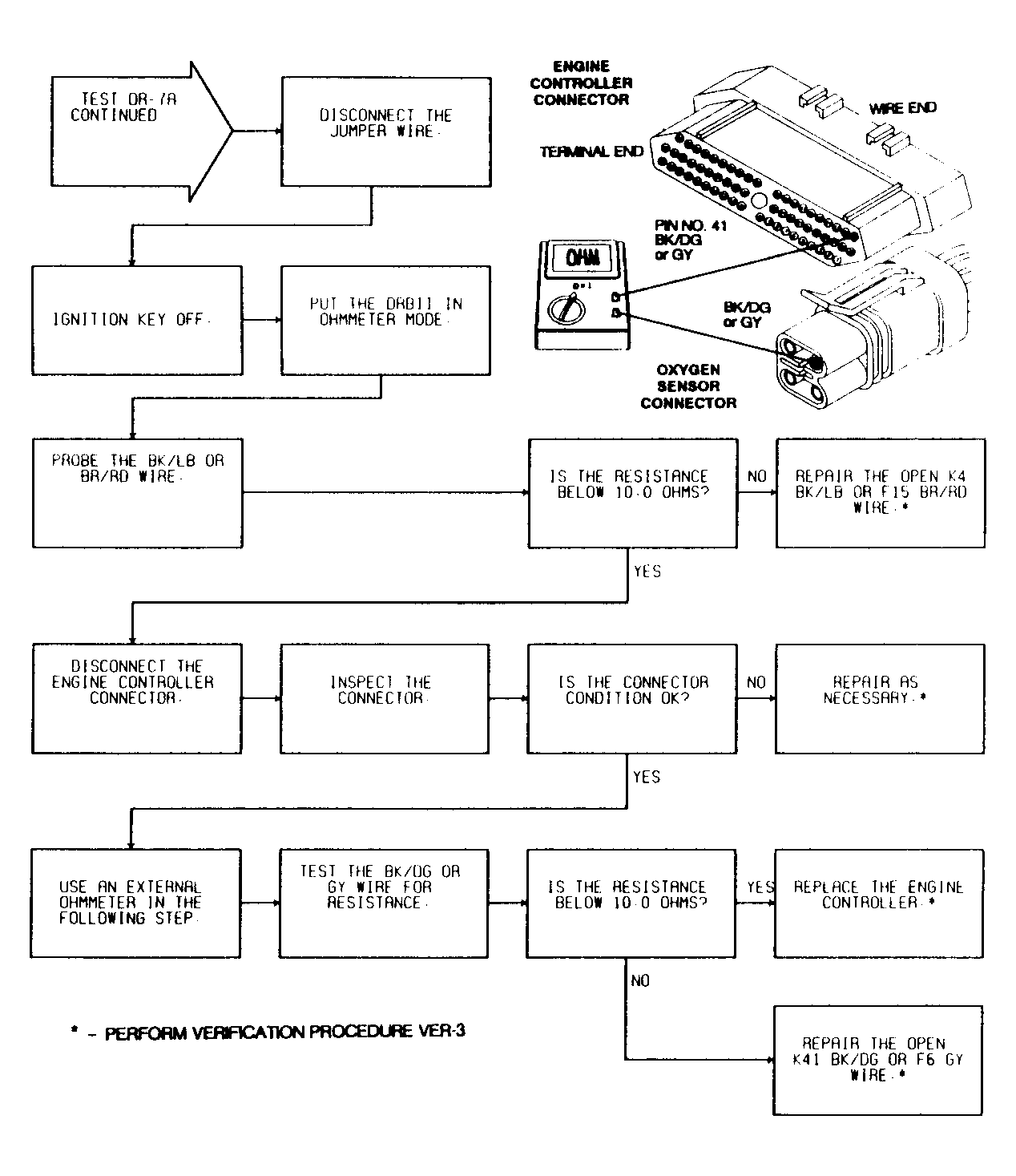

Fig 3: Test DR-7A (2 of 2) O2 Signal Stays At Center
