Home >> Jeep >> 1991 >> Cherokee Limited >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Code Charts >> NS-2A: Checking Fuel Delivery System

NS-2A: Checking Fuel Delivery System

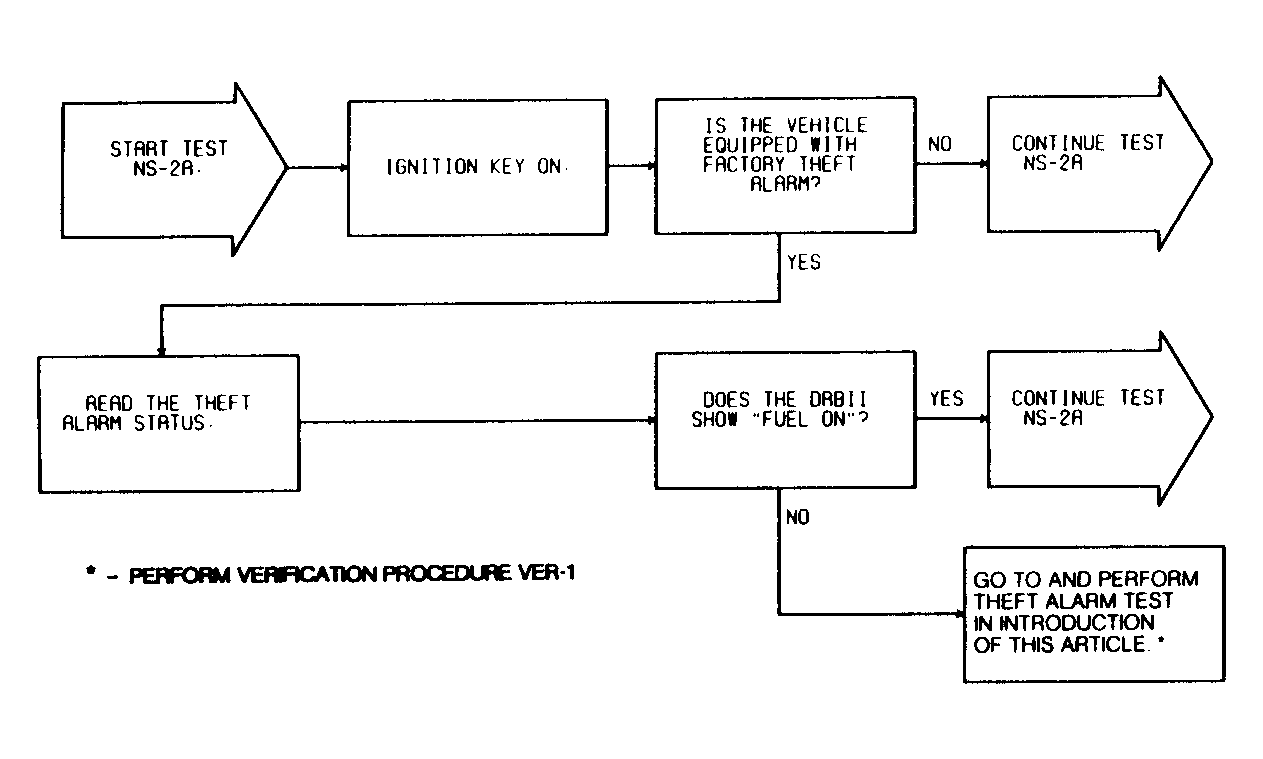

Fig 1: Test NS-2A (1 of 3) Checking Fuel Delivery System
G91D13808

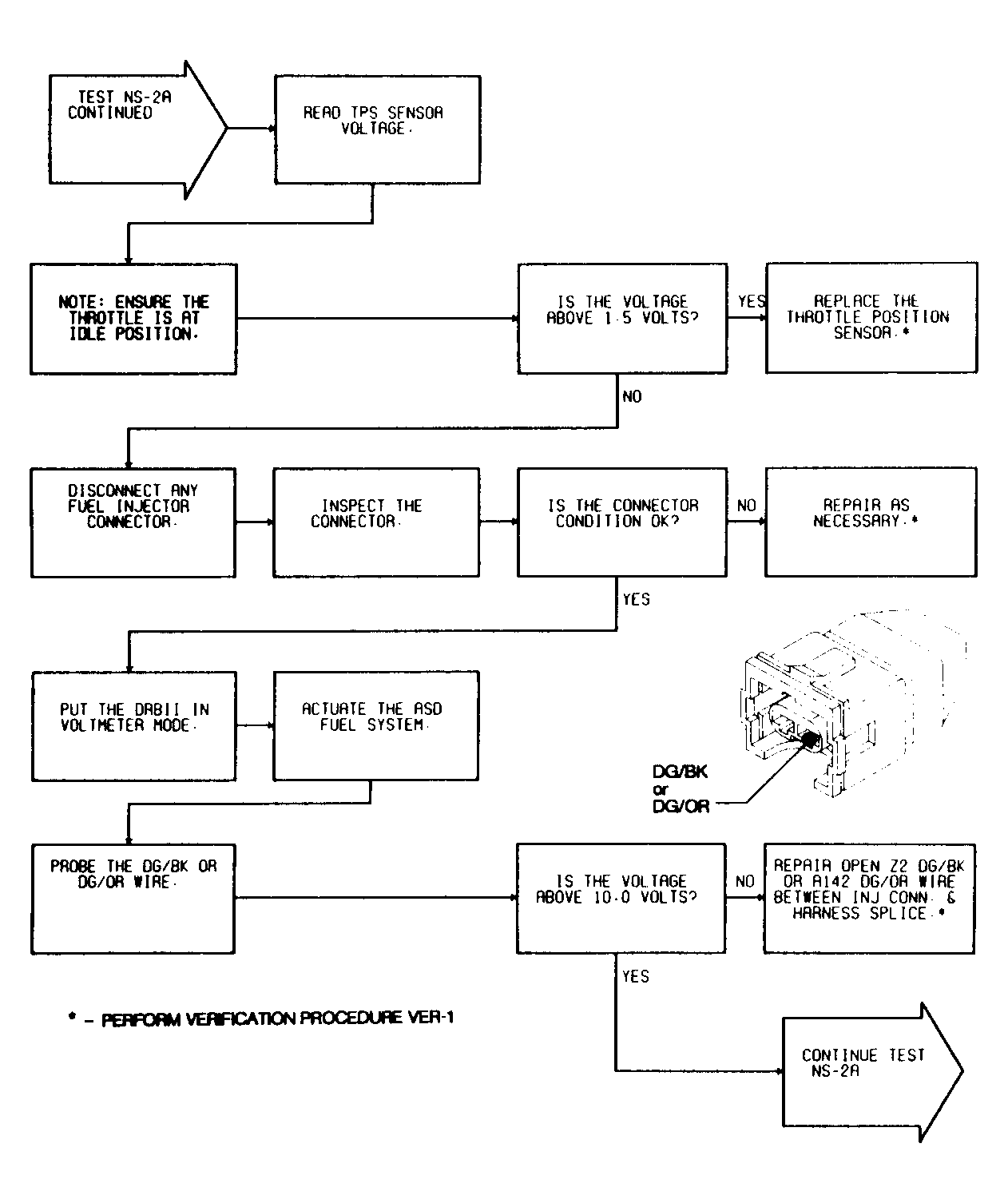

Fig 2: Test NS-2A (2 of 3) Checking Fuel Delivery System
G91E13809

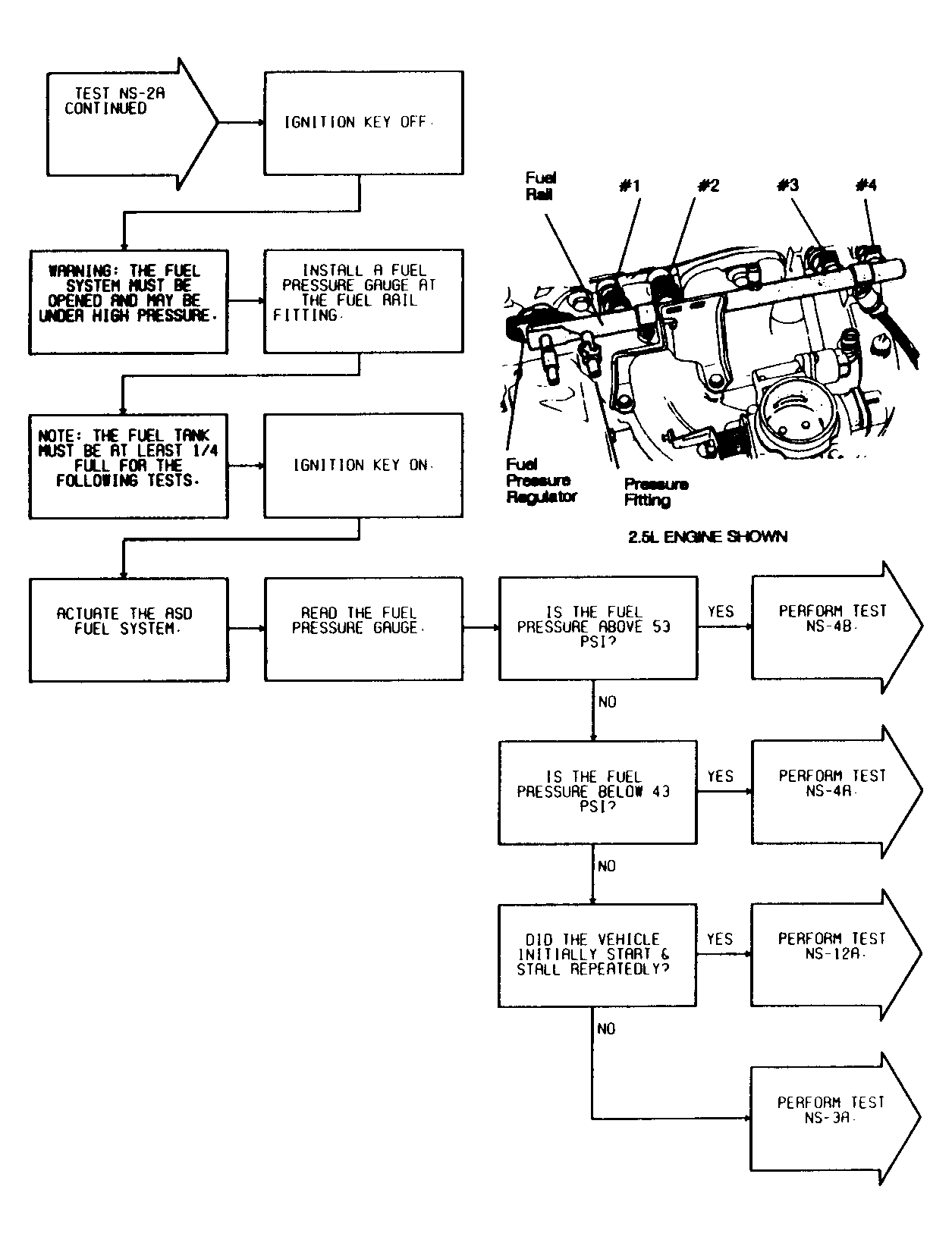

Fig 3: Test NS-2A (3 of 3) Checking Fuel Delivery System
G91H13810
