NS-6B: Checking Distributor Sync Circuits

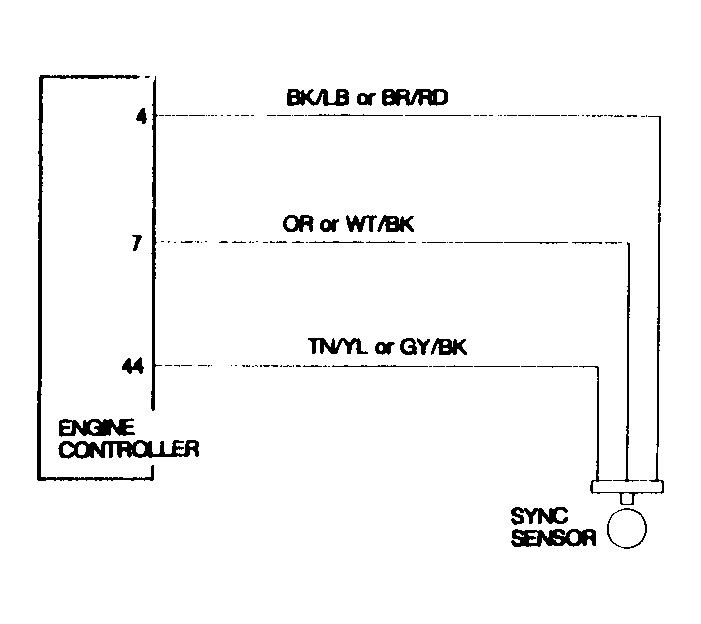

Fig 1: Test NS-6B Schematic, Checking Distributor Sync Circuits

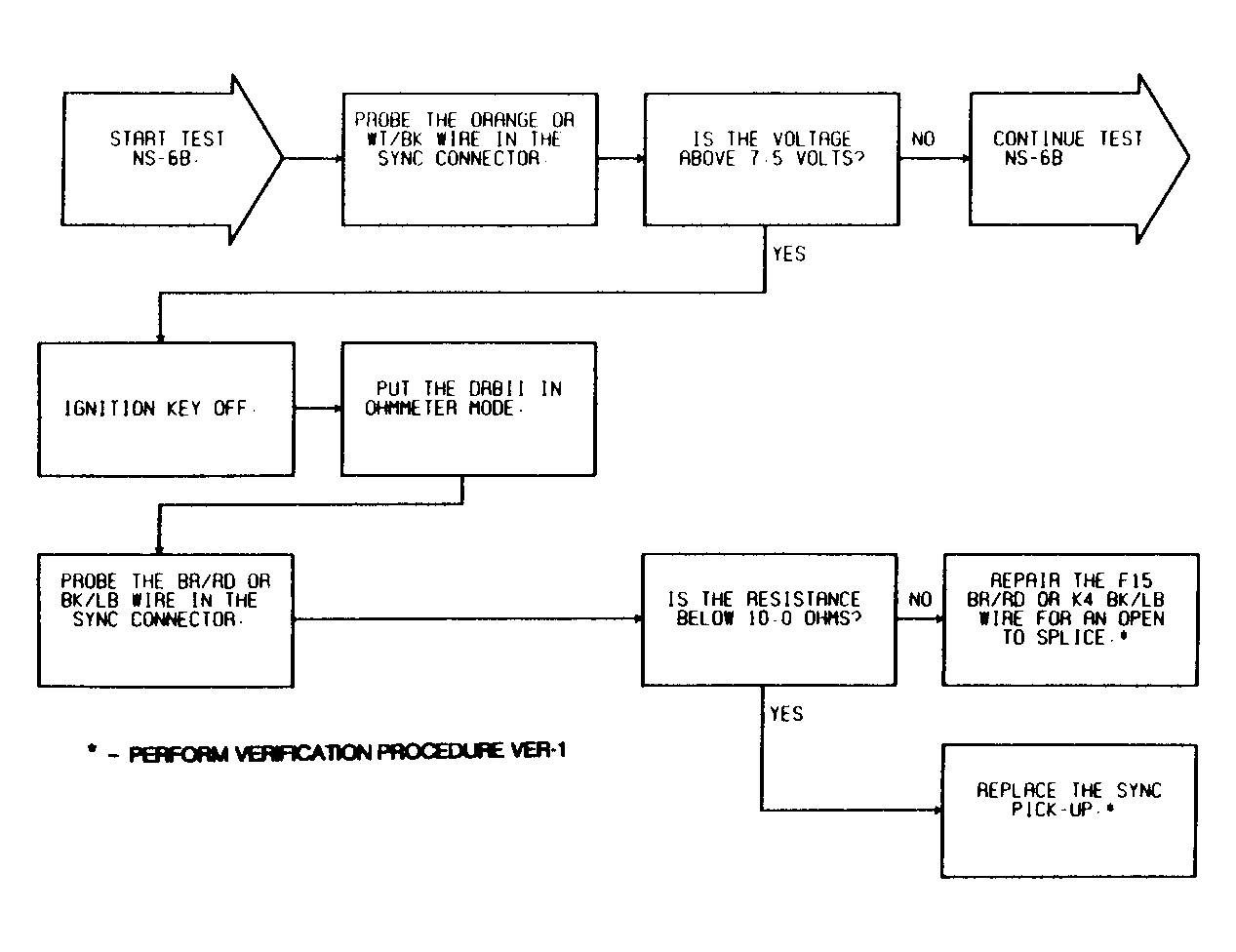

Fig 2: Test NS-6B (1 of 2) Checking Distributor Sync Circuits

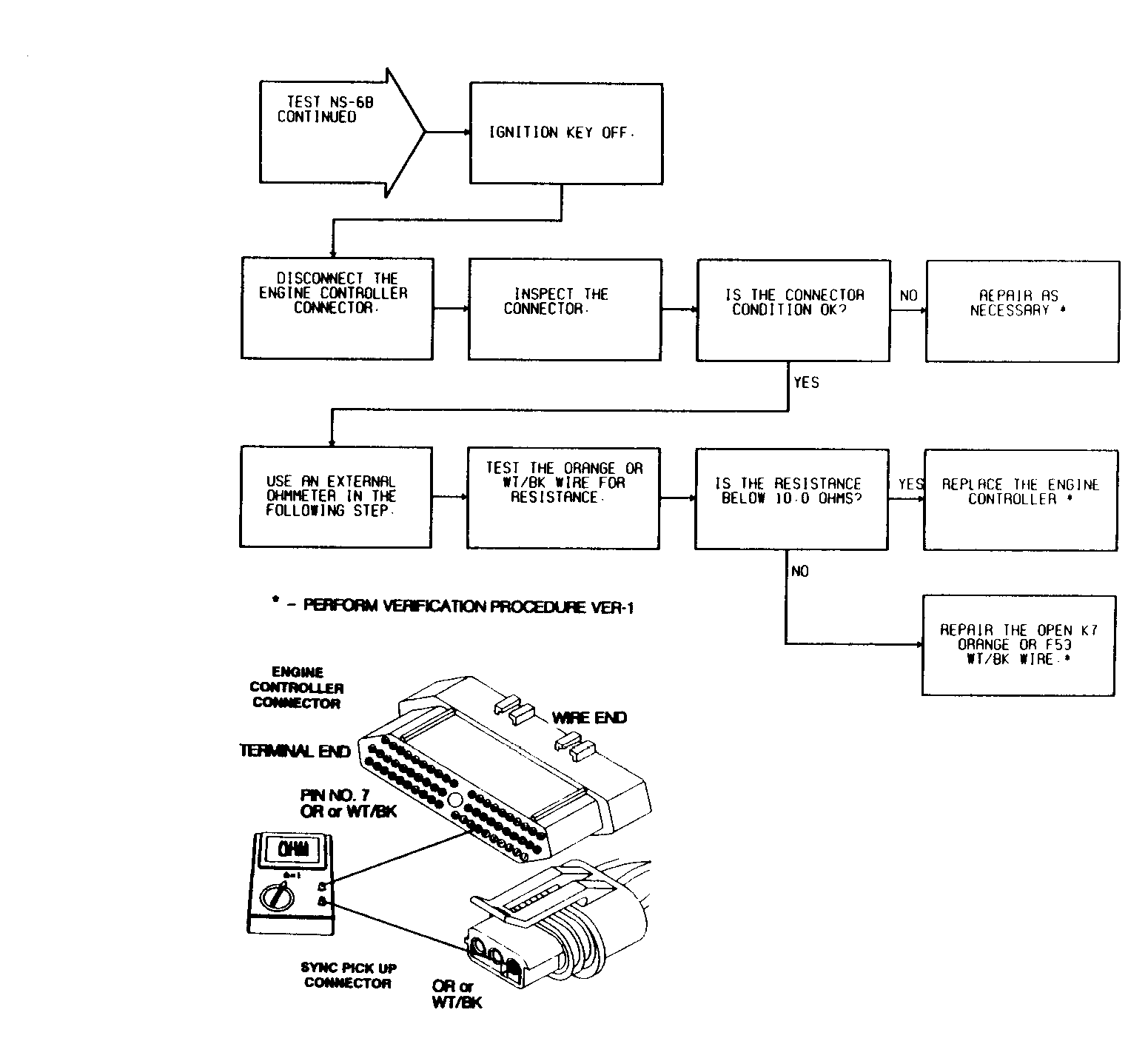

Fig 3: Test NS-6B (2 of 2) Checking Distributor Sync Circuits
