NS-9B: Checking Distributor Reference Circuit

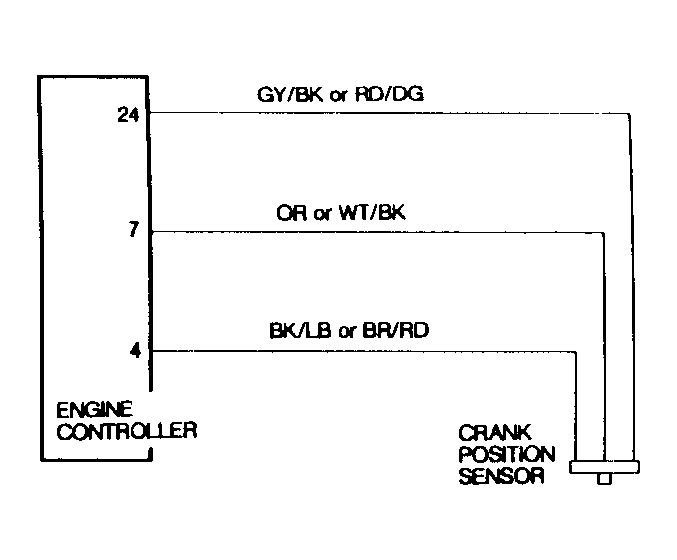

Fig 1: Test NS-9B Schematic, Distributor Reference Circuit

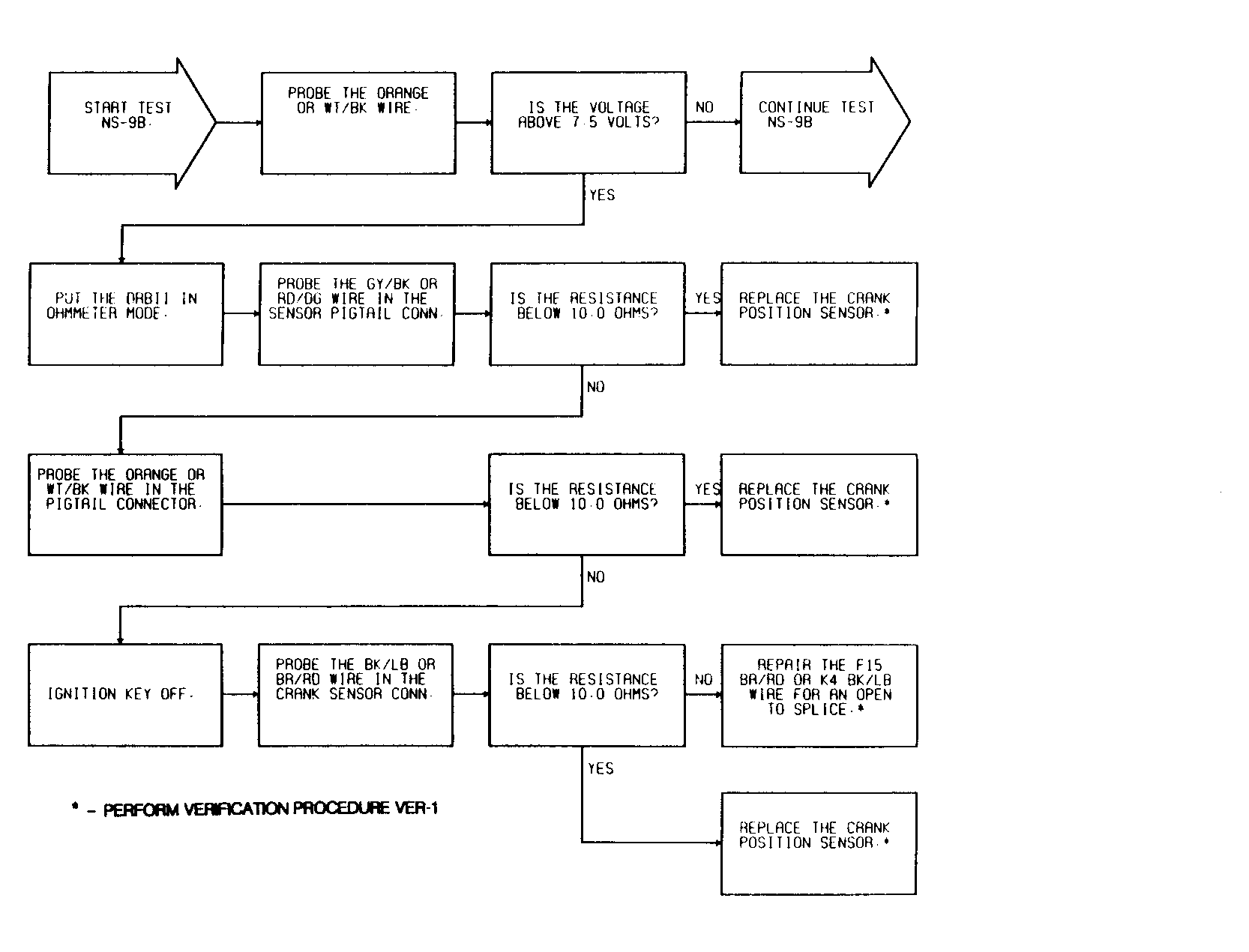

Fig 2: Test NS-9B (1 of 2) Distributor Reference Circuit

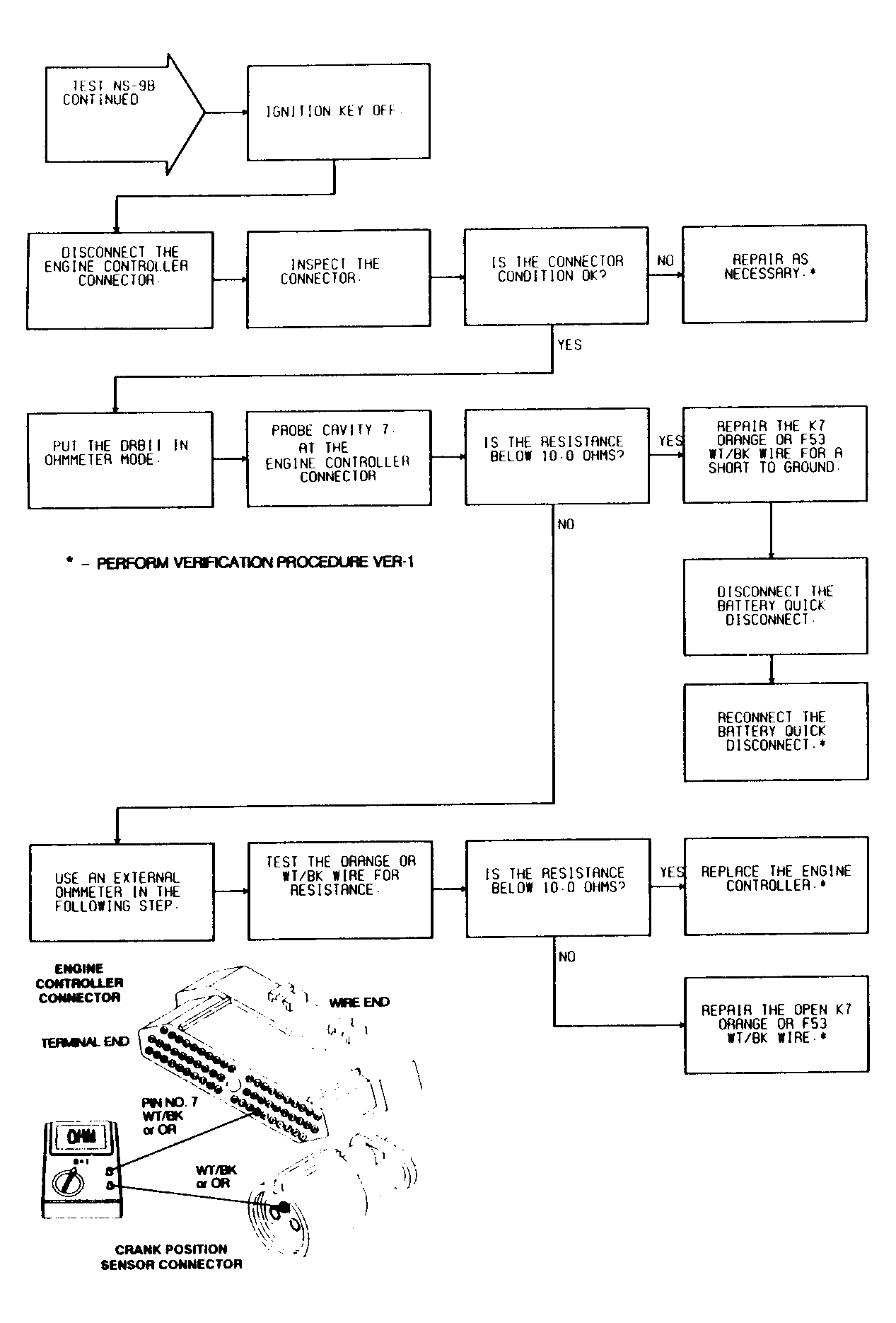

Fig 3: Test NS-9B (2 of 2) Distributor Reference Circuit
