Wiring Diagrams

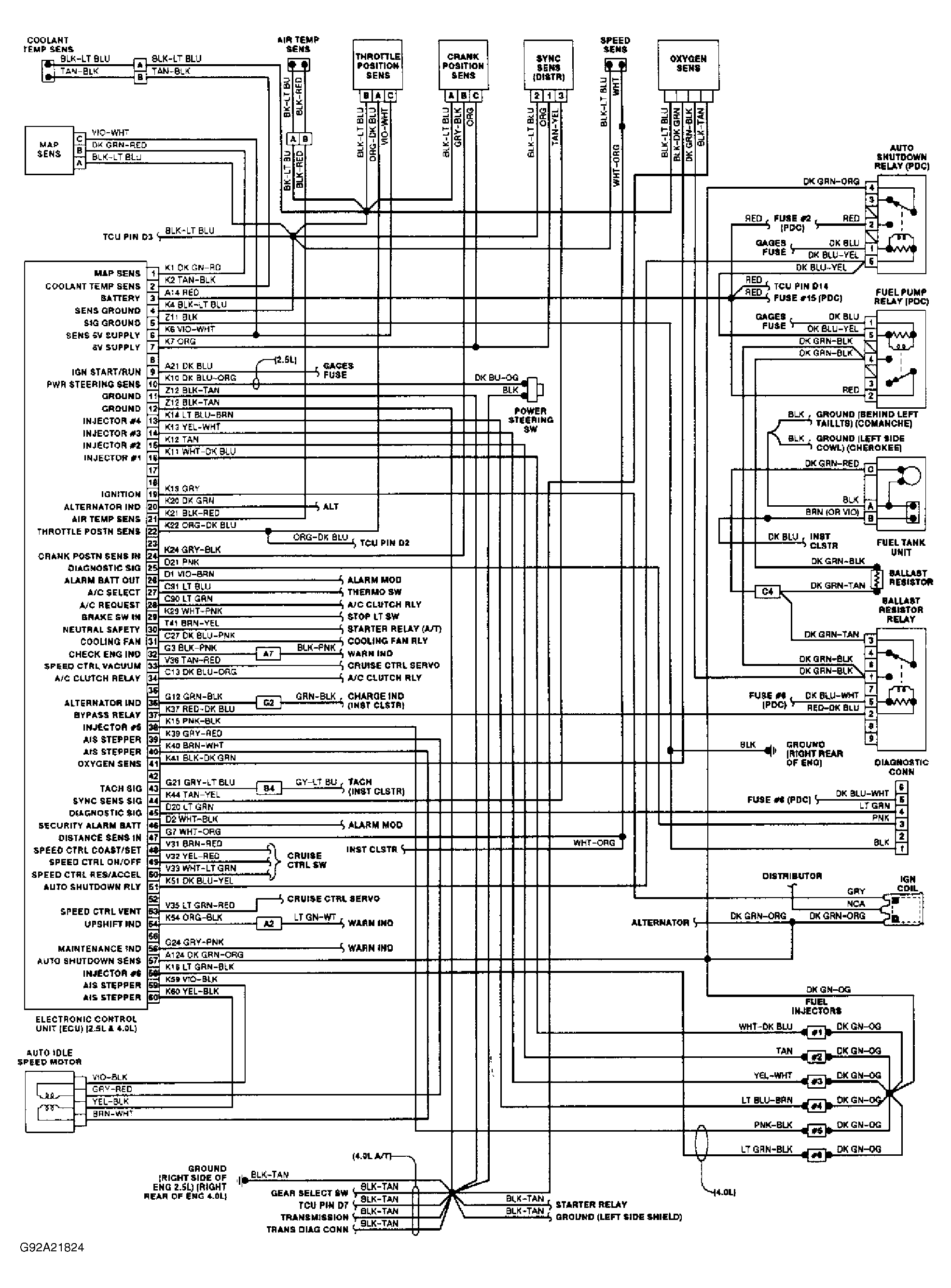

Fig 1: Wiring Diagram (2.5L & 4.0L - Cherokee & Comanche)

G92A21824

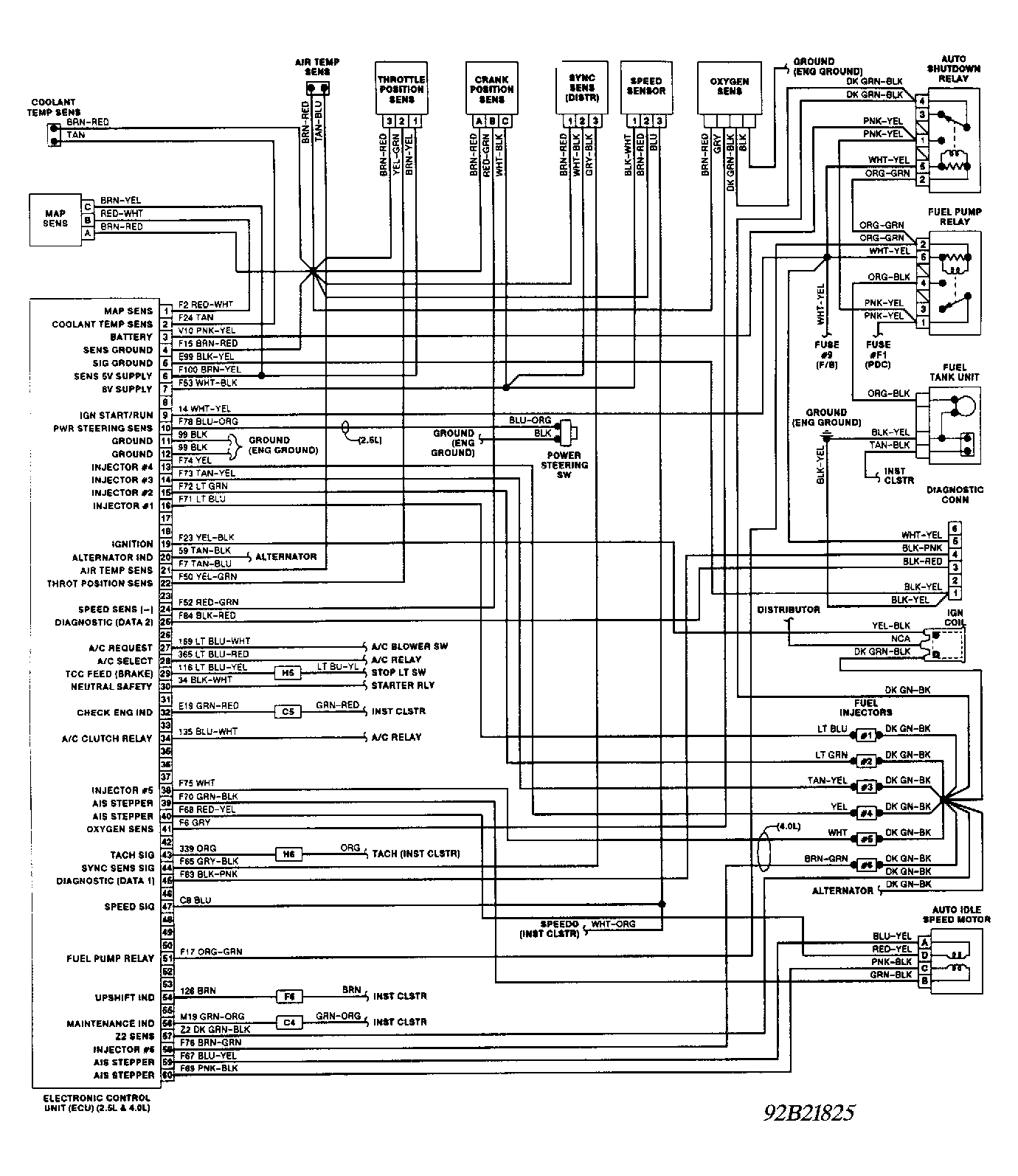

Fig 2: Wiring Diagram (2.5L & 4.0L - Wrangler)

G92B21825
