Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Cruise Control In-Line Fuse | Taped to harness, near cruise control module. |

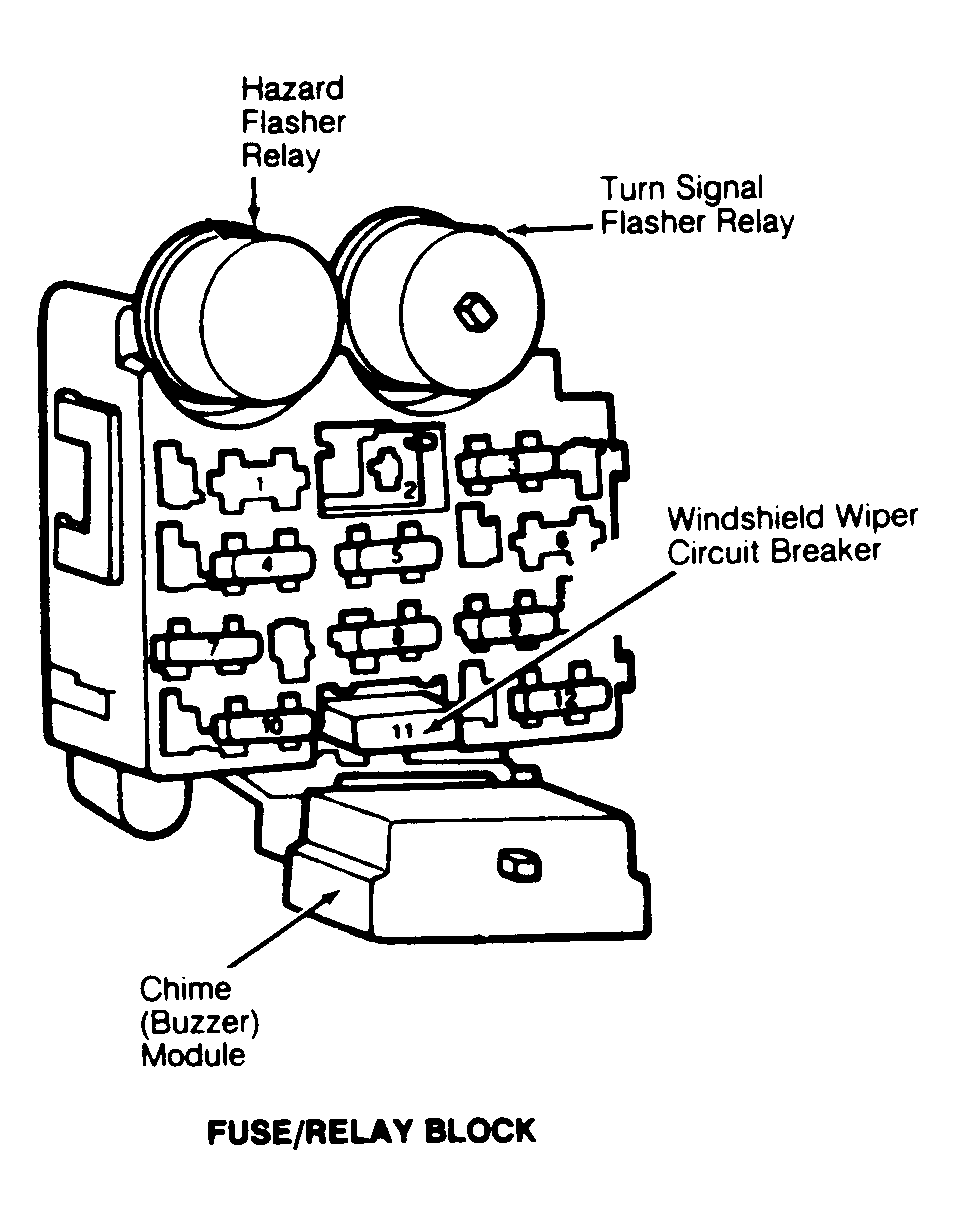

| Fuse/Relay Block | Under left side of dash. See Figure. |

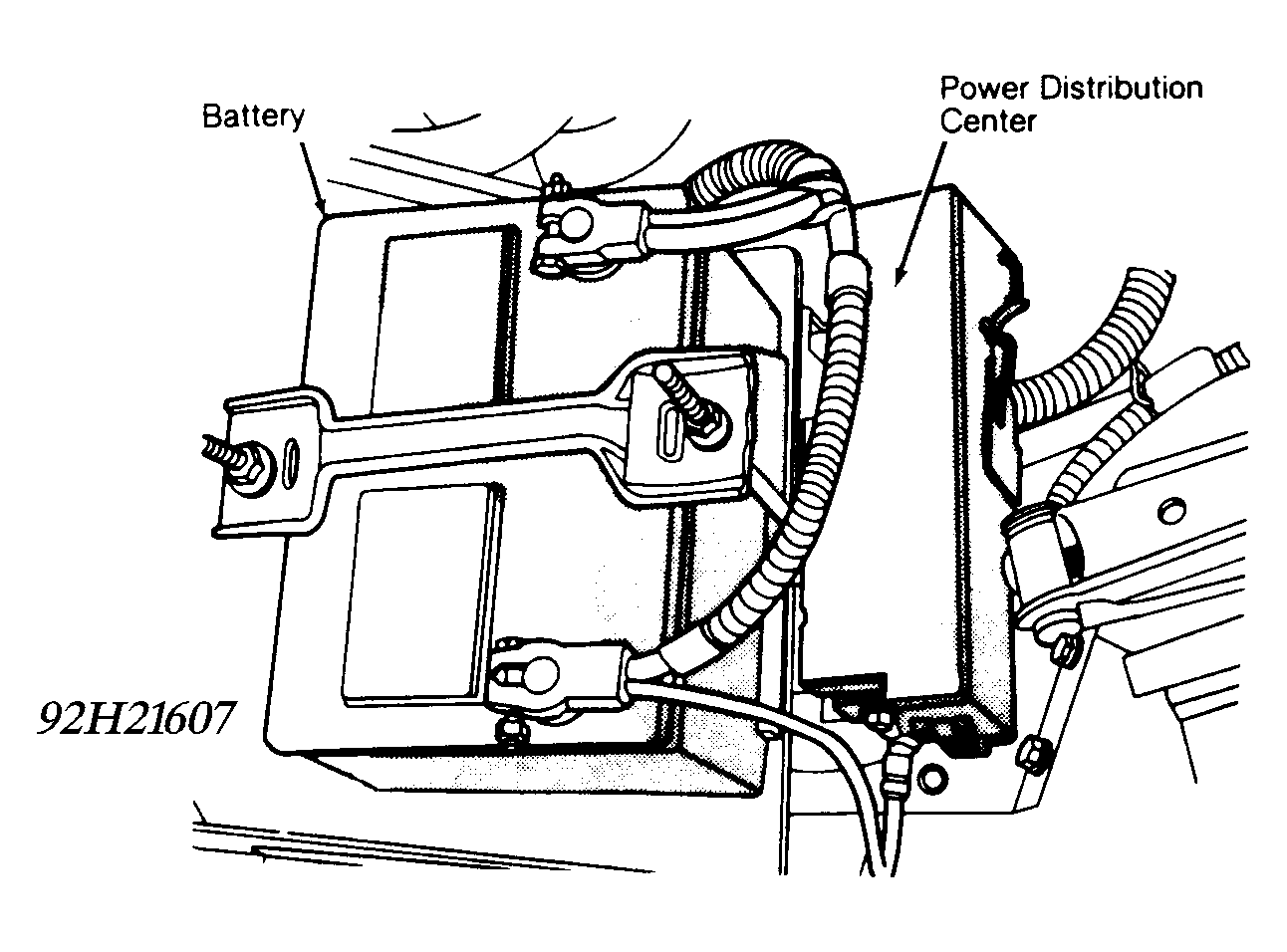

| Power Distribution Center | On right fender panel, near battery. See Figure. |
| Windshield Wiper Circuit Breaker | On fuse/relay block. See Figure. |
