Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Module | Behind right side of dash, above A/C-heater plenum housing. |

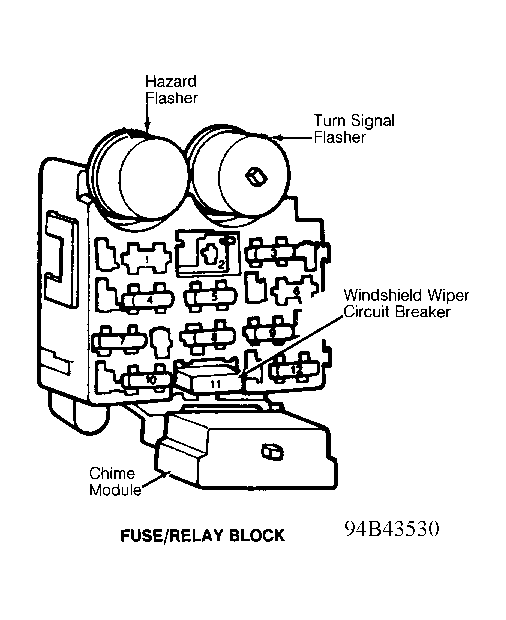

| Chime Module | On fuse/relay block. See Figure . |
| Daytime Running Light (DRL) Module | On left inner fender panel, below air cleaner housing. |
| Intermittent Wiper Module | On bracket, at bottom of steering column. |

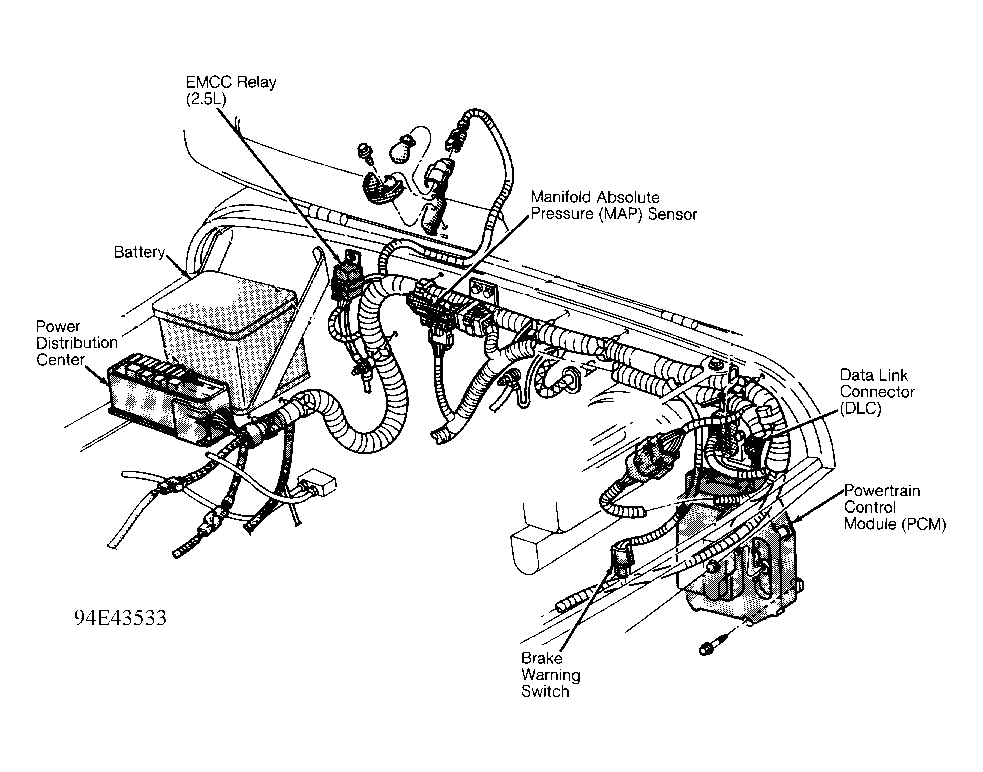

| Powertrain Control Module (PCM) | In engine compartment, on left side of firewall. See Figure . |
