Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

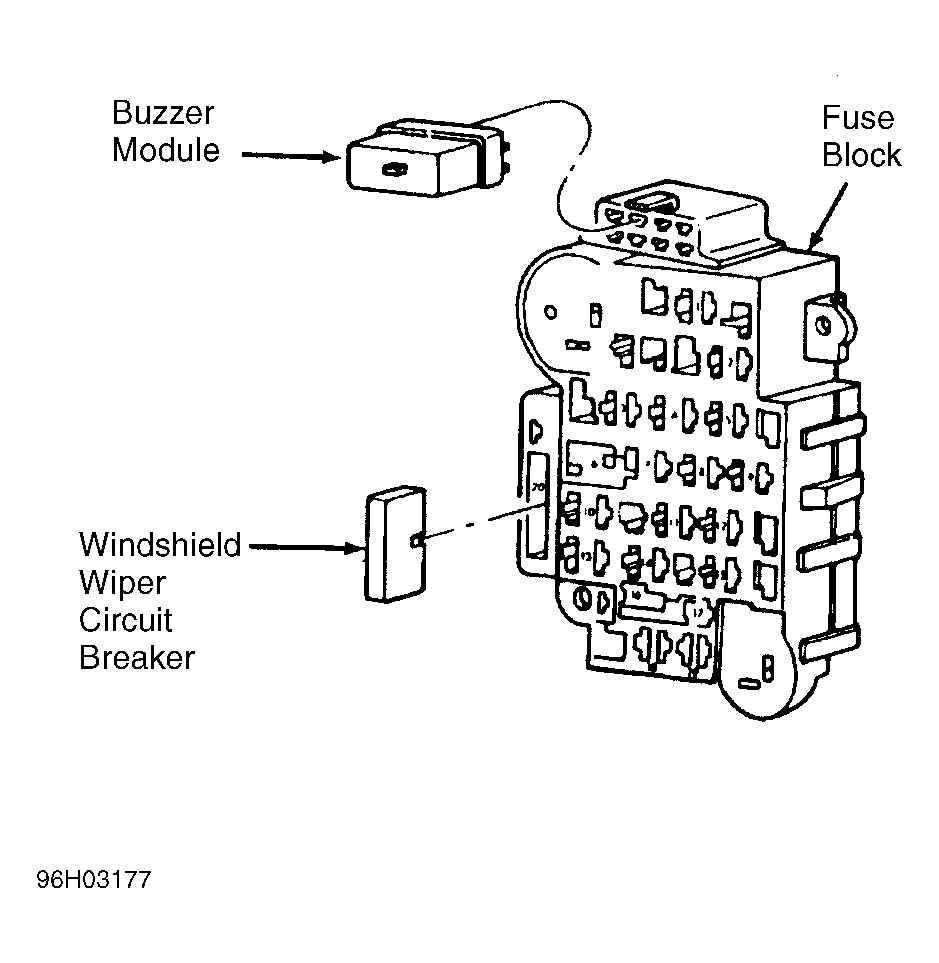

Fig 1: Fuse Block

Fig 2: Transmission Housing

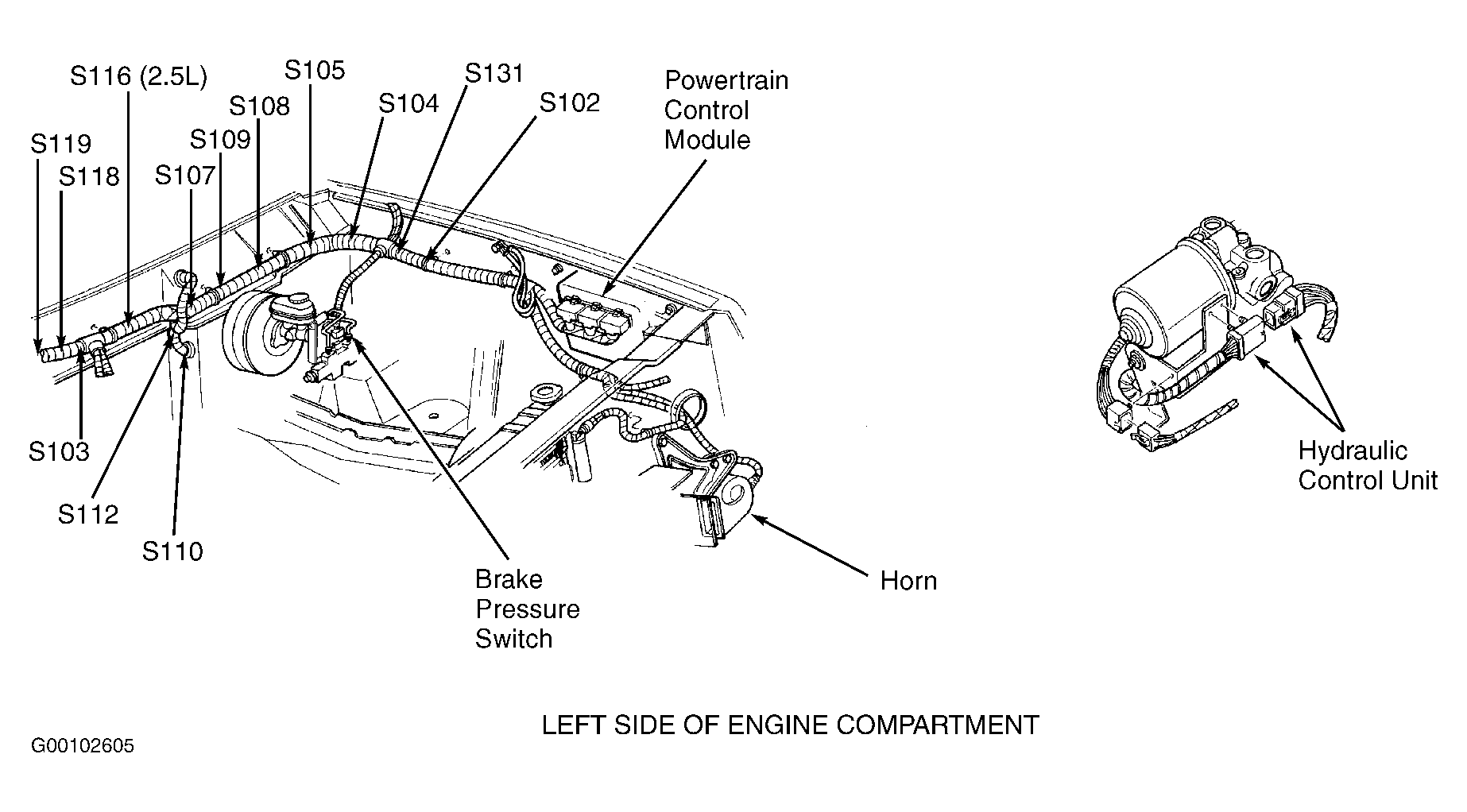

Fig 3: Left Side Of Engine Compartment

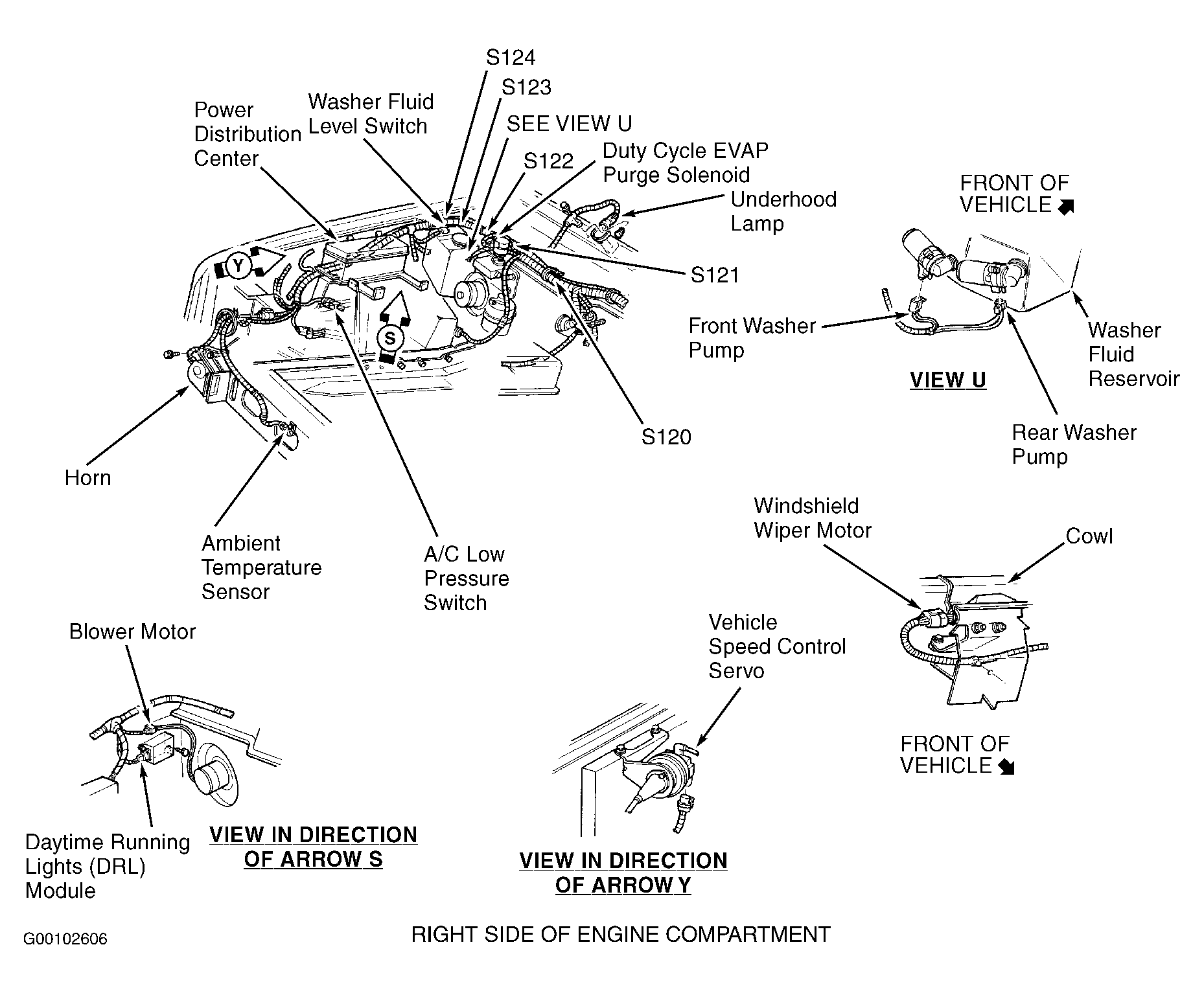

Fig 4: Right Side Of Engine Compartment

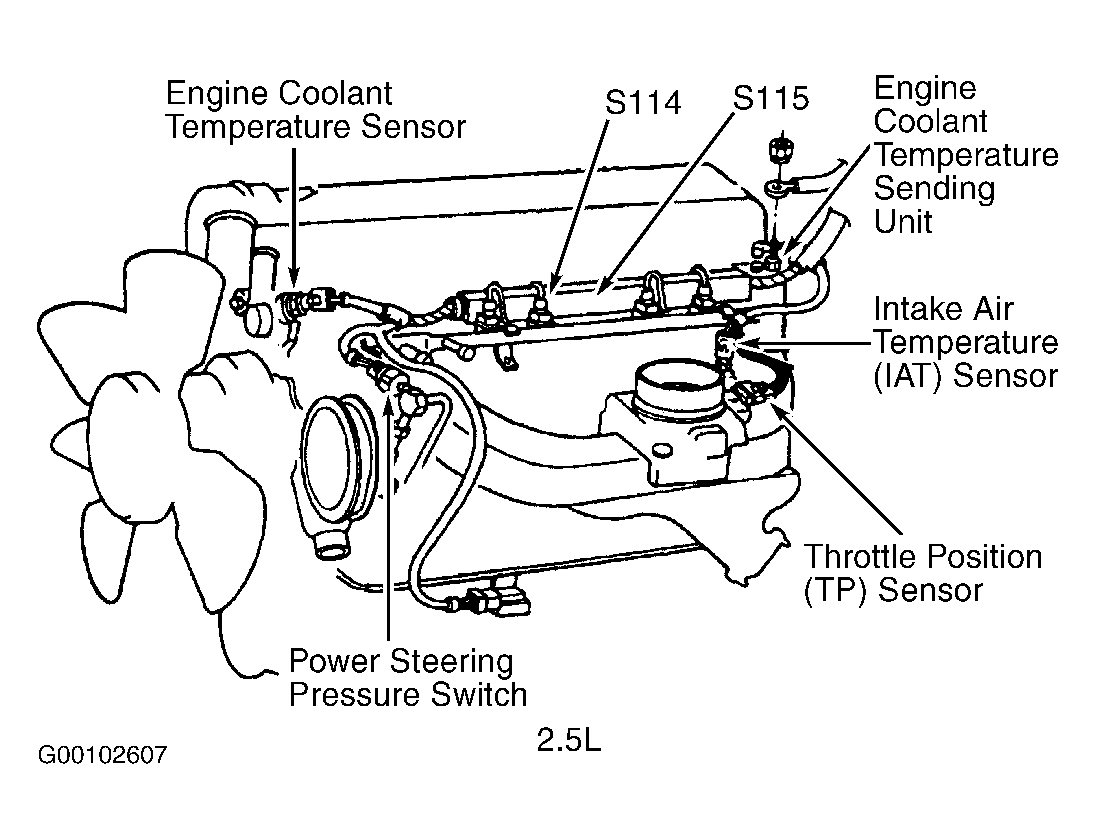

Fig 5: Left Side Of Engine (2.5L)

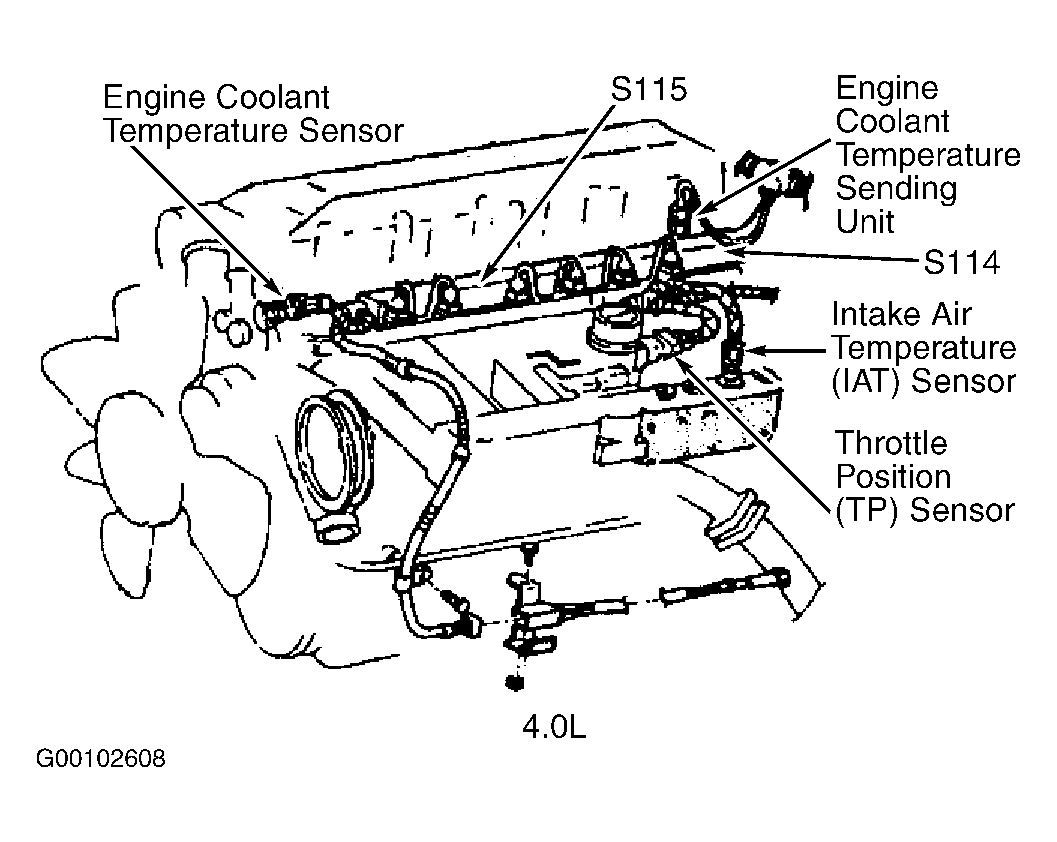

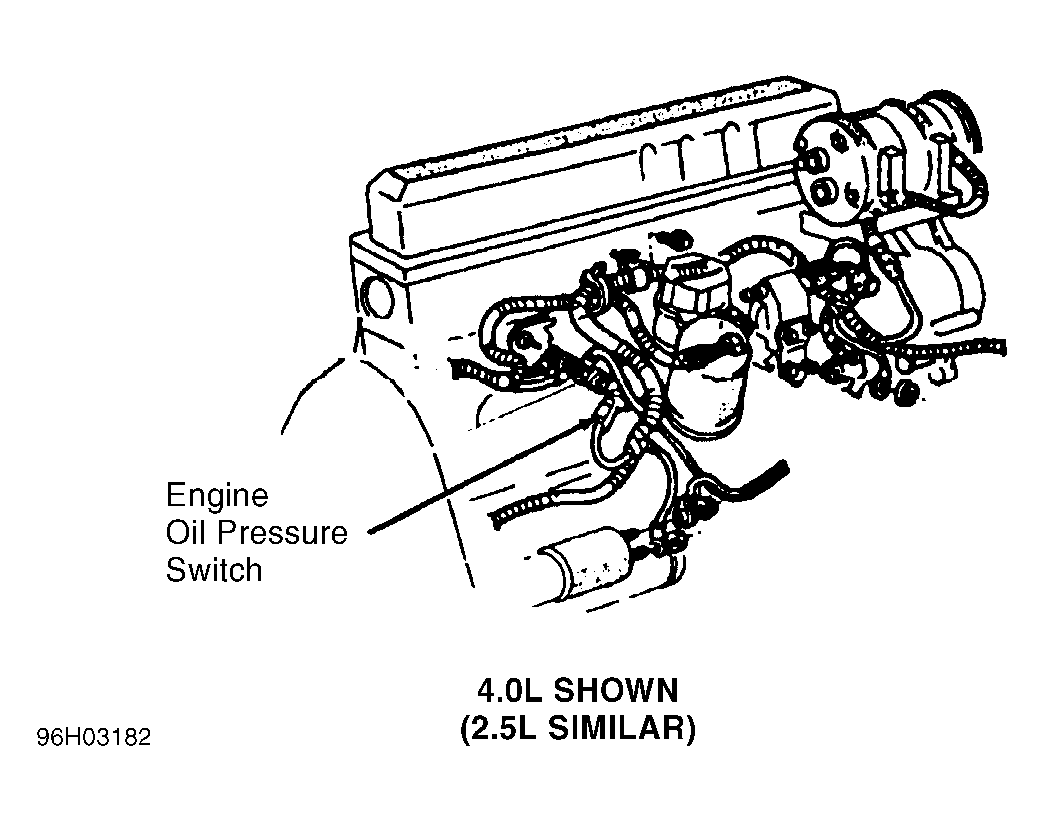

Fig 6: Left Side Of Engine (4.0L)

Fig 7: Right Side Of Engine

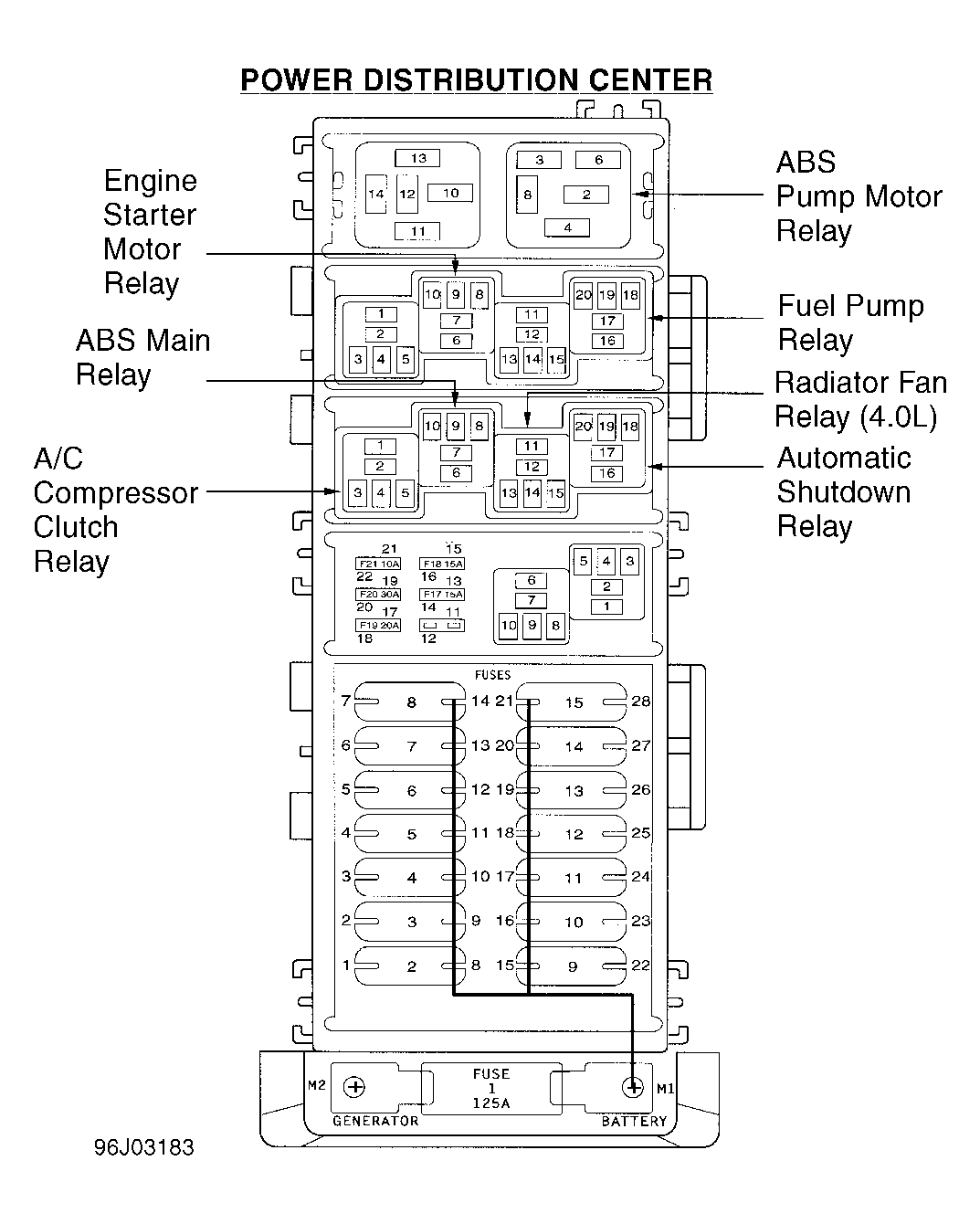

Fig 8: Power Distribution Center

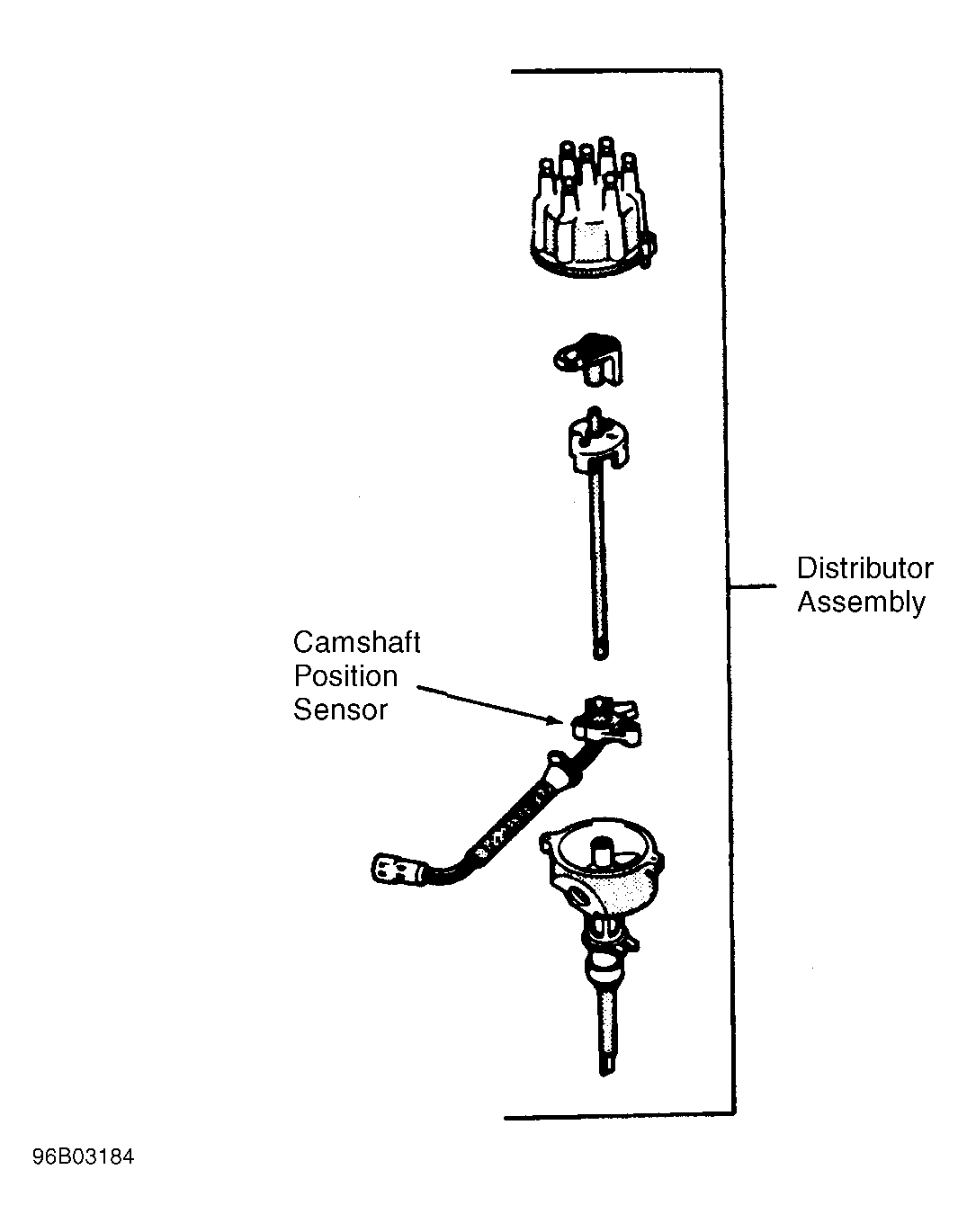

Fig 9: Distributor Assembly

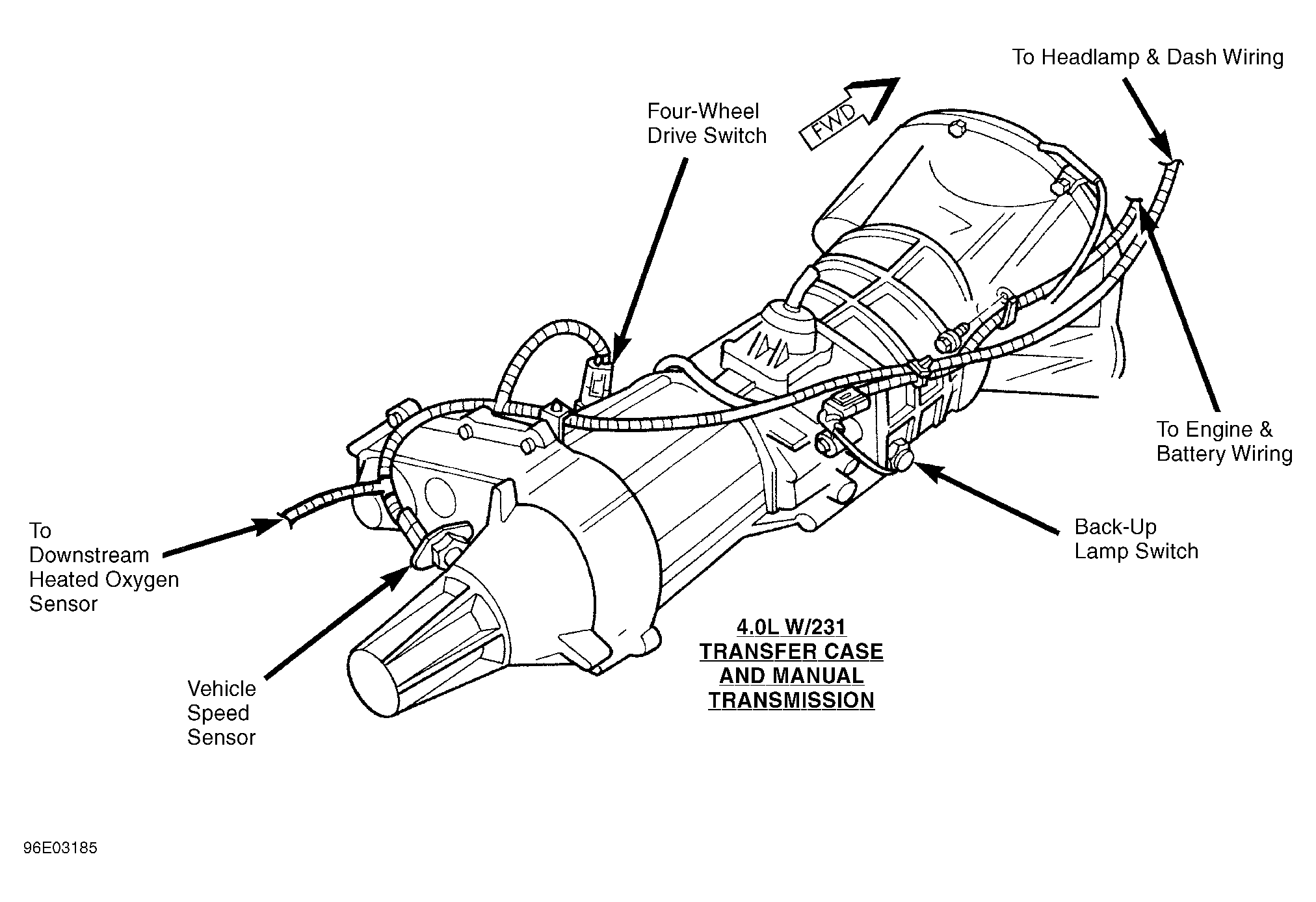

Fig 10: Transfer Case & Manual Transmission (4.0L W/231)
