Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

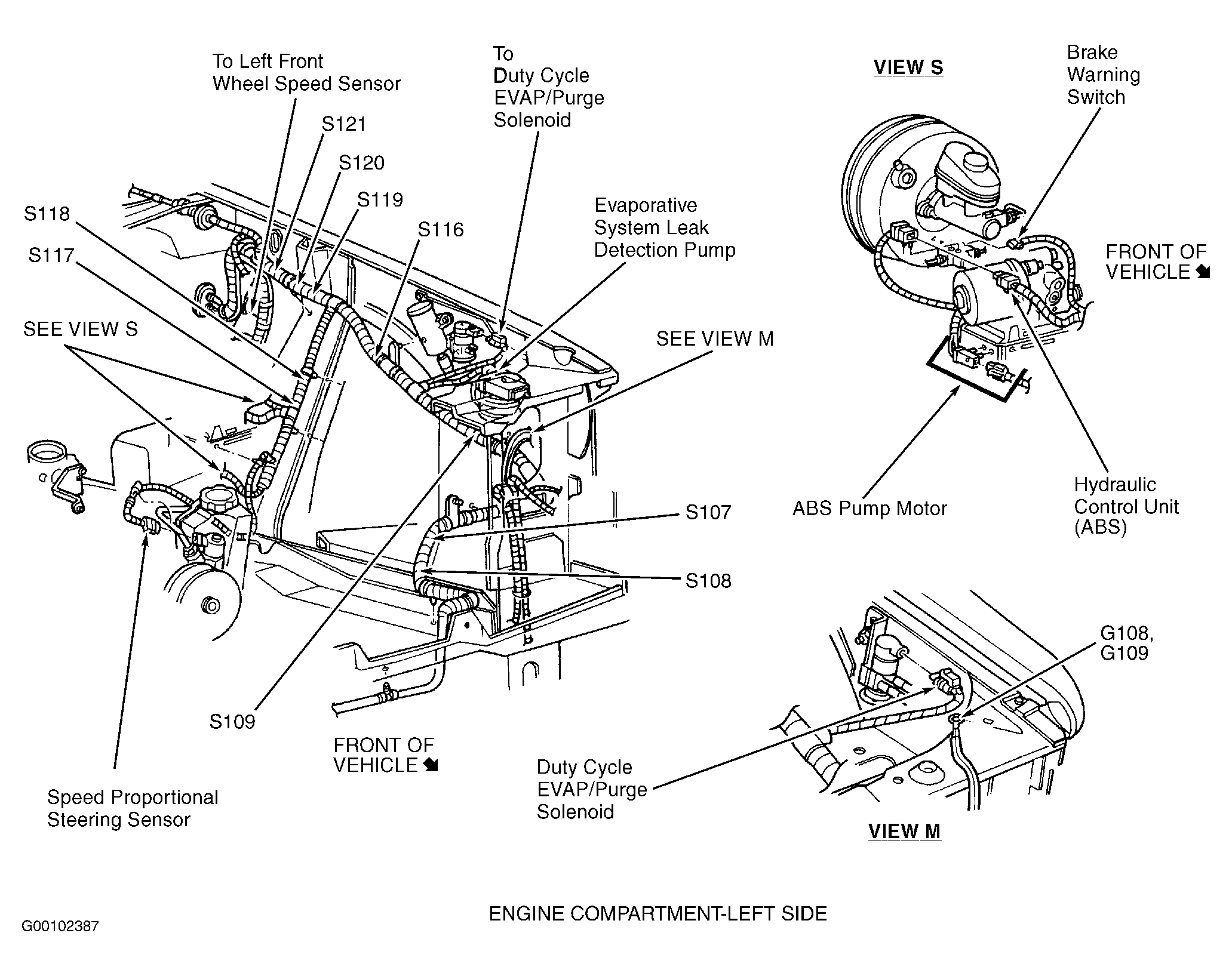

Fig 1: Left Side Of Engine Compartment

Fig 2: Right Side Of Engine Compartment

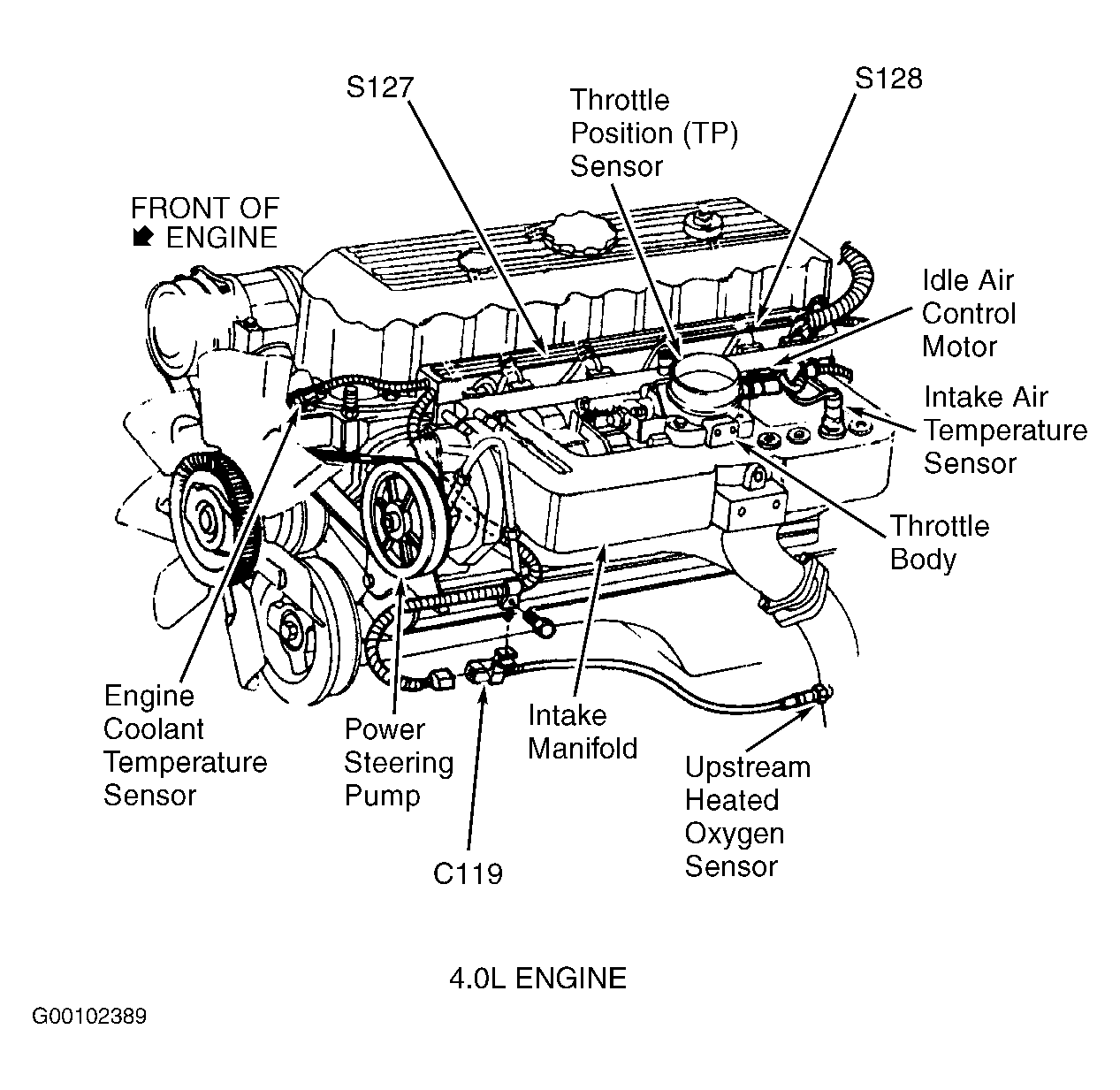

Fig 3: Left Side Of Engine (4.0L)

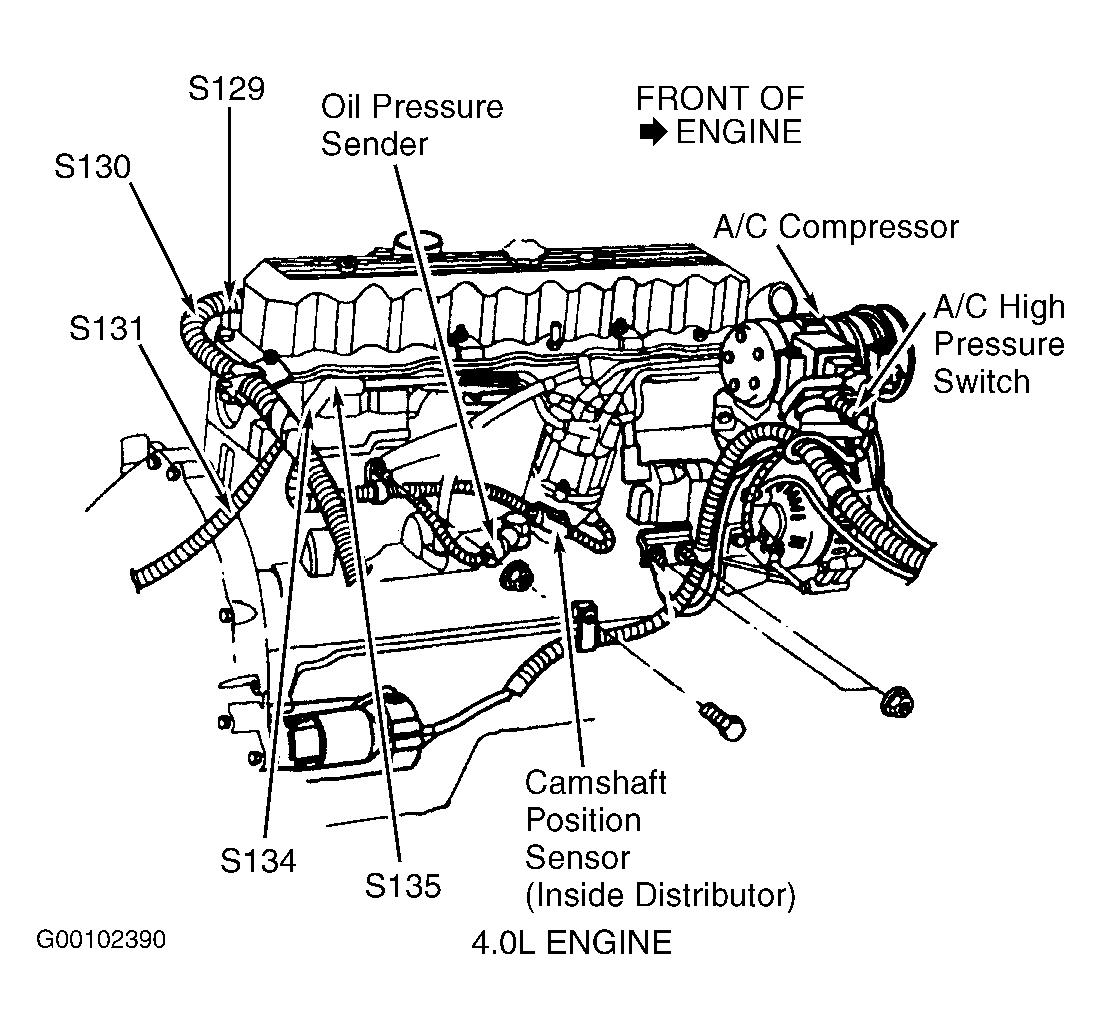

Fig 4: Right Side Of Engine (4.0L)

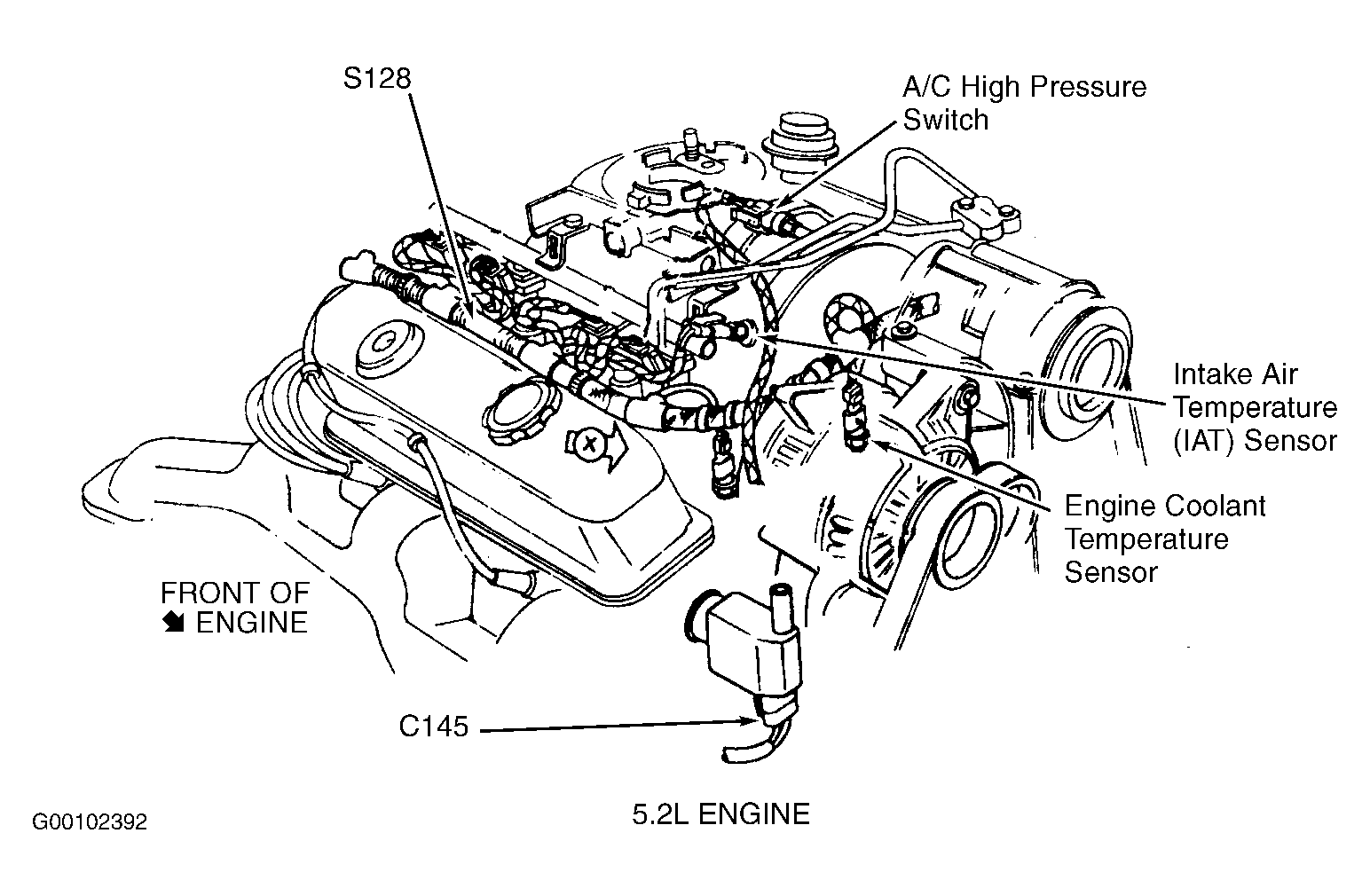

Fig 5: Left Side Of Engine (5.2L)

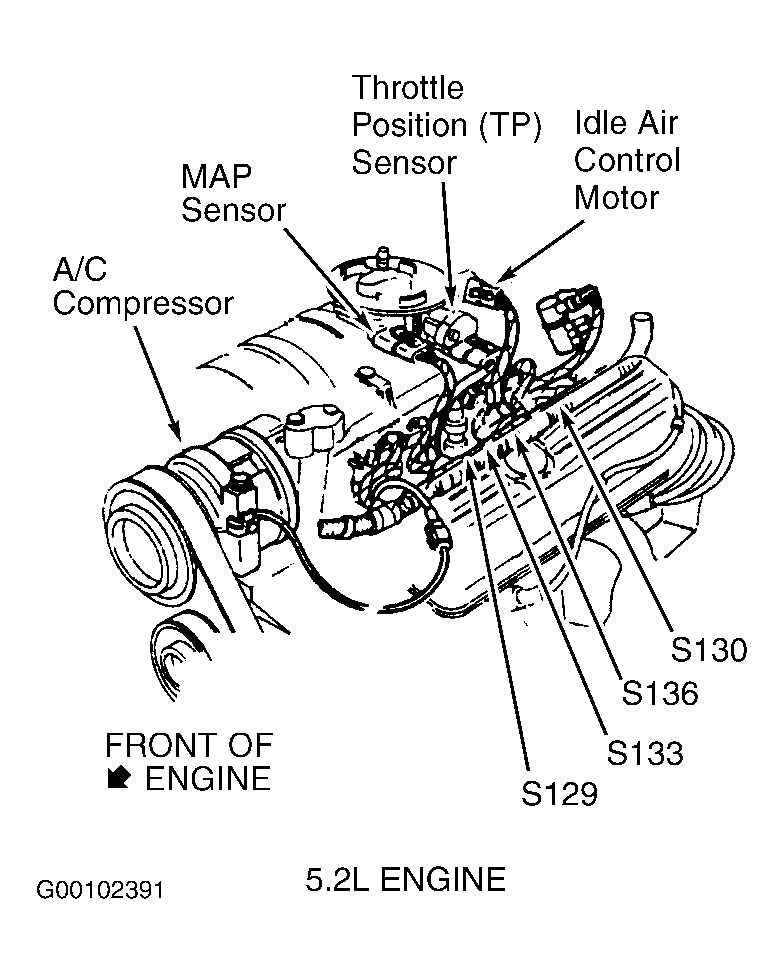

Fig 6: Top Right Side Of Engine (5.2L)
