Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Control Module | Under left seat. |

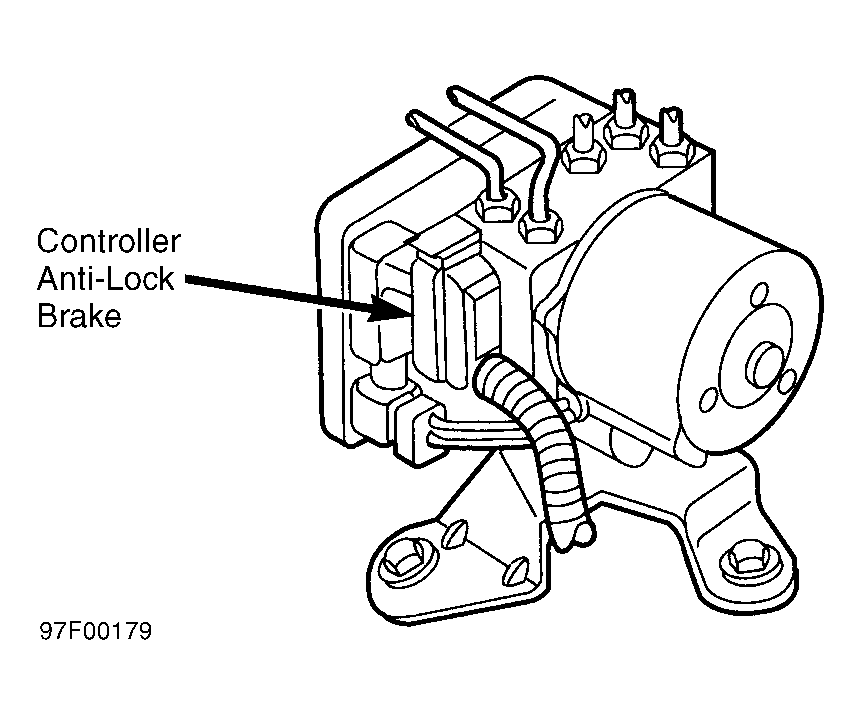

| Controller Anti-Lock Brake | On hydraulic control unit. See Figure. |
| Daytime Running Lamps (DRL) Module | In right rear of engine compartment, near firewall. |
| Fuel Pump Module | On fuel tank. |
| Headlamp Delay Module | Behind left side of dash. |
| Hydraulic Control Unit | Near brake master cylinder. |
| Intermittent Wiper Control Module | Integral to wiper/washer switch. |
| Passenger Door Module (Power Door Locks) | In passenger door. |

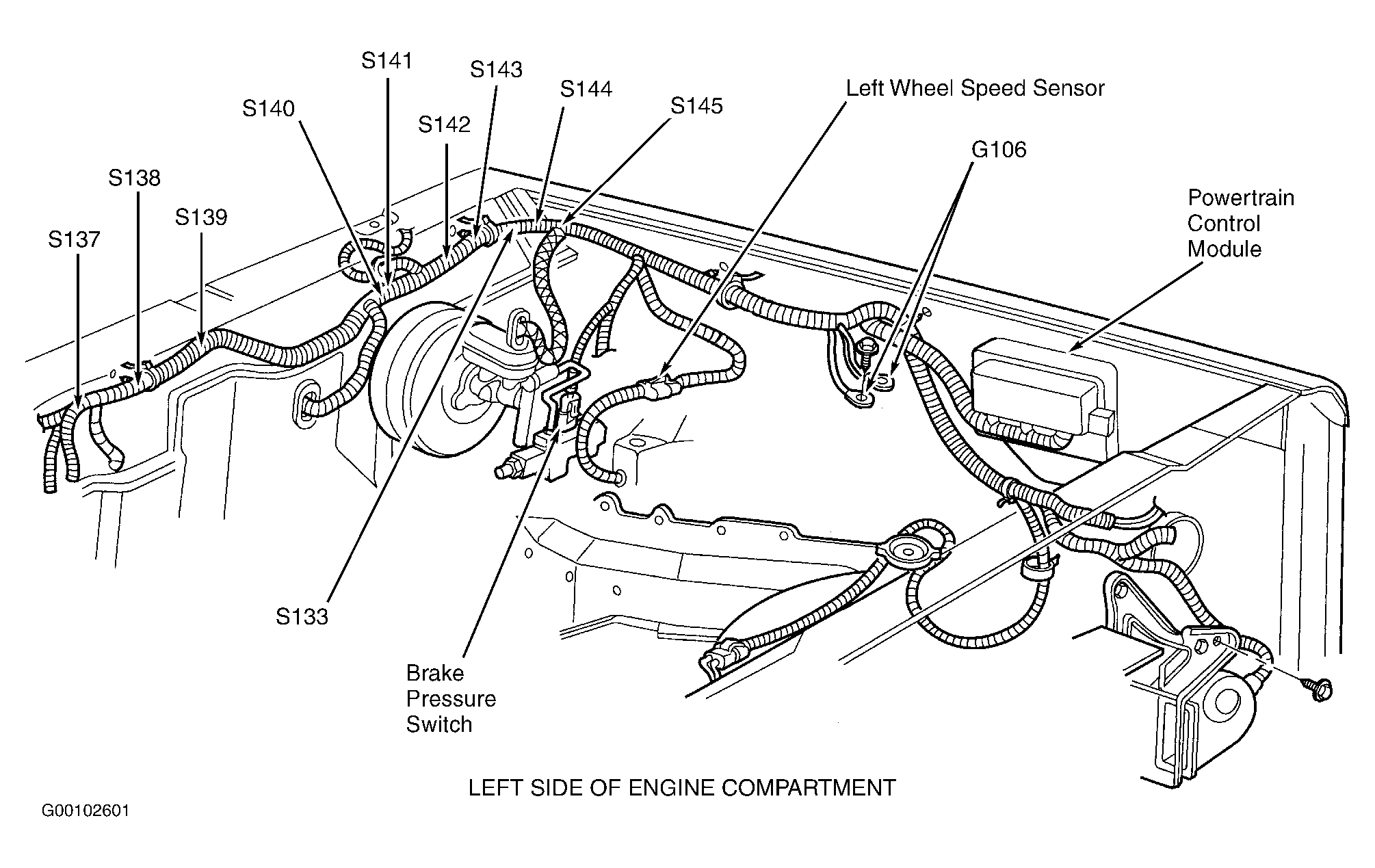

| Powertrain Control Module (PCM) | Left fender side shield. See Figure. |
| Remote Keyless Entry Module | Front center of headliner. |
| Transmission Control Module | Under center dash panel. |
