Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

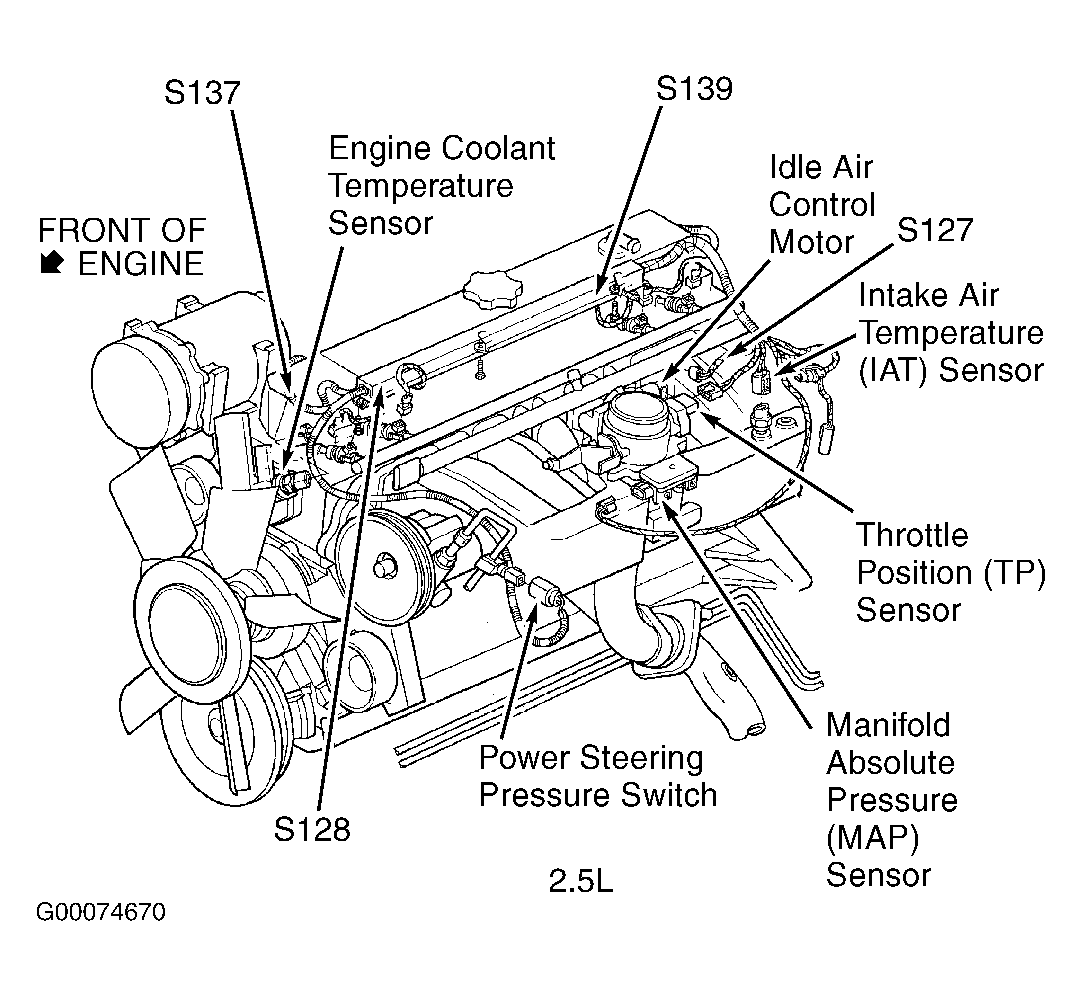

Fig 1: Left Front Of Engine (2.5L)

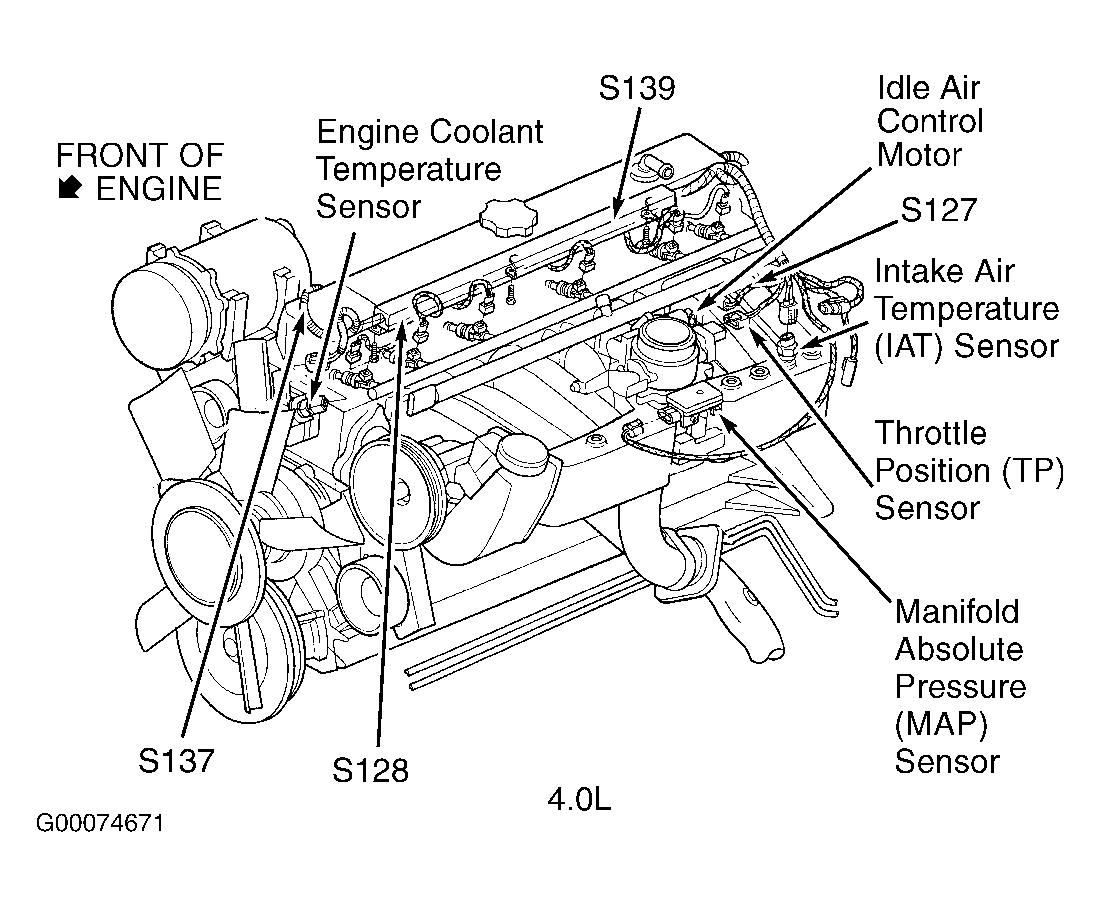

Fig 2: Left Front Of Engine (4.0L)

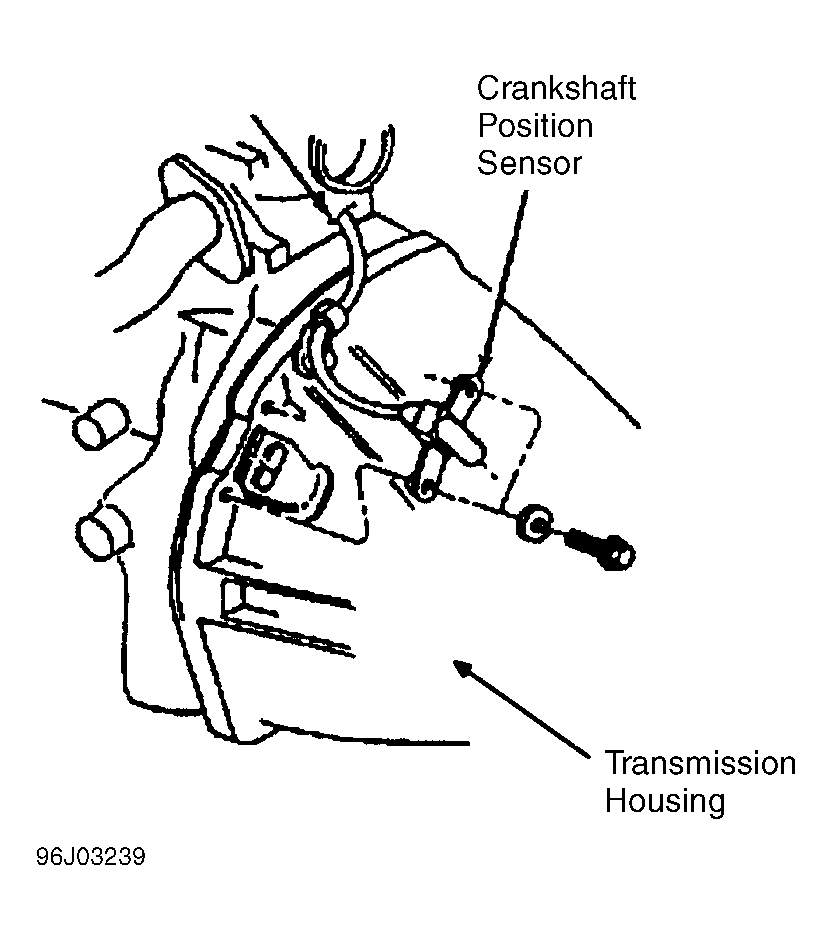

Fig 3: Right Side Of Transmission

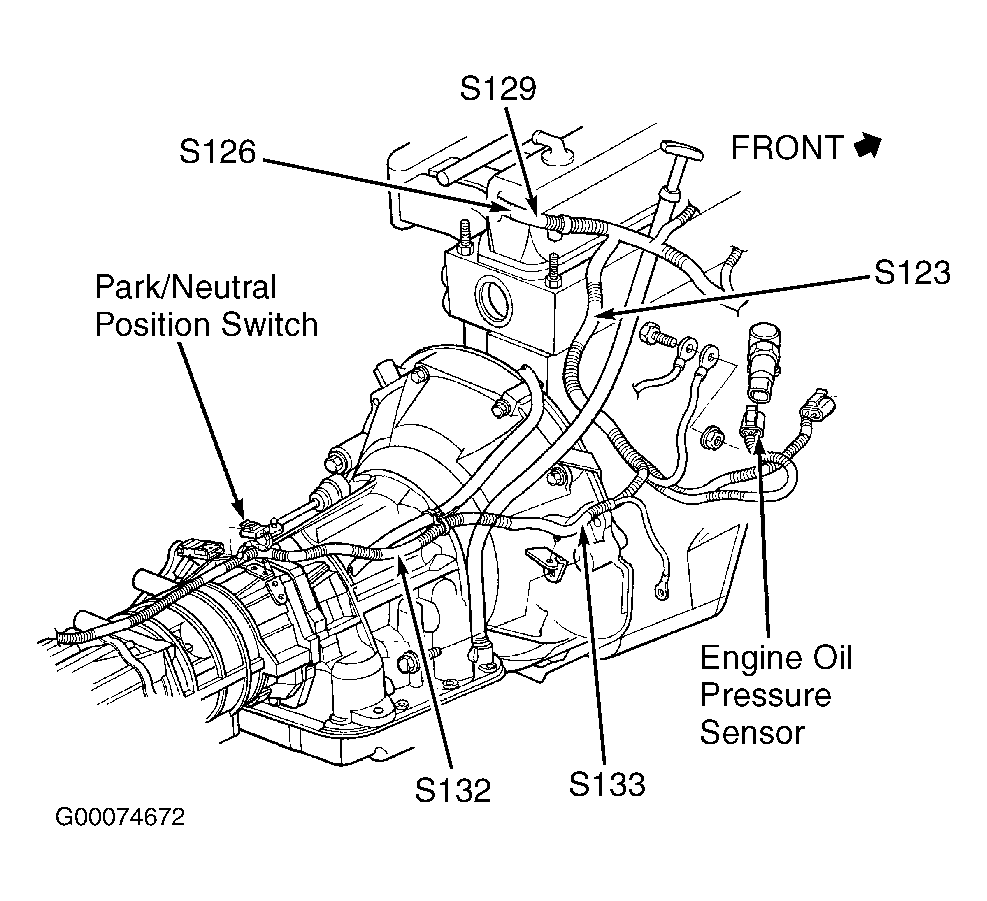

Fig 4: Right Rear Of Engine Compartment

Fig 5: Right Rear Of Engine Compartment

Fig 6: Right Rear Of Engine Compartments

Fig 7: Washer Fluid Reservoir

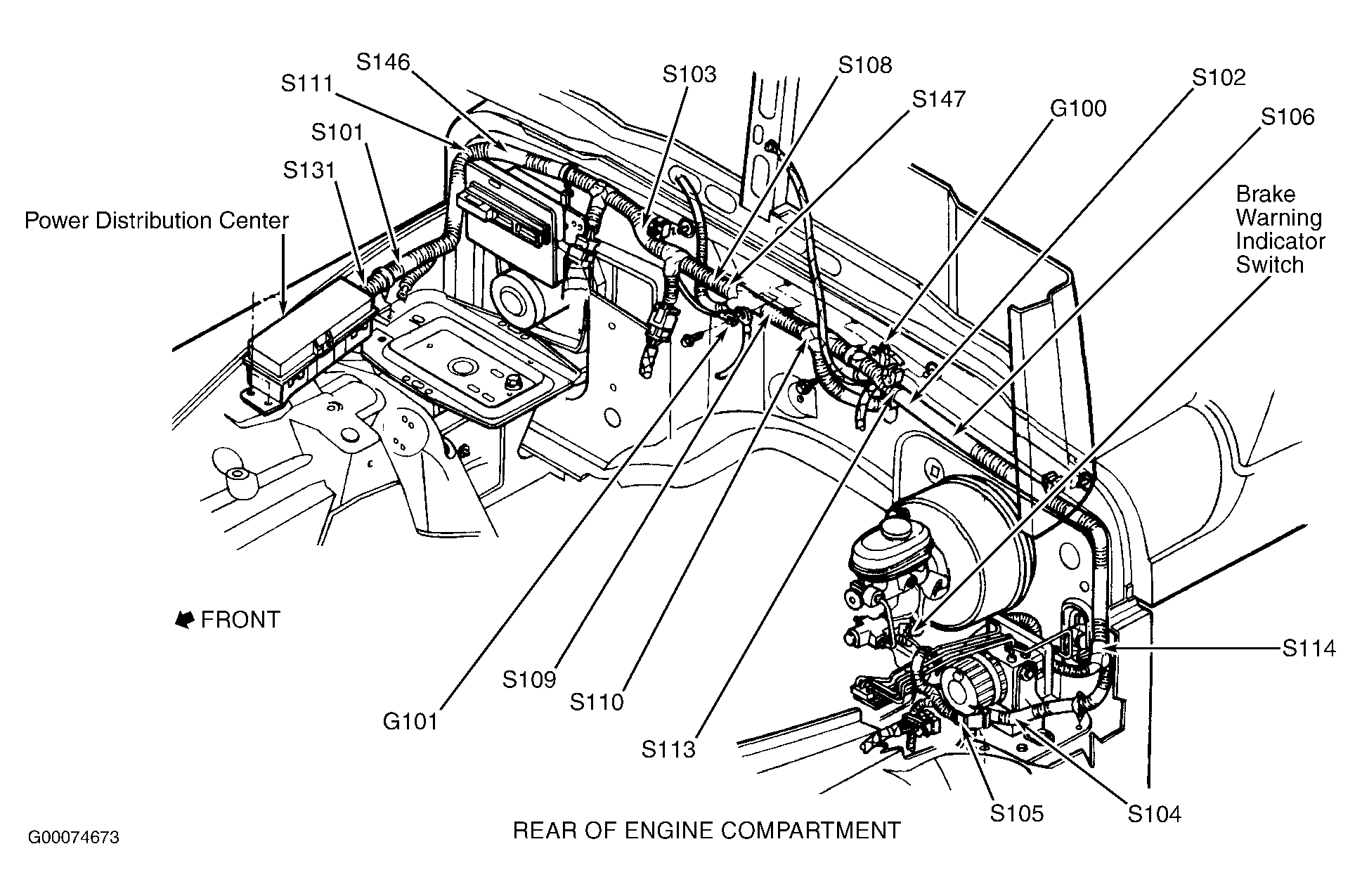

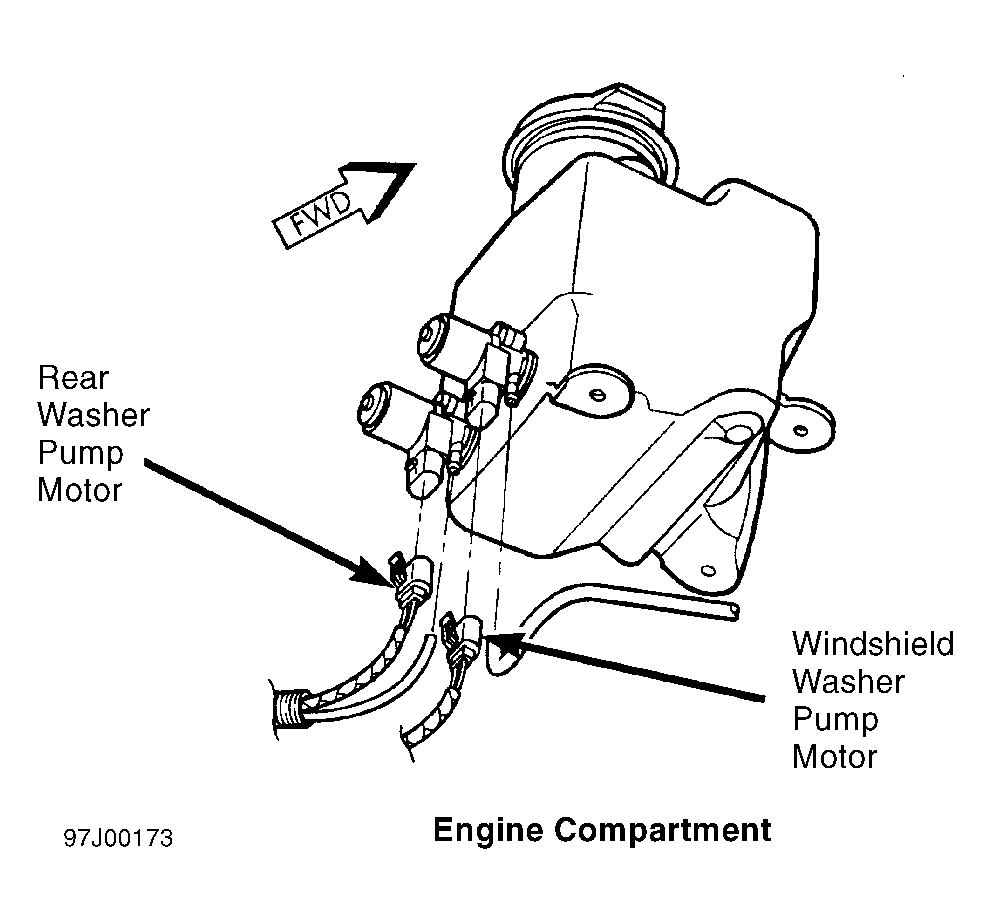

Fig 8: Engine Compartment

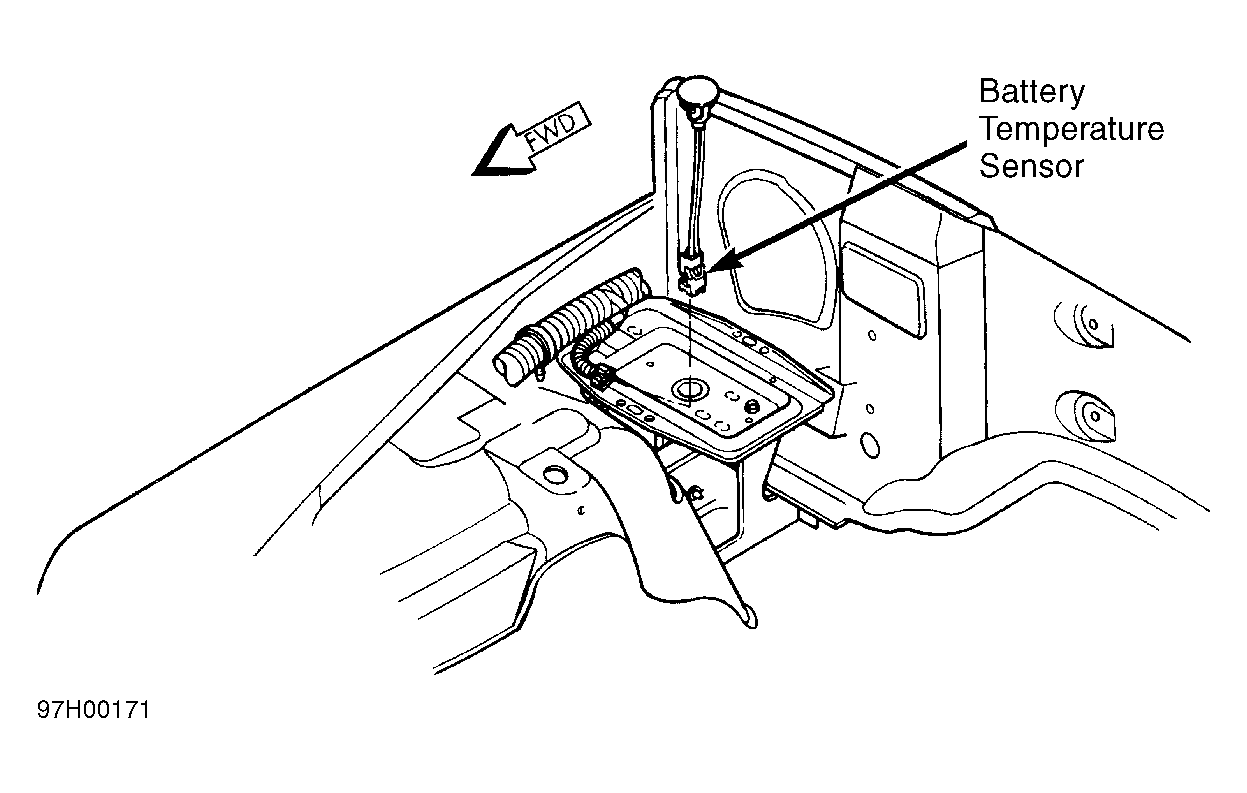

Fig 9: Engine Compartment

Fig 10: Left Side Of Transmission Bellhousing

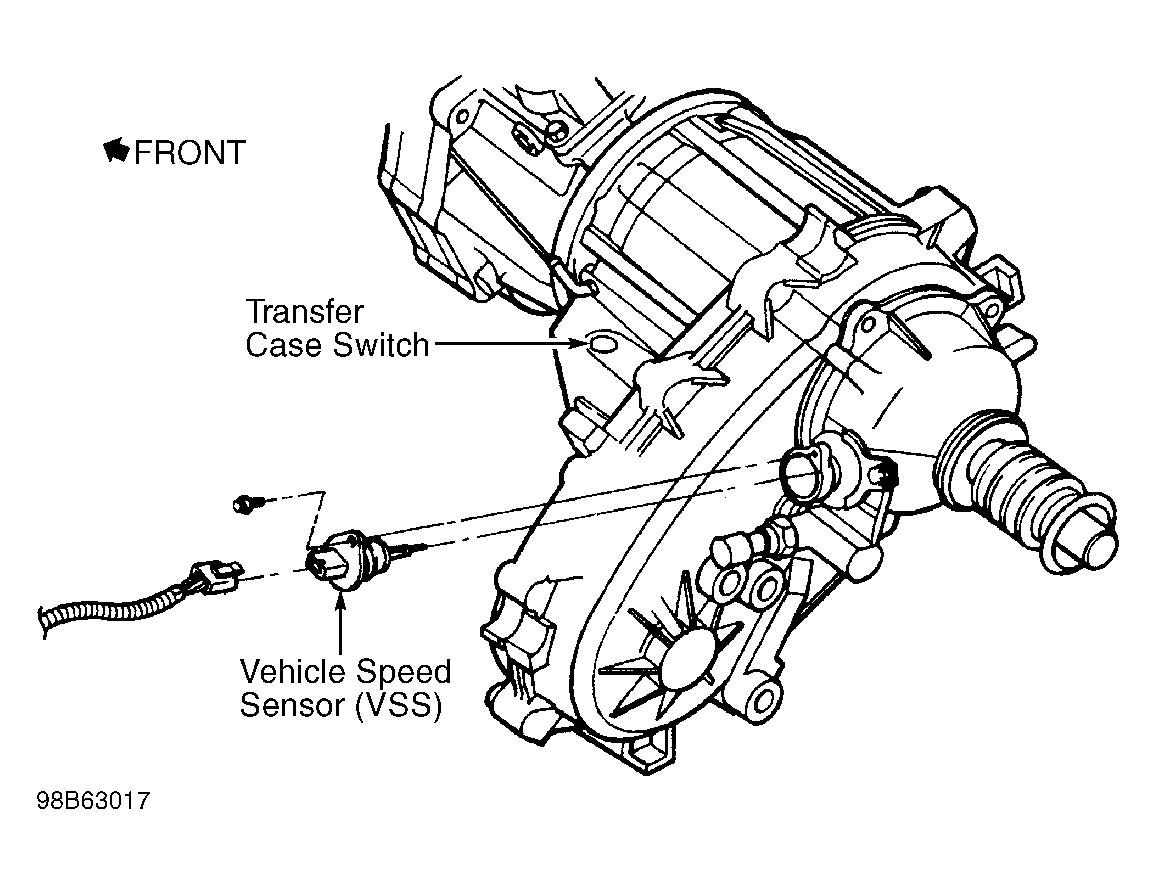

Fig 11: Transfer Case
