Home >> Jeep >> 2002 >> Grand Cherokee Overland >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Verification Tests

Verification Tests

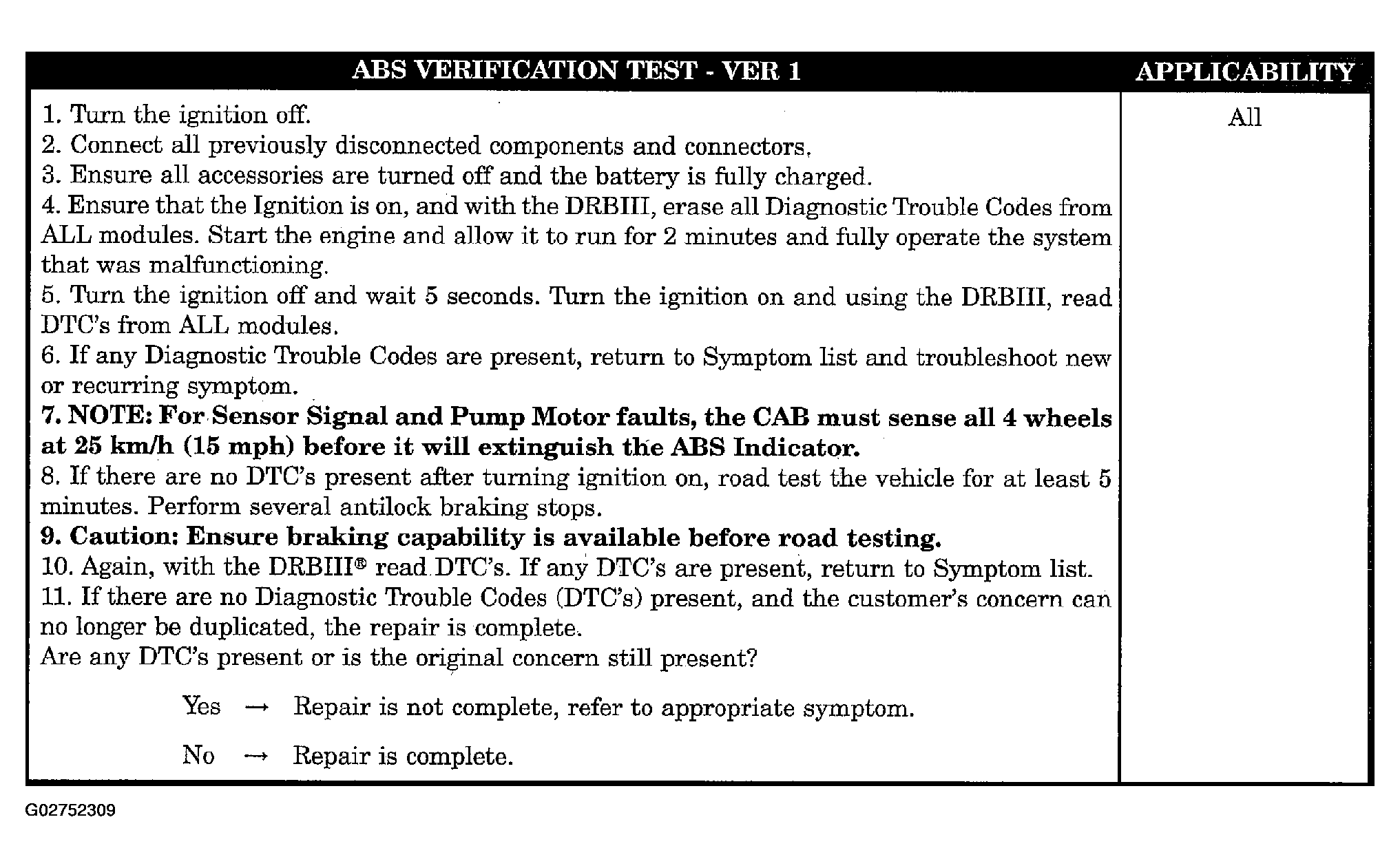

Fig 1: ABS Verification Test- VER 1

G02752309

Courtesy of DAIMLERCHRYSLER CORP.

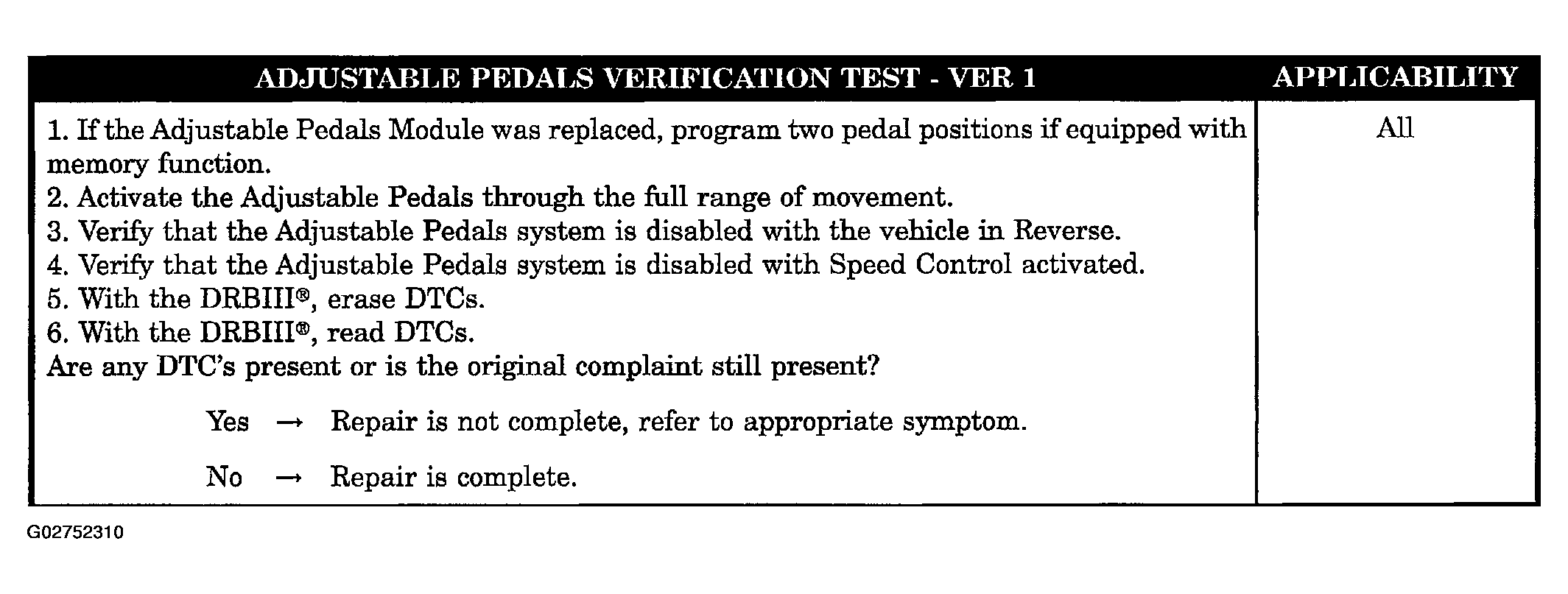

Fig 2: Adjustable Pedals Verification Test- VER 1

G02752310

Courtesy of DAIMLERCHRYSLER CORP.
