Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

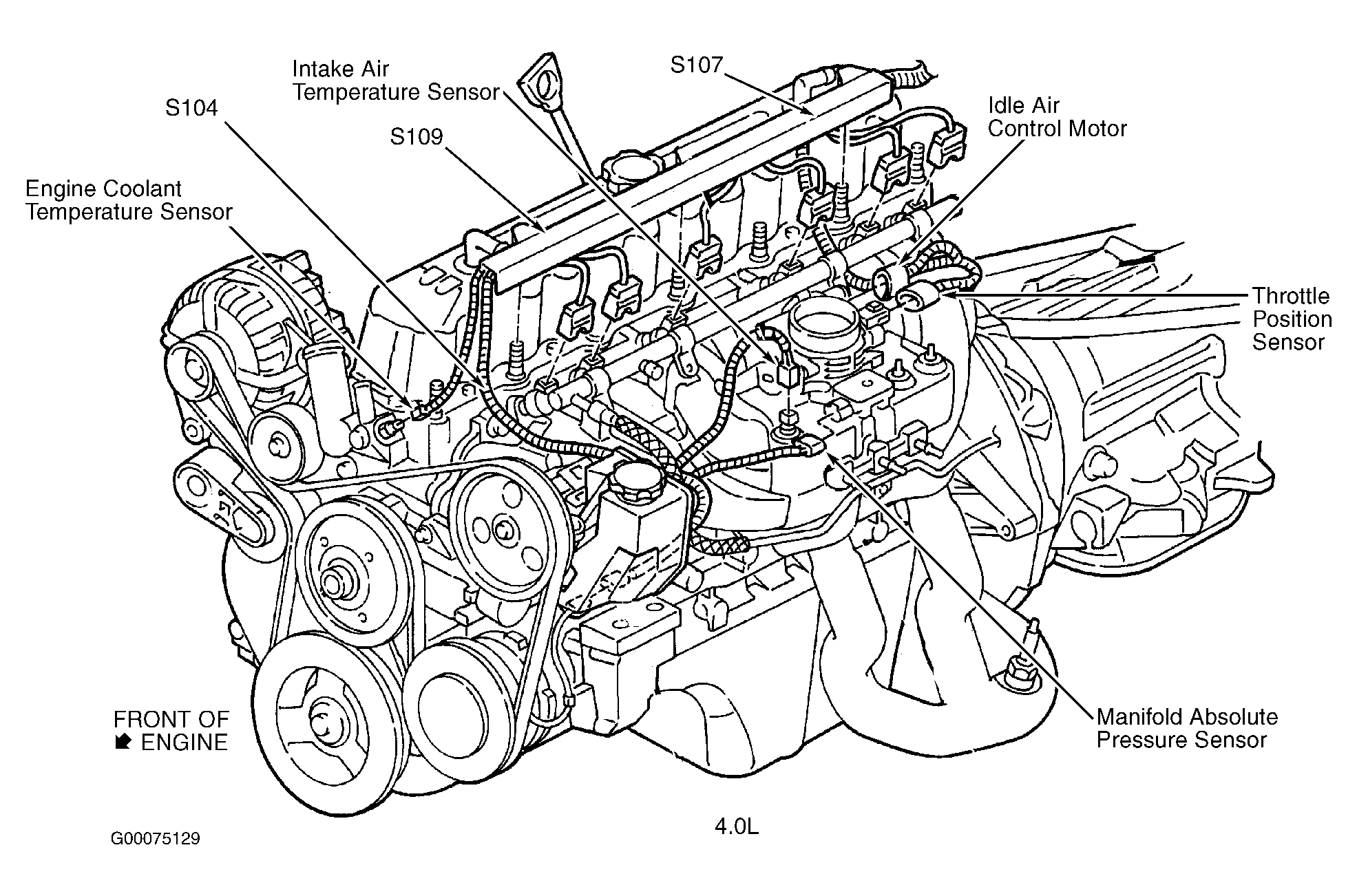

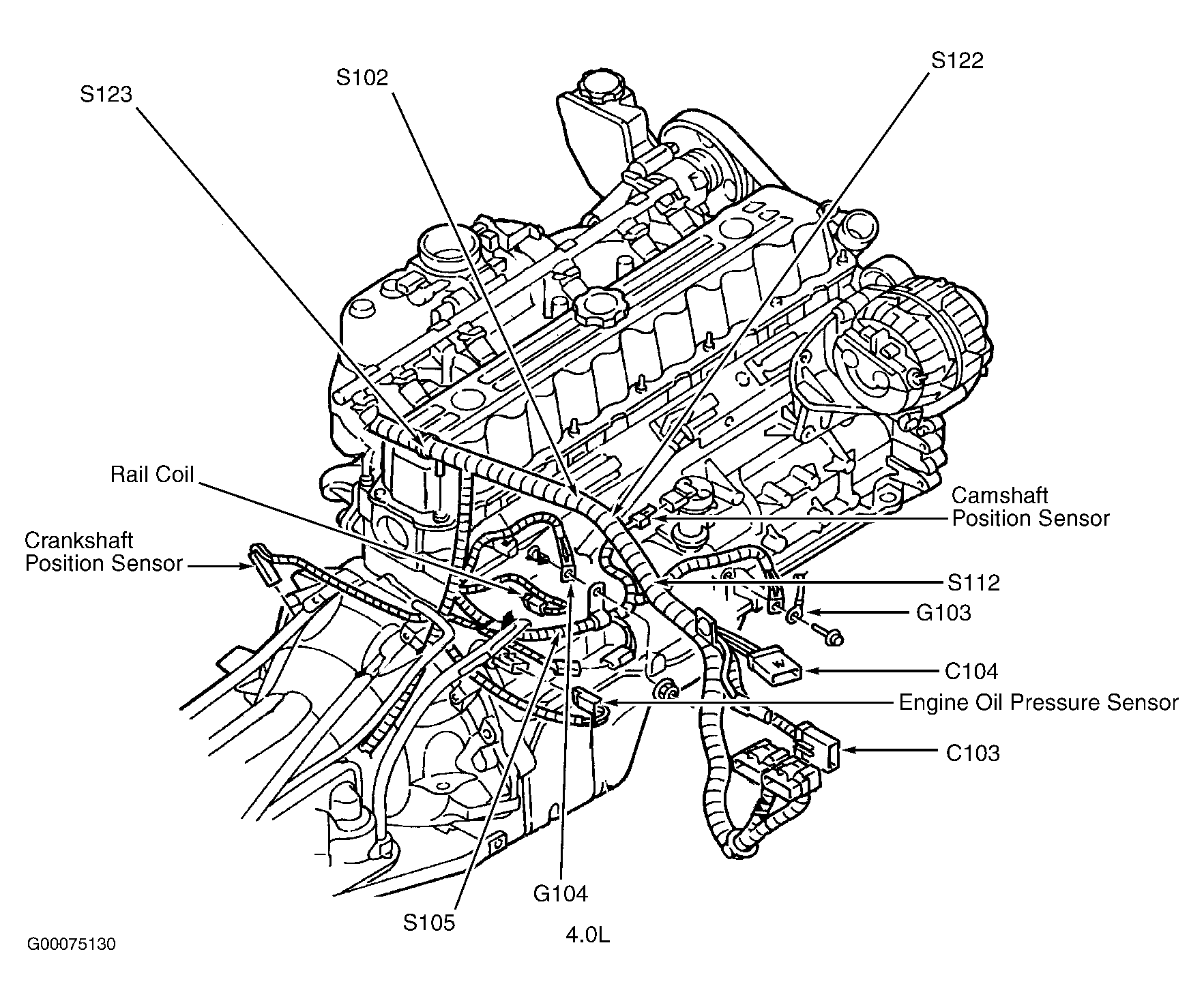

Fig 1: Left Side Of Engine (4.0L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Right Side Of Engine (4.0L)

Courtesy of DAIMLERCHRYSLER CORP.

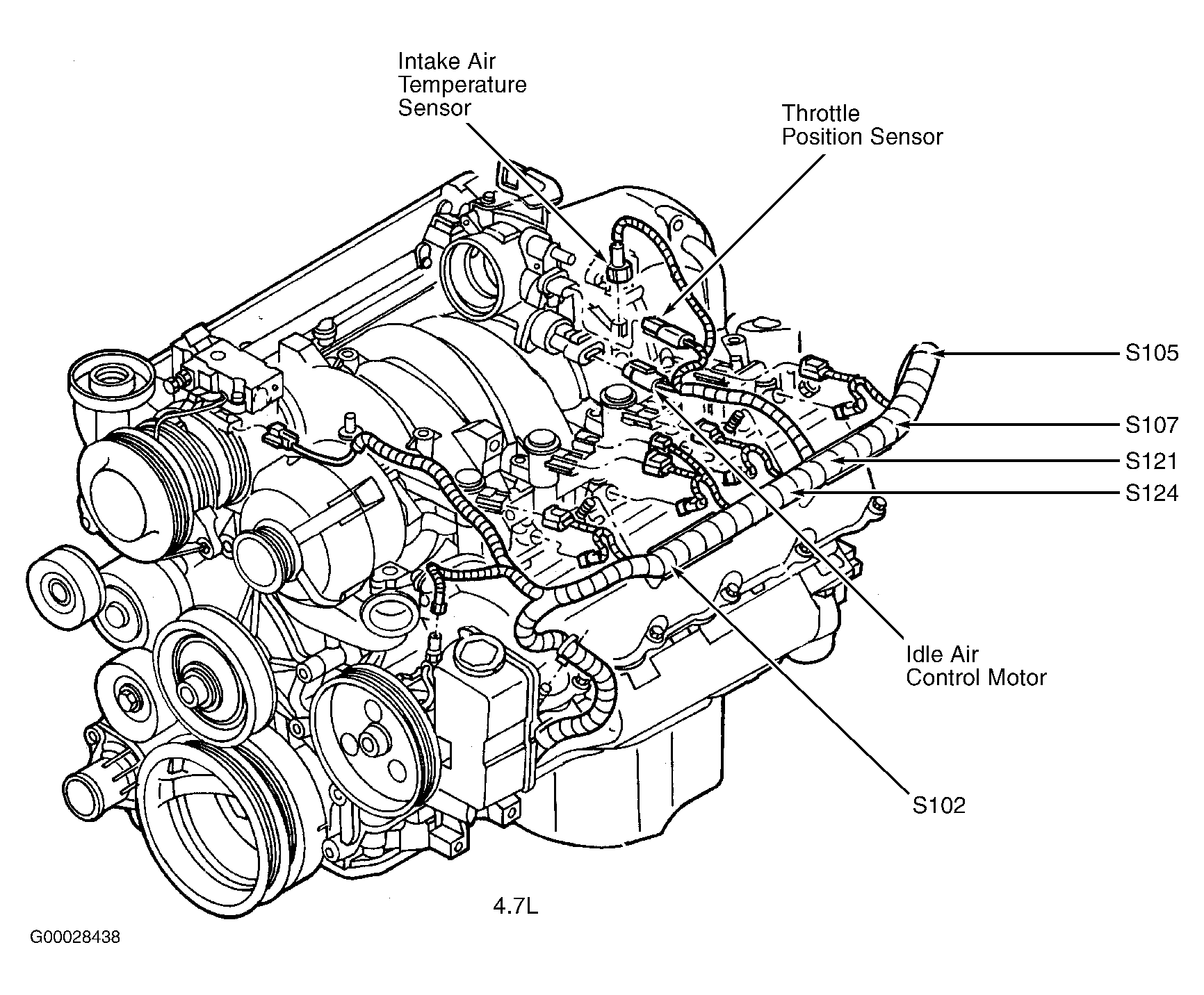

Fig 3: Top Left Side Of Engine (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

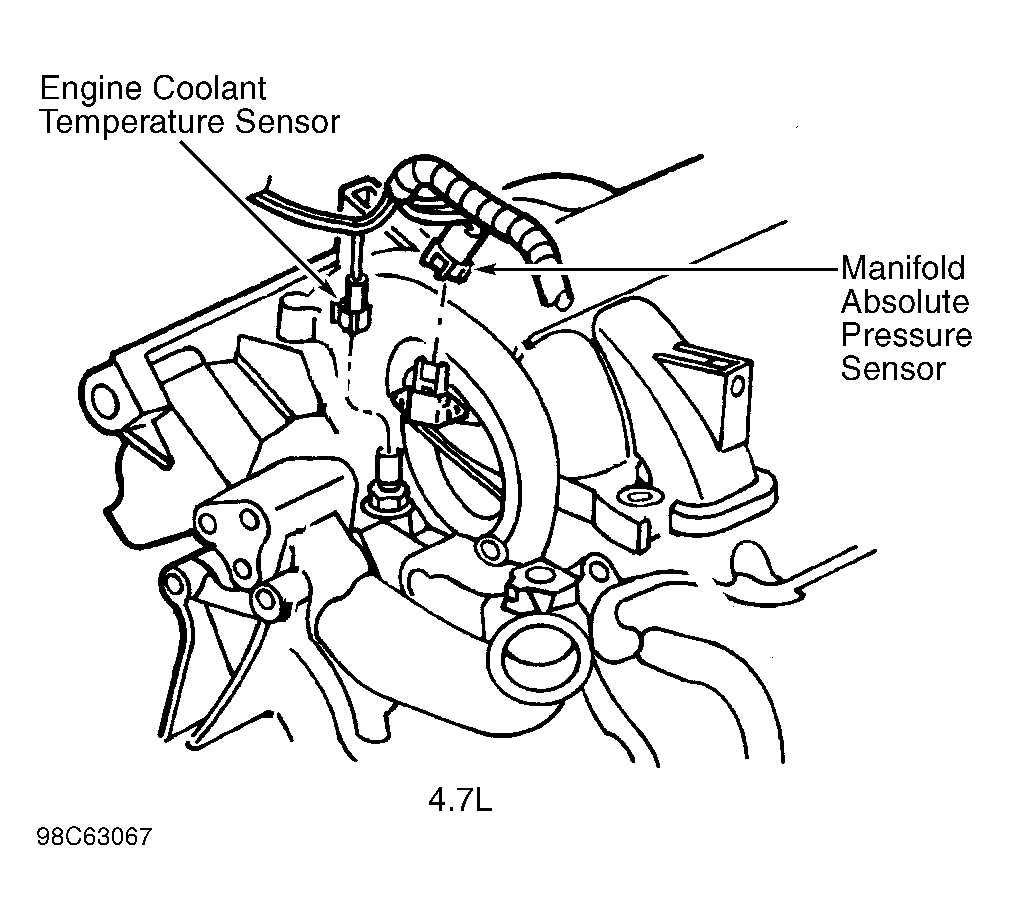

Fig 4: Right Side Of Engine (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

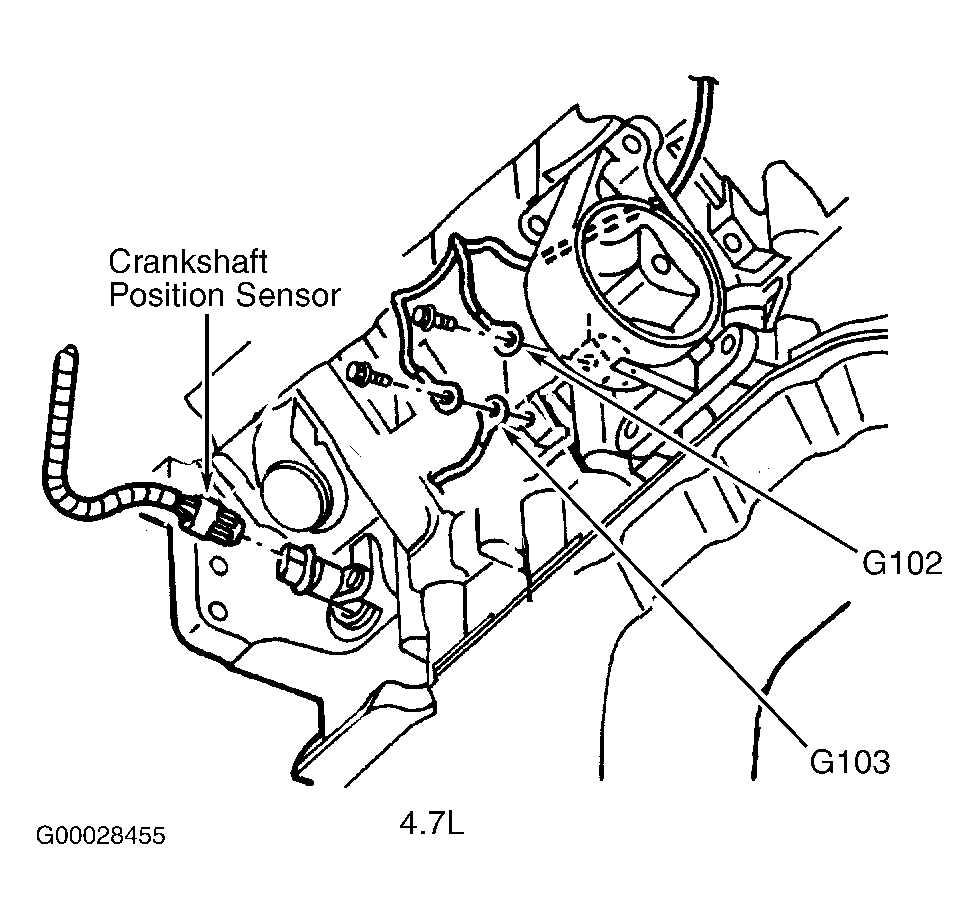

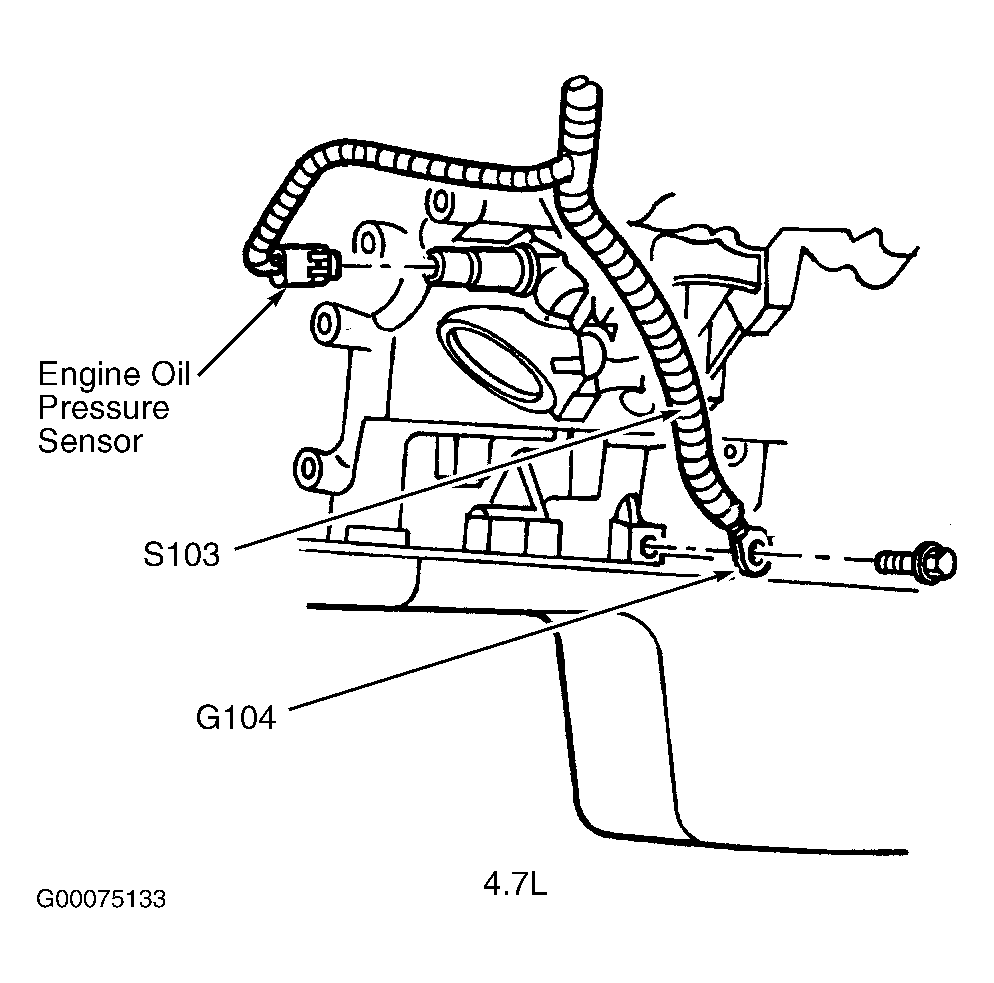

Fig 5: Lower Left Side Of Engine (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

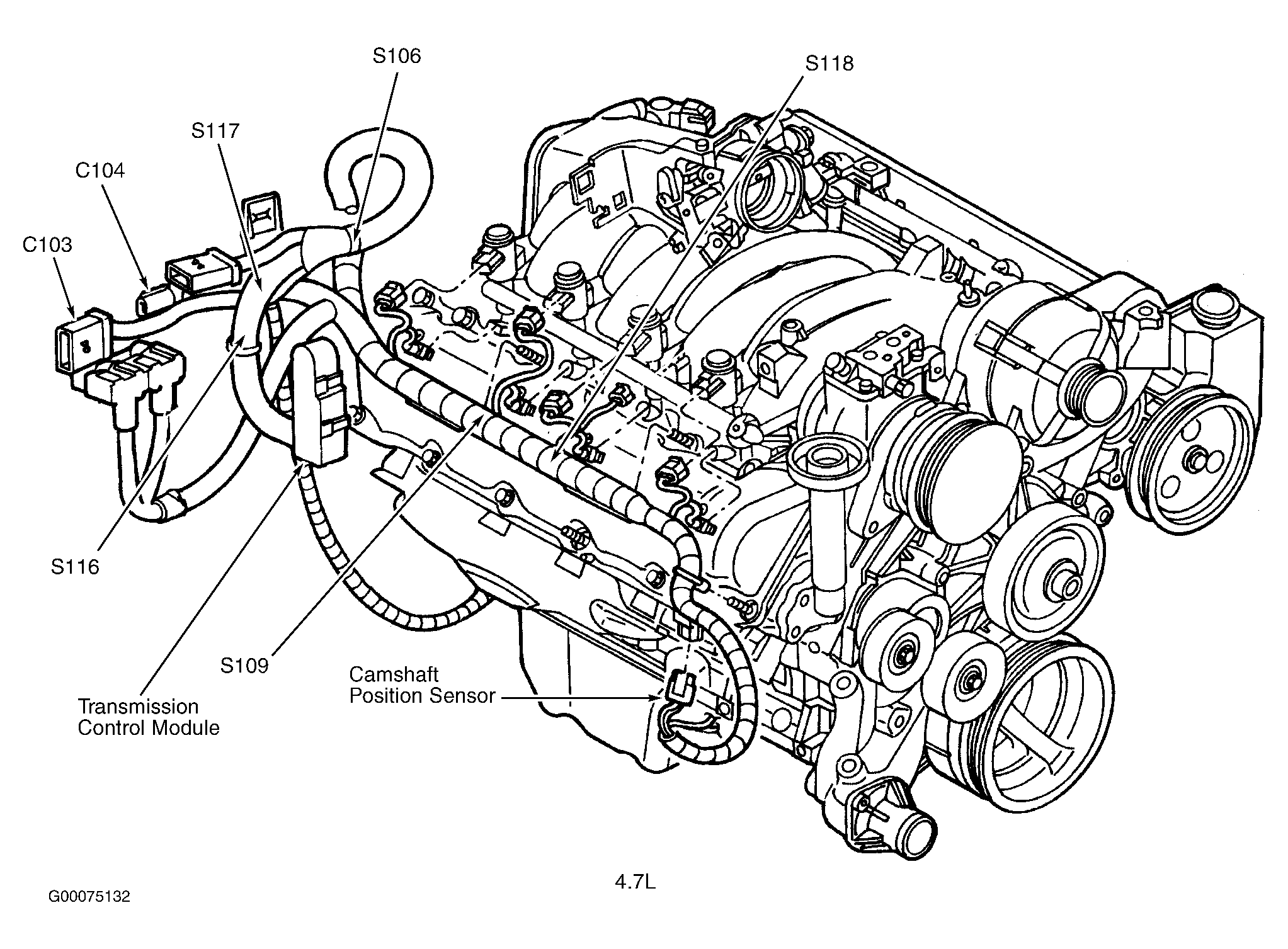

Fig 6: Top Front Of Engine (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Lower Right Side Of Engine (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

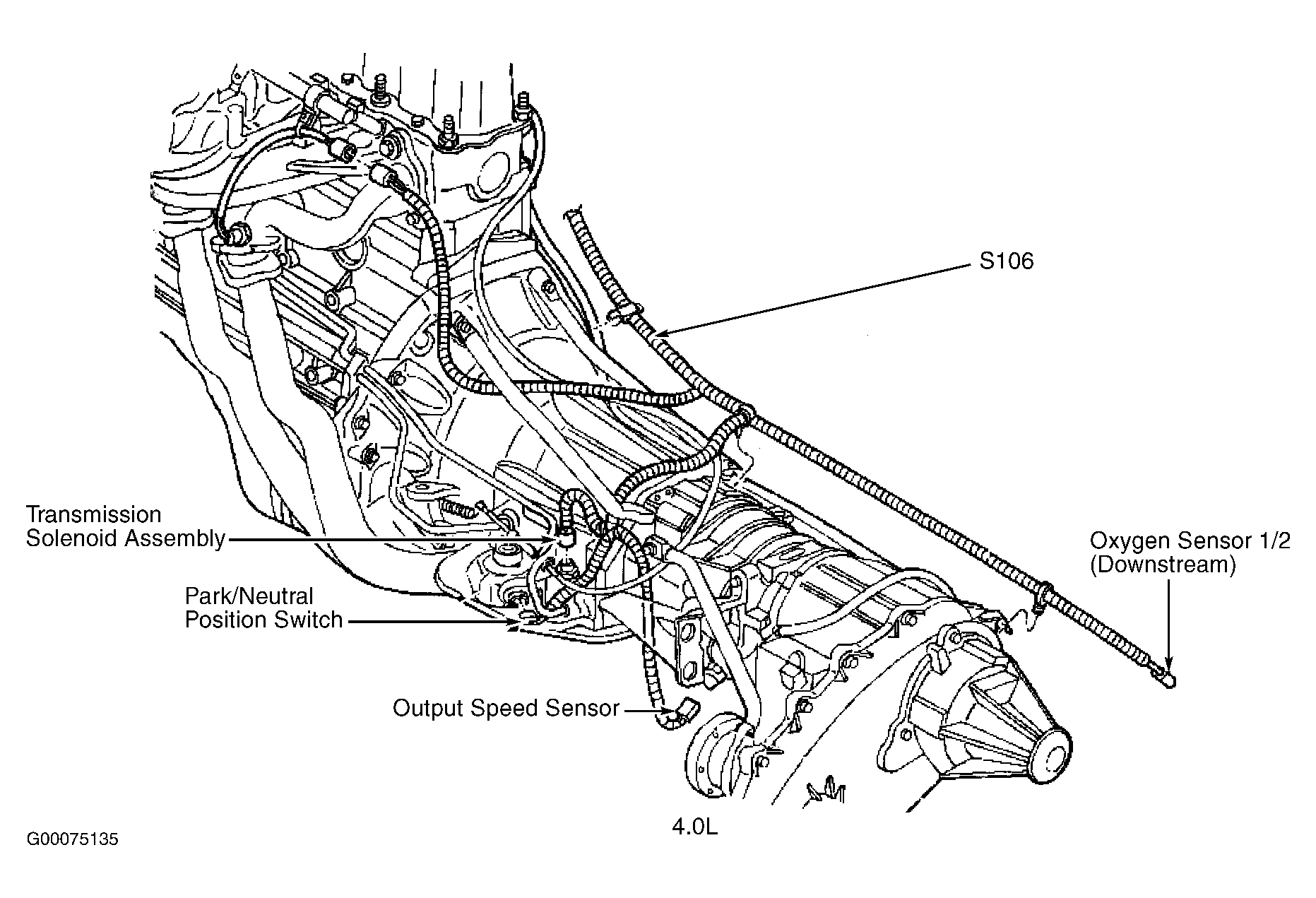

Fig 8: Left Side Of Transmission (4.0L)

Courtesy of DAIMLERCHRYSLER CORP.

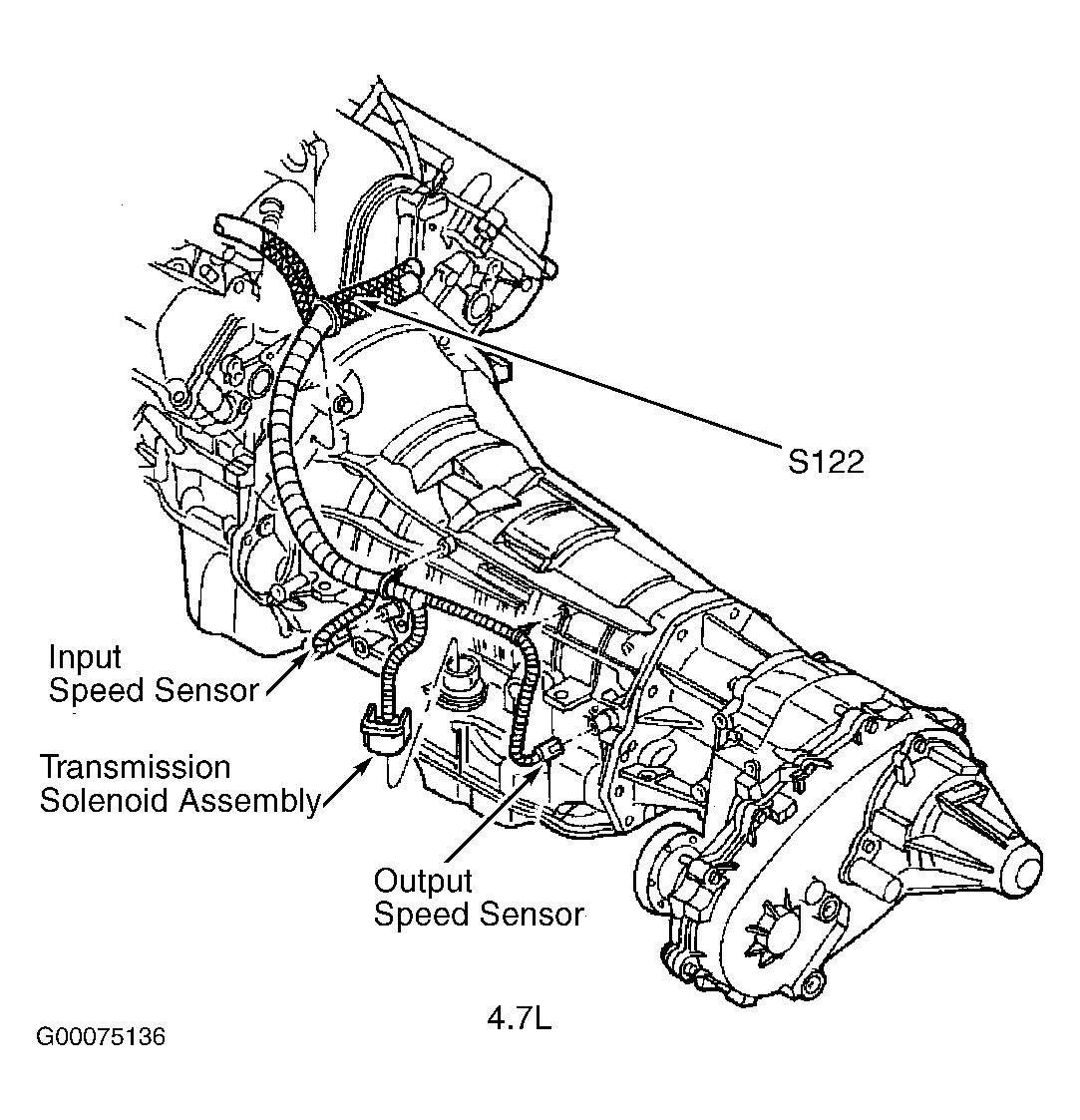

Fig 9: Left Side Of Transmission (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.

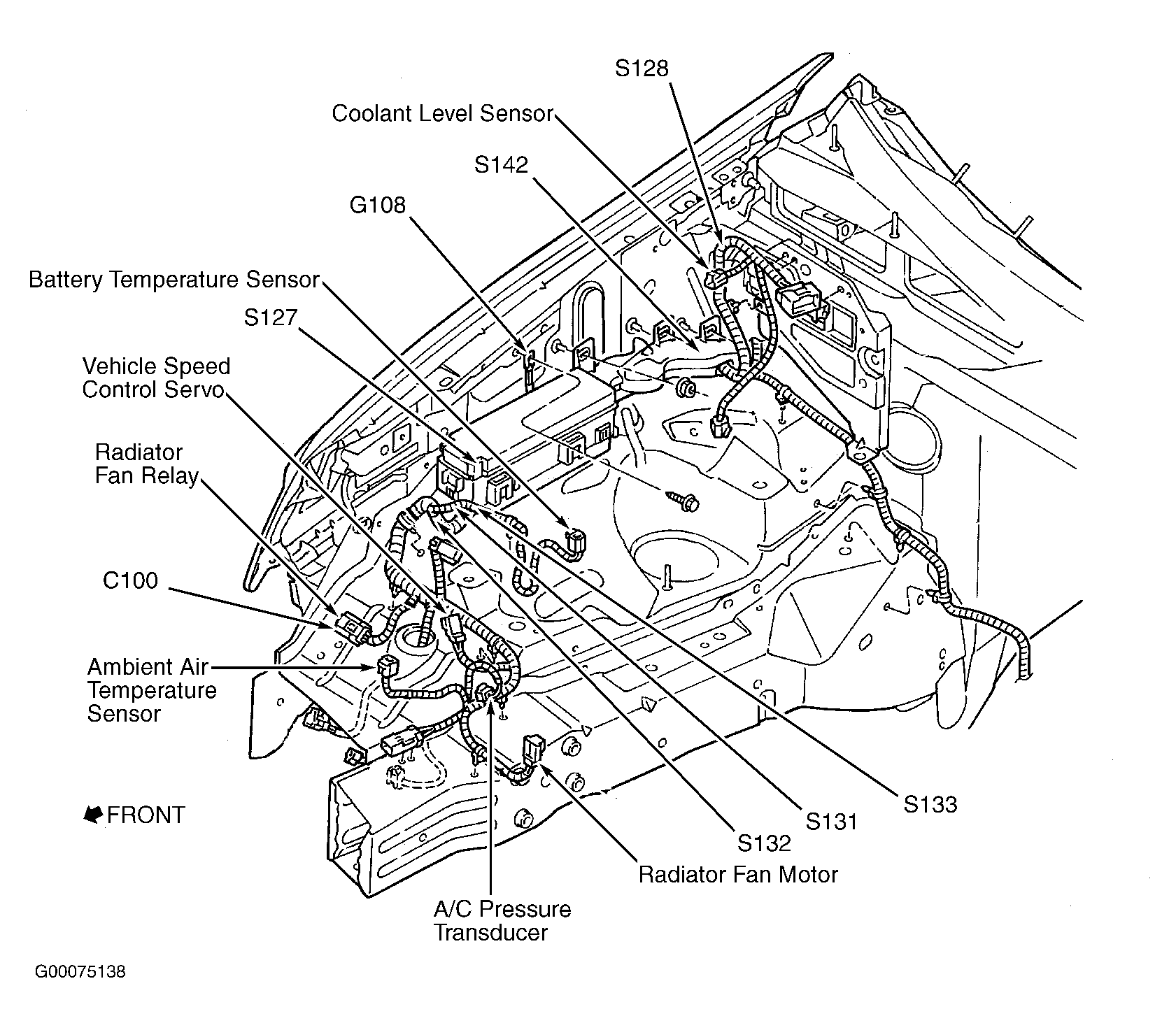

Fig 10: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

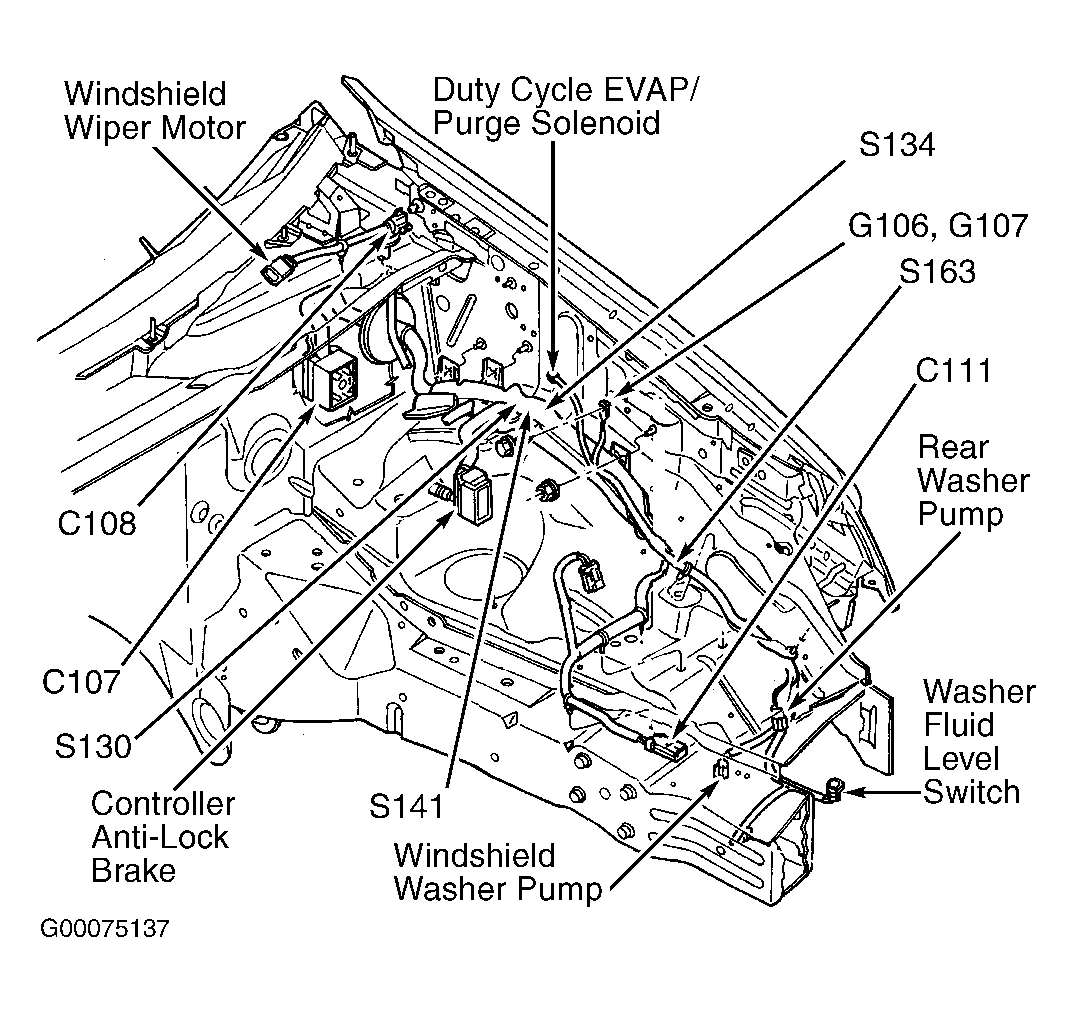

Fig 11: Right Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

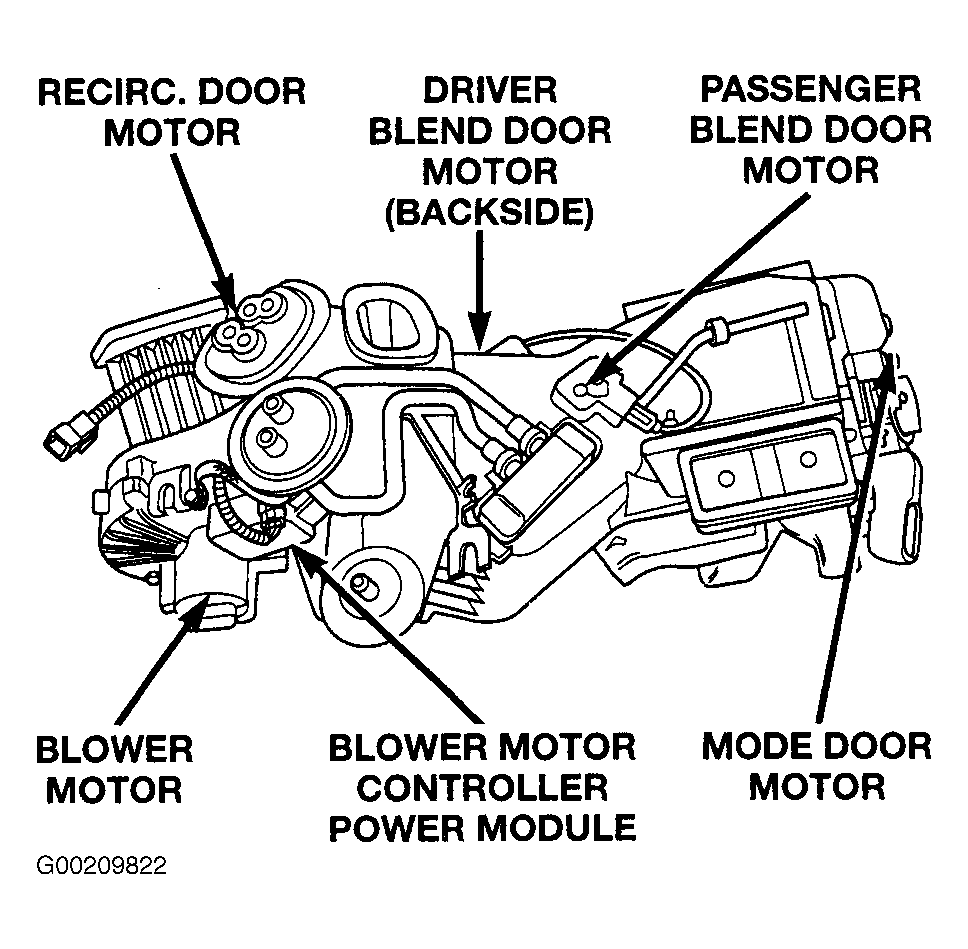

Fig 12: Heater Case

Courtesy of DAIMLERCHRYSLER CORP.

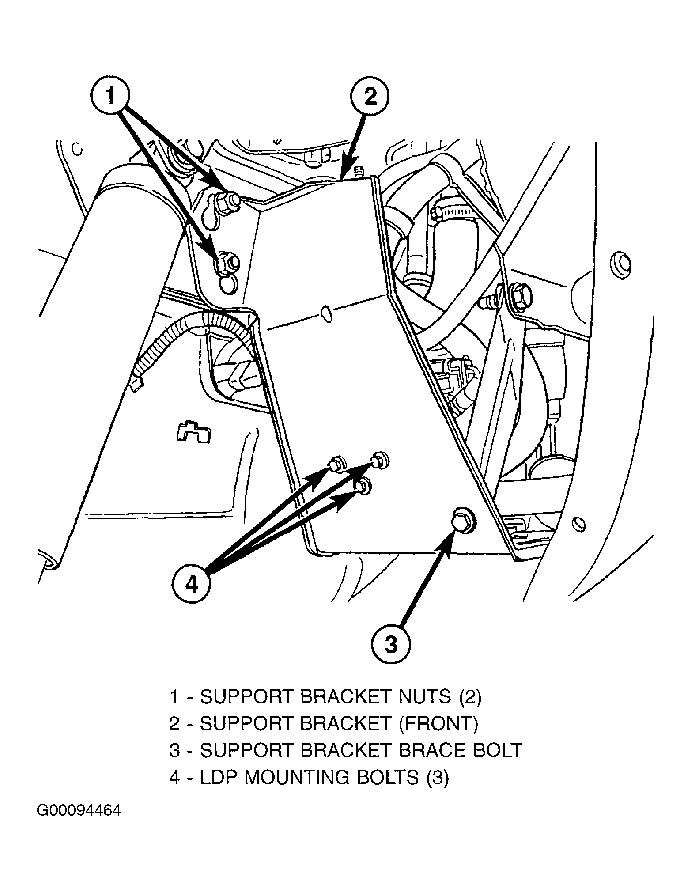

Fig 13: Identifying Leak Detection Pump Mounting Bolts

Courtesy of DAIMLERCHRYSLER CORP.

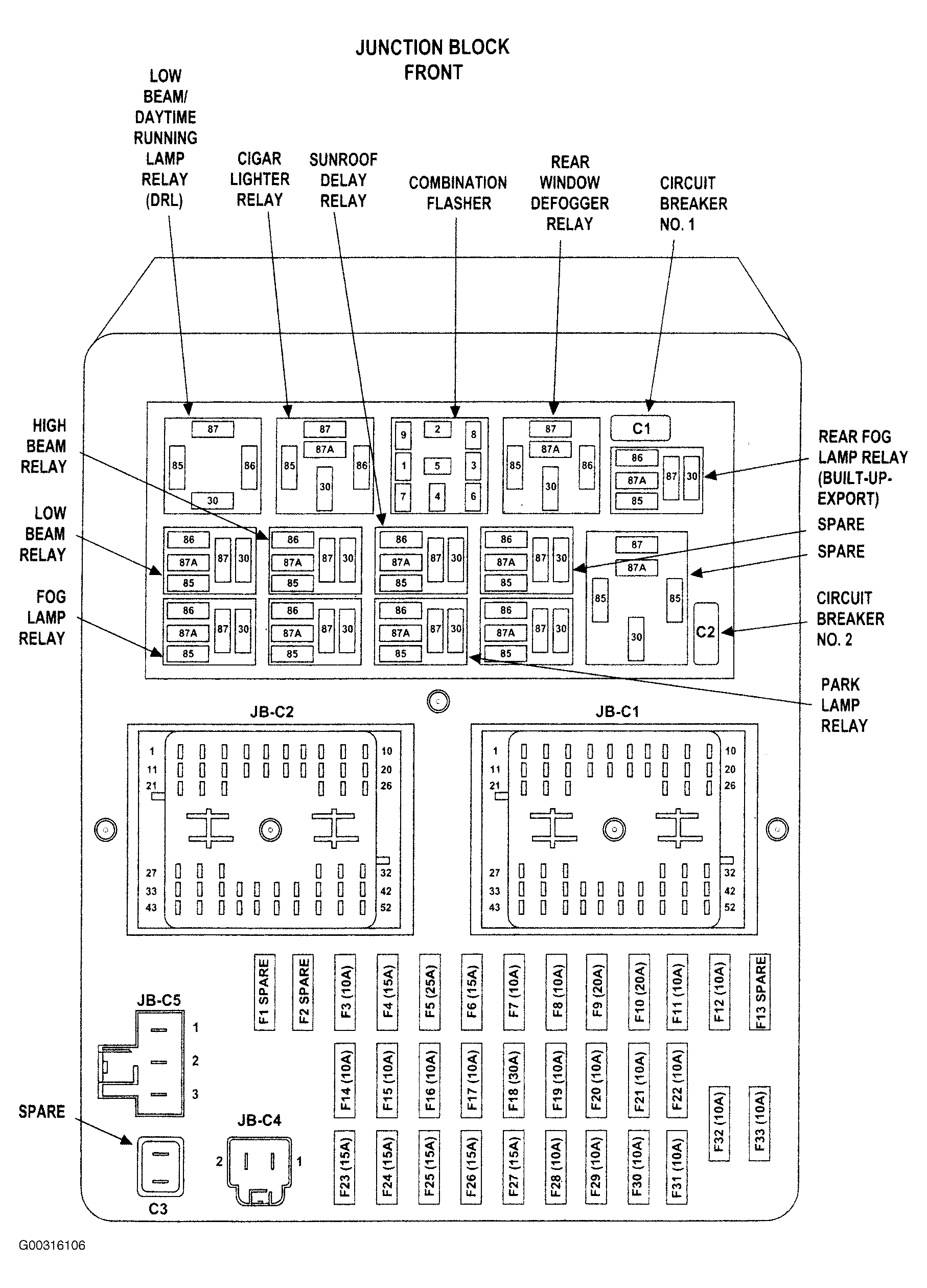

Fig 14: Fuse And Junction Block

Courtesy of DAIMLERCHRYSLER CORP.

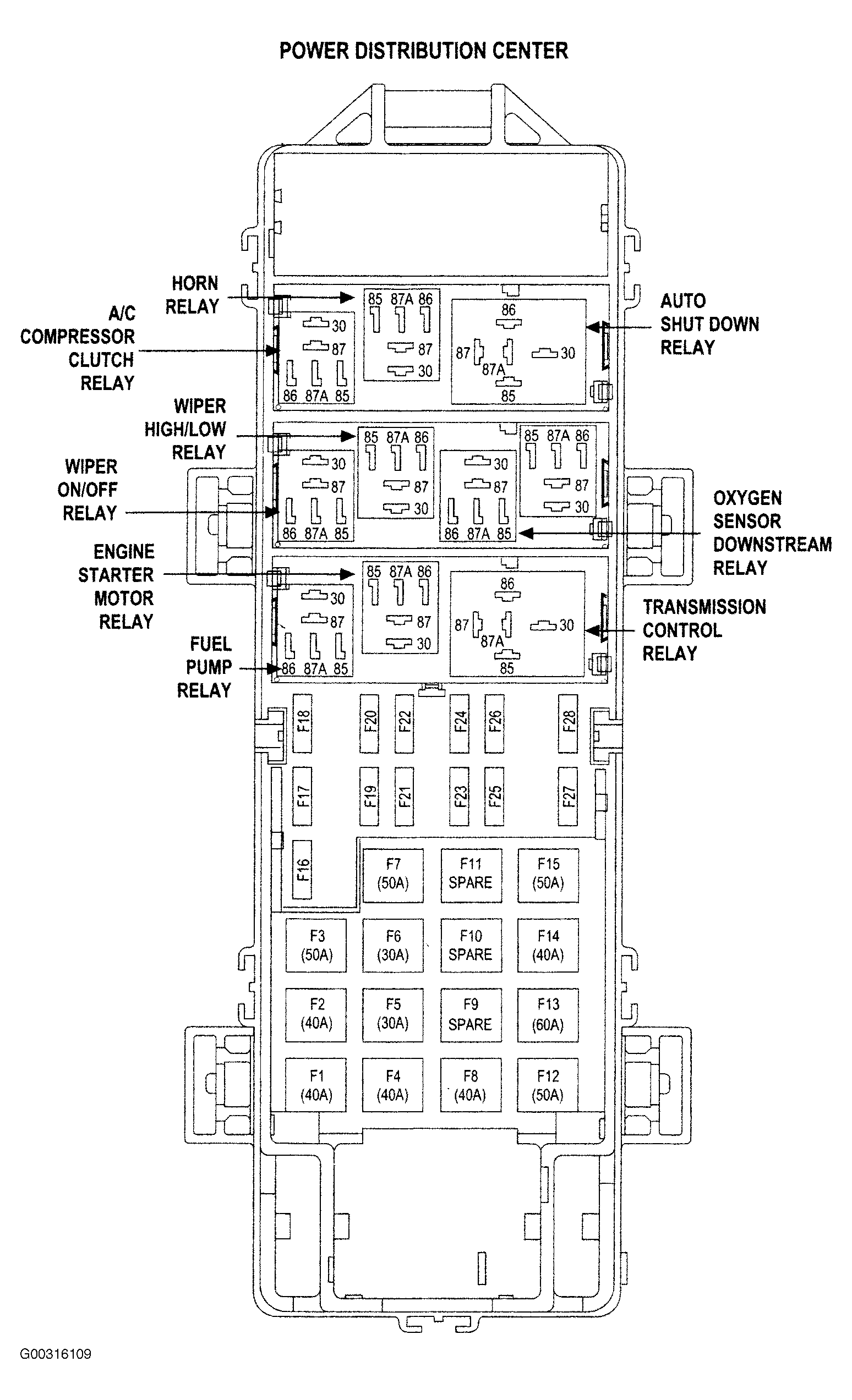

Fig 15: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
