Sentry Key Immobilizer Module Connector End View

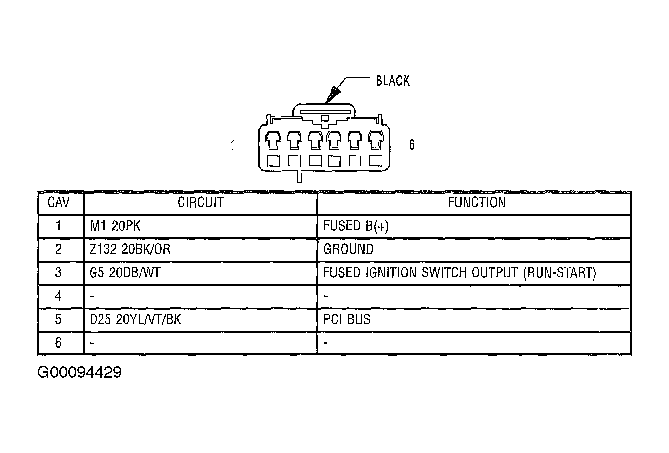

Fig 1: Identifying Sentry Key Immobilizer Module Harness Connector
G00094429Courtesy of DAIMLERCHRYSLER CORPORATION
