Powertrain Control Module Location

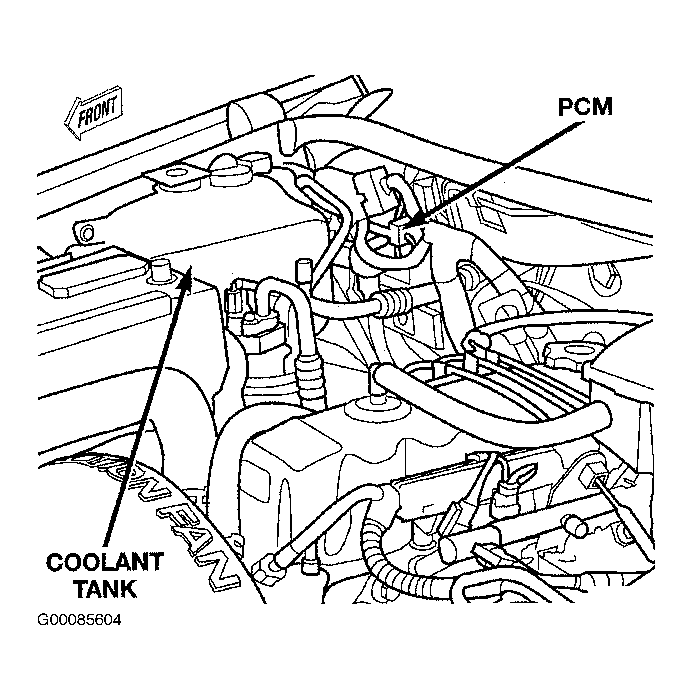

PCM is located in right rear corner of engine compartment. See Figure. PCM has three 32-pin connectors. PCM C1 connector is Black, C2 connector is White and C3 connector is a Gray color.
