Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

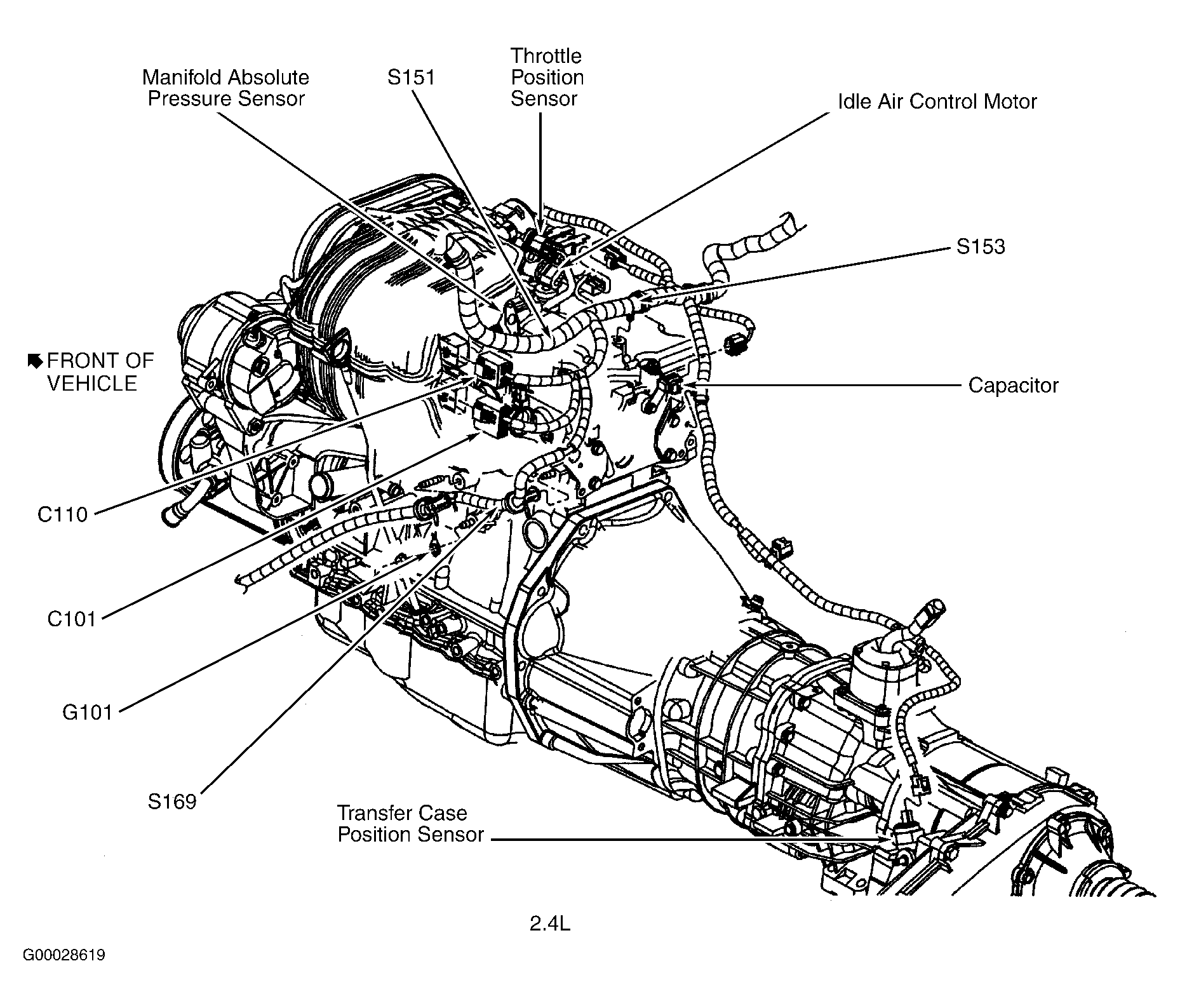

Fig 1: Left Side Of Engine, Transmission & Transfer Case (2.4L)

Courtesy of DAIMLERCHRYSLER CORP.

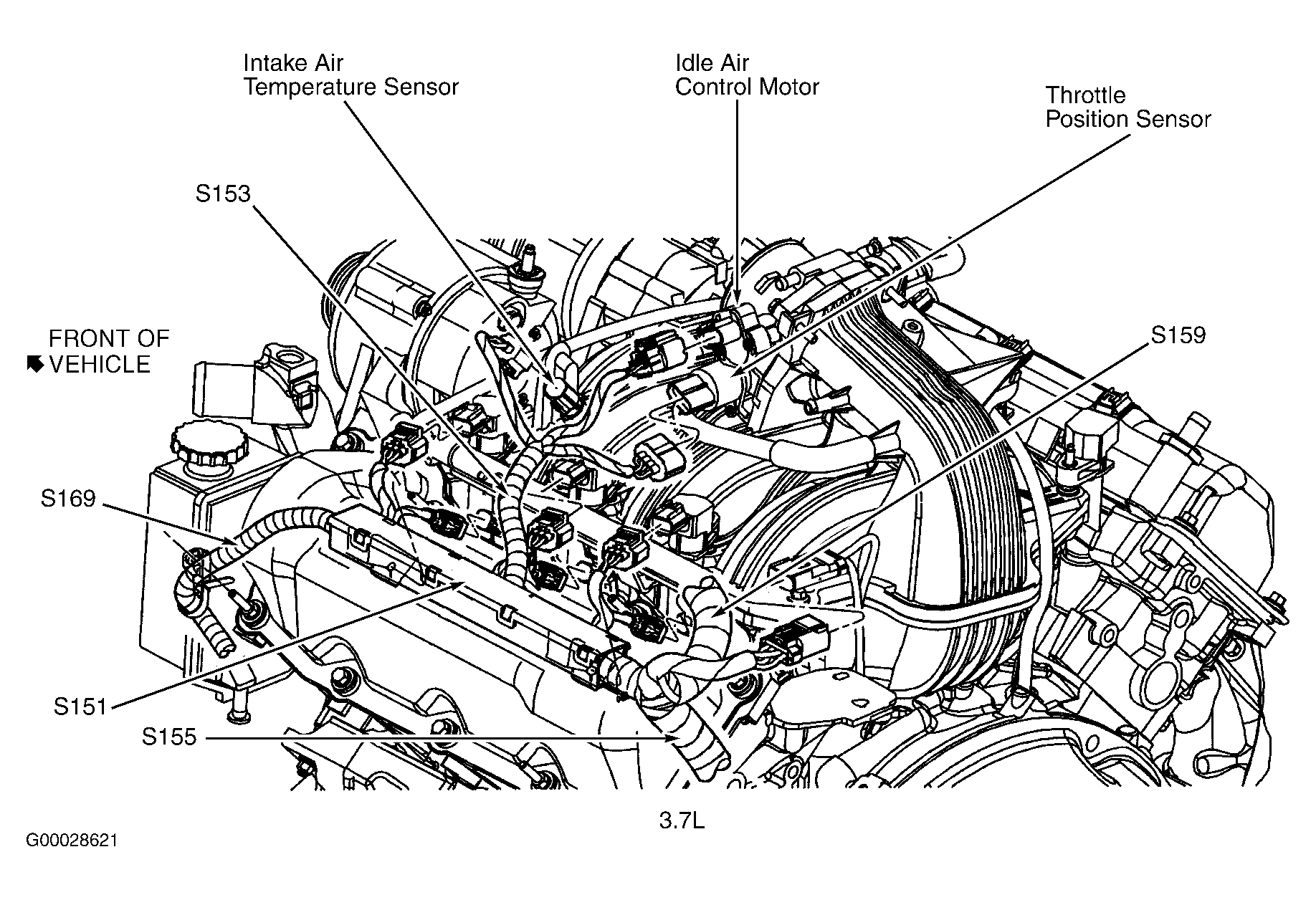

Fig 2: Right Front Of Engine (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

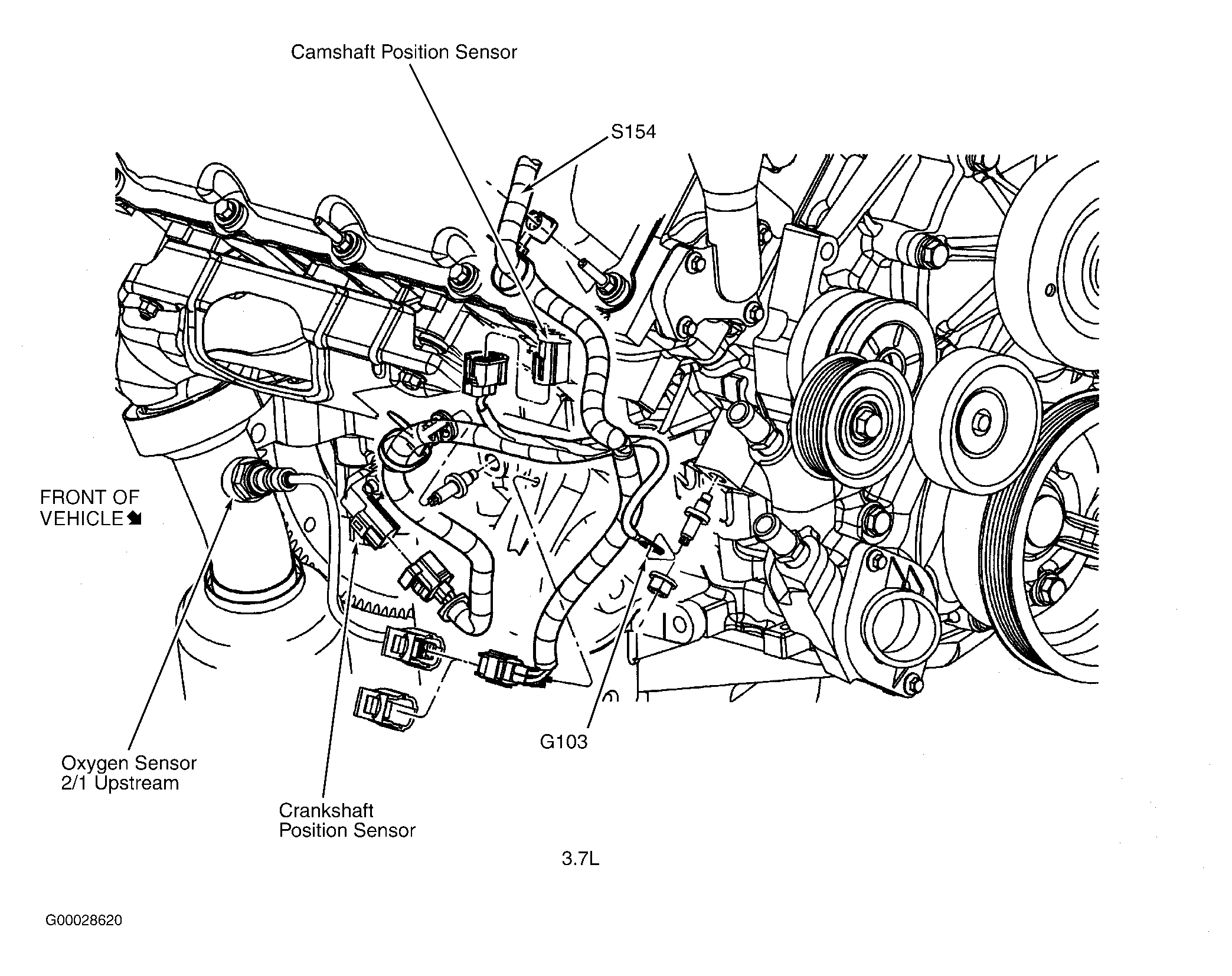

Fig 3: Left Rear Of Engine (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

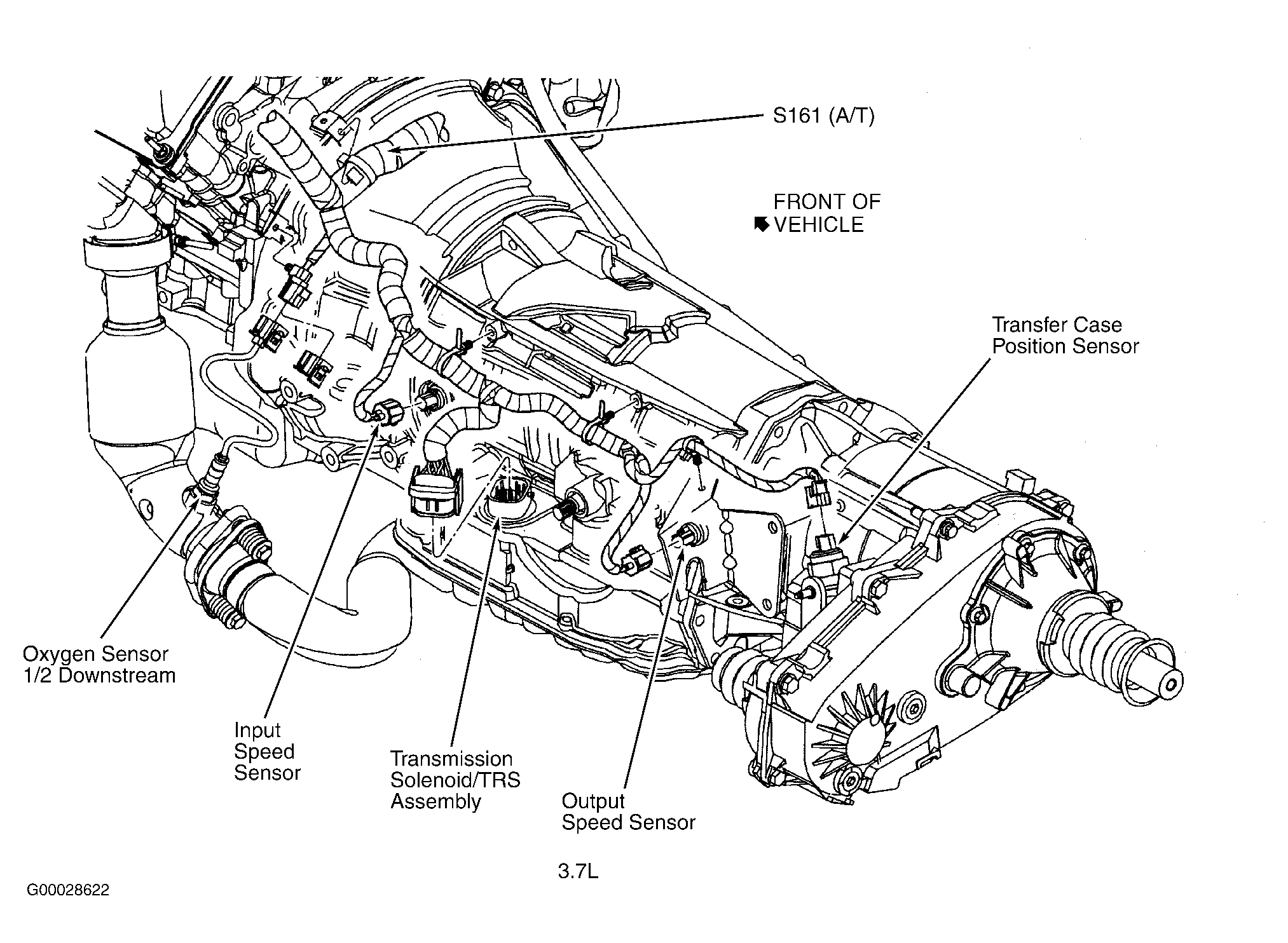

Fig 4: Left Side Of Automatic Transmission (3.7L)

Courtesy of DAIMLERCHRYSLER CORP.

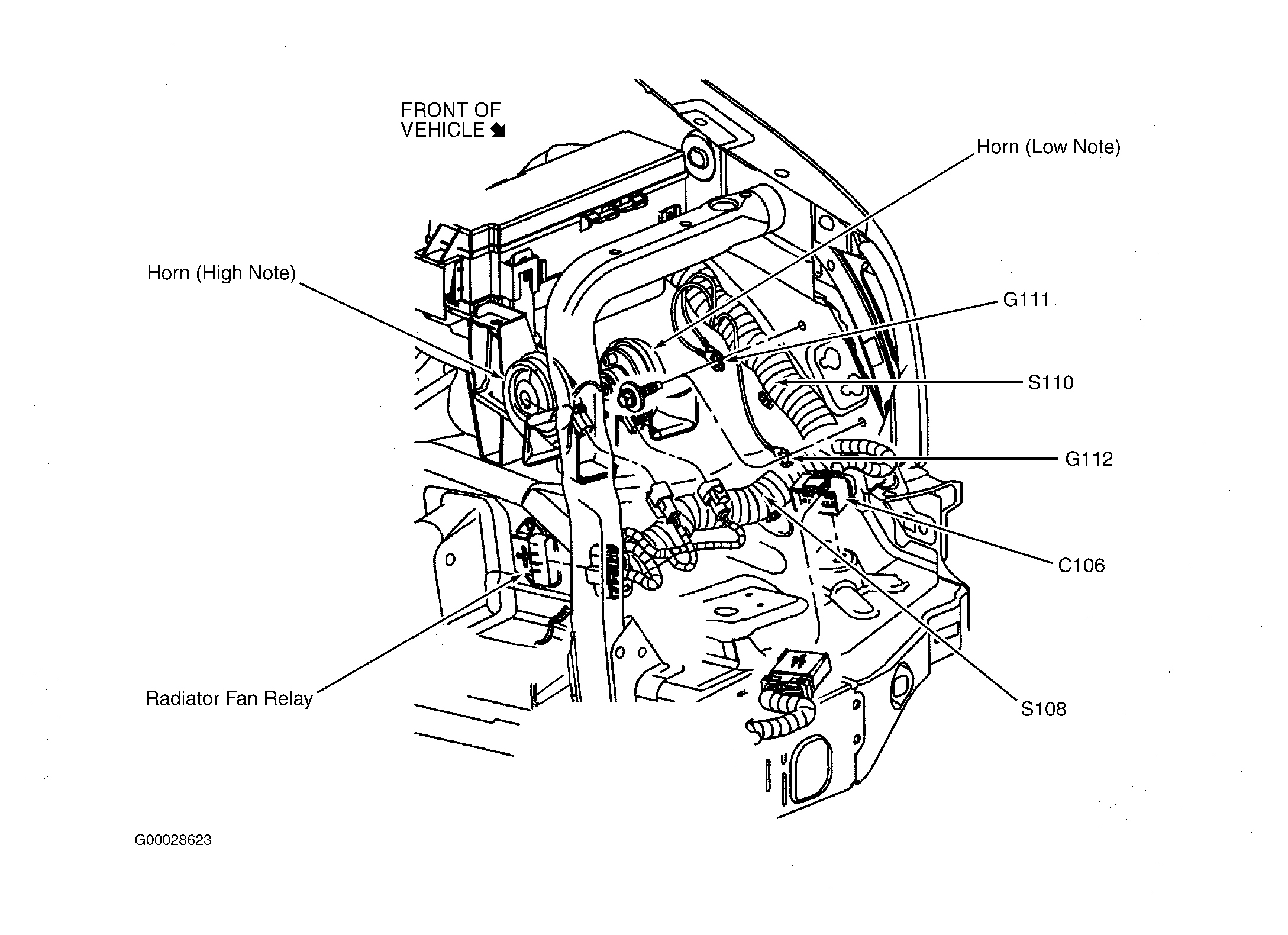

Fig 5: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Left "B" Pillar

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Right Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

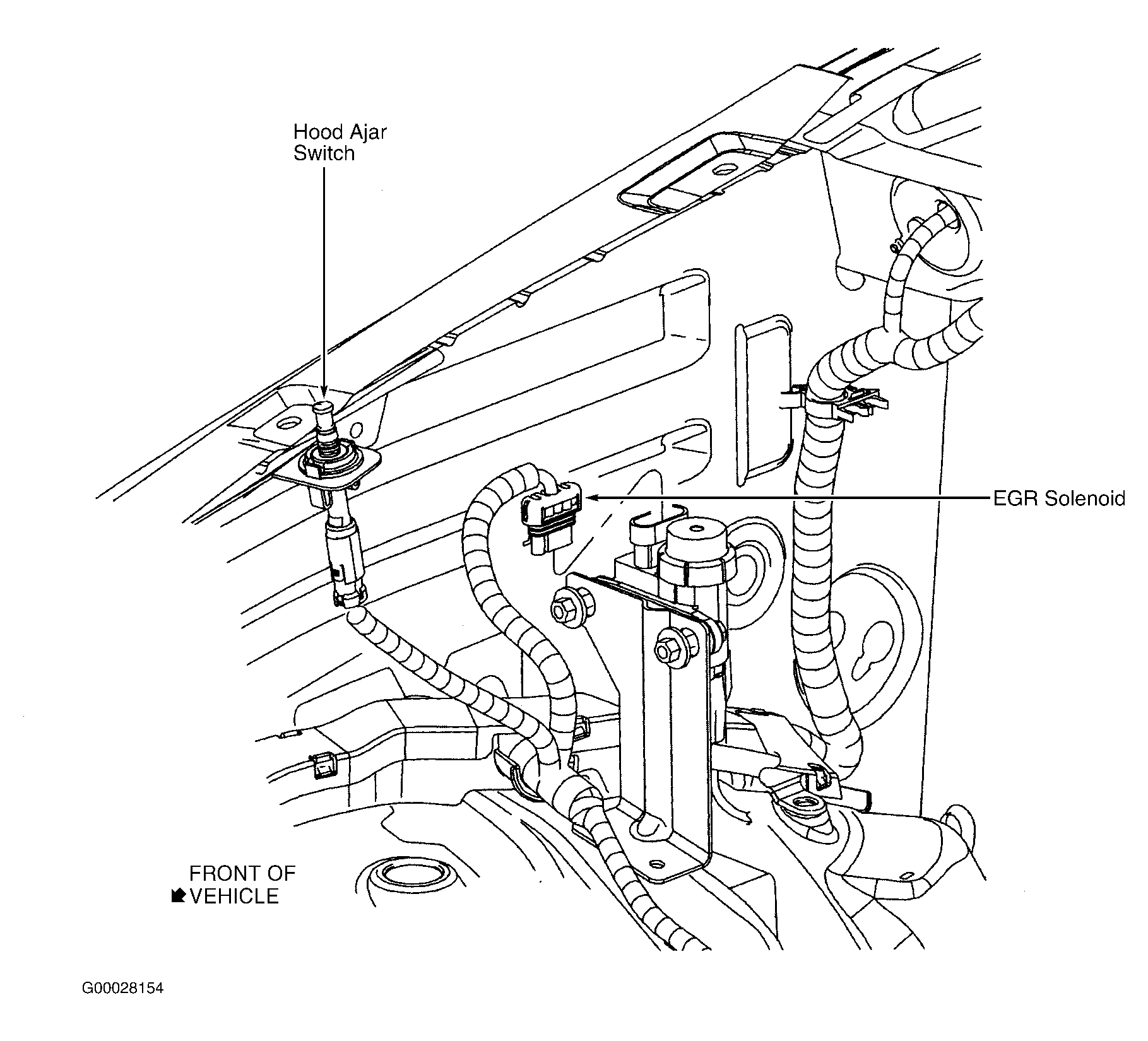

Fig 8: Left Front Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

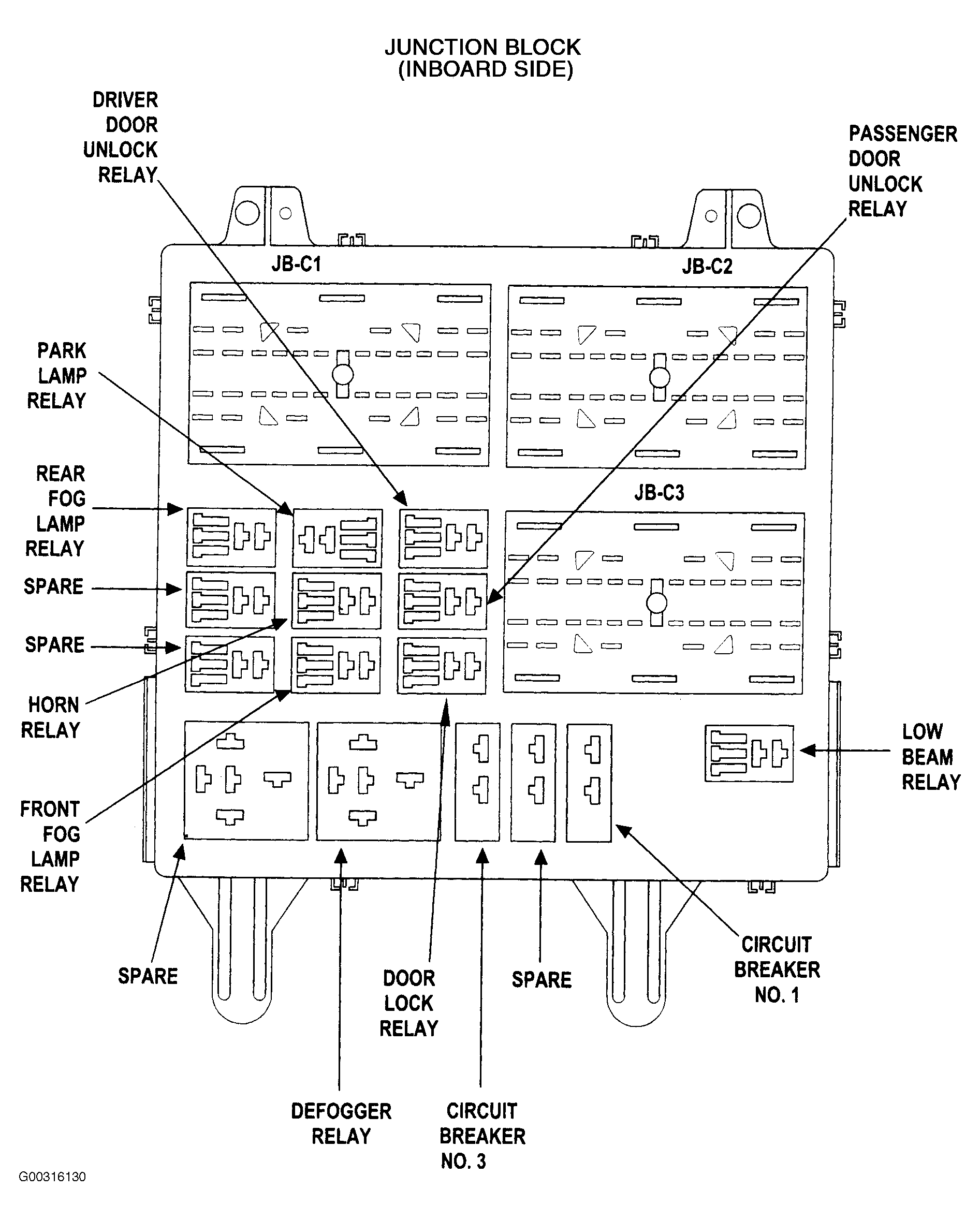

Fig 9: Junction Block (Inboard Side)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Junction Block (Outboard Side)

Courtesy of DAIMLERCHRYSLER CORP.

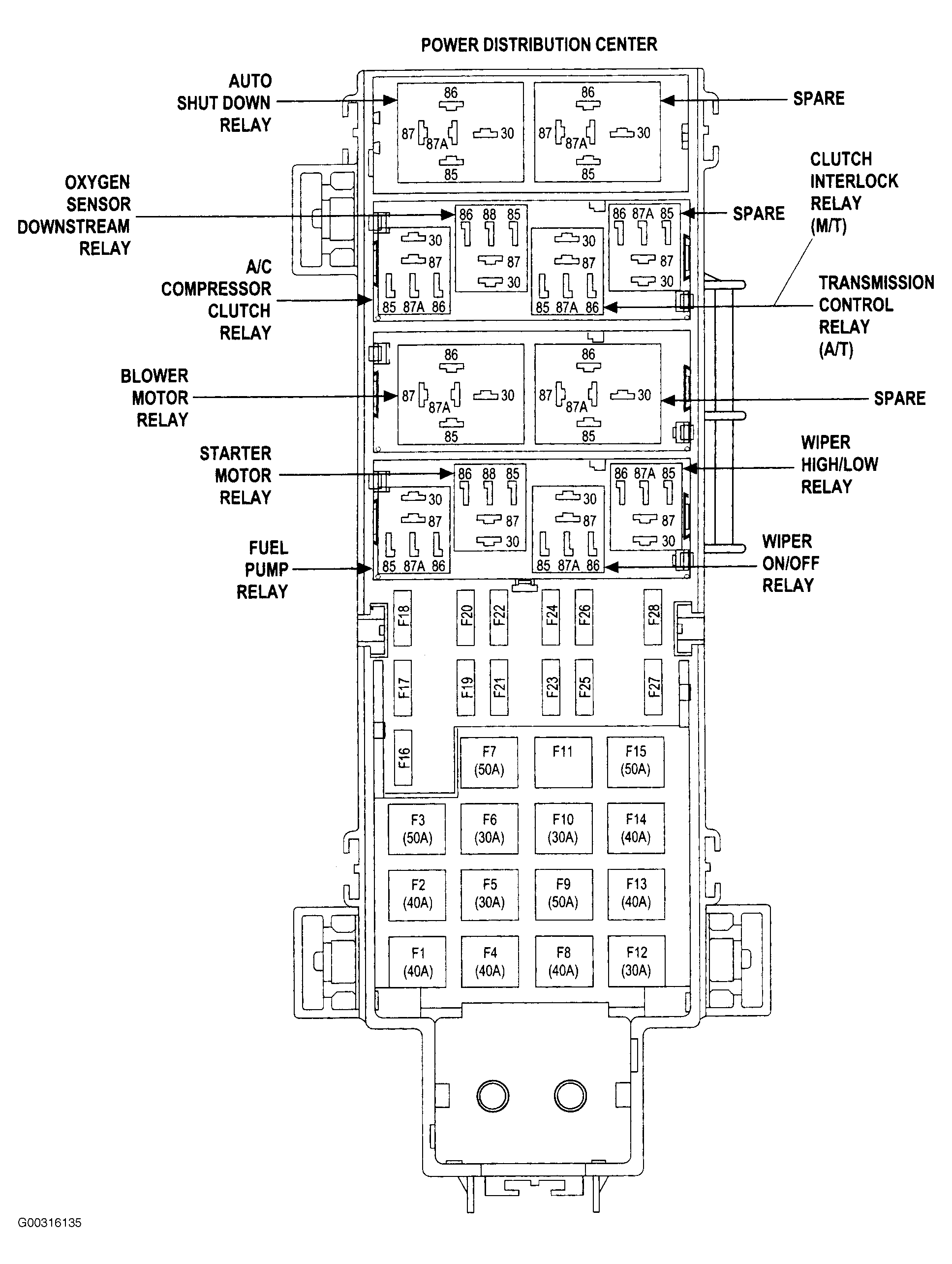

Fig 11: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
