O2 Sensor Connector End View (Component Side)

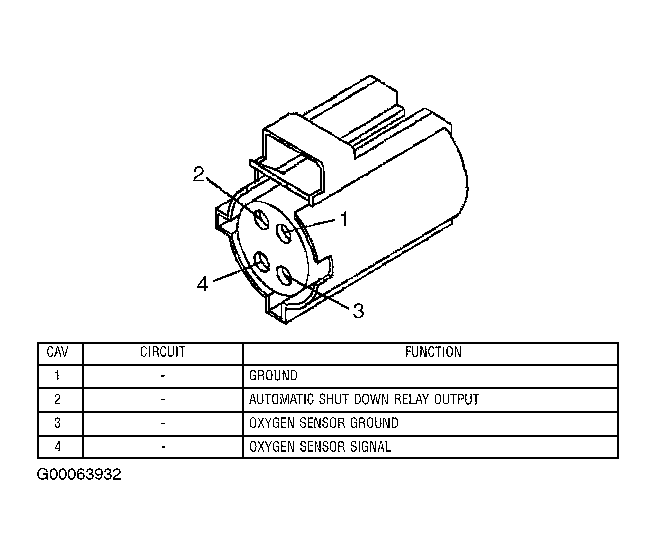

Fig 1: Identifying O2 Sensor Connector (Component Side)
G00063932Courtesy of DAIMLERCHRYSLER CORPORATION
