Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

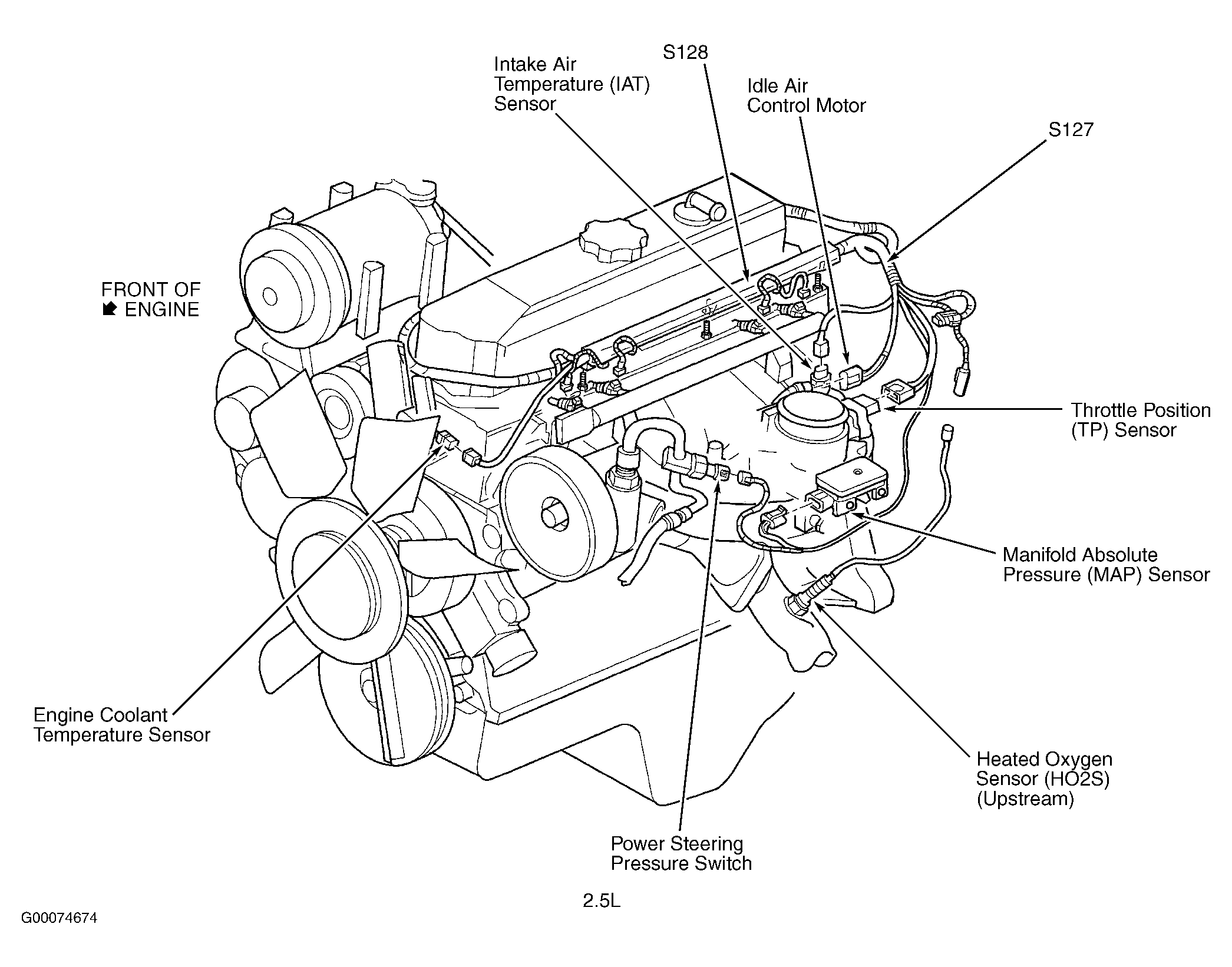

Fig 1: Left Side Of Engine (2.5L)

Courtesy of DAIMLERCHRYSLER CORP.

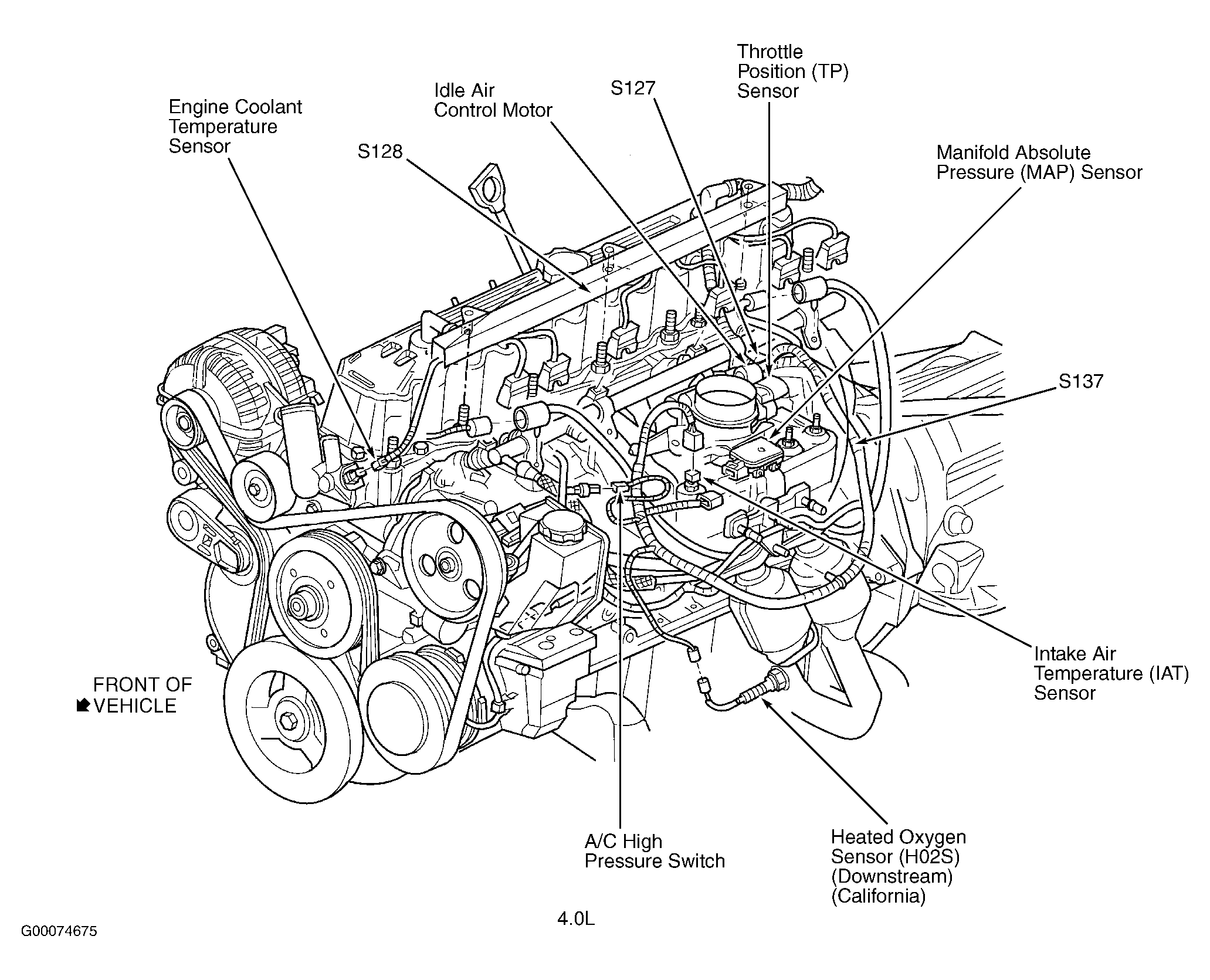

Fig 2: Left Side Of Engine (4.0L)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Rear Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Rear Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

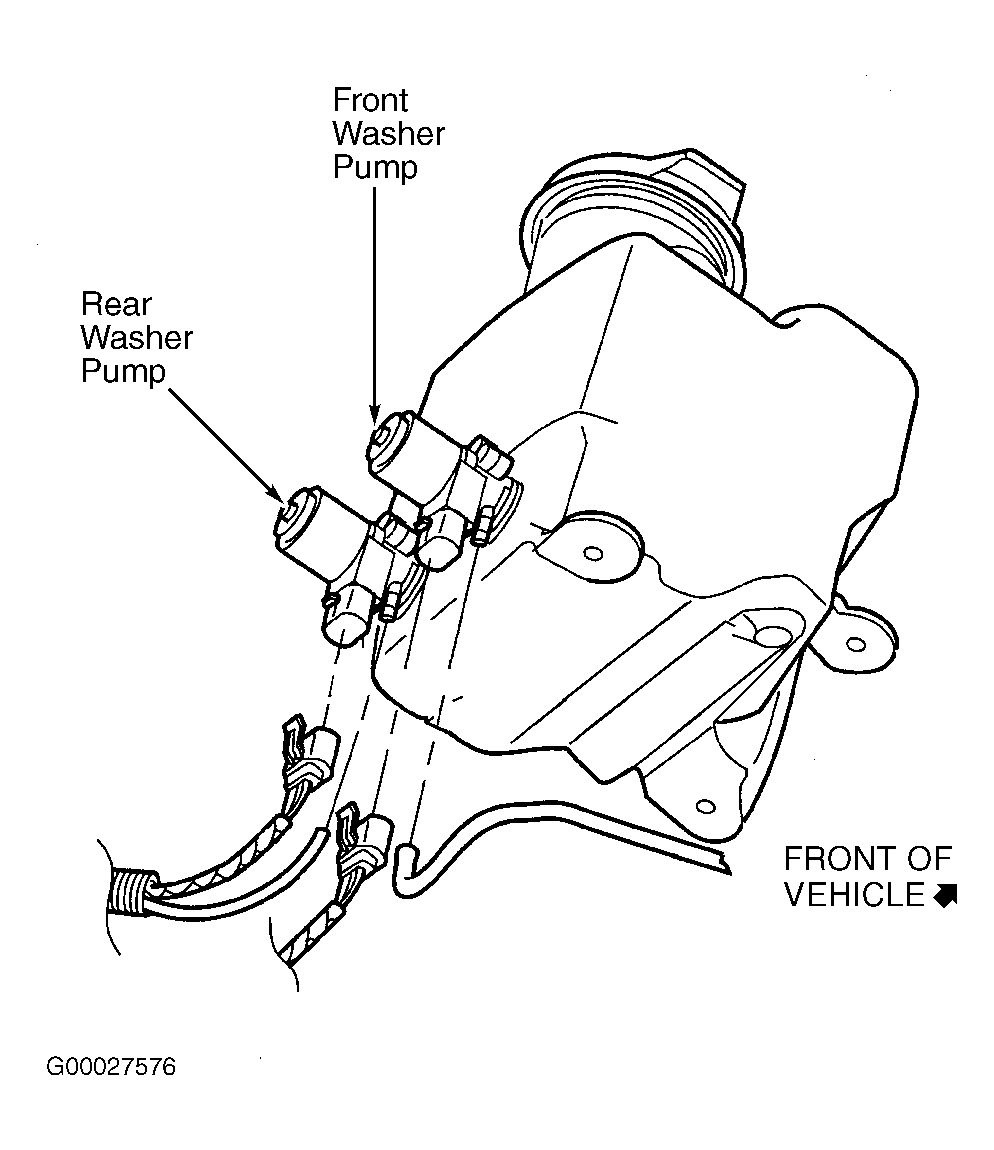

Fig 5: Washer Fluid Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Transmission

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Transfer Case

Courtesy of DAIMLERCHRYSLER CORP.

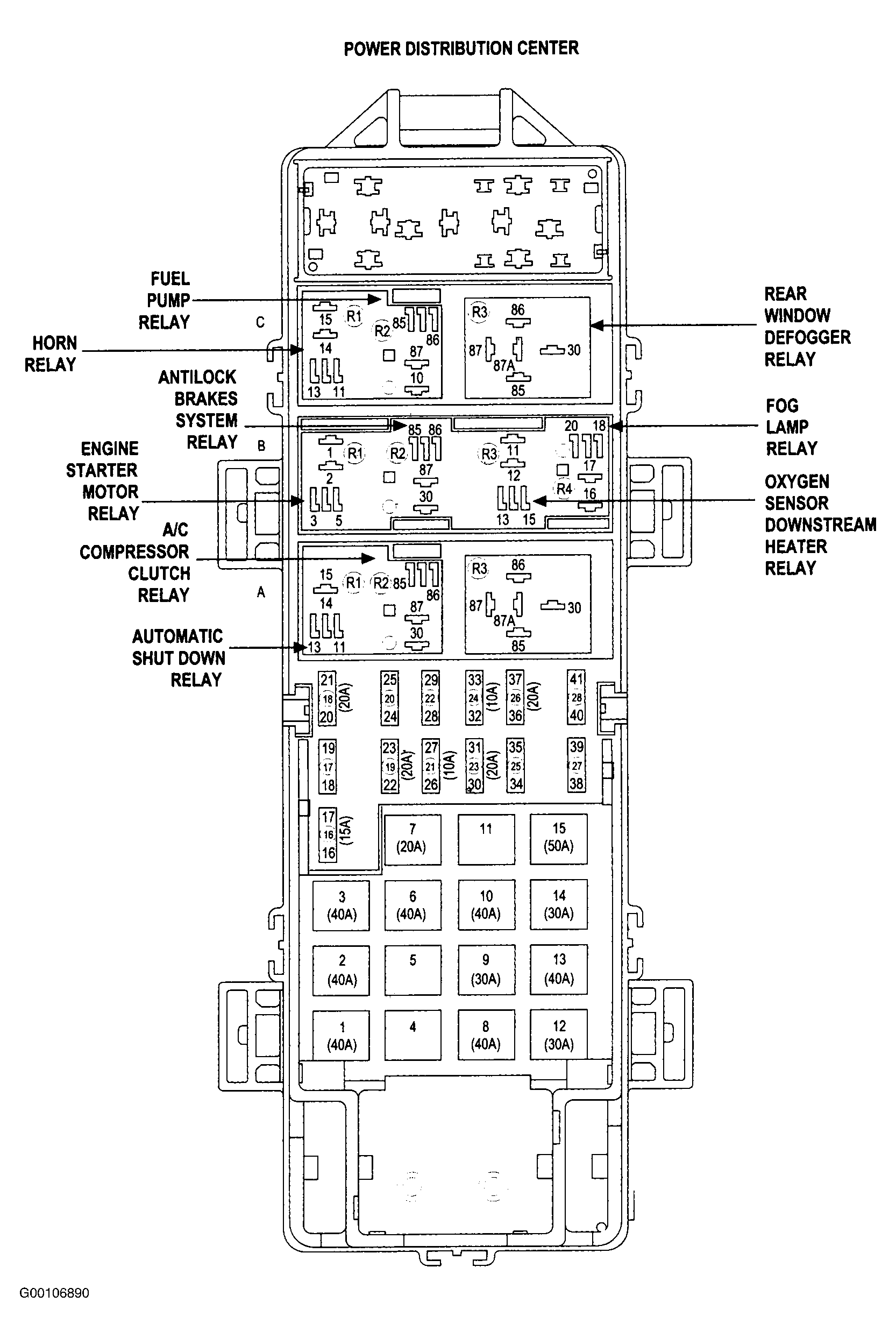

Fig 8: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
