Firing Order: Notes — 2002 Jeep Wrangler SE, Automatic Service Manual ~ lemon-mirror

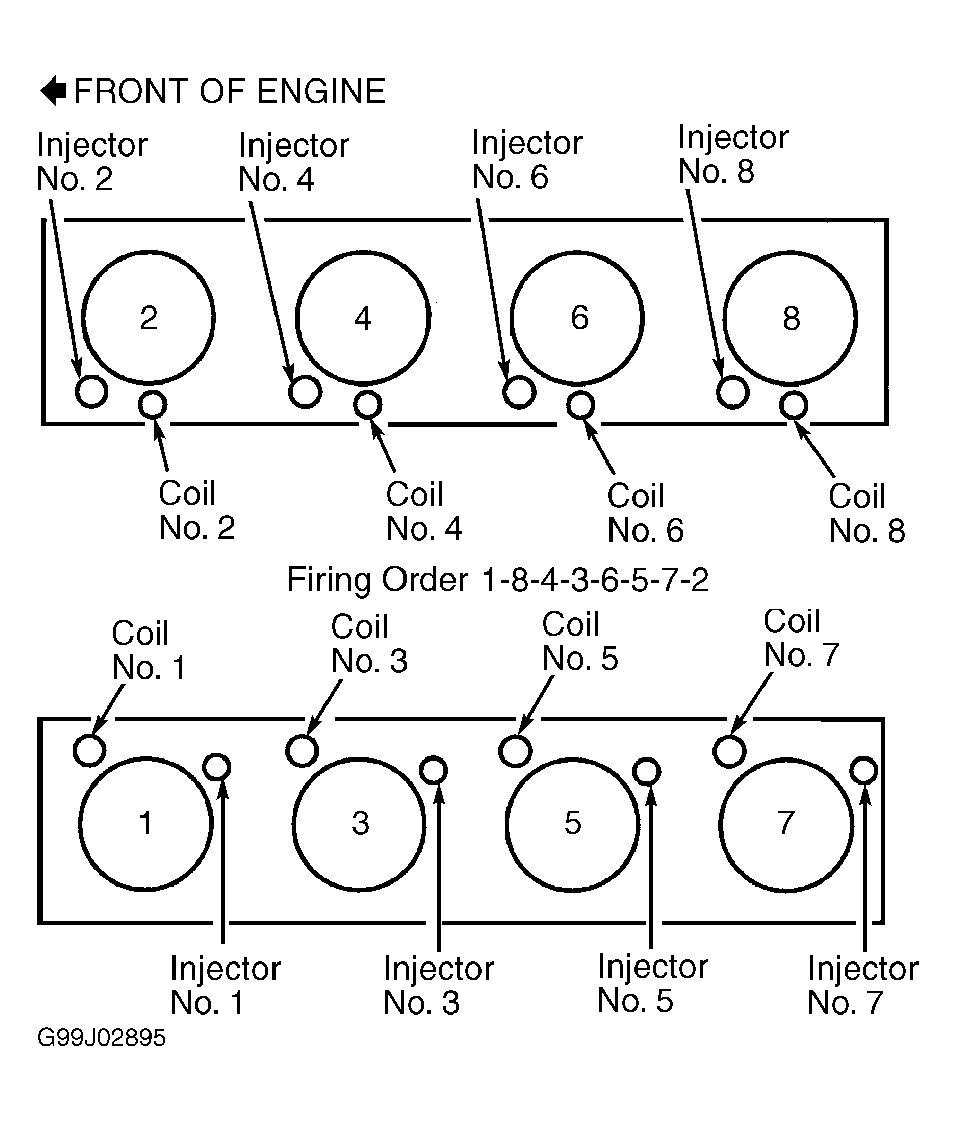

NOTE: To identify firing order, refer to illustrations. See Figure-Figure .

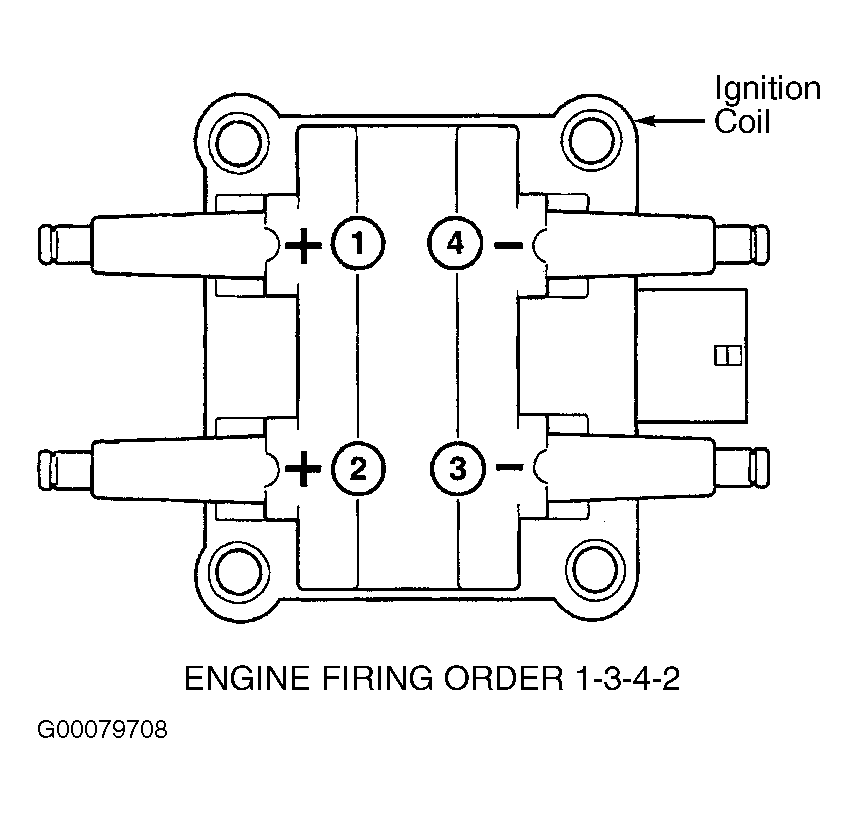

NOTE: On 2.4L, engine firing order is 1, 3, 4, 2. Cylinders are numbered front to rear with No. 1 cylinder closest to front of engine.

NOTE: On 3.7L, engine firing order is 1, 6, 5, 4, 3, 2. Cylinders are numbered front to rear with the left bank being numbered 1, 3 and 5 and the right bank being numbered 2, 4 and 6.
