Home >> Jeep >> 2002 >> Wrangler X, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostic Information And Procedures >> G-Switch Not Processable >> Testing

G-Switch Not Processable: Testing

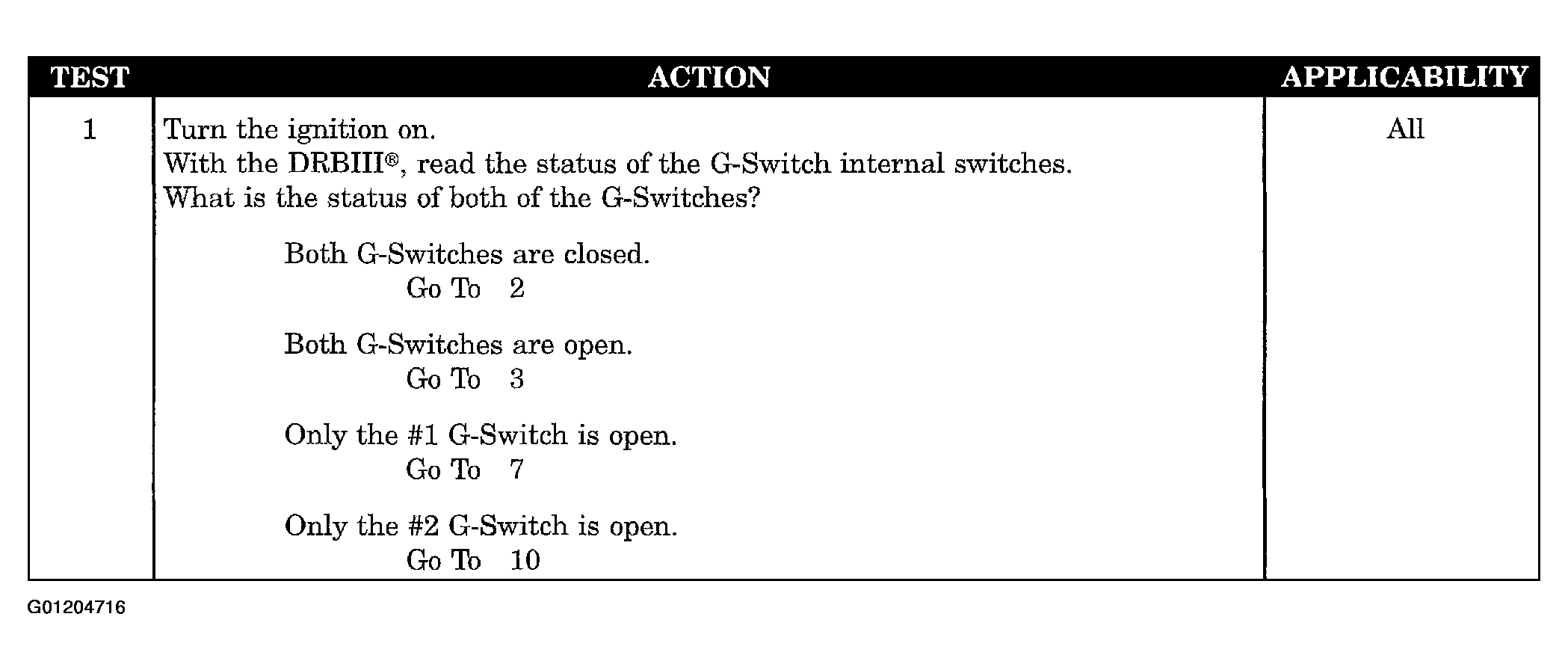

Fig 1: Testing: G-Switch Not Processable (1 Of 4)
G01204716Courtesy of DAIMLERCHRYSLER CORP.

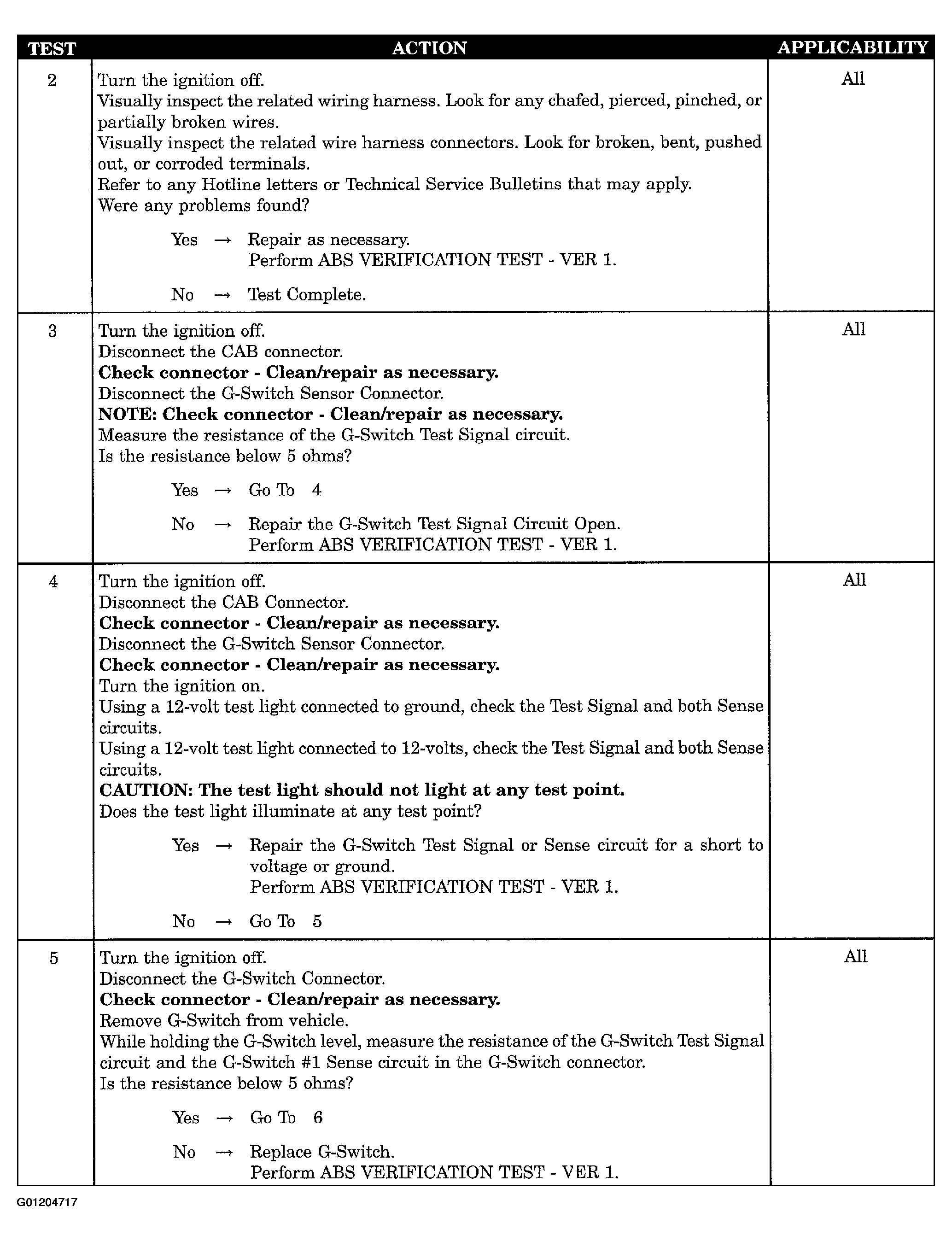

Fig 2: Testing: G-Switch Not Processable (2 Of 4)
G01204717Courtesy of DAIMLERCHRYSLER CORP.

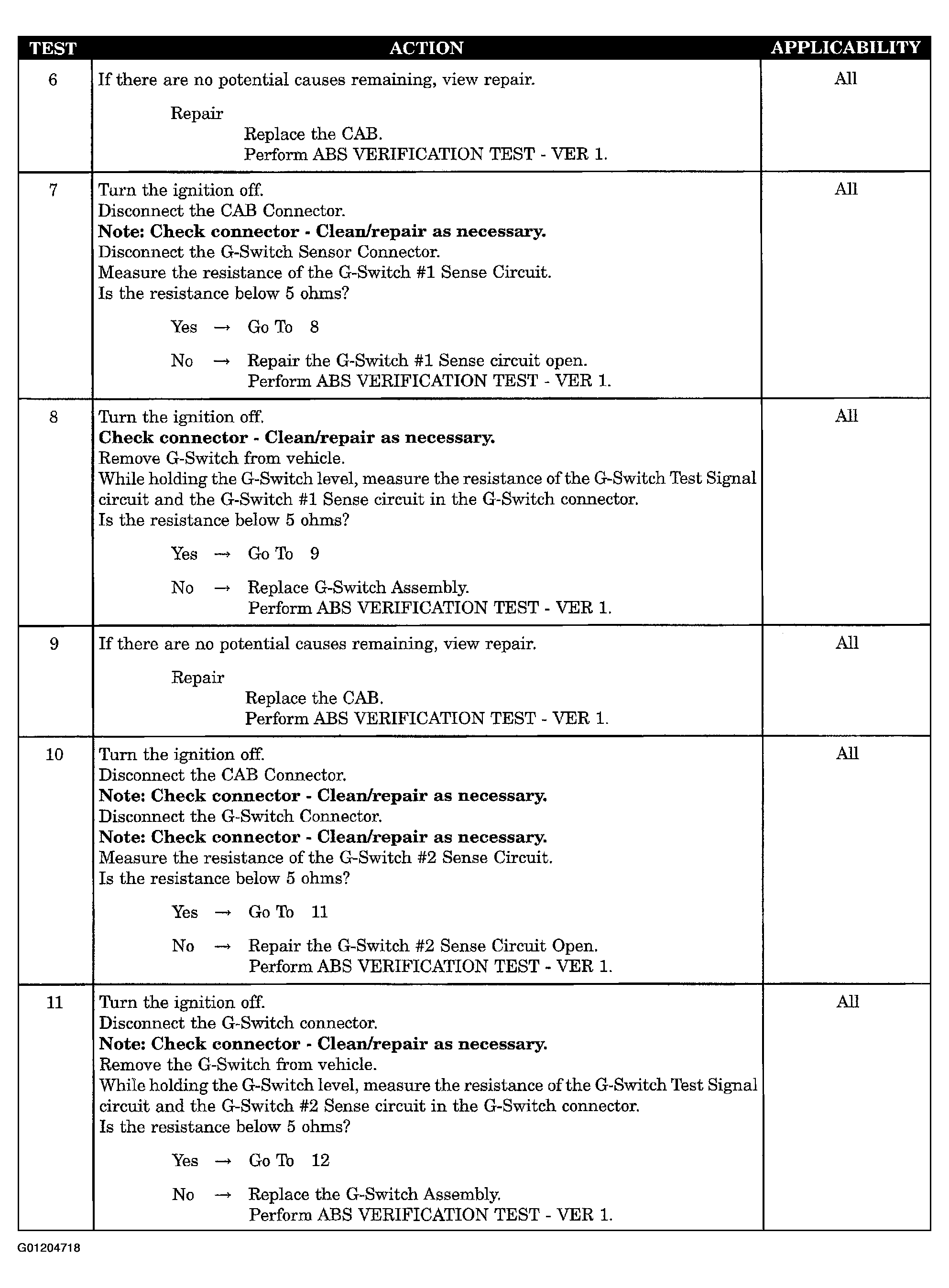

Fig 3: Testing: G-Switch Not Processable (3 Of 4)
G01204718Courtesy of DAIMLERCHRYSLER CORP.

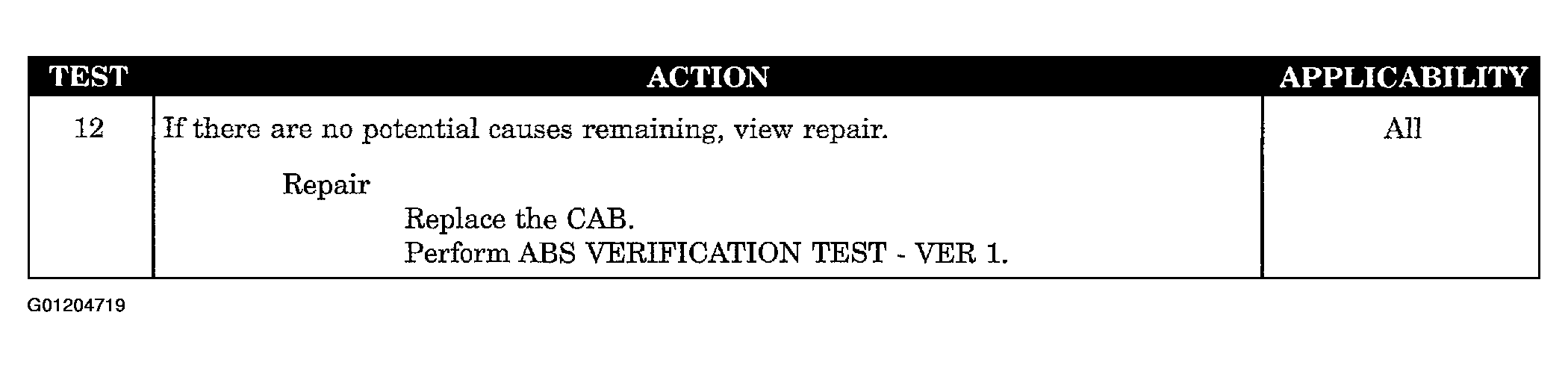

Fig 4: Testing: G-Switch Not Processable (4 Of 4)
G01204719Courtesy of DAIMLERCHRYSLER CORP.
