Anti-Lock Brake System: G-Switch: Installation

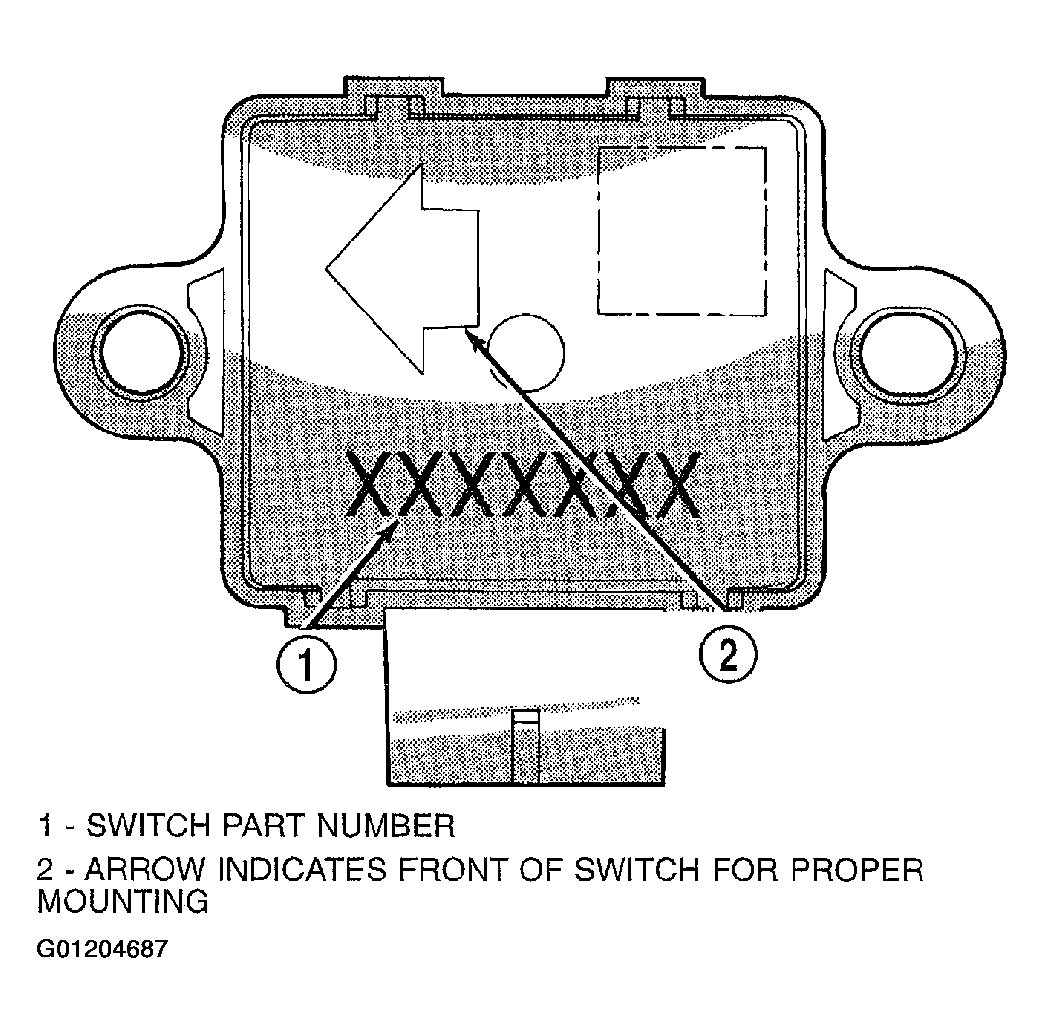

CAUTION: The mercury switch (inside the G-switch), will not function properly if the switch is installed incorrectly. Verify that the switch locating arrow is pointing to the front of the vehicle. See Figure .
  1. Position switch on mounting bracket.
  2. Install mounting bolts and tighten to 4-5 N.m (35-45 in. lbs.)
  3. Connect harness to switch.
  4. Place carpet back into position.
