Ignition Switch: Installation

The ignition key must be in the key cylinder for cylinder installation. The key cylinder must be aligned with the ignition switch for installation.

1. Before installing ignition switch, rotate the slot in the switch to the ON position.

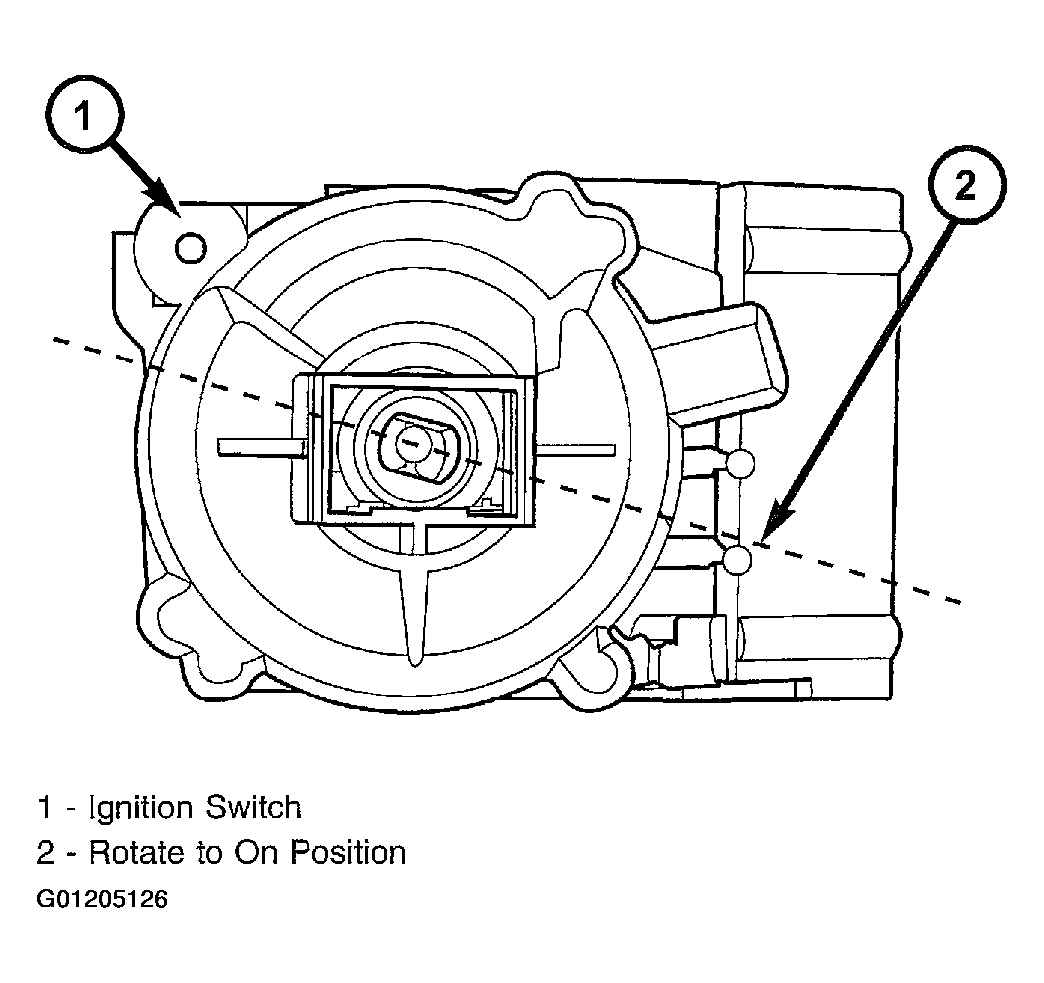

   Fig 1: Switching Ignition Switch To On Position

   Courtesy of DAIMLERCHRYSLER CORP.
2. Connect the electrical connector to rear of ignition switch. Make sure that locking tab is fully seated into wiring connector.
3. Position the switch to the column and install tamper proof screw. Tighten screw to 3 N.m (26 in. lbs.).
4. Test the operation of the lock cylinder for smooth rotating.
5. Install the multi-function switch.
6. Install steering column lower cover.
