Power Outlet: Installation

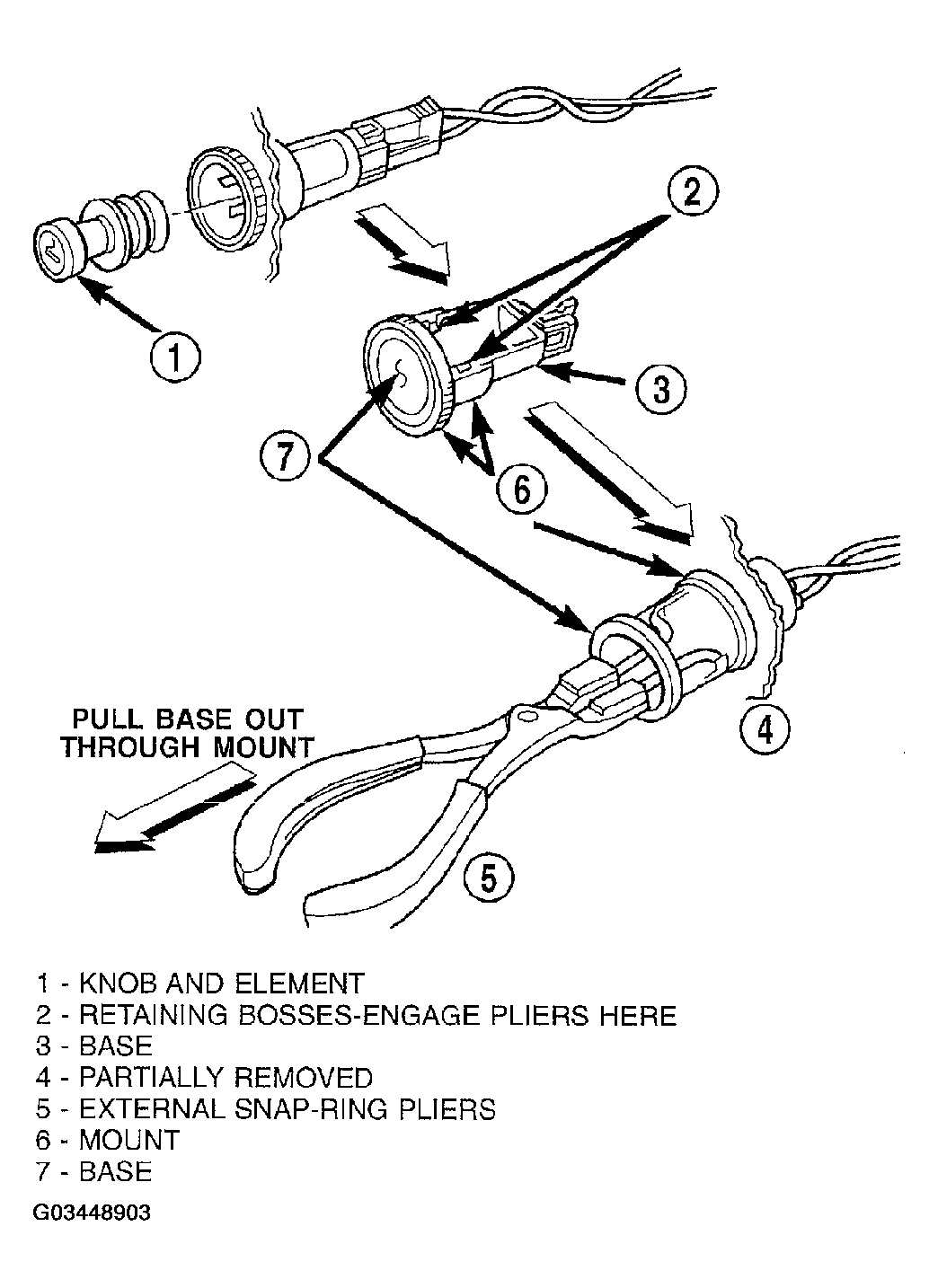

- Install the cigar lighter or power outlet mount into the instrument panel center lower bezel.
- Align the splines on the outside of the cigar lighter or power outlet receptacle base connector receptacle with the grooves on the inside of the mount.
- Press firmly on the cigar lighter or power outlet receptacle base until the retaining bosses of the mount are fully engaged in their receptacles.
- Install the cigar lighter knob and element or the protective cap into the cigar lighter receptacle base, or close the power outlet door in the instrument panel center lower bezel.
Courtesy of DAIMLERCHRYSLER CORP.
- Install the center lower bezel onto the instrument panel. Refer to INSTRUMENT PANEL CENTER BEZEL-LOWER
for the procedure.
- Reconnect the battery negative cable.
