Engine Controls - Self-Diagnostics
>>
Connector Identification
>>
Pcm Commentary End View
Pcm Commentary End View

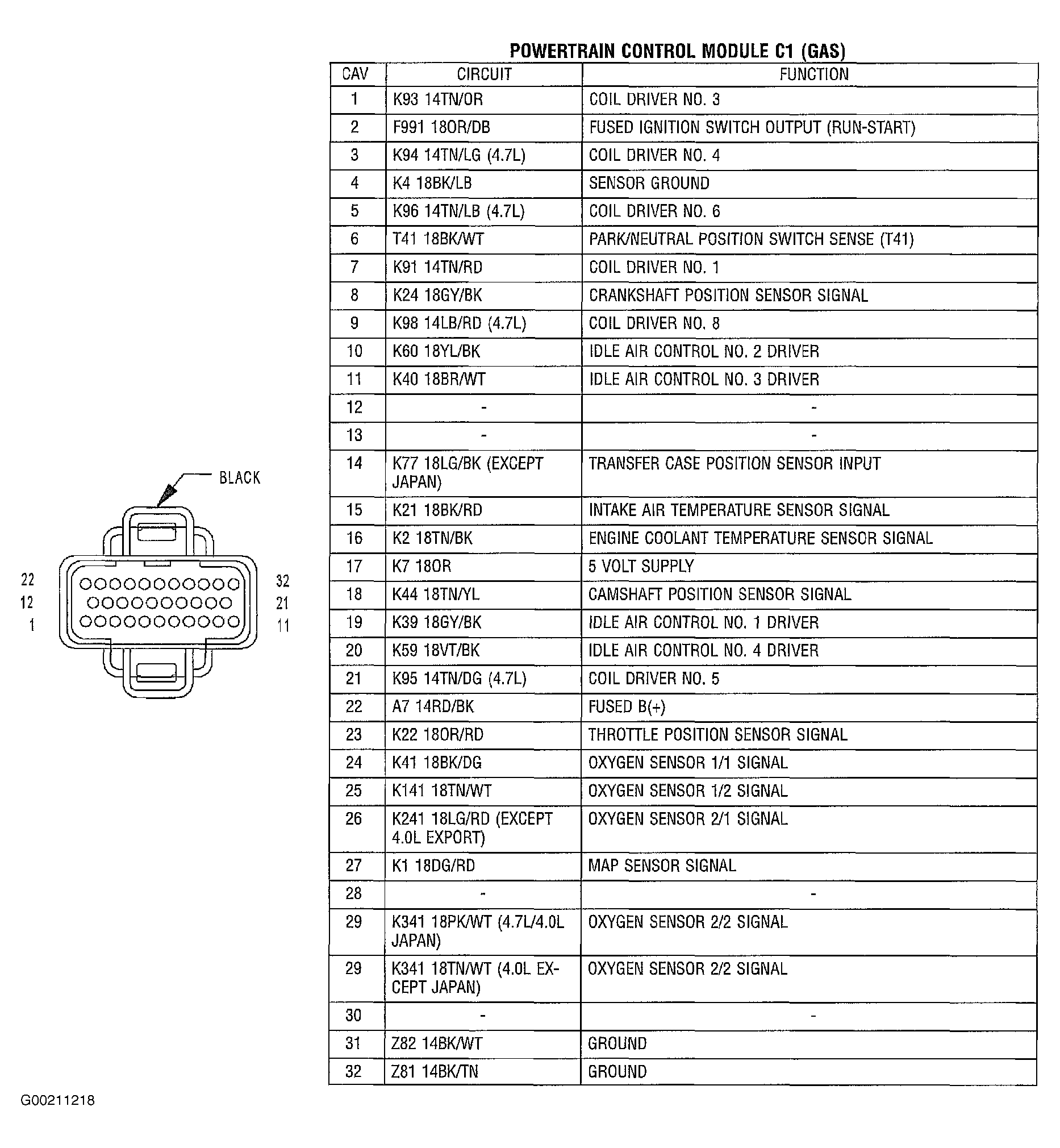

Fig 1: Identifying PCM C1 Harness Connector
Courtesy of CHRYSLER CORP.

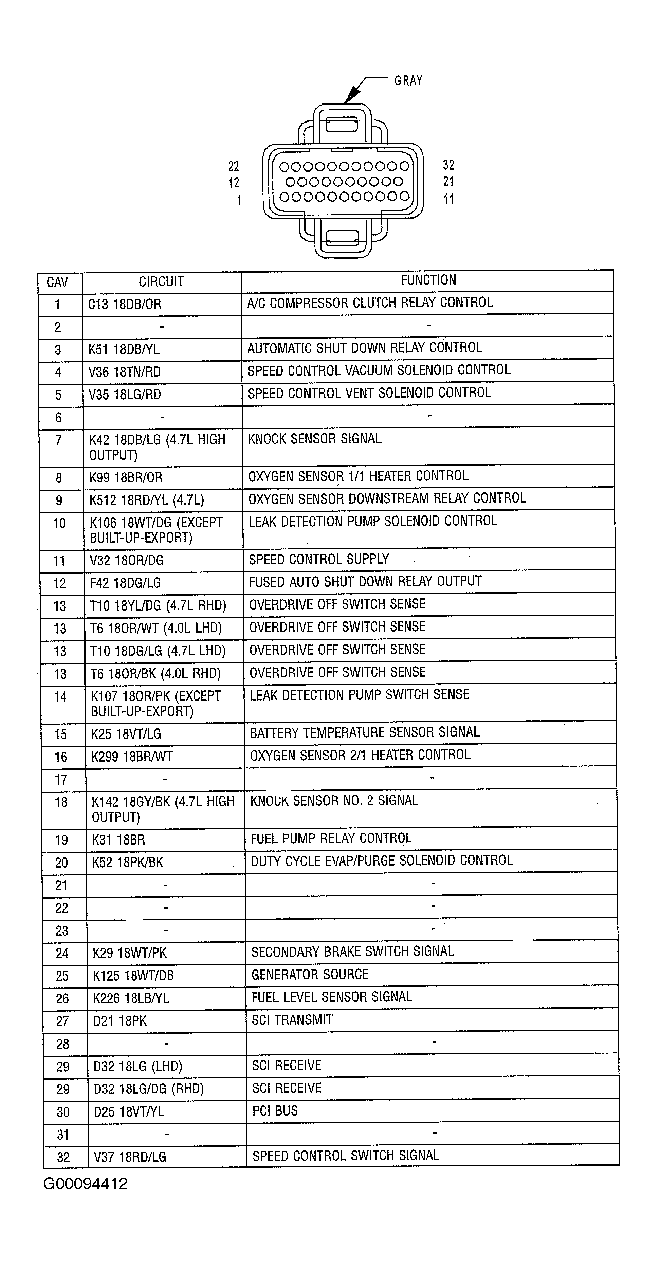

Fig 2: Identifying PCM C2 Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION

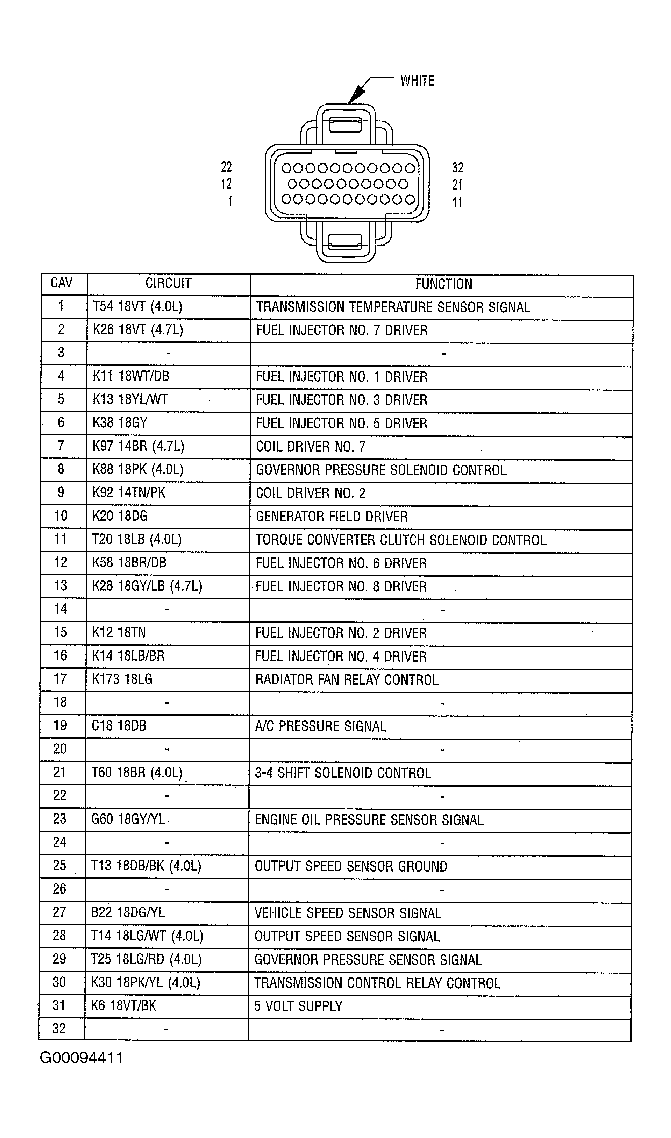

Fig 3: Identifying PCM C3 Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
