Junction Block Outboard Fuses Identification

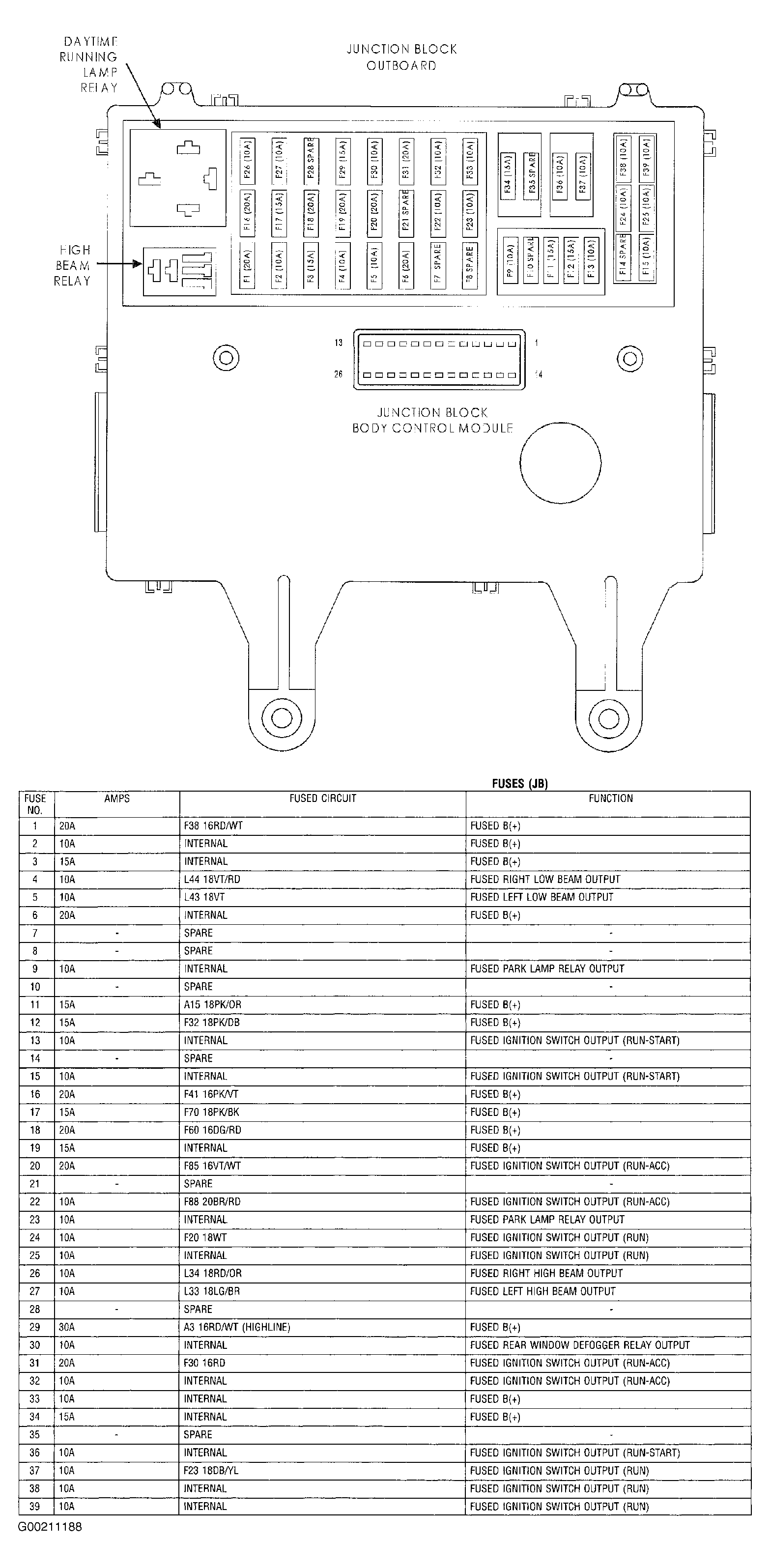

Fig 1: Identifying Junction Block Outboard Fuses

G00211188

Courtesy of CHRYSLER CORP.
