O2 Sensor Connector End View

Fig 1: Identifying O2 Sensor Connector (Component Side)

Courtesy of DAIMLERCHRYSLER CORPORATION

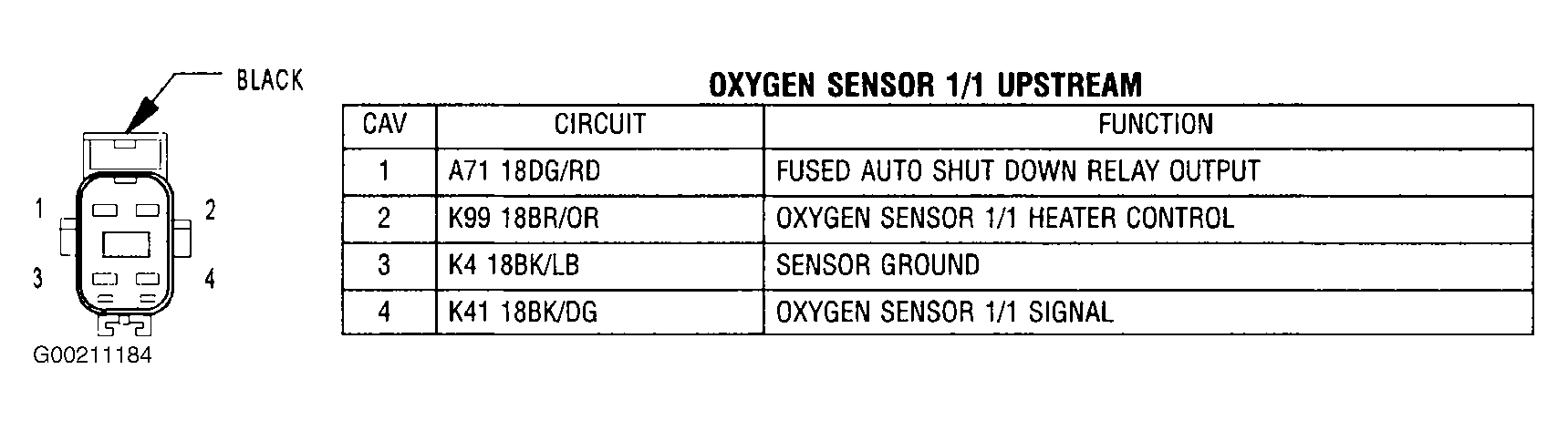

Fig 2: Identifying O2 Sensor 1/1 Upstream Harness Connector

Courtesy of CHRYSLER CORP.

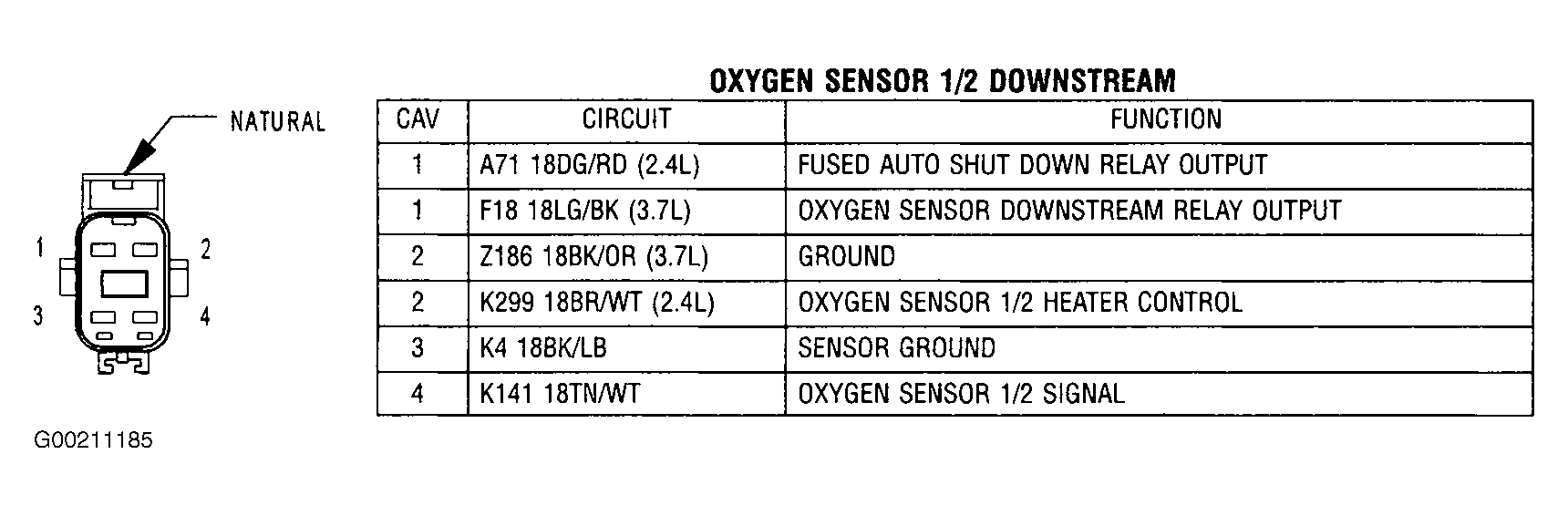

Fig 3: Identifying O2 Sensor 1/2 Downstream Harness Connector

Courtesy of CHRYSLER CORP.

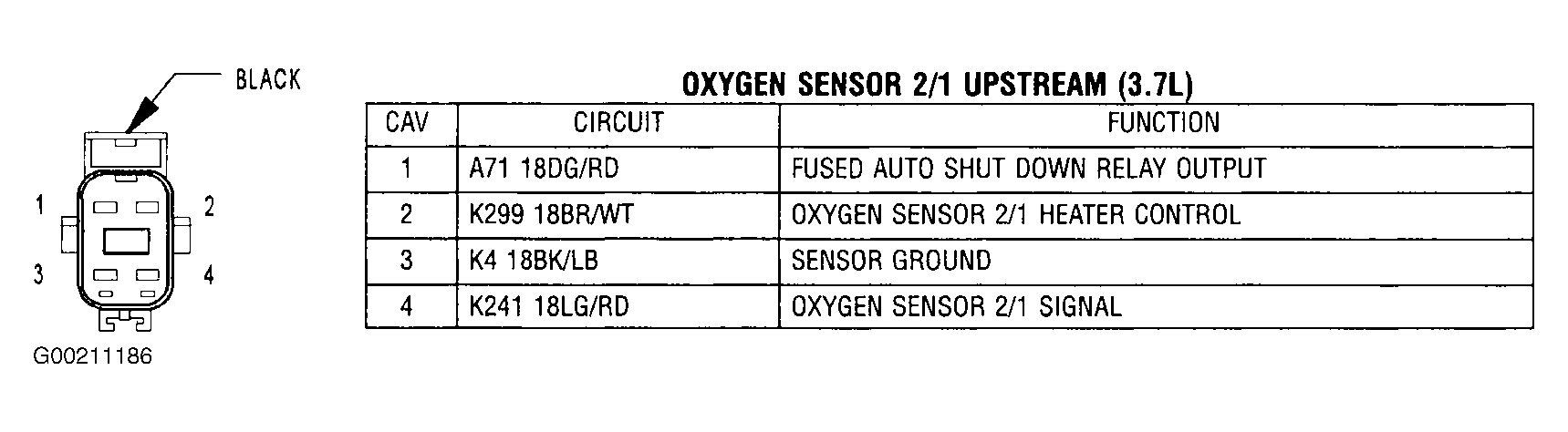

Fig 4: Identifying O2 Sensor 2/1 Upstream Harness Connector (3.7L)

Courtesy of CHRYSLER CORP.

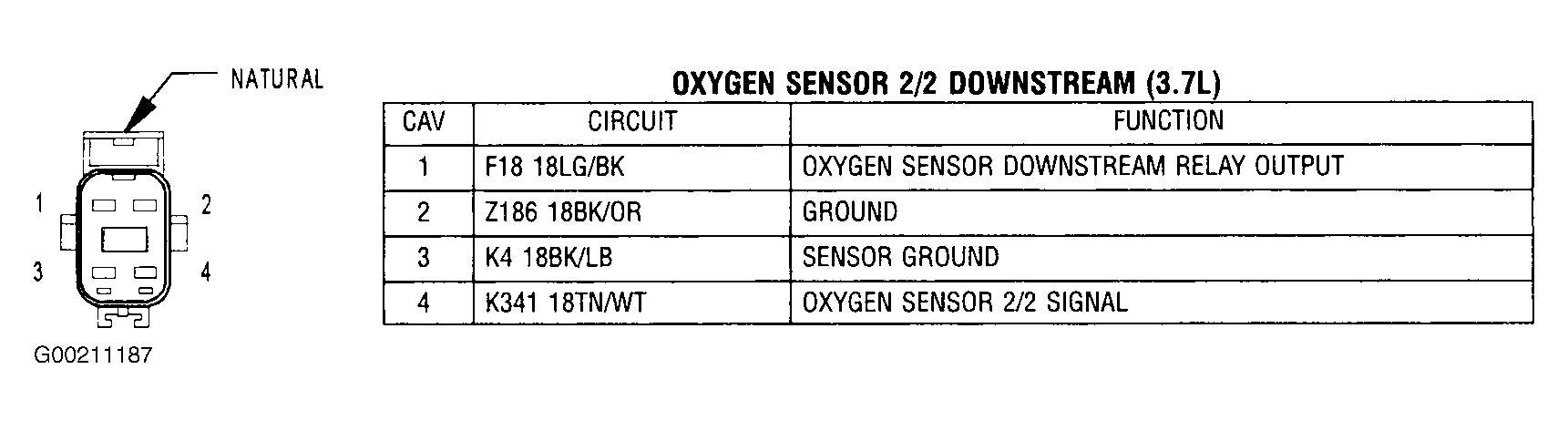

Fig 5: Identifying O2 Sensor 2/2 Downstream Harness Connector (3.7L)

Courtesy of CHRYSLER CORP.
