Fuse Block: Installation

The fuseblock module is serviced as a unit with the body wire harness. If any internal circuit of the fuseblock module or if the fuseblock module housing is faulty or damaged, the entire fuseblock module and the body wire harness unit must be replaced.

NOTE: If the fuseblock module is being replaced with a new unit, be certain to transfer each of the fuses from the faulty fuseblock module to the proper cavities of the replacement fuseblock module. Refer to FUSE BLOCK for the location of complete fuseblock module circuit diagrams and cavity assignments.

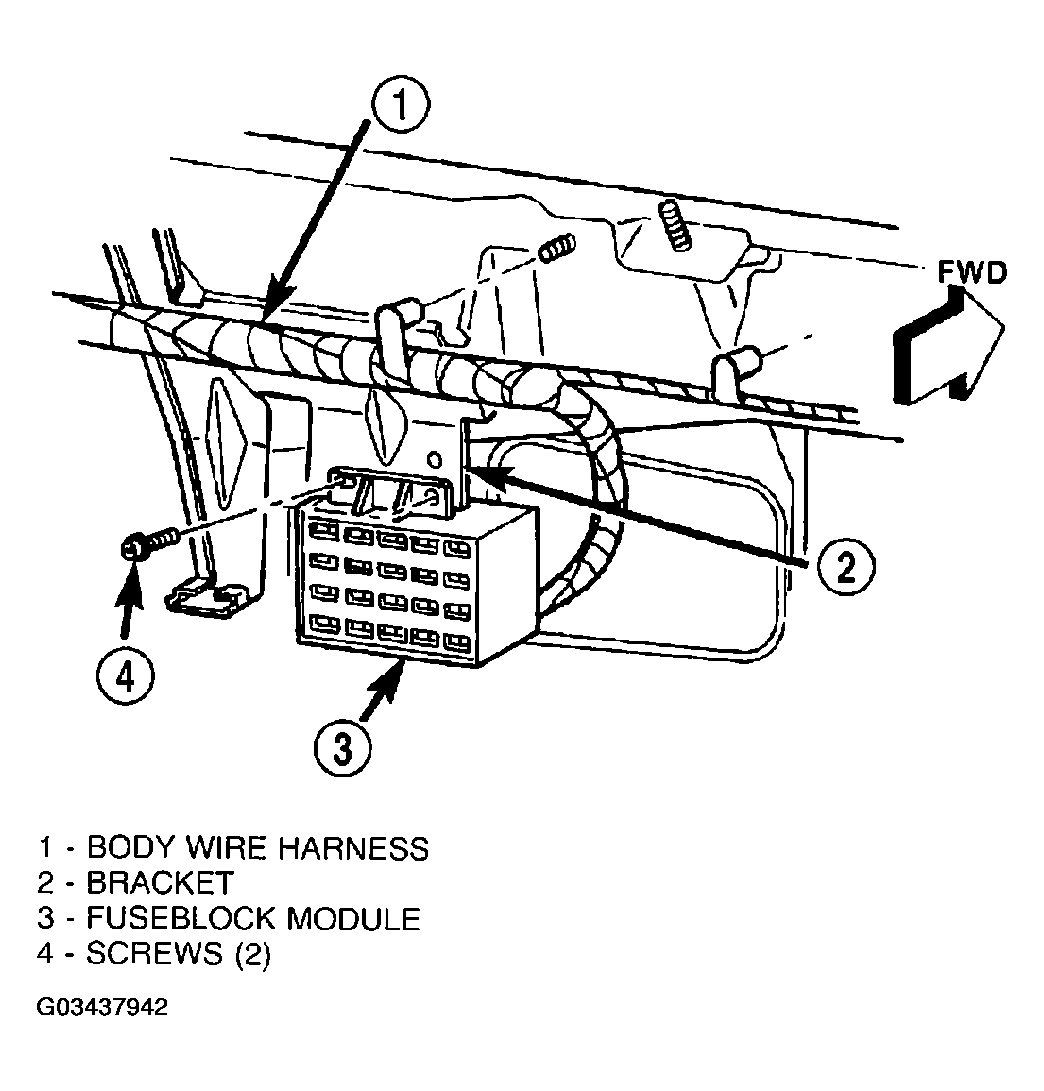

Fig 1: Removing Fuseblock Module
G03437942Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the fuseblock module and the body wire harness onto the dash panel as a unit.
  2. Install and tighten the two screws that secure the fuseblock module to the bracket on the dash panel. Tighten the screws to 3.3 N.m (30 in. lbs.).
  3. Engage each of the retainers that secure the body wire harness to the vehicle body and chassis components. Refer to ELECTRICAL COMPONENT LOCATOR for the location of the body wire harness retainer locations.
  4. Install all of the fasteners that secure each of the body wire harness ground eyelets to the vehicle body and chassis components. Refer to ELECTRICAL COMPONENT LOCATOR for the location of the body wire harness ground eyelet locations.
  5. Reconnect each of the body wire harness connectors. Refer to ELECTRICAL COMPONENT LOCATOR for the location of the body wire harness connector locations.
  6. Install the instrument panel assembly onto the dash panel (Refer to INSTRUMENT PANEL ASSEMBLY ).
  7. Reconnect the battery negative cable.
