Power Distribution Center Support Bracket: Installation

  1. Position the PDC bracket onto the right front inner fender.
  2. Install and tighten the three screws that secure the PDC mounting bracket to the right front inner fender. Tighten the screws to 3.9 N.m (35 in. lbs.).
  3. Install the PDC onto the PDC bracket (Refer to INSTALLATION ).
  4. Reconnect the battery negative cable.

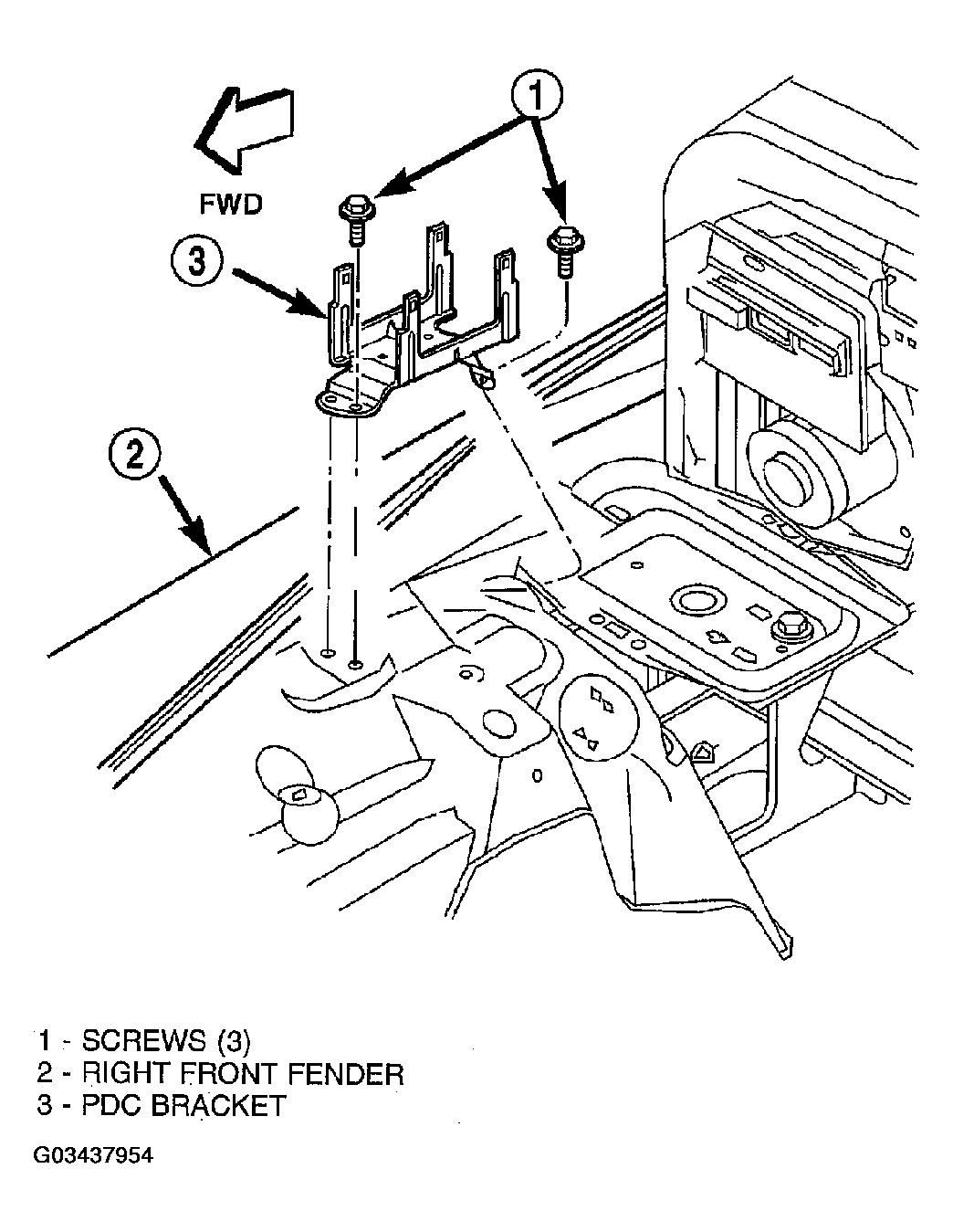

    Fig 1: Removing PDC Bracket
    G03437954Courtesy of DAIMLERCHRYSLER CORP.
