Home >> Jeep >> 2003 >> Wrangler X, Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector End Views >> Transmission Control Module Connector End View

Transmission Control Module Connector End View

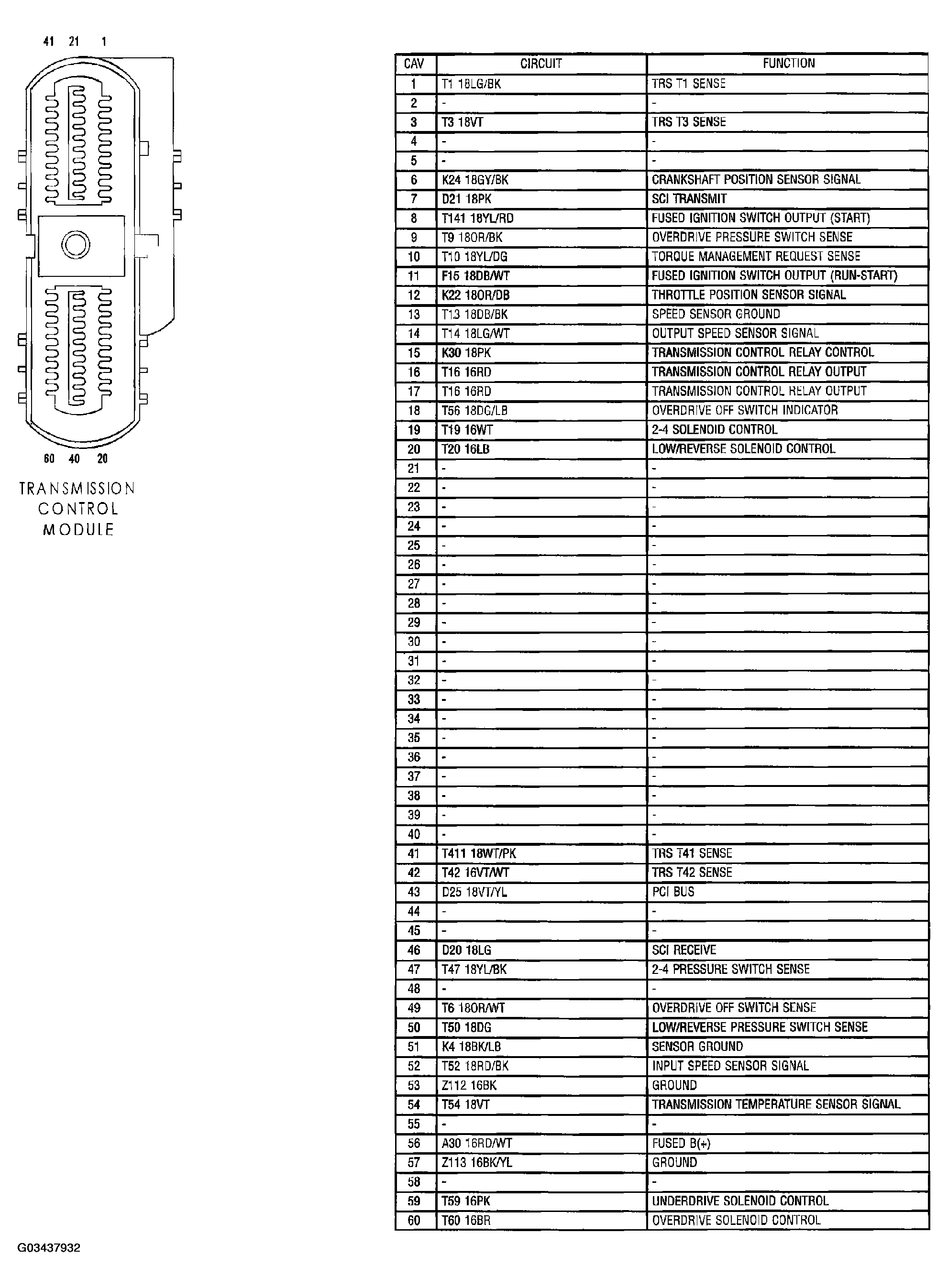

Fig 1: Transmission Control Module Connector End View

G03437932

Courtesy of DAIMLERCHRYSLER CORP.
