Fuel Level Sending Unit/Sensor: Installation

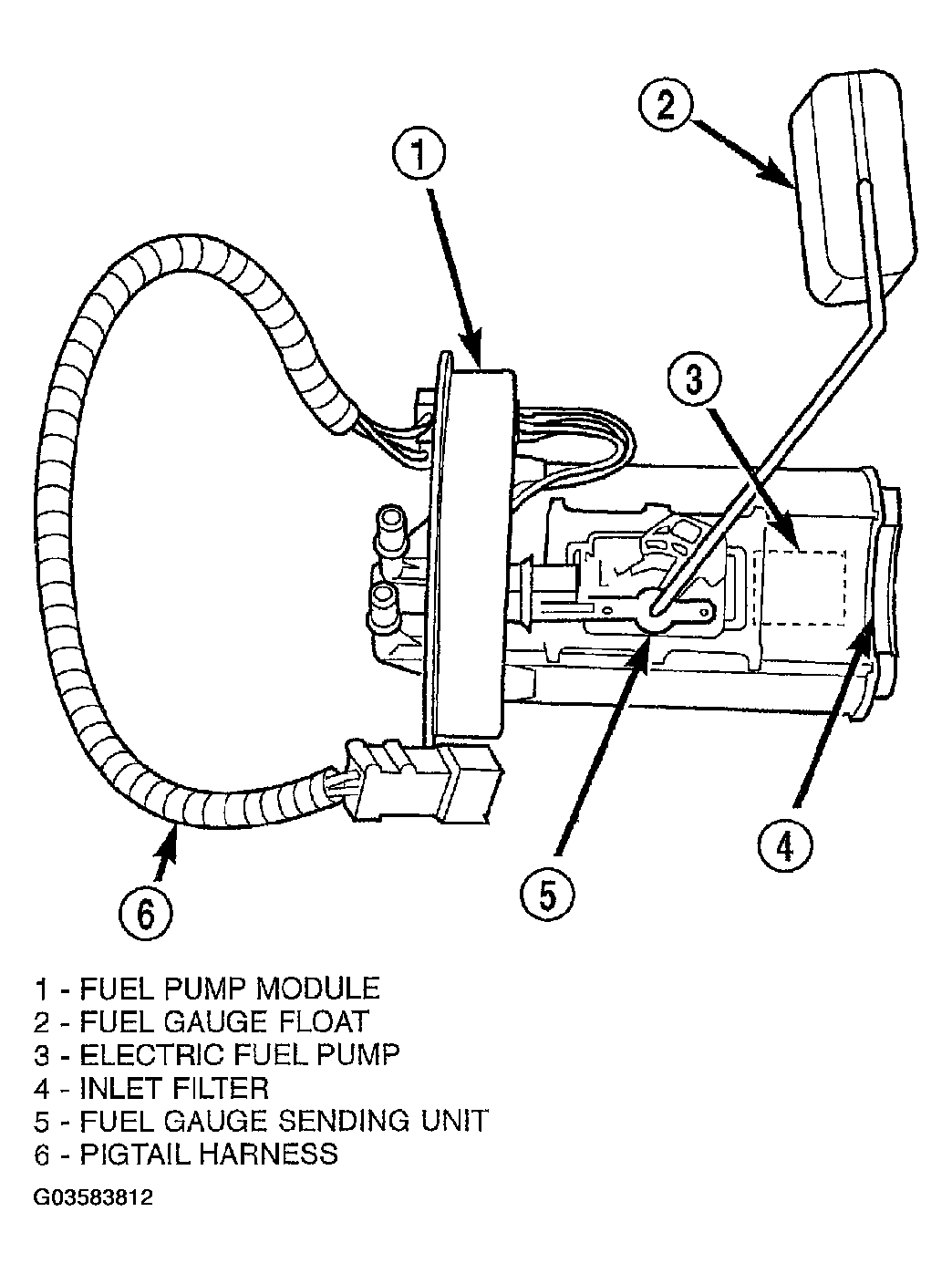

The fuel gauge sending unit (fuel level sensor) and float assembly is located on the side of fuel pump module (Figure ). The fuel pump module is located within the fuel tank.

1. Position sending unit to pump module and snap into place.
2. Connect electrical connector to terminals.
3. Install fuel pump module. Refer to INSTALLATION  .
4. Install fuel tank. Refer to INSTALLATION  .
