Component Locations: Switches

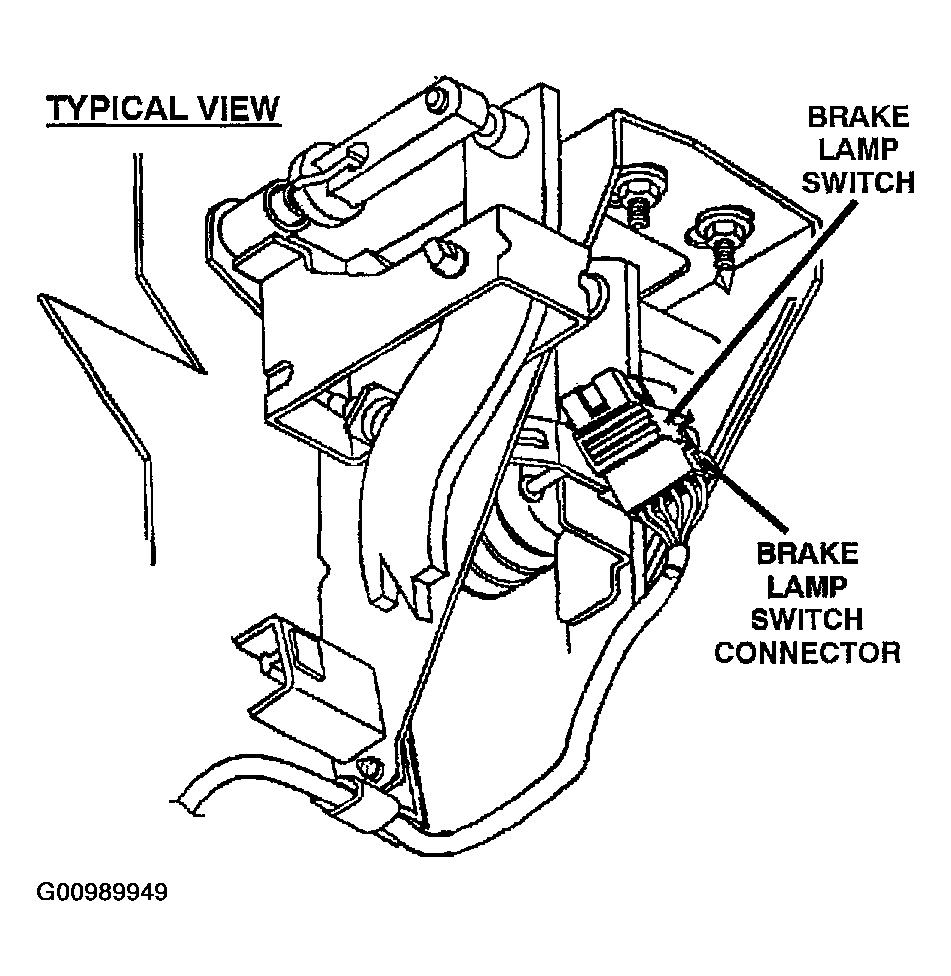

Fig 1: Locating Brake Lamp Switch
G00989949Courtesy of DAIMLERCHRYSLER CORP.

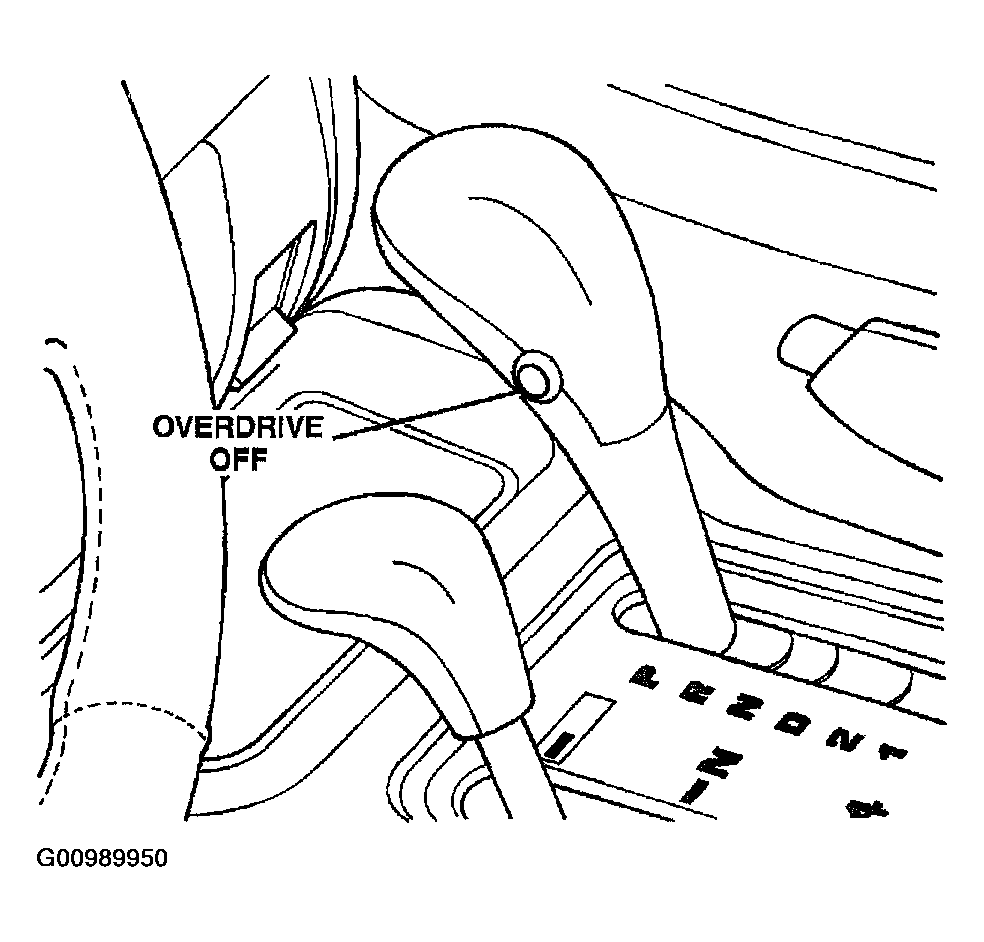

Fig 2: Locating Overdrive Switch
G00989950Courtesy of DAIMLERCHRYSLER CORP.

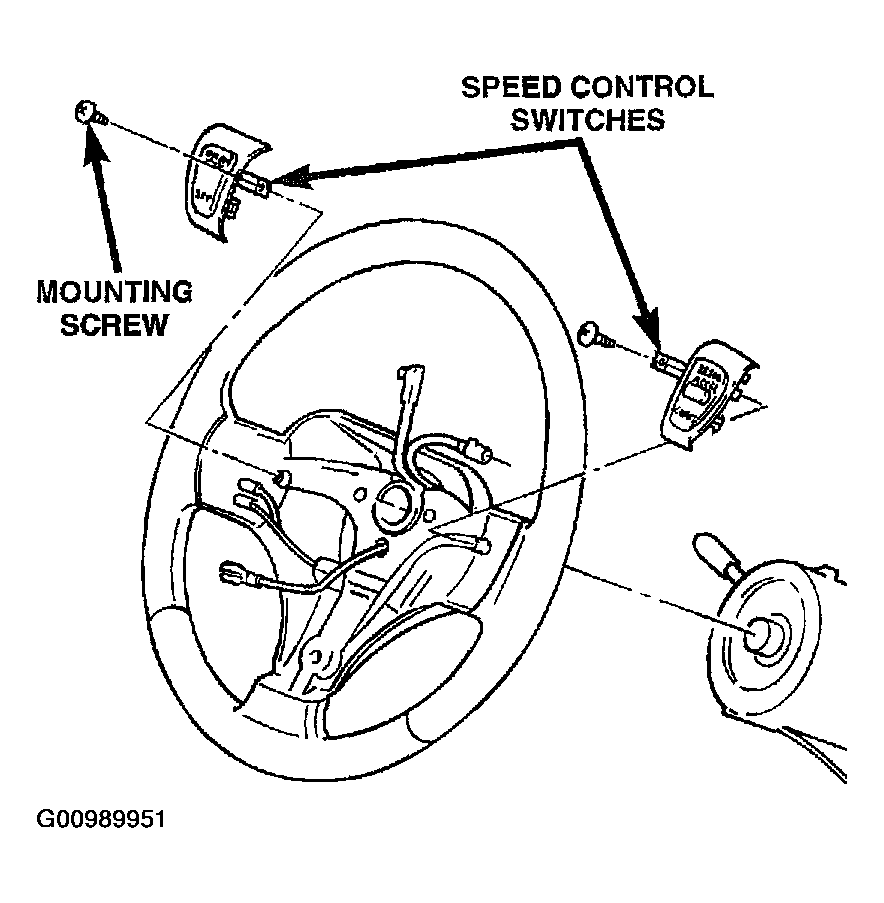

Fig 3: Locating Speed Control Switches
G00989951Courtesy of DAIMLERCHRYSLER CORP.

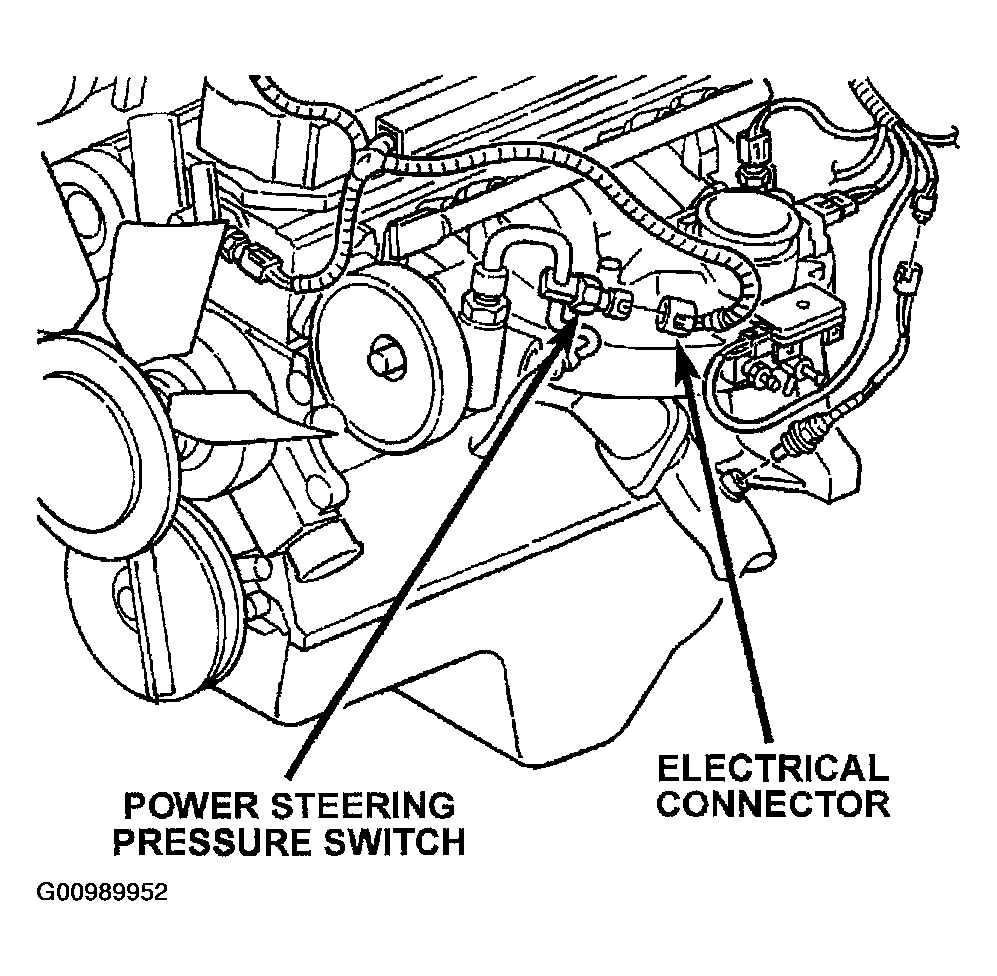

Fig 4: Locating Power Steering Pressure Switch
G00989952Courtesy of DAIMLERCHRYSLER CORP.
