Control Modules And PDC

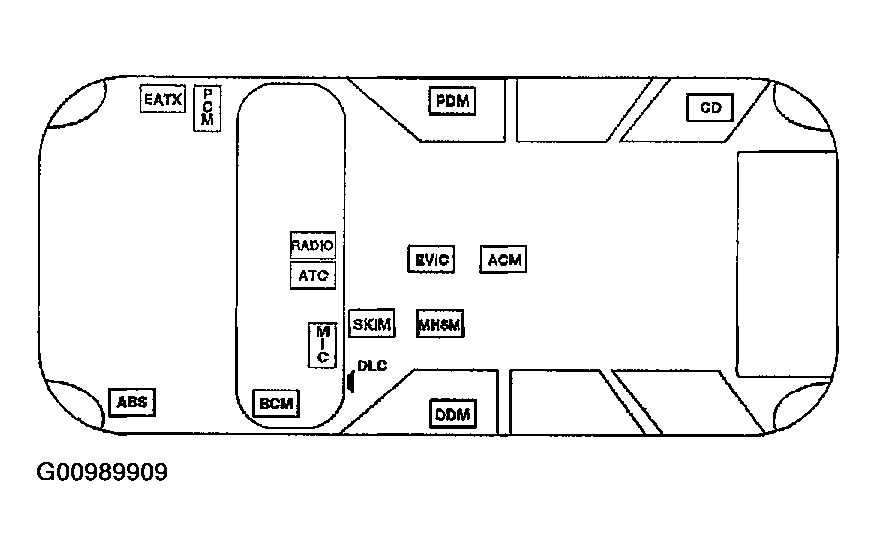

Fig 1: Identifying Module

Courtesy of DAIMLERCHRYSLER CORP.

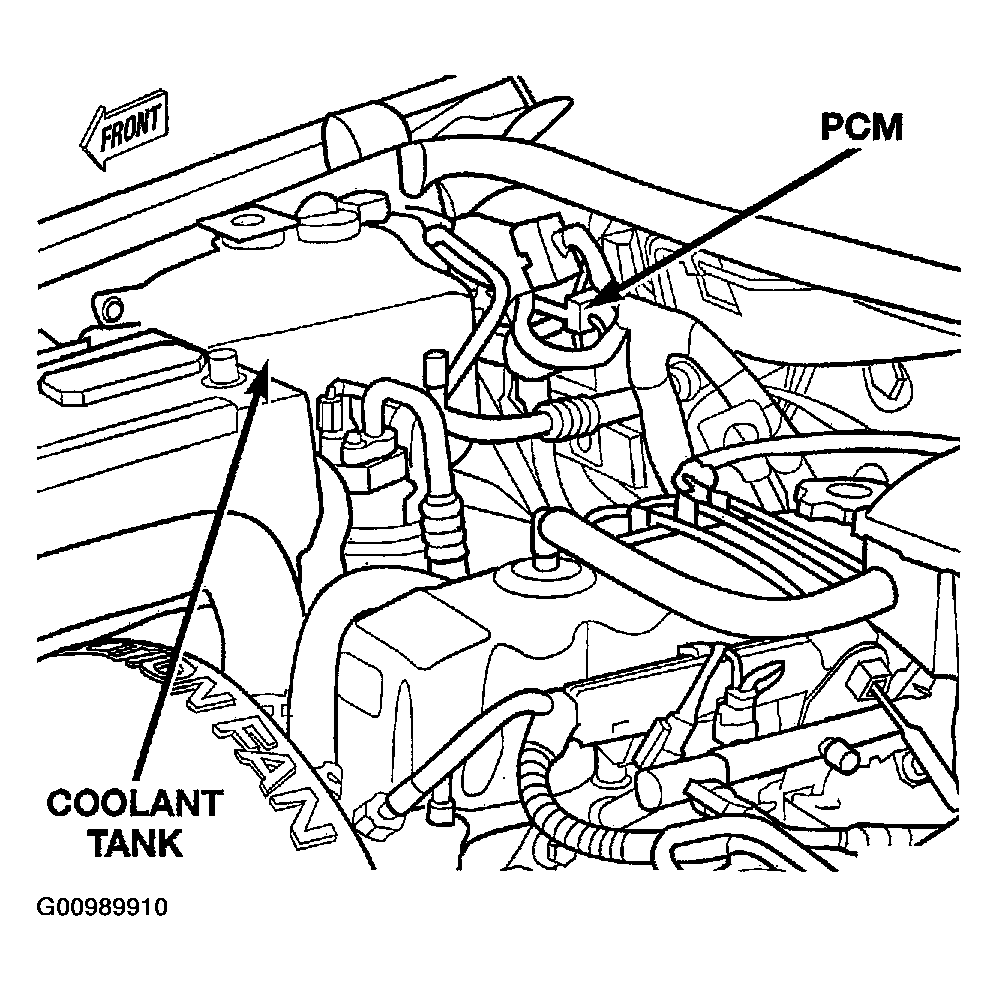

Fig 2: Locating PCM

Courtesy of DAIMLERCHRYSLER CORP.

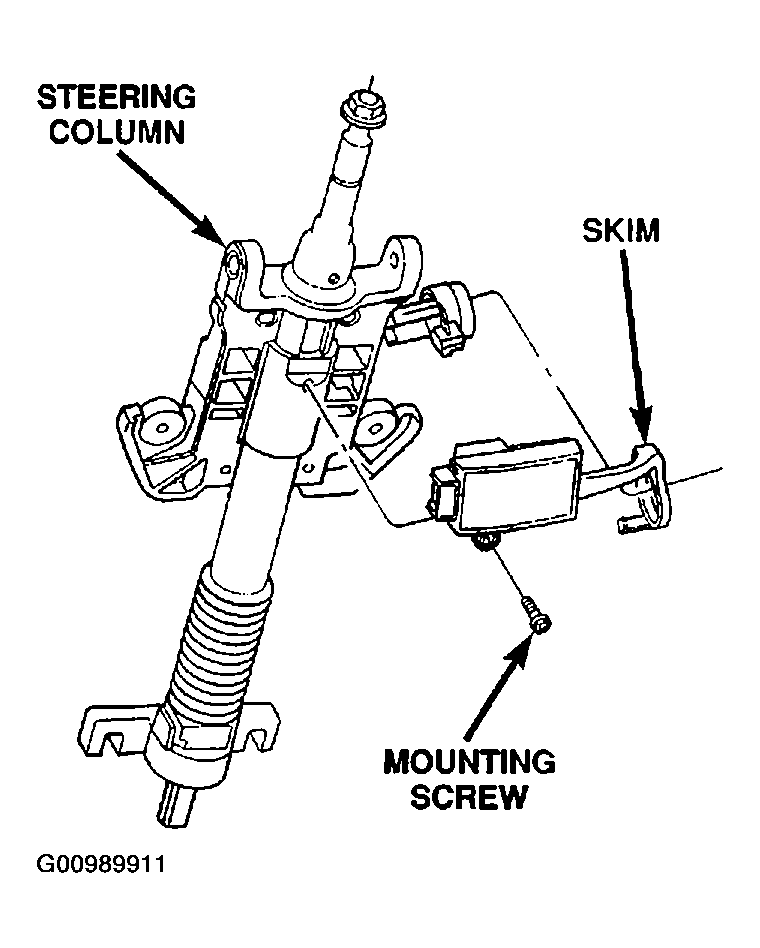

Fig 3: Locating SKIM

Courtesy of DAIMLERCHRYSLER CORP.

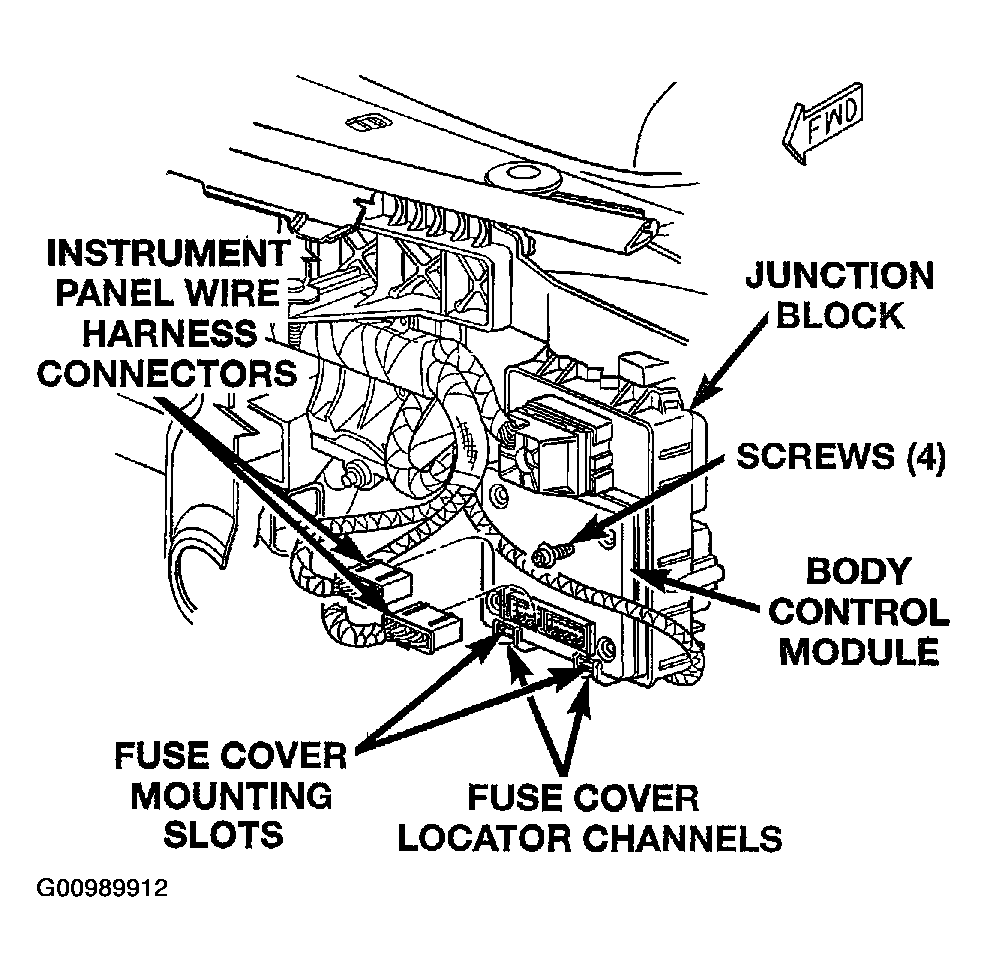

Fig 4: Locating Body Control Module

Courtesy of DAIMLERCHRYSLER CORP.

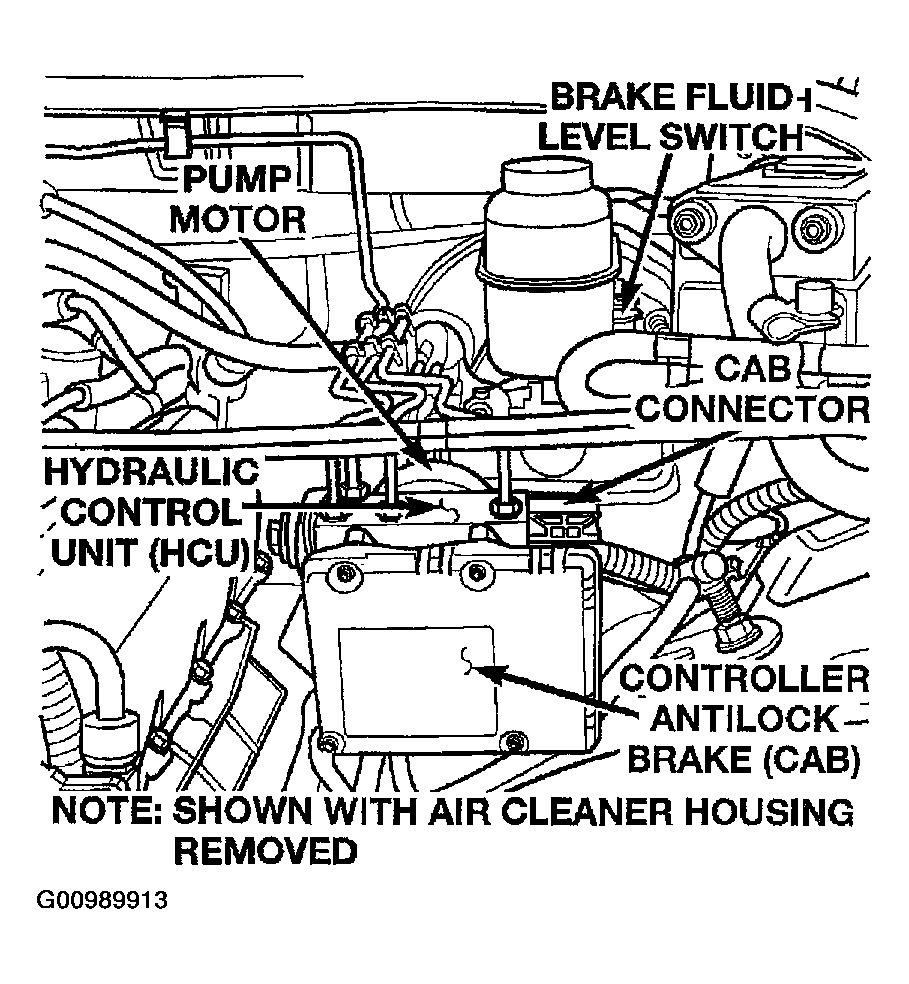

Fig 5: Locating Controller Antilock Brake Module and Hydraulic Control Unit

Courtesy of DAIMLERCHRYSLER CORP.

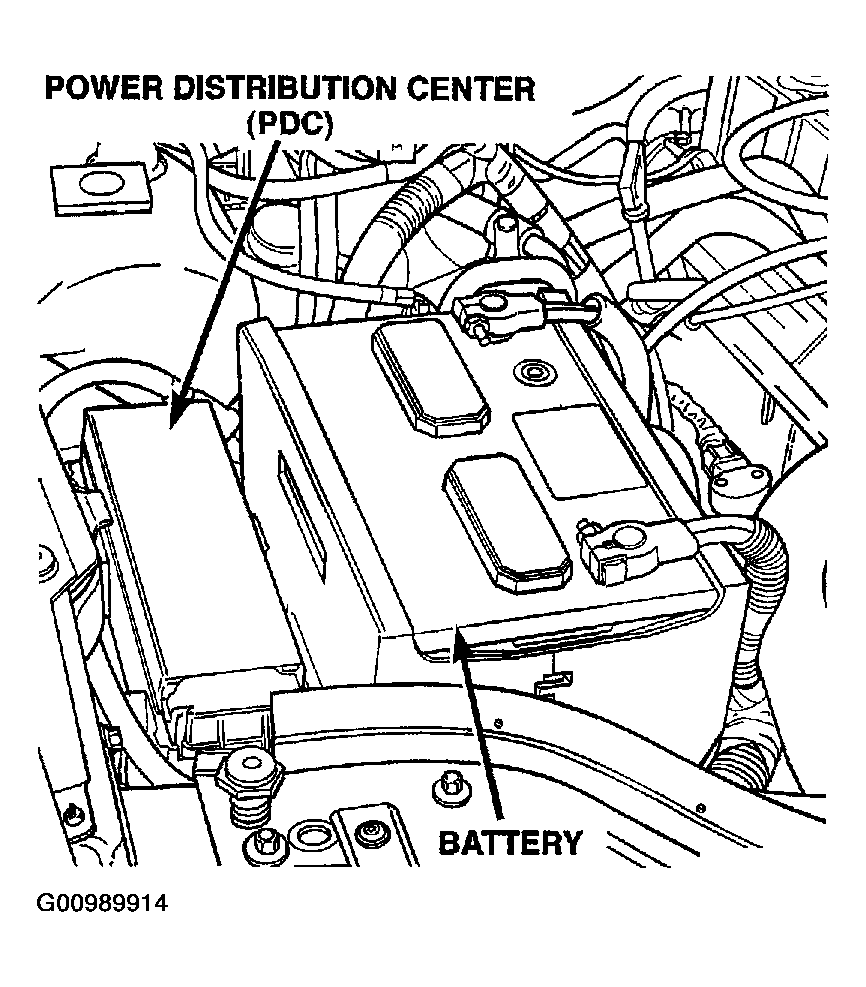

Fig 6: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
