Home >> Jeep >> 2004 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Delivery >> Specifications >> Torque

Fuel Delivery: Specifications: Torque

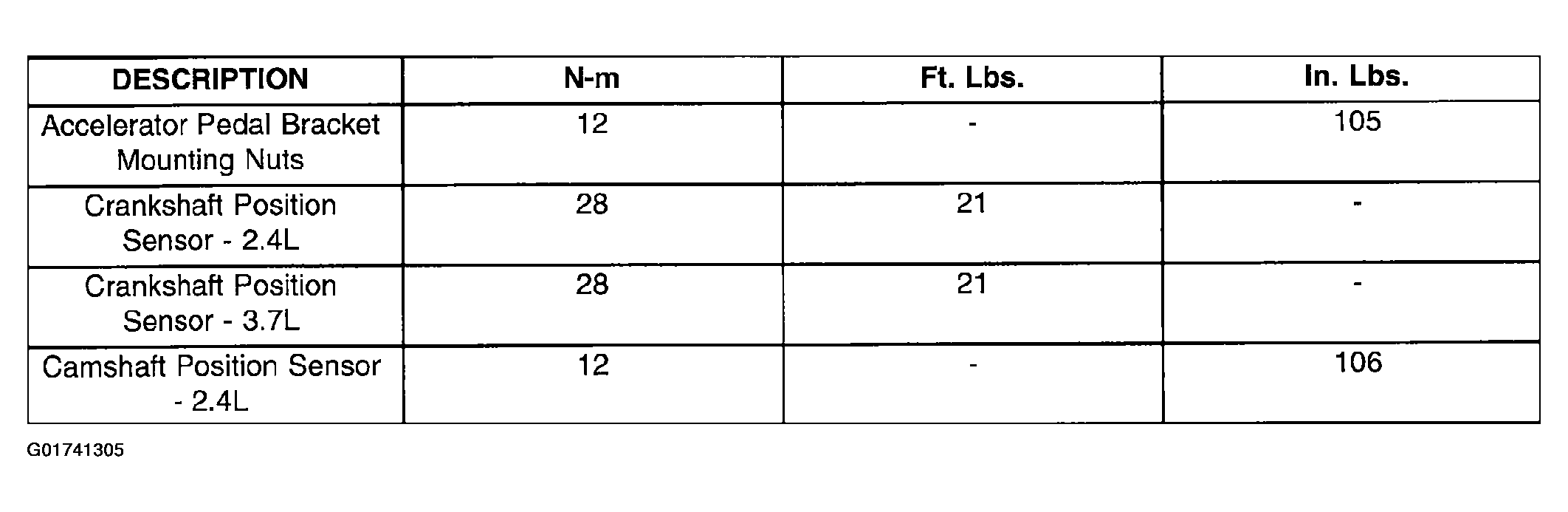

Fig 1: Torque Specifications Table (1 Of 2)

G01741305

Courtesy of DAIMLERCHRYSLER CORP.

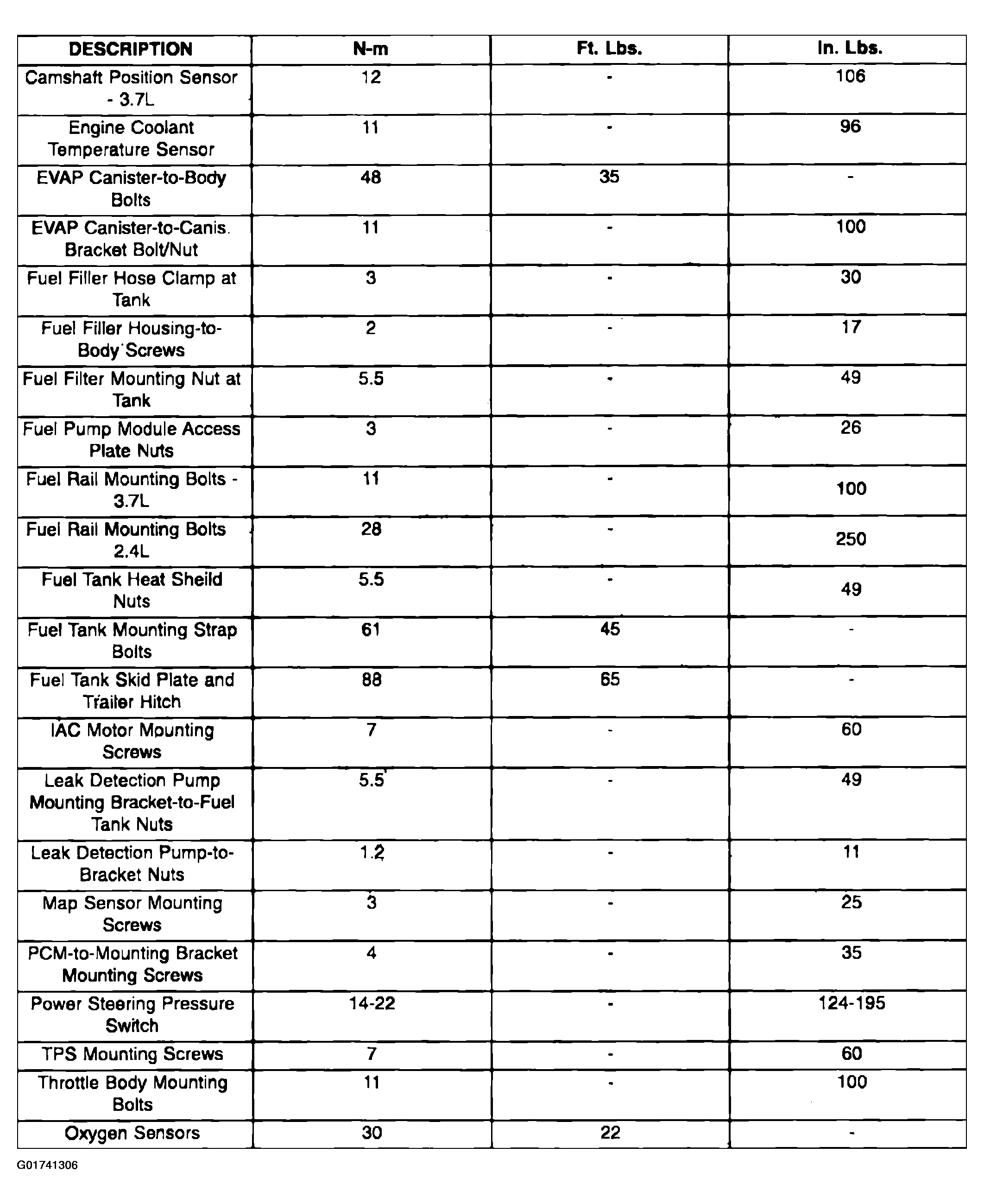

Fig 2: Torque Specifications Table (2 Of 2)

G01741306

Courtesy of DAIMLERCHRYSLER CORP.
