PDC B+ Terminal Module: Removal

The Power Distribution Center (PDC) cover, the PDC housing lower cover, the PDC relay wedges, the PDC mini fuse wedge, the PDC relay cassettes and the PDC B(+) terminal stud module (Fig 1 ) are available for service replacement. The PDC cover can be simply unlatched and removed from the PDC housing without the PDC being removed or disassembled. Service of the remaining PDC components requires that the PDC be removed from its mounting and disassembled.

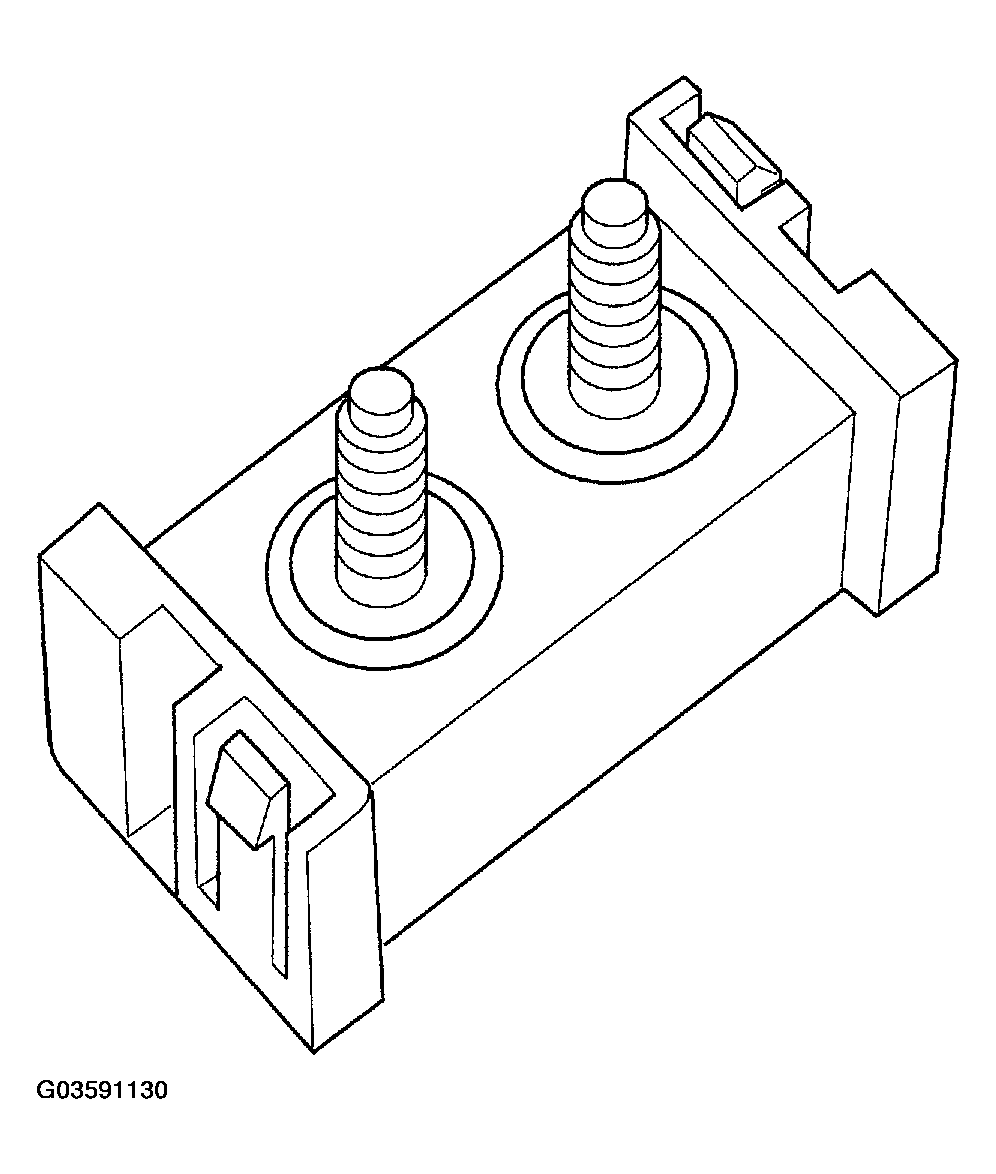

Fig 1: B+ Terminal Module

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the PDC housing lower cover.
2. From the top of the PDC housing, use a small screwdriver or a terminal pick tool (Special Tool Kit 6680) to release the two latches that secure the B(+) terminal module in the PDC.
3. Gently and evenly press the two B(+) terminal studs down through the bus bar in the PDC.
4. From the bottom of the PDC housing, remove the B(+) terminal module from the PDC.
