Camshaft Position Sensor: Removal: 3.7L

The Camshaft Position Sensor (CMP) on the 3.7L V-6 engine is bolted to the front/top of the right cylinder head.

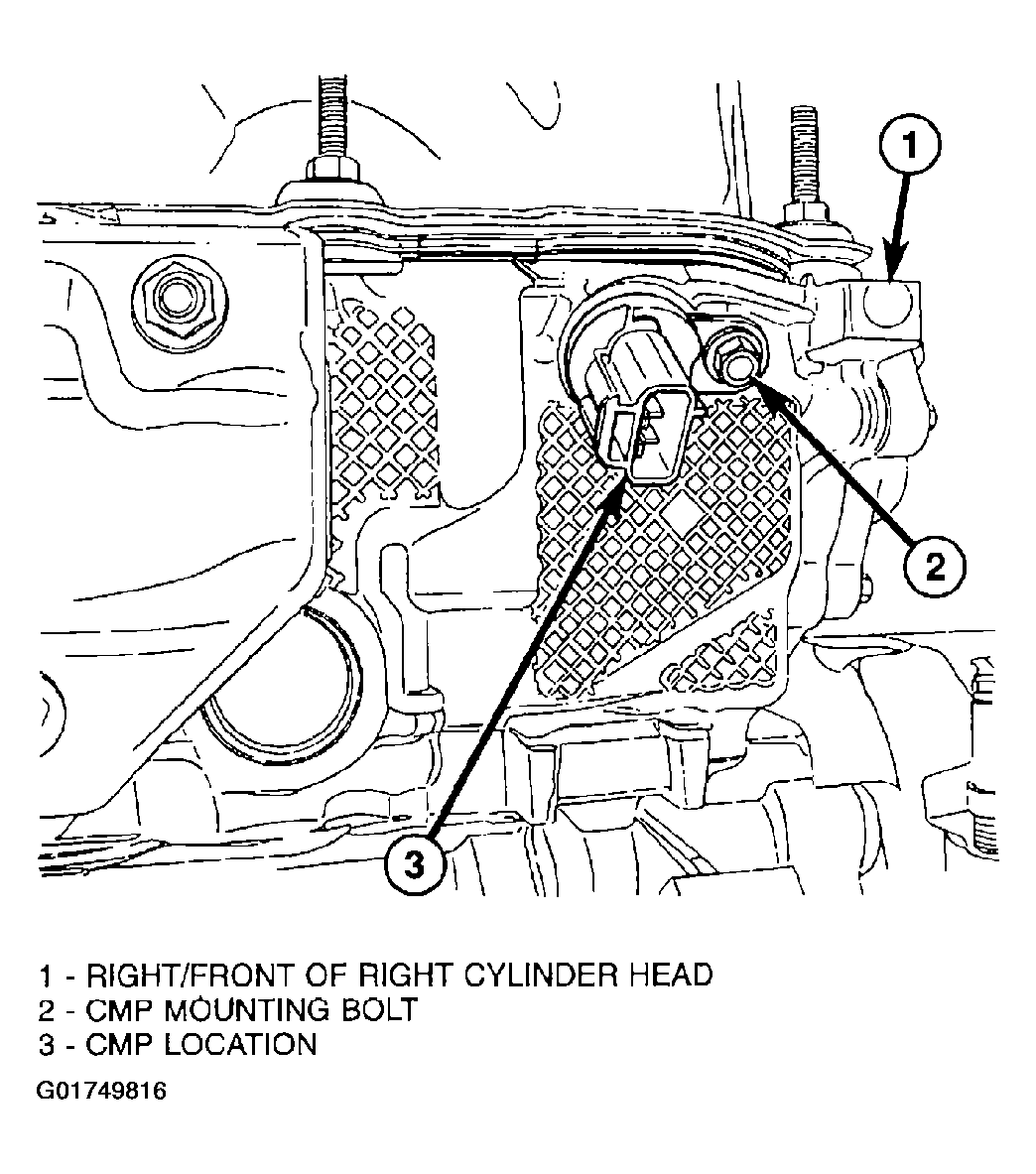

Fig 1: Identifying Camshaft Position Sensor (CMP) - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect electrical connector at CMP sensor.
2. Remove sensor mounting bolt.
3. Carefully twist sensor from cylinder head.
4. Check condition of sensor o-ring.
