Home >> Jeep >> 2004 >> Liberty Limited, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Emissions Control System >> Evaporative Emissions >> Specifications >> Torque

Evaporative Emissions: Specifications: Torque

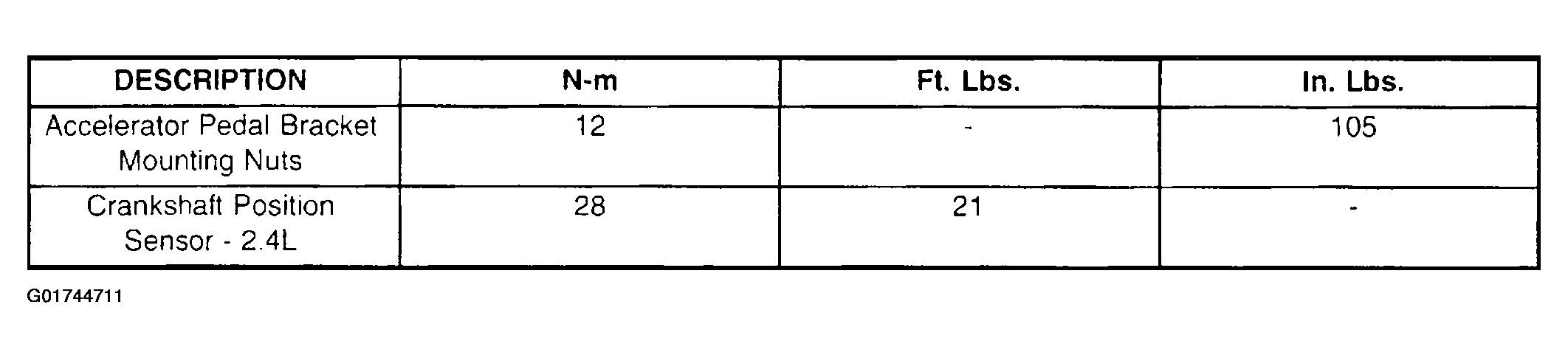

Fig 1: Torque Specifications Table (1 Of 2)

G01744711

Courtesy of DAIMLERCHRYSLER CORP.

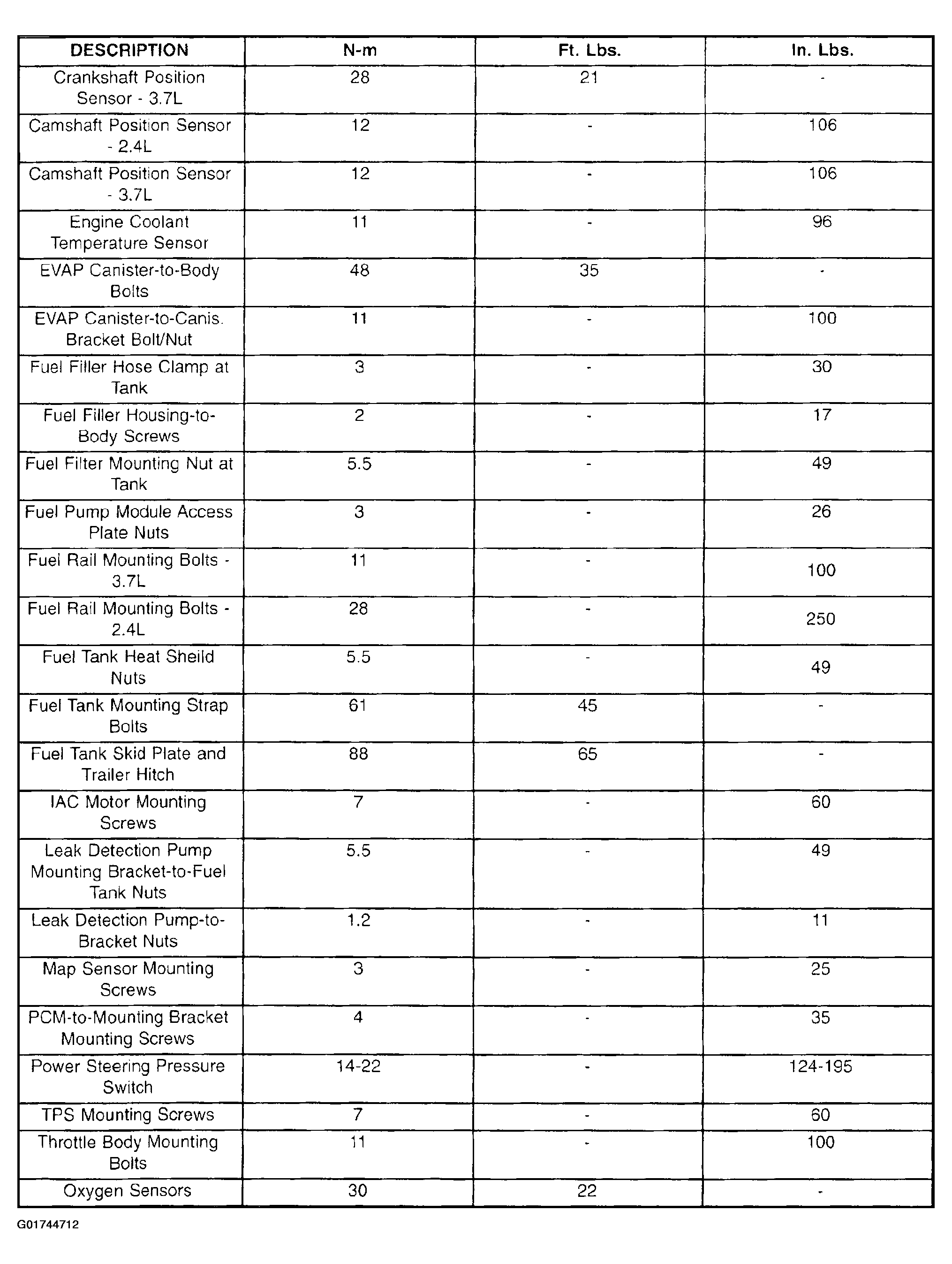

Fig 2: Torque Specifications Table (2 Of 2)

G01744712

Courtesy of DAIMLERCHRYSLER CORP.
