Home >> Jeep >> 2004 >> Liberty Limited, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Component Locations >> Control Modules And PDC >> LHD

Control Modules And PDC: LHD

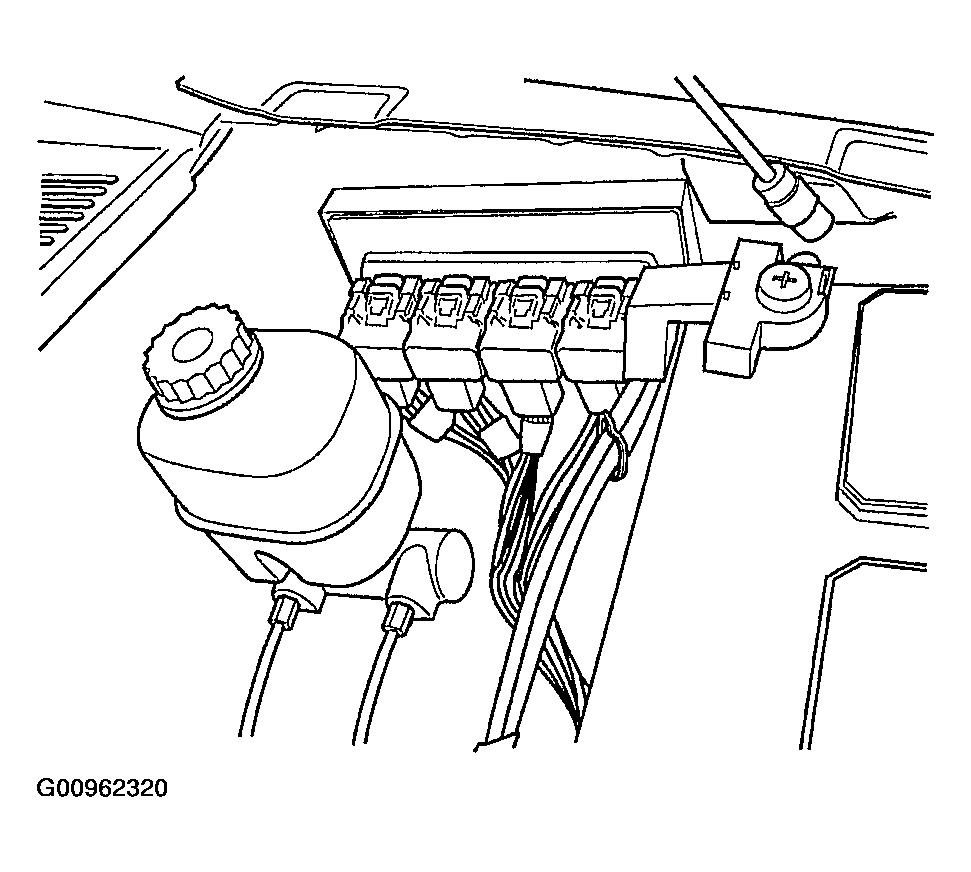

Fig 1: Locating Control Modules & PDC (1 Of 2)

G00962320

Courtesy of DAIMLERCHRYSLER CORP.

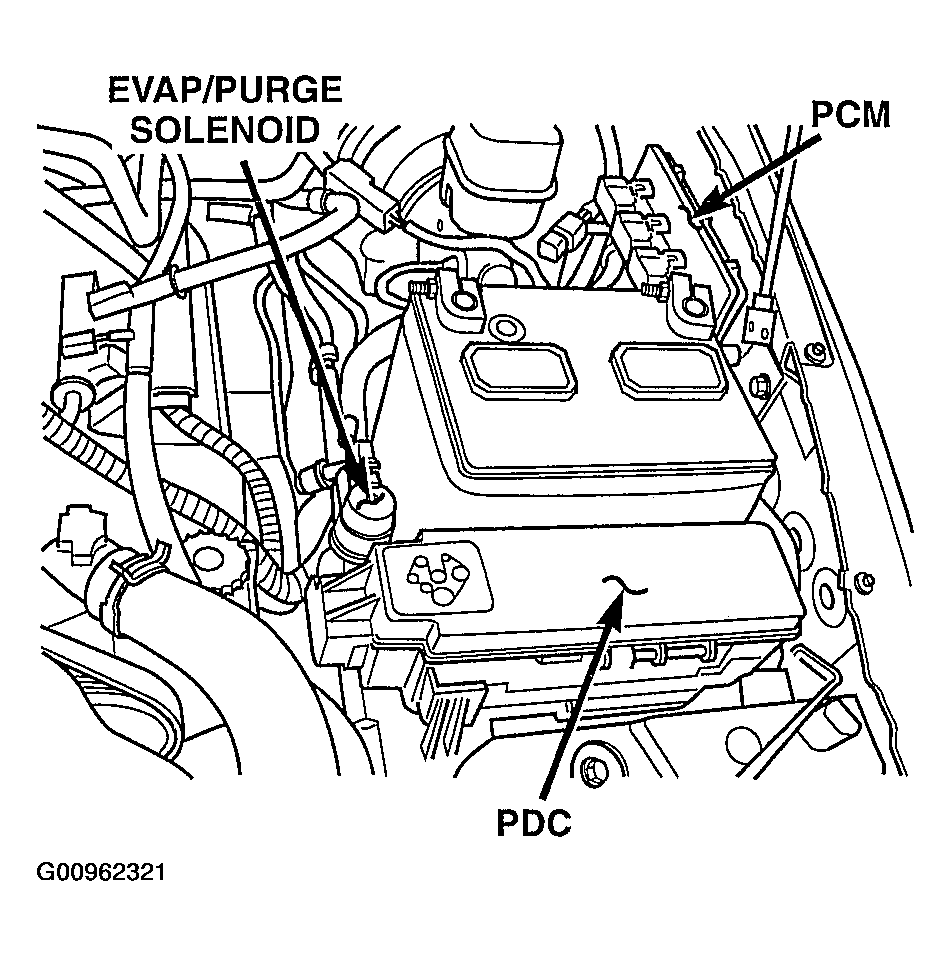

Fig 2: Locating Control Modules & PDC (2 Of 2)

G00962321

Courtesy of DAIMLERCHRYSLER CORP.
