Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

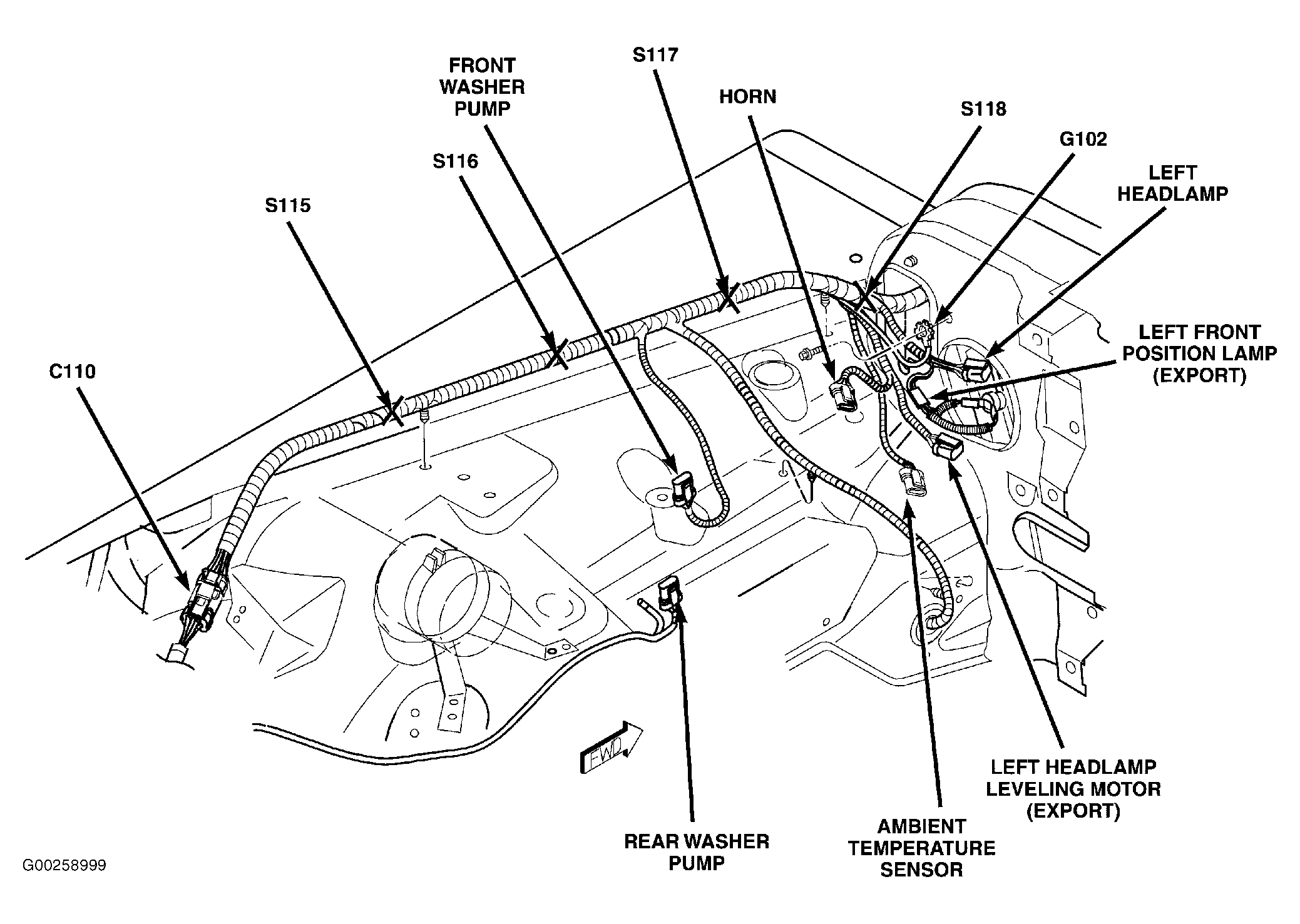

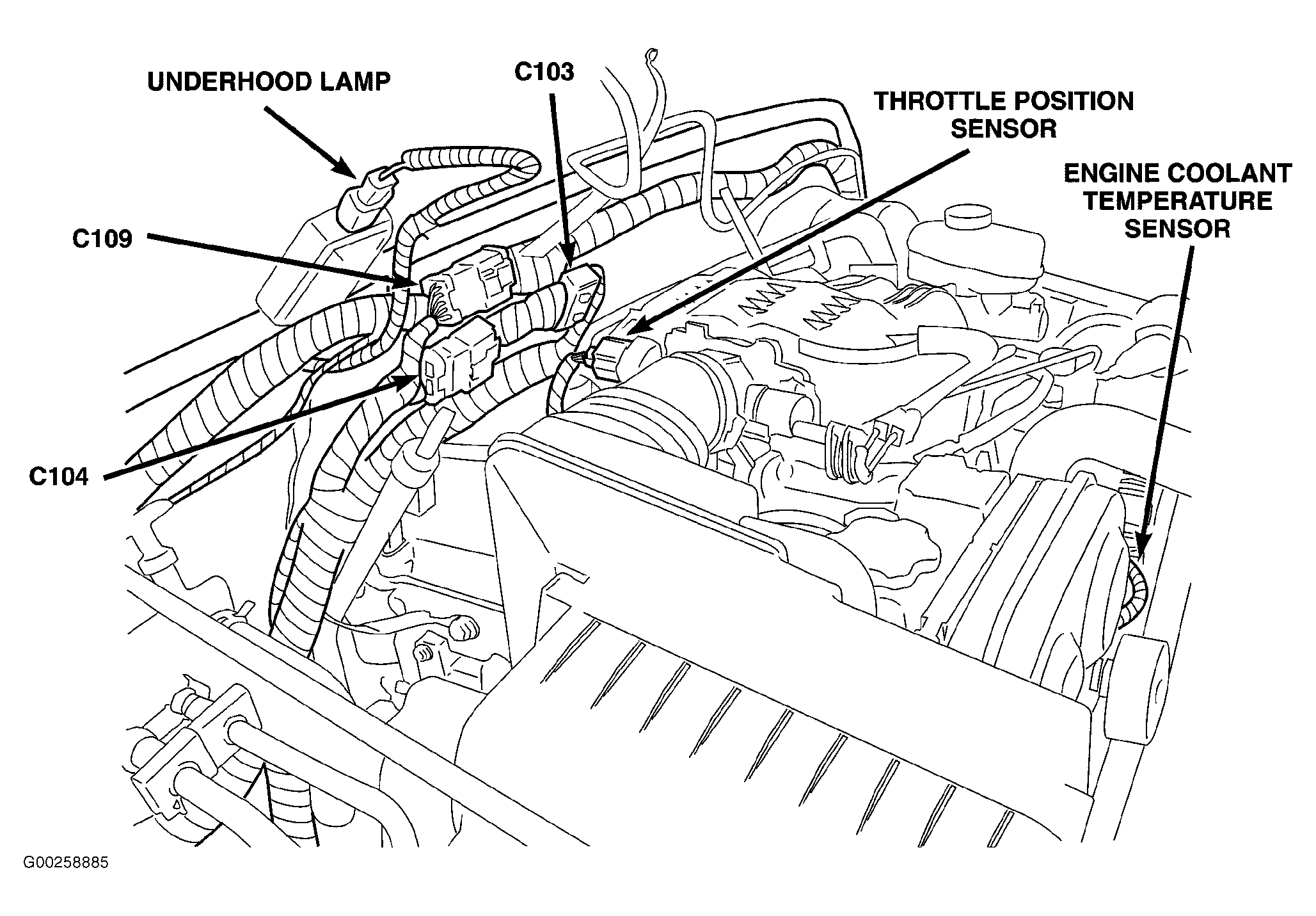

Fig 1: Left Side Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.

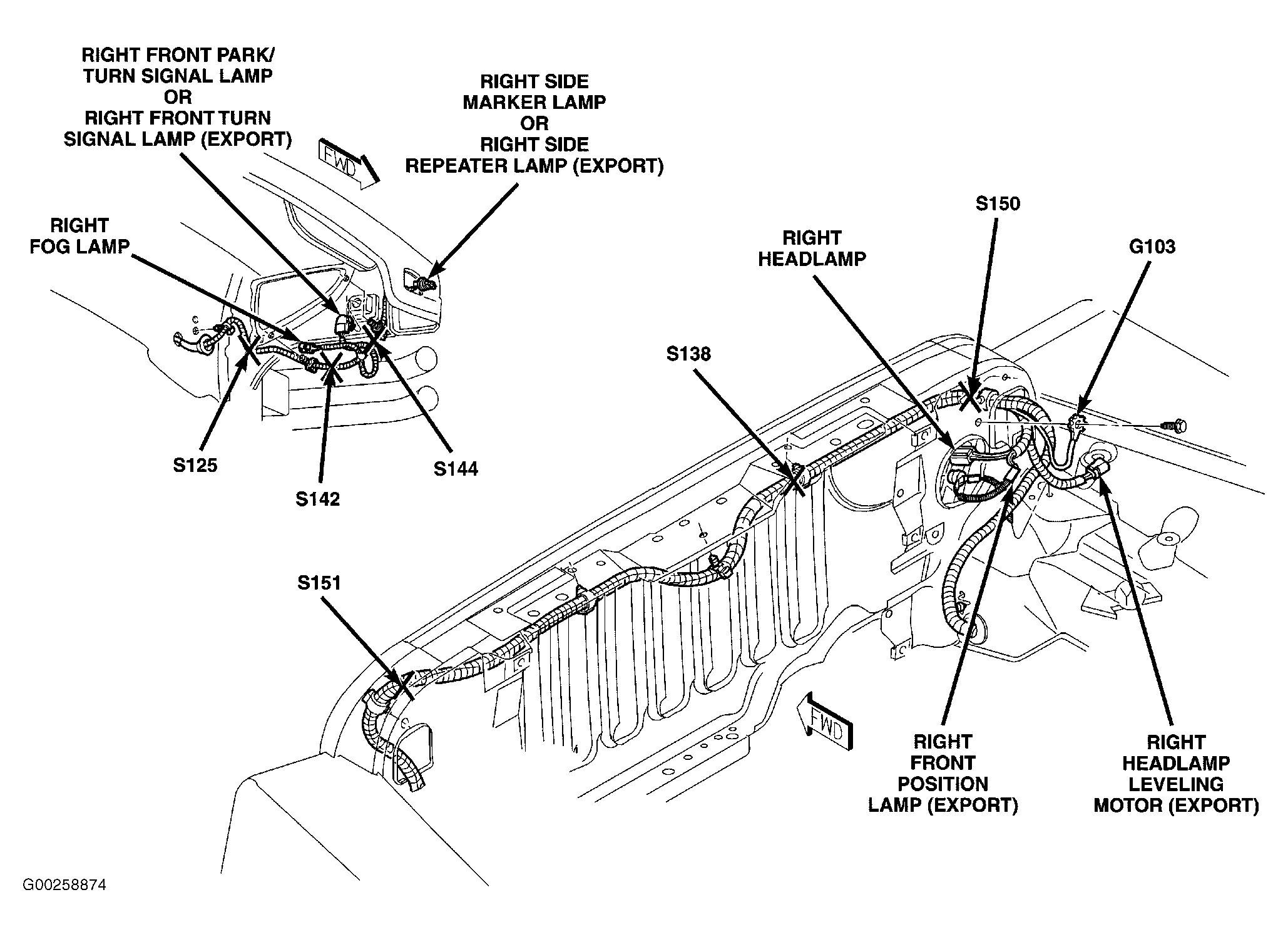

Fig 2: Right Front Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.

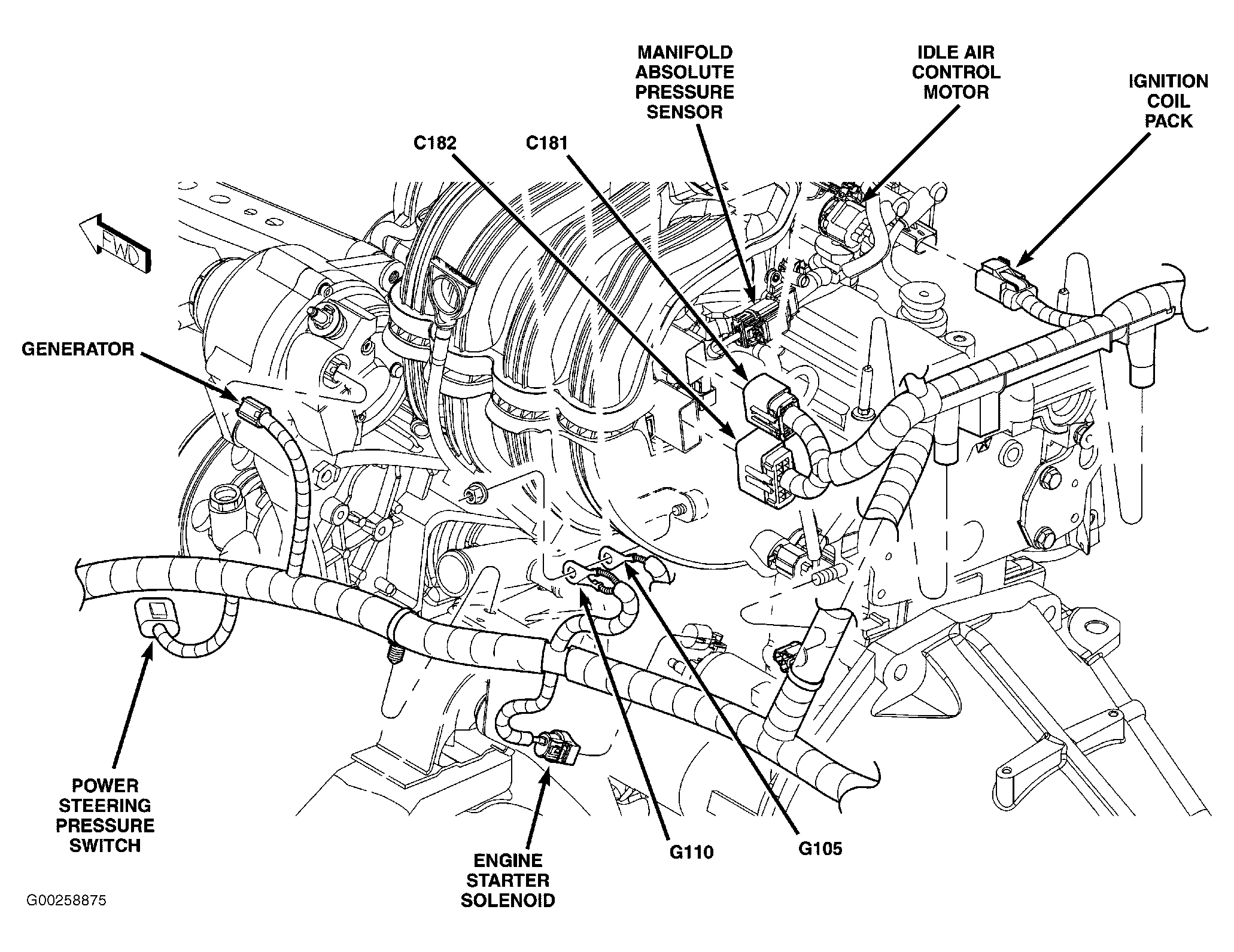

Fig 3: Left Side Of Engine (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.

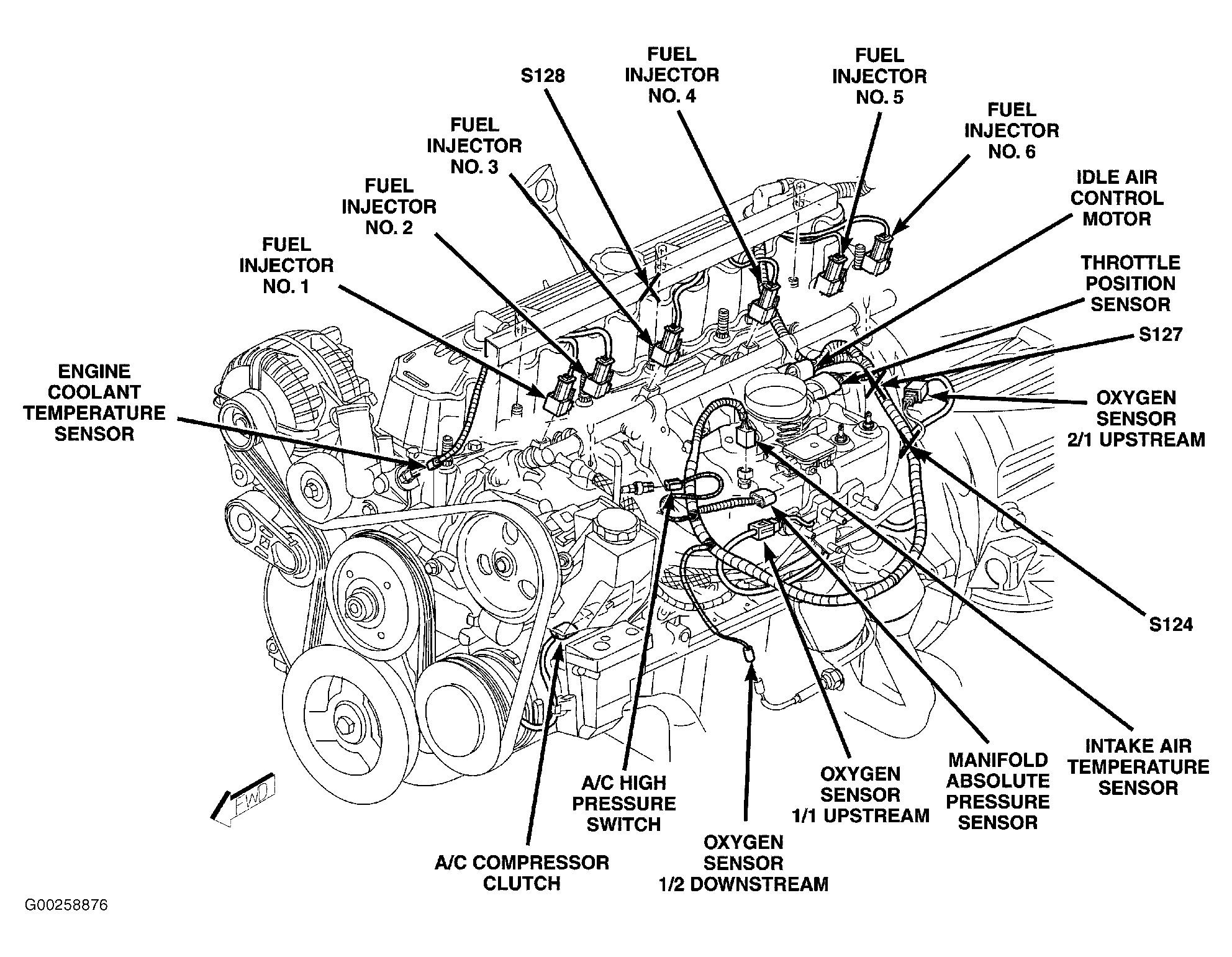

Fig 4: Left Side Of Engine (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Right Side Of Engine Compartment (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.

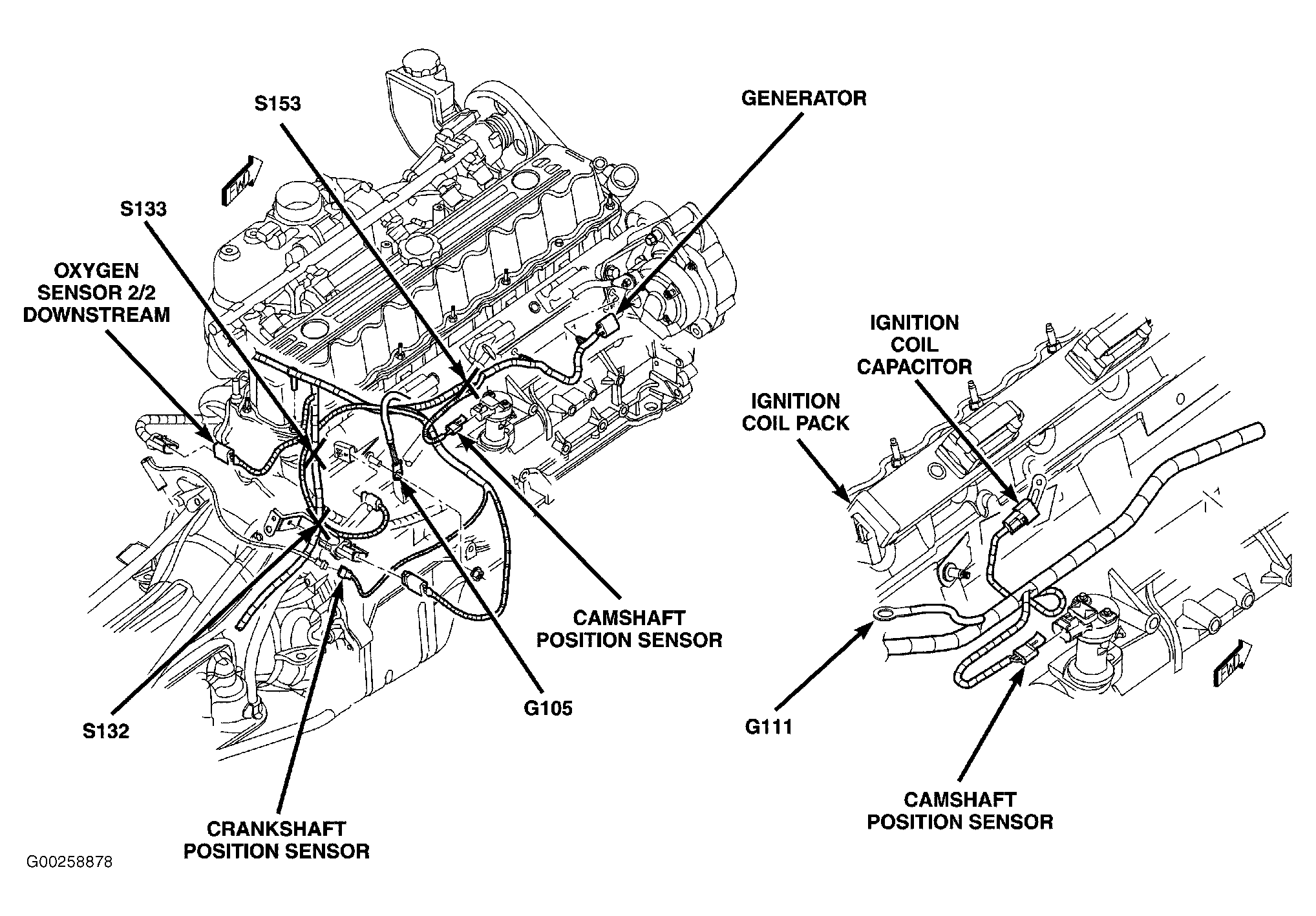

Fig 6: Right Side Of Engine (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.

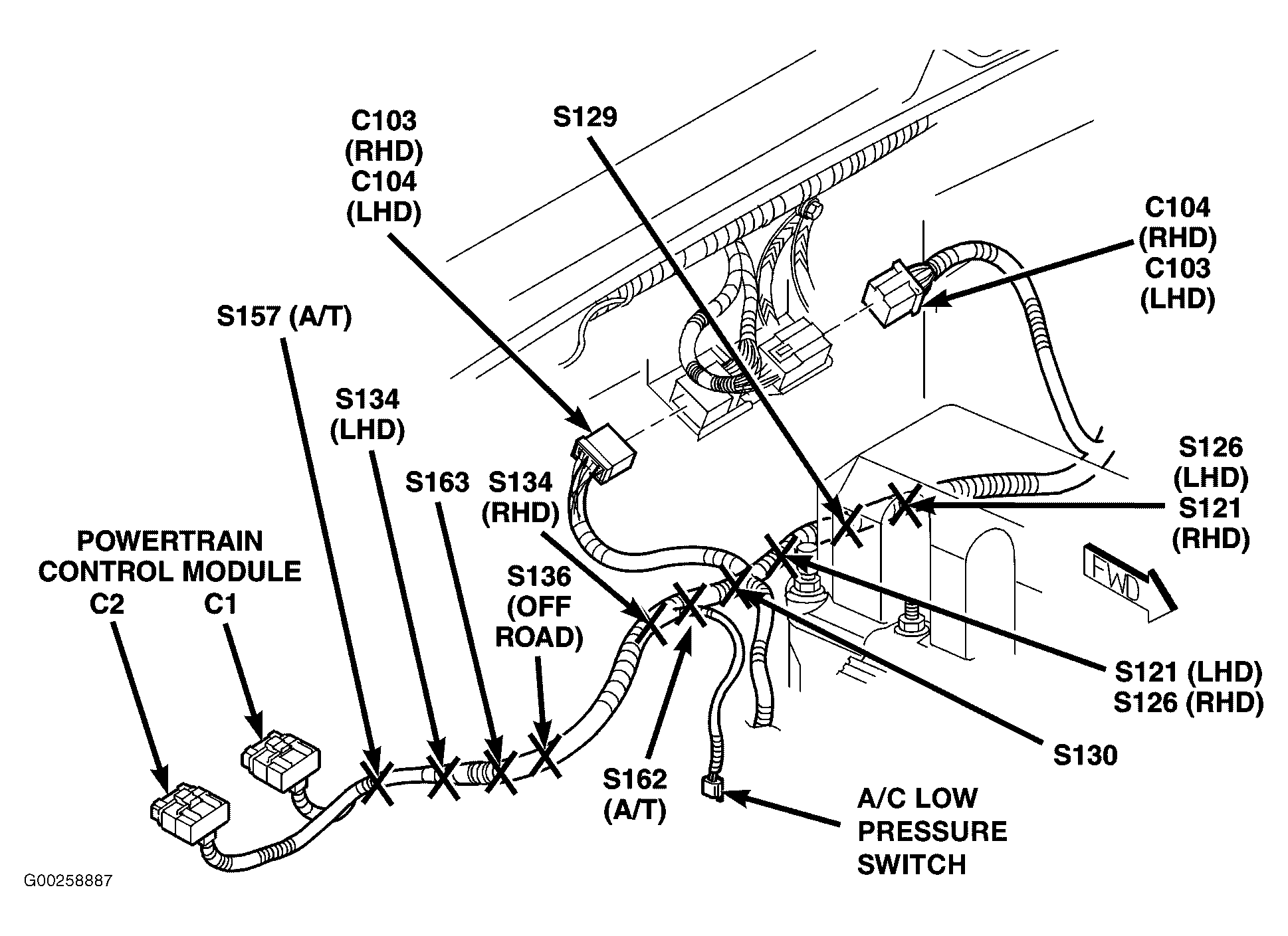

Fig 7: Rear Of Engine Compartment
Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Left Fender Shield
Courtesy of DAIMLERCHRYSLER CORP.

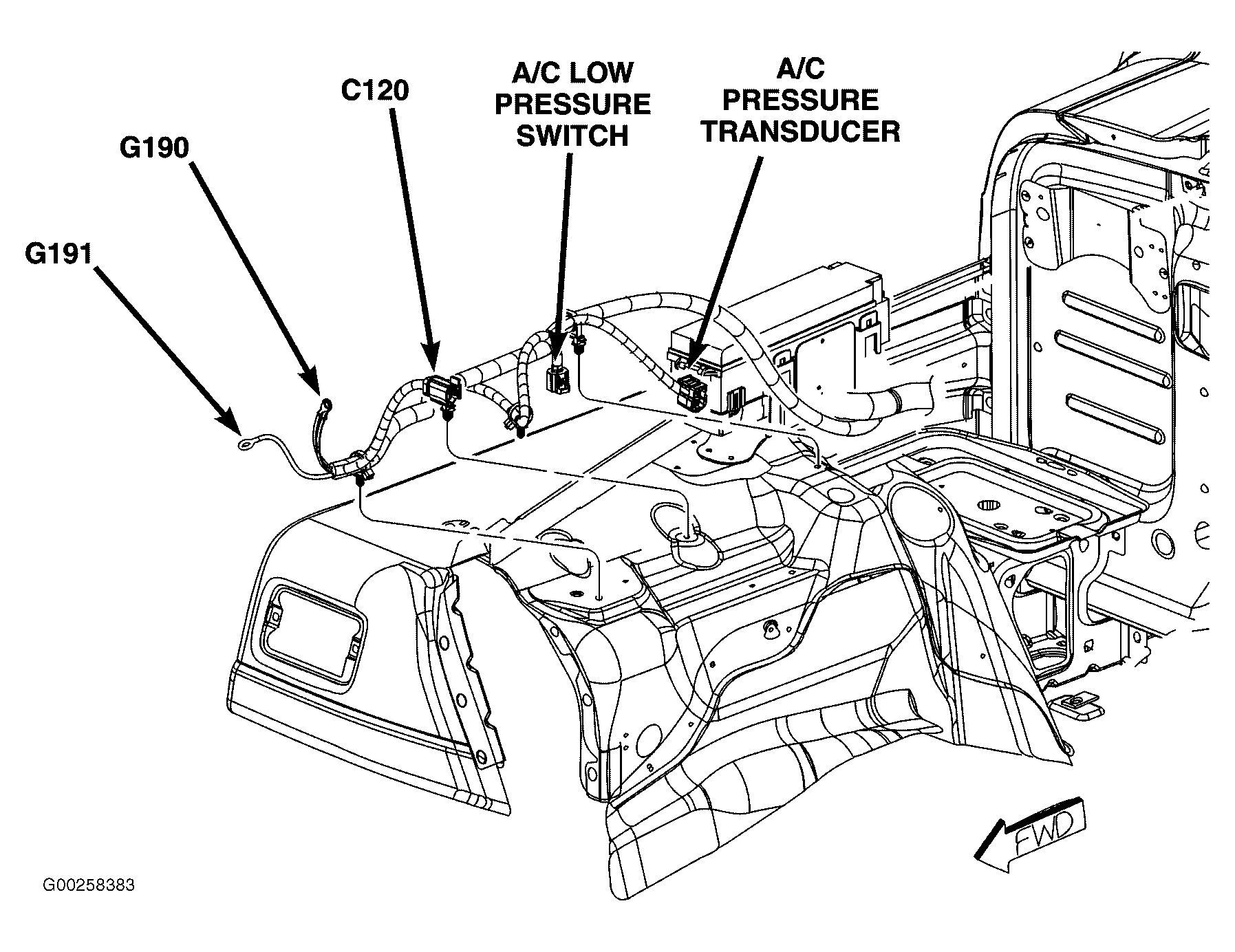

Fig 9: Right Fender Shield (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.

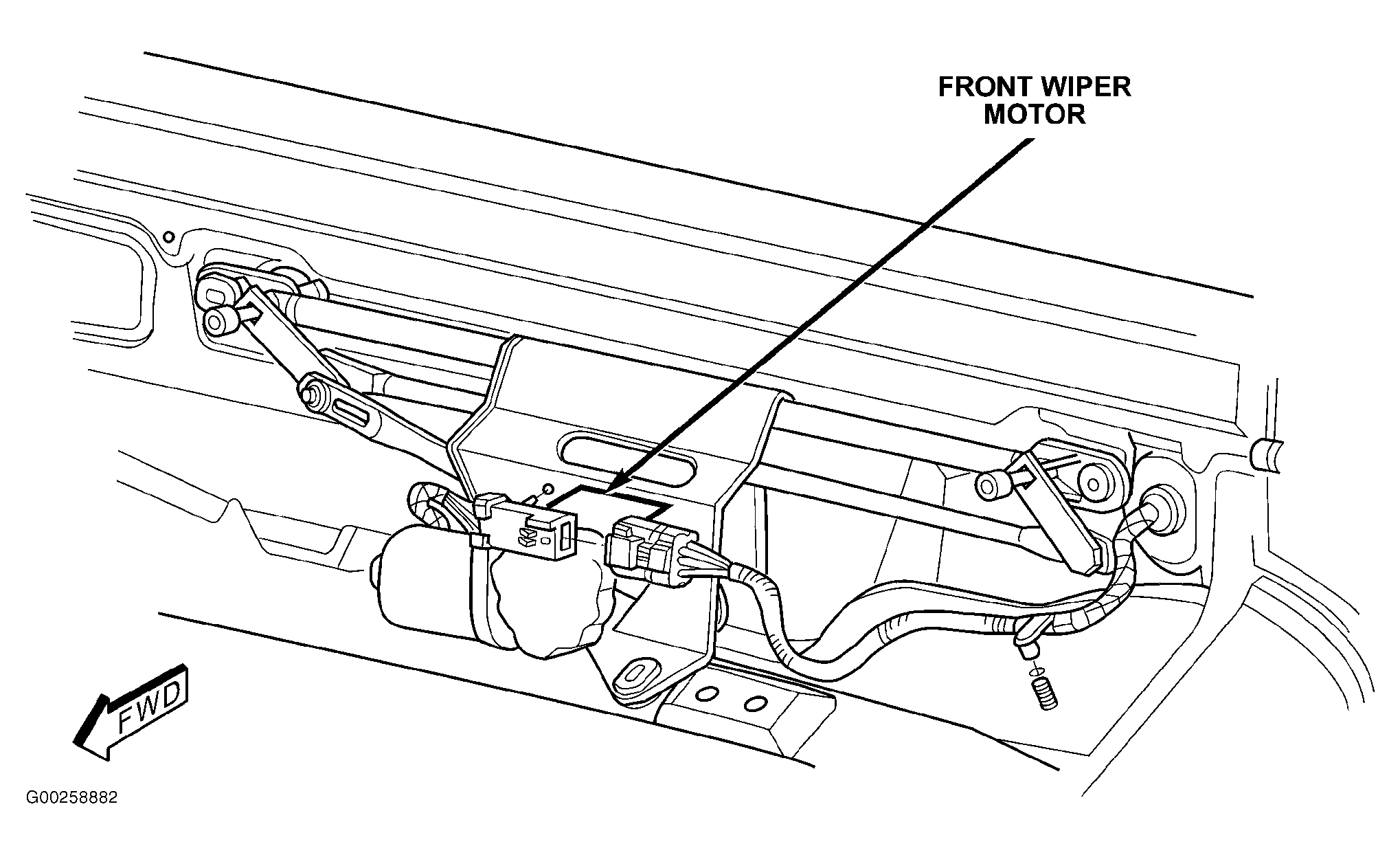

Fig 10: Front Wiper Motor
Courtesy of DAIMLERCHRYSLER CORP.

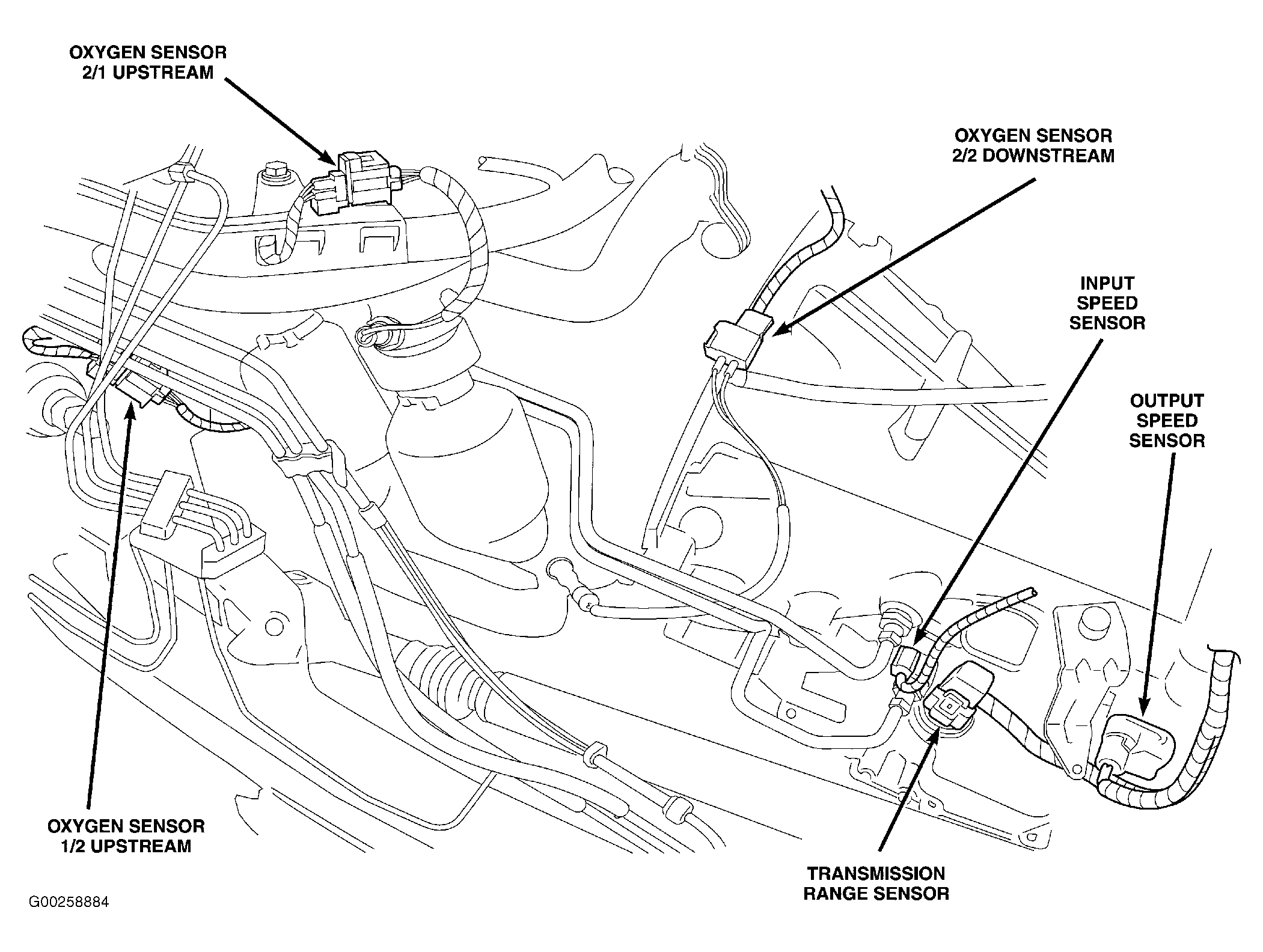

Fig 11: Right Side Of Engine & Transmission (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.

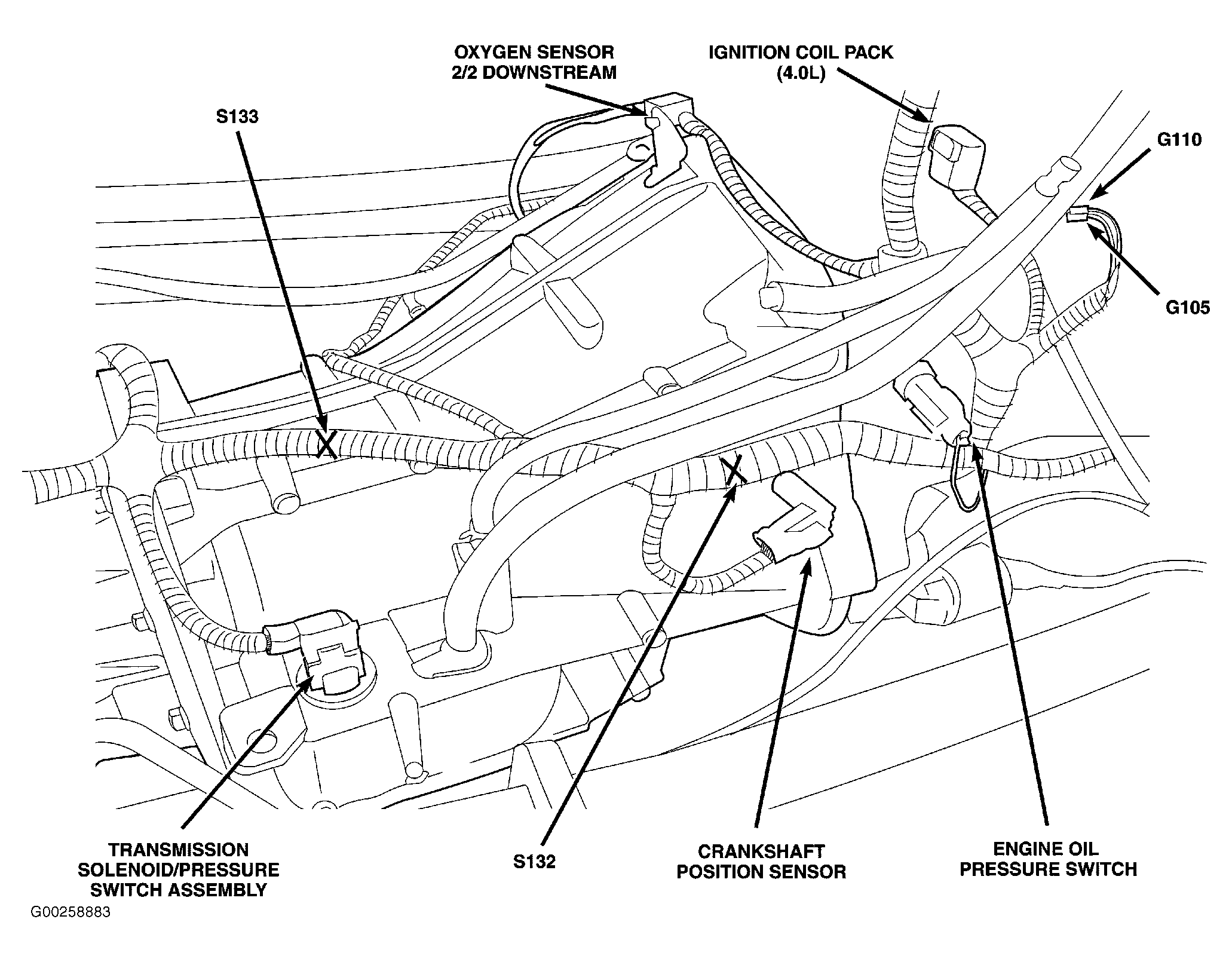

Fig 12: Left Side Of Engine & Transmission (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Right Rear Of Engine Compartment (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Engine Compartment (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Right Rear Of Engine Compartment (4.0L)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Body Harness
Courtesy of DAIMLERCHRYSLER CORP.

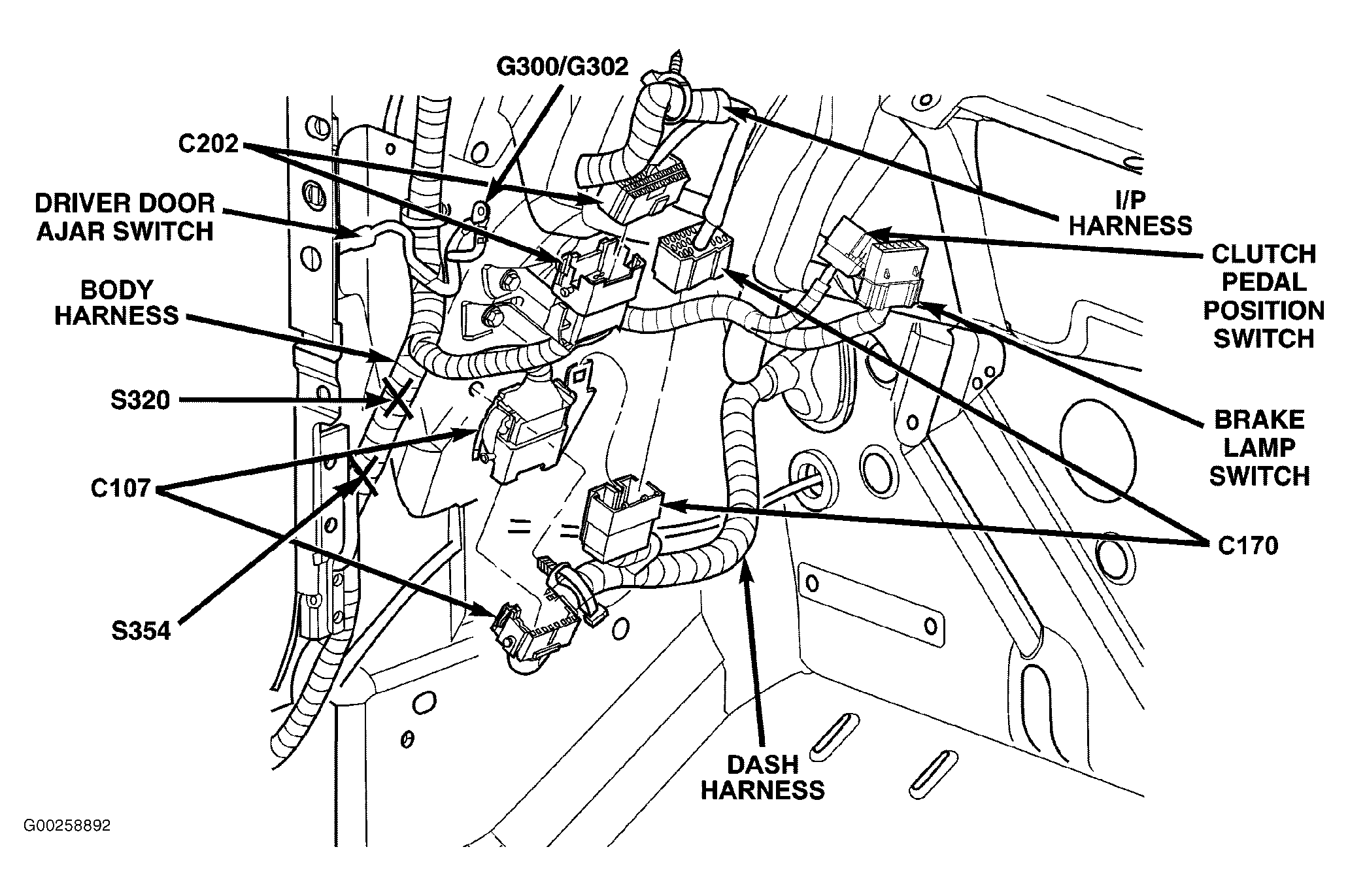

Fig 18: Left Cowl Panel
Courtesy of DAIMLERCHRYSLER CORP.

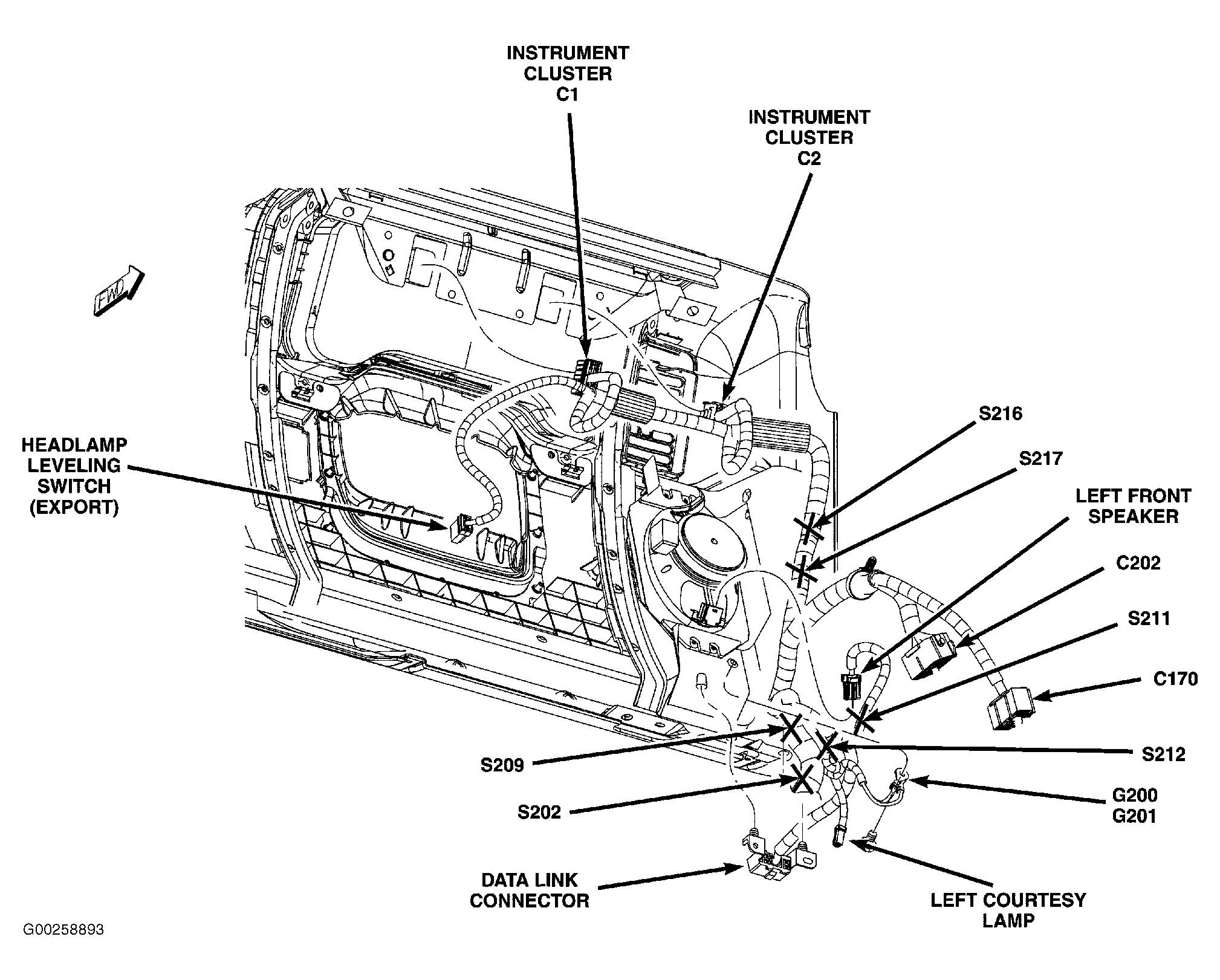

Fig 19: Left Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.

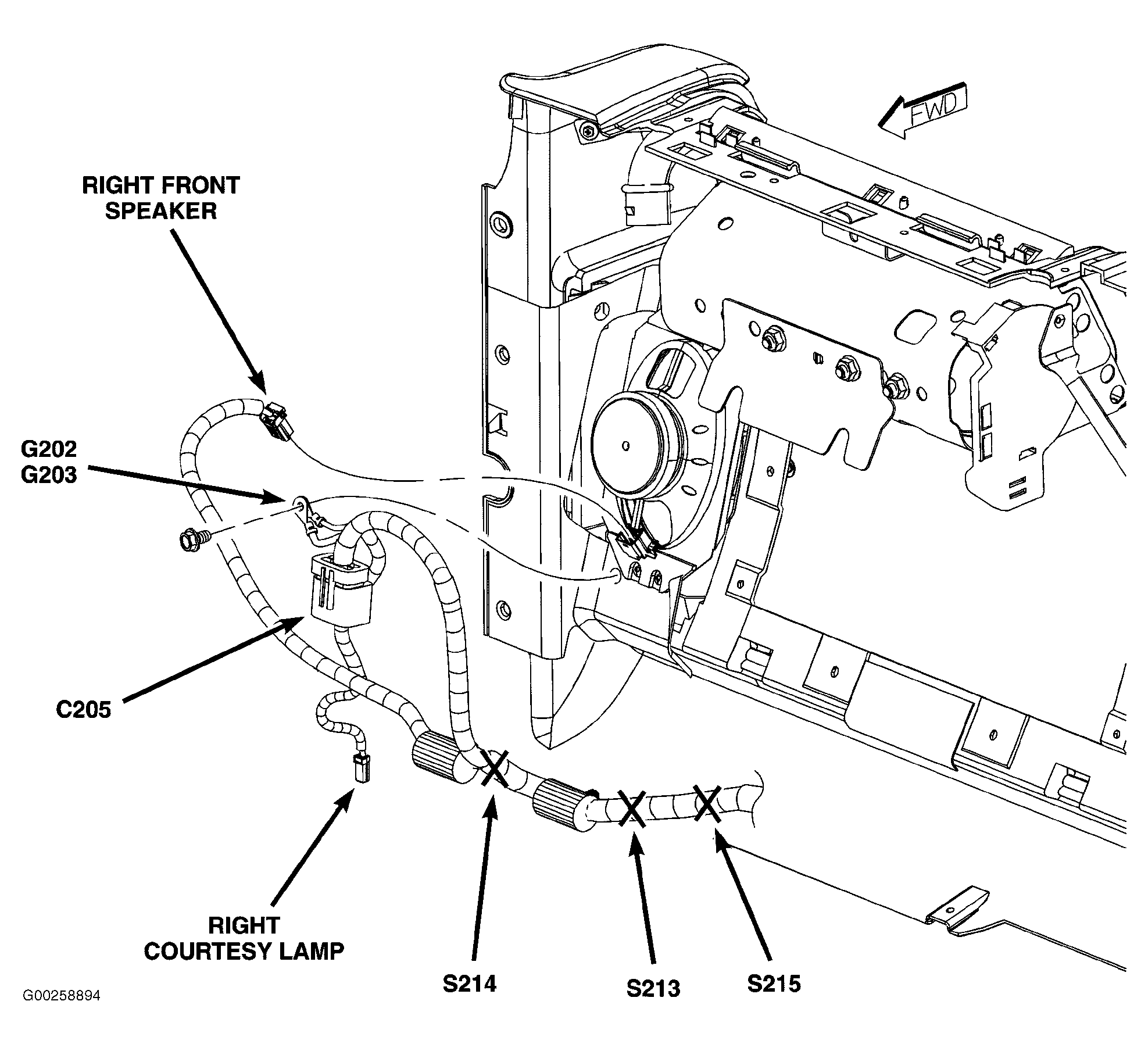

Fig 20: Right Side Of Dash
Courtesy of DAIMLERCHRYSLER CORP.

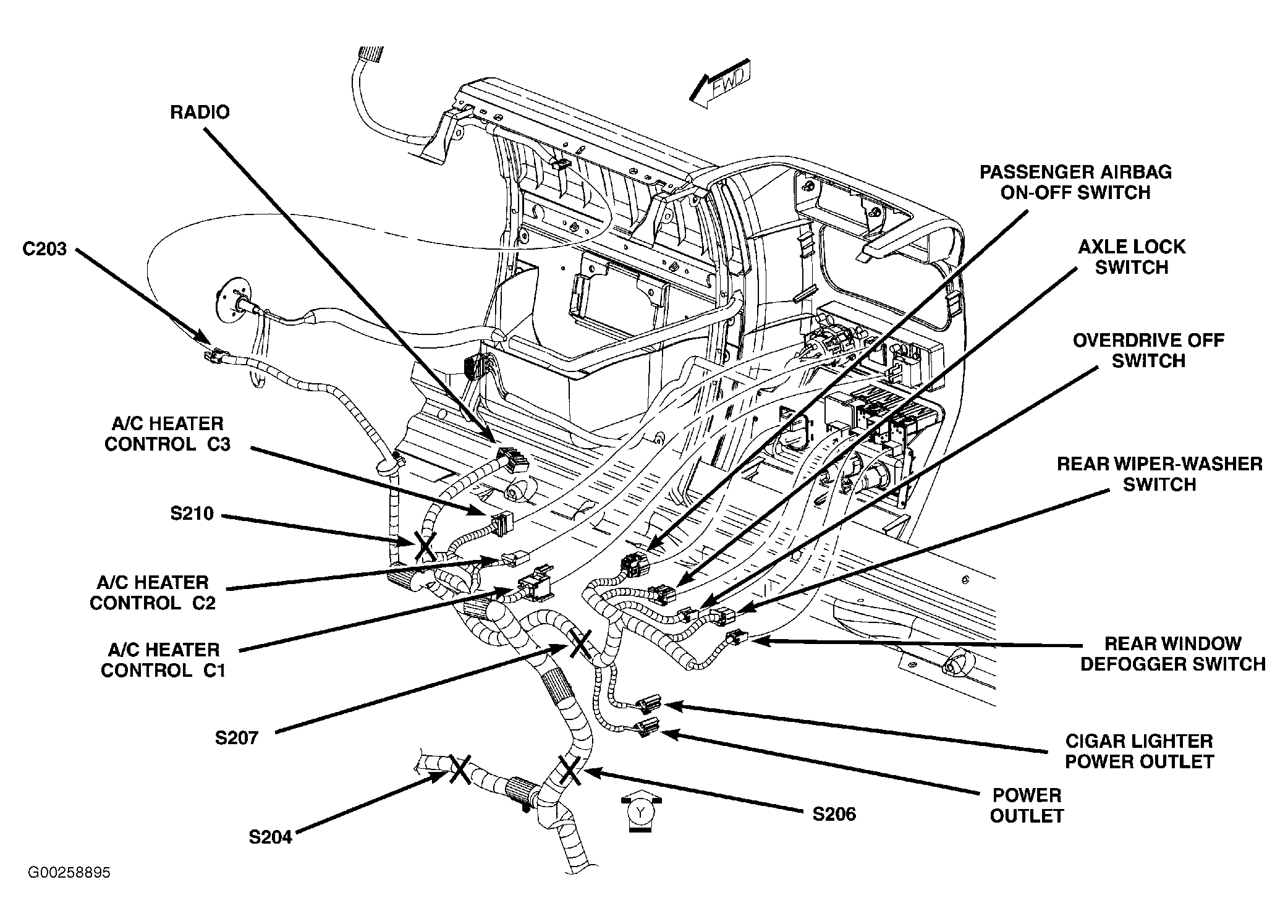

Fig 21: Center Of Dash
Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Steering Column Connections
Courtesy of DAIMLERCHRYSLER CORP.

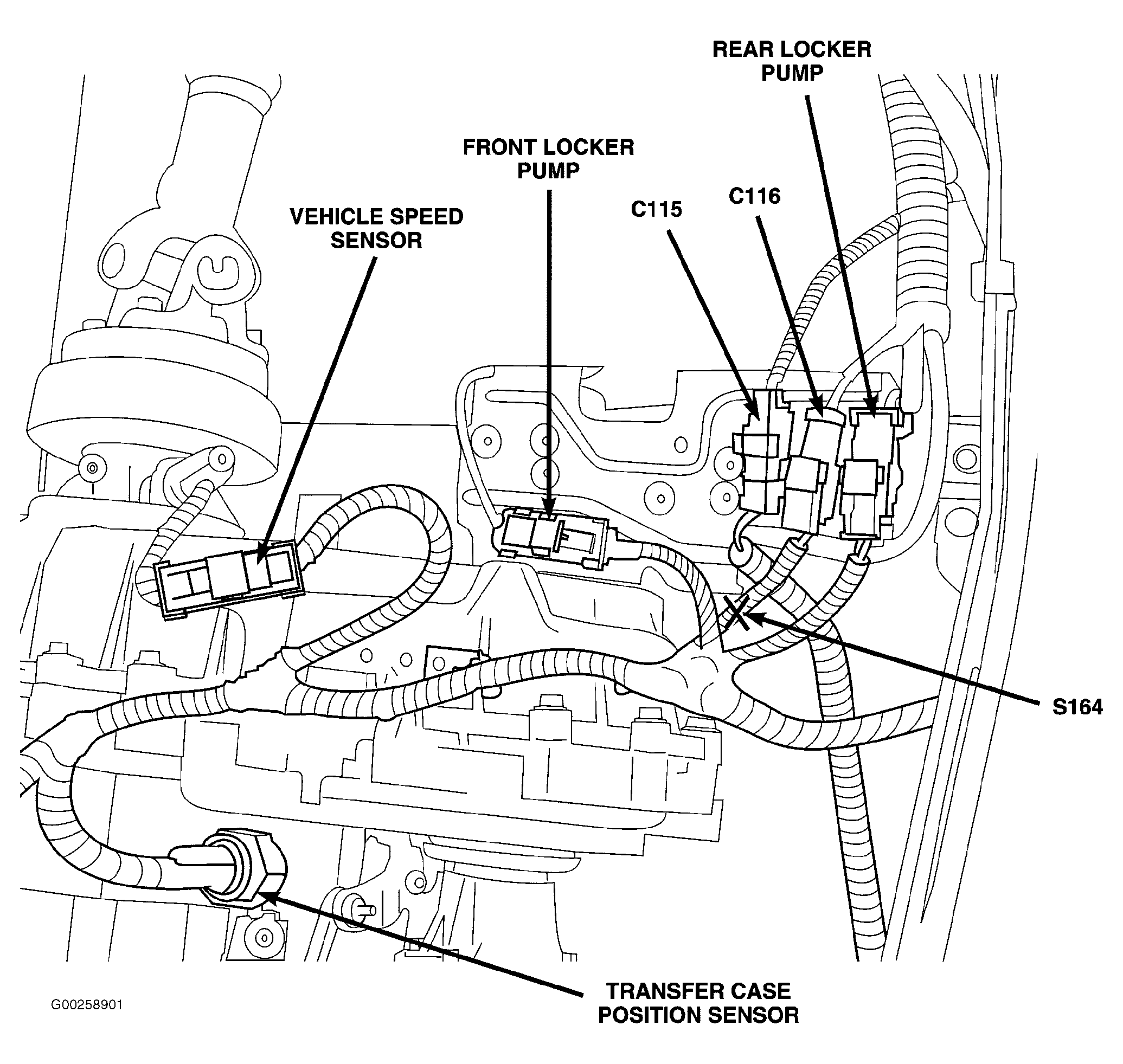

Fig 23: Transfer Case
Courtesy of DAIMLERCHRYSLER CORP.

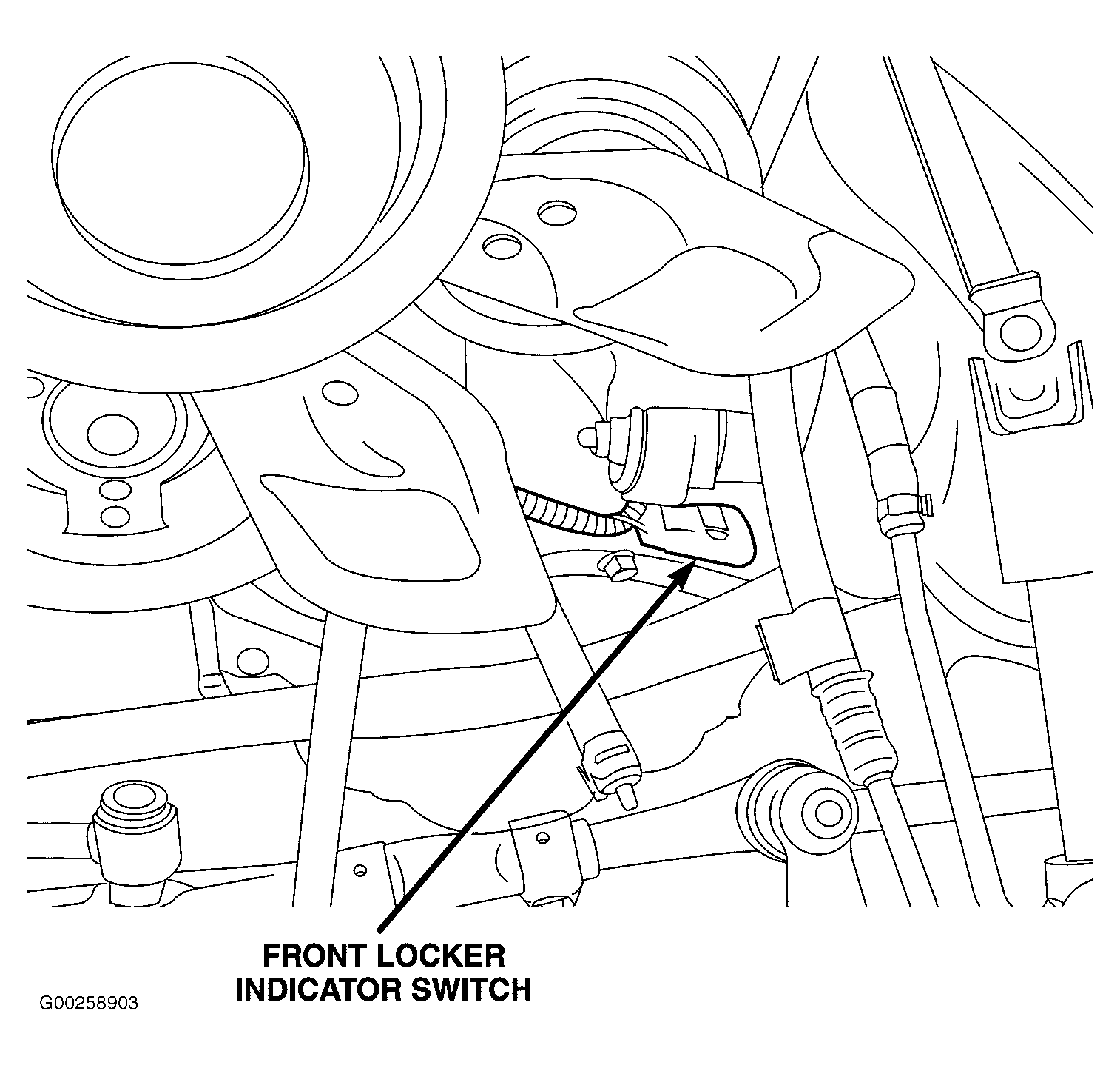

Fig 24: Front Locker Indicator Switch
Courtesy of DAIMLERCHRYSLER CORP.

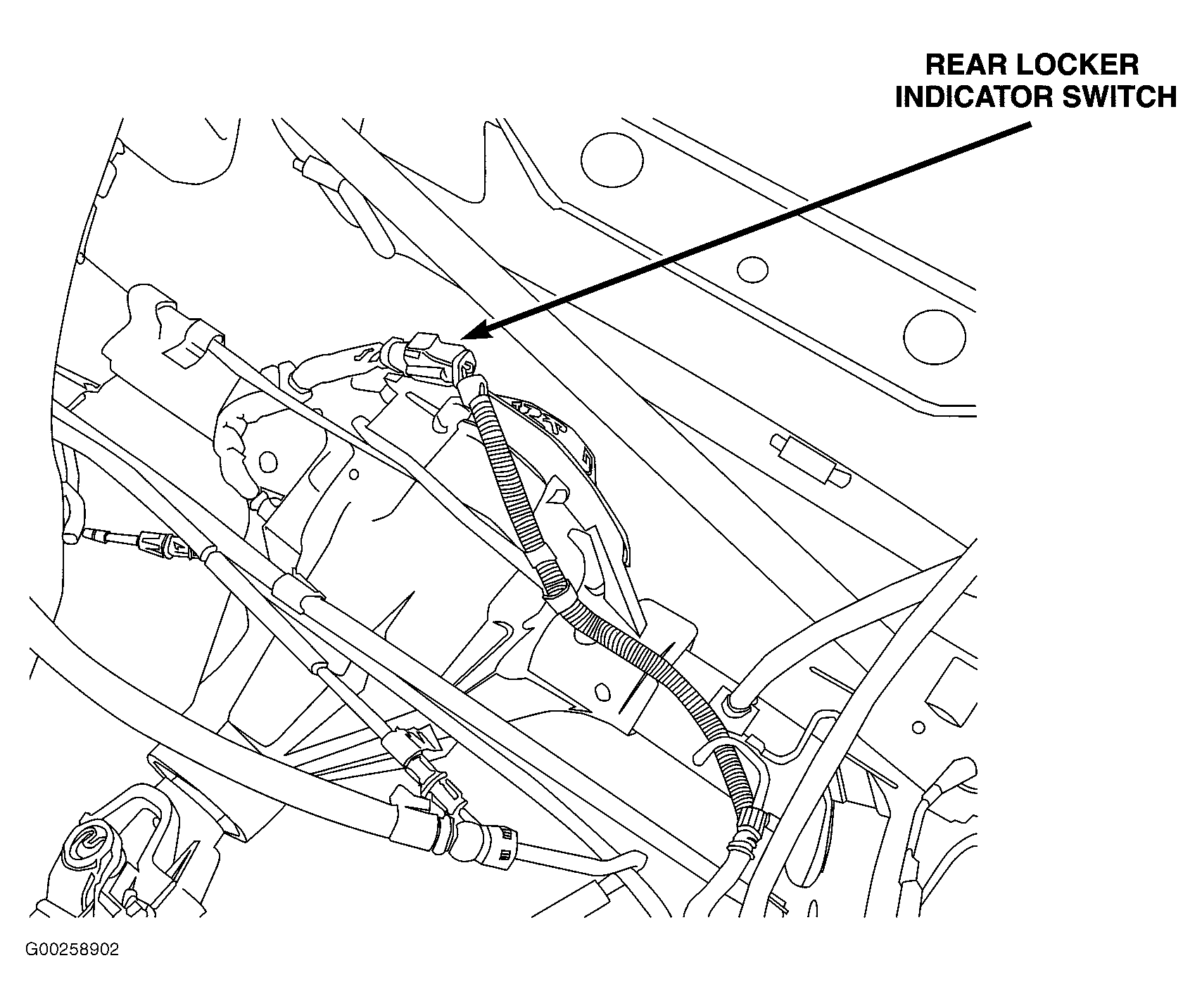

Fig 25: Rear Locker Indicator Switch
Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Right Side Of Manual Transmission (BUX)
Courtesy of DAIMLERCHRYSLER CORP.

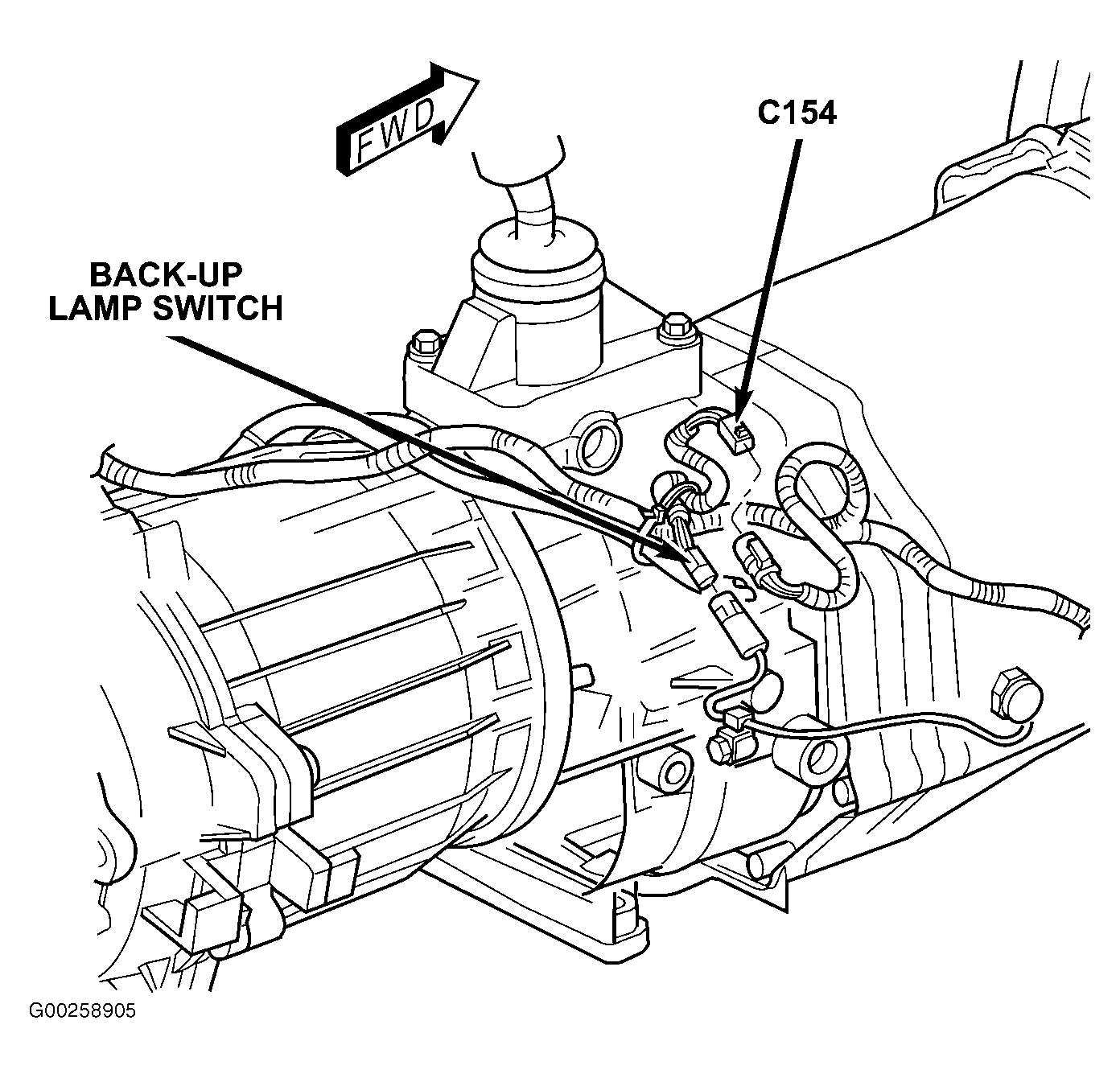

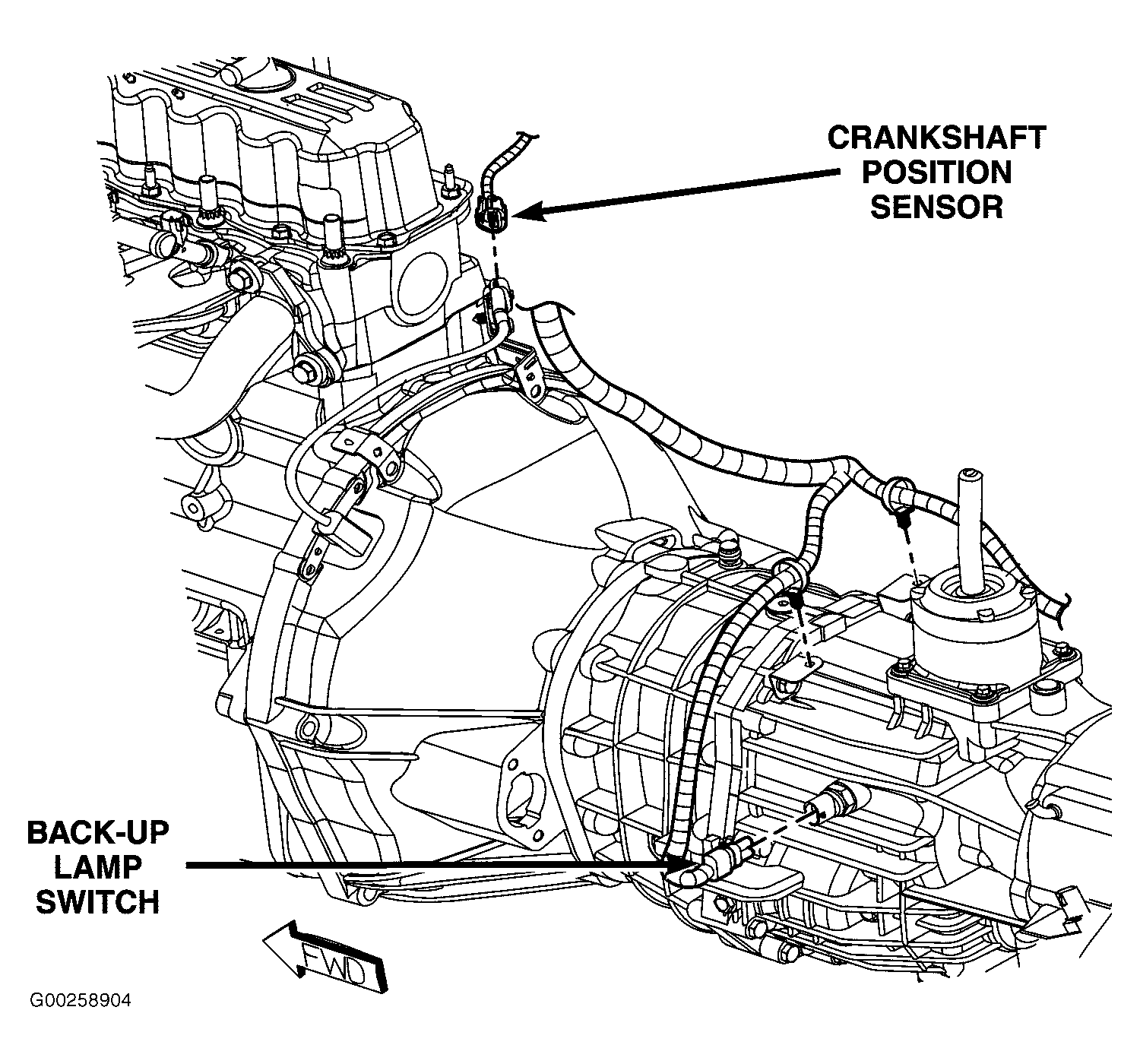

Fig 27: Manual Transmission
Courtesy of DAIMLERCHRYSLER CORP.

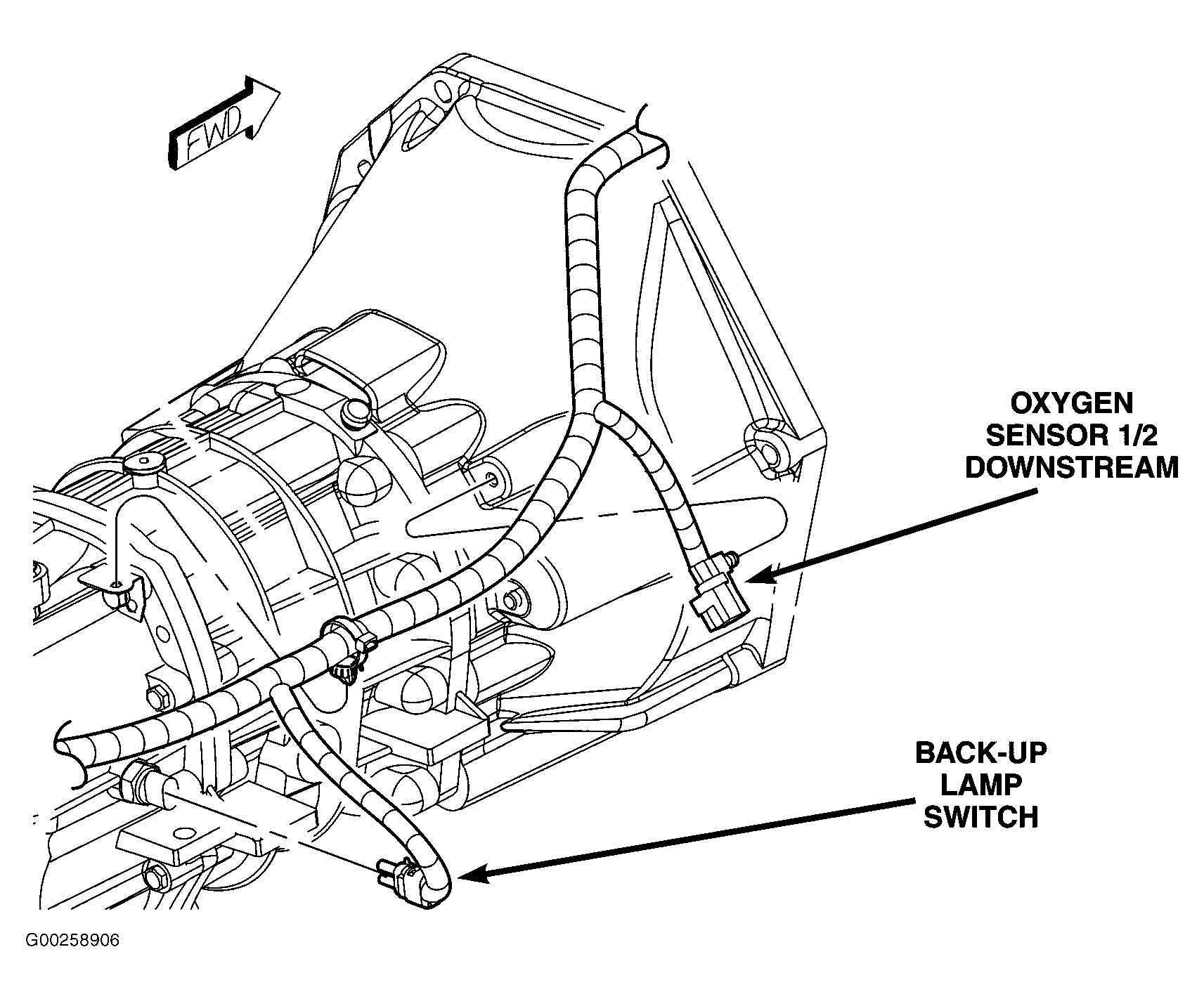

Fig 28: Manual Transmission (2.4L)
Courtesy of DAIMLERCHRYSLER CORP.

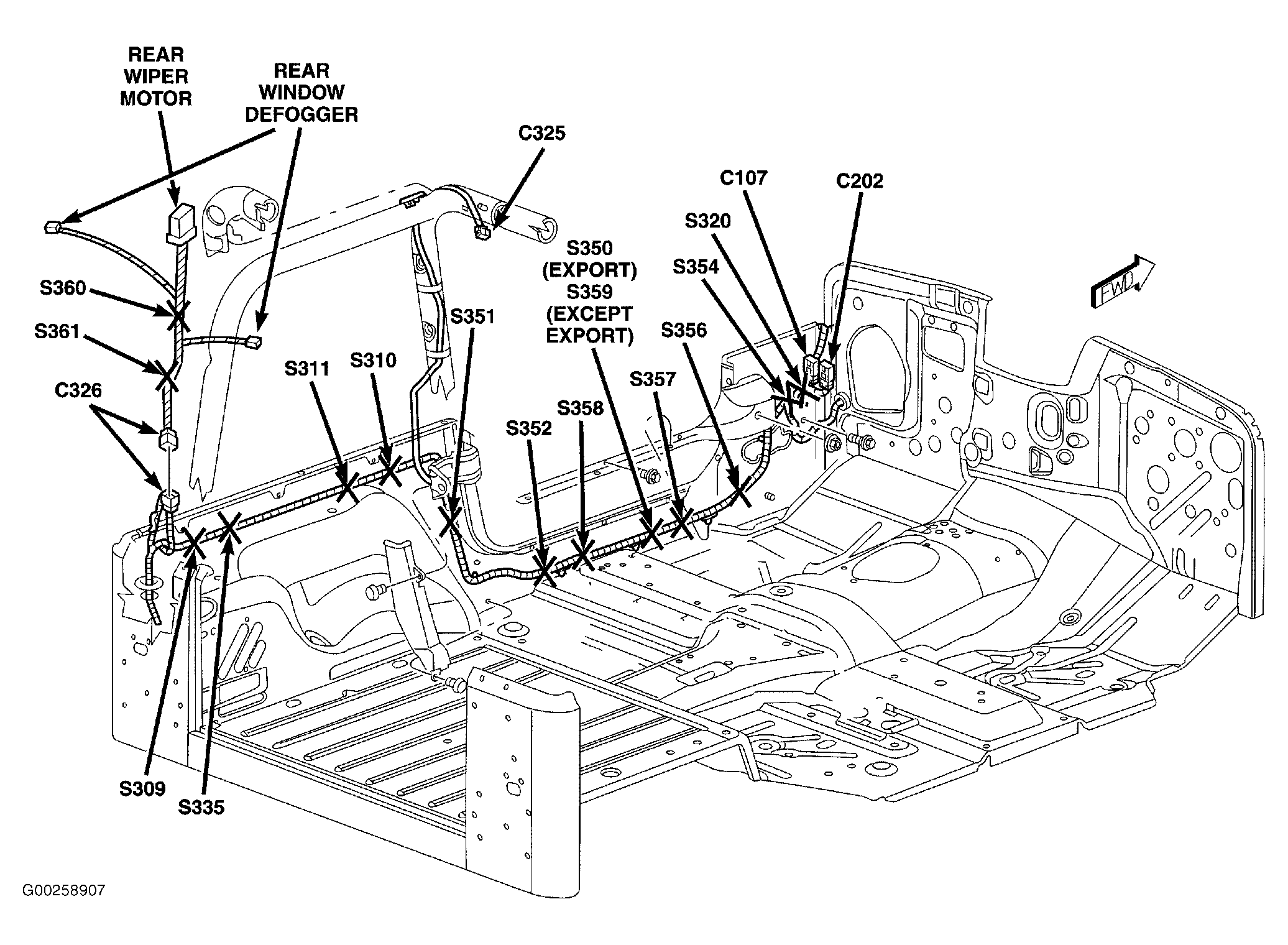

Fig 29: Body Harness
Courtesy of DAIMLERCHRYSLER CORP.

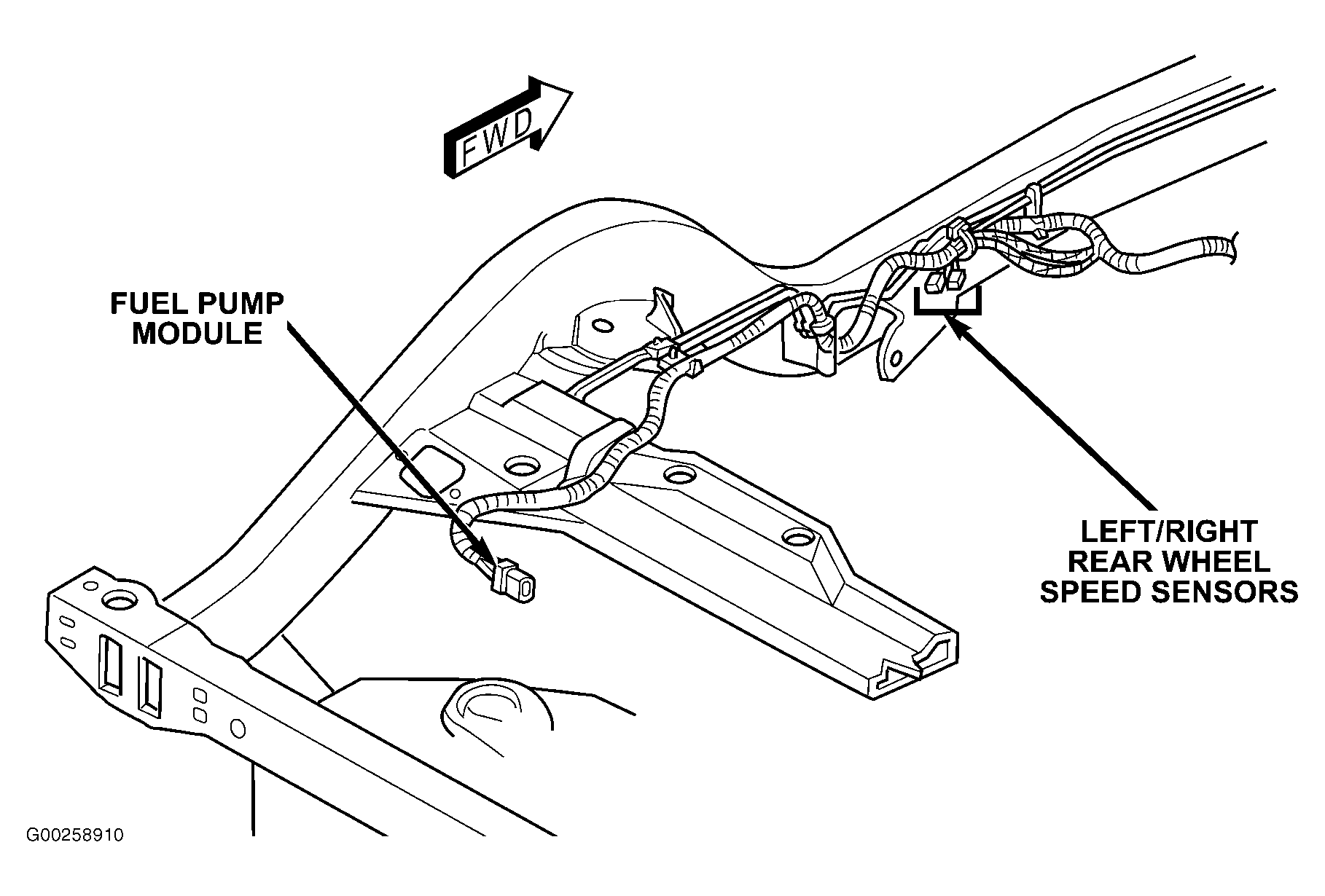

Fig 30: Left Rear Of Chassis
Courtesy of DAIMLERCHRYSLER CORP.

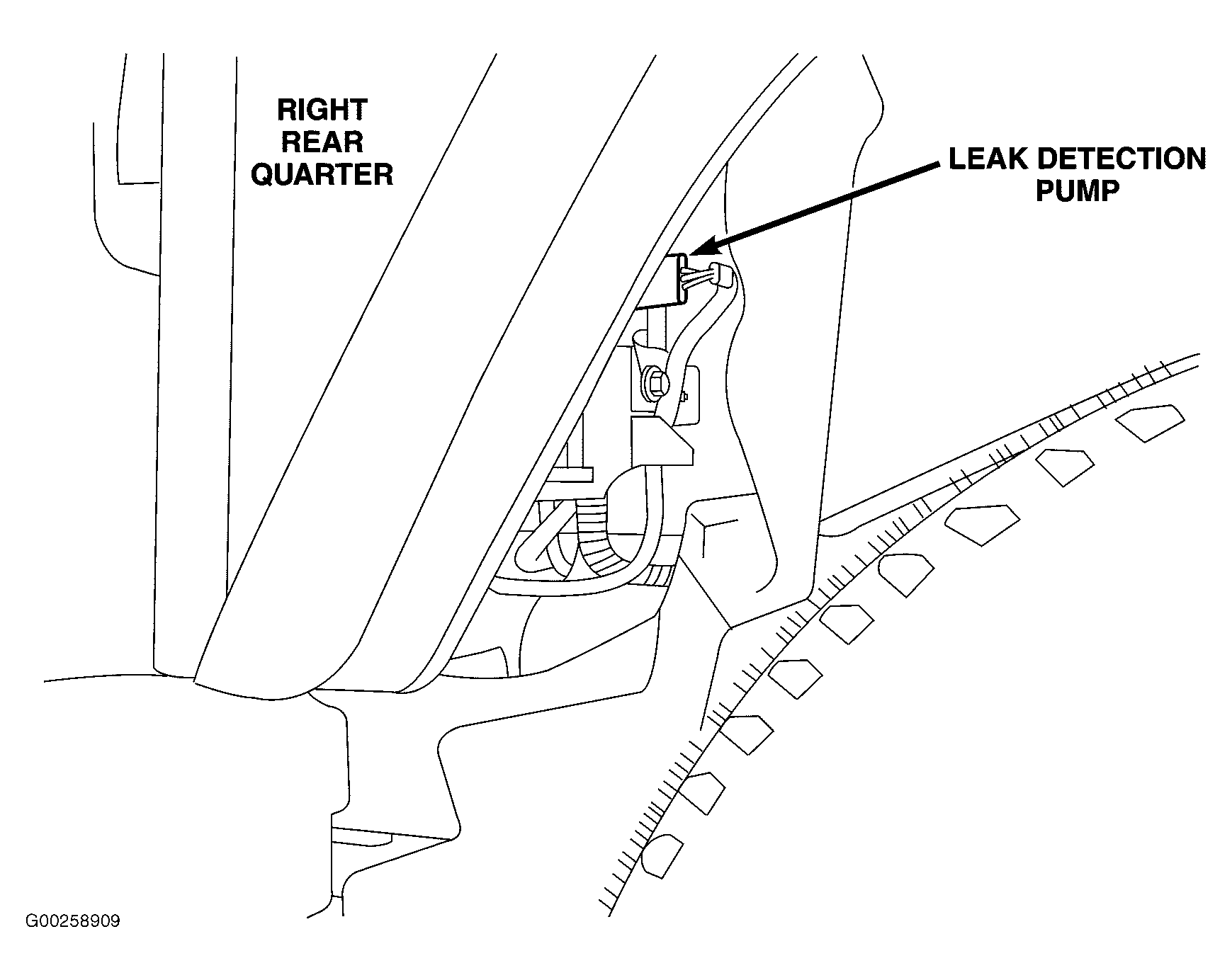

Fig 31: Leak Detection Pump
Courtesy of DAIMLERCHRYSLER CORP.

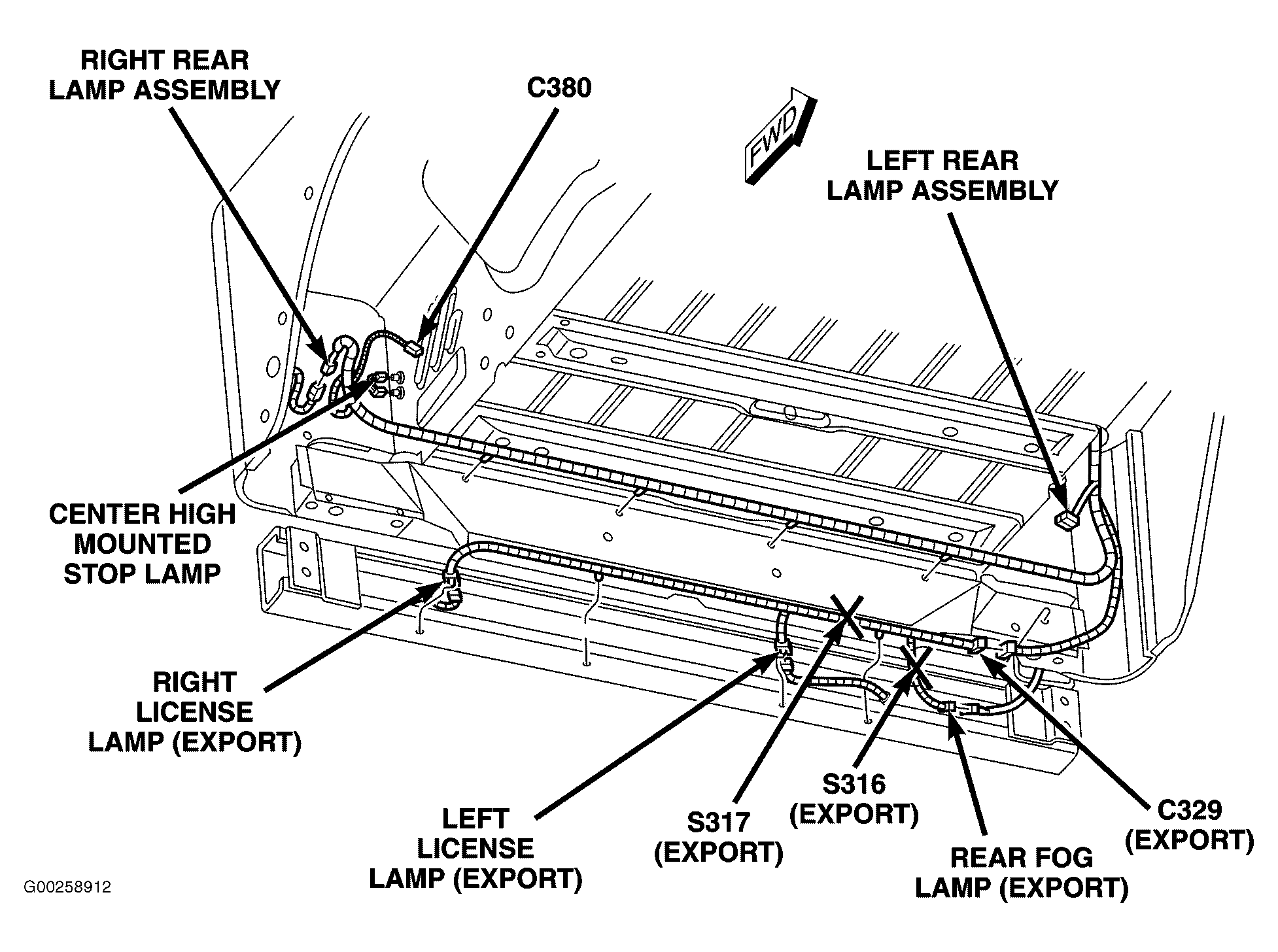

Fig 32: Rear Of Vehicle
Courtesy of DAIMLERCHRYSLER CORP.

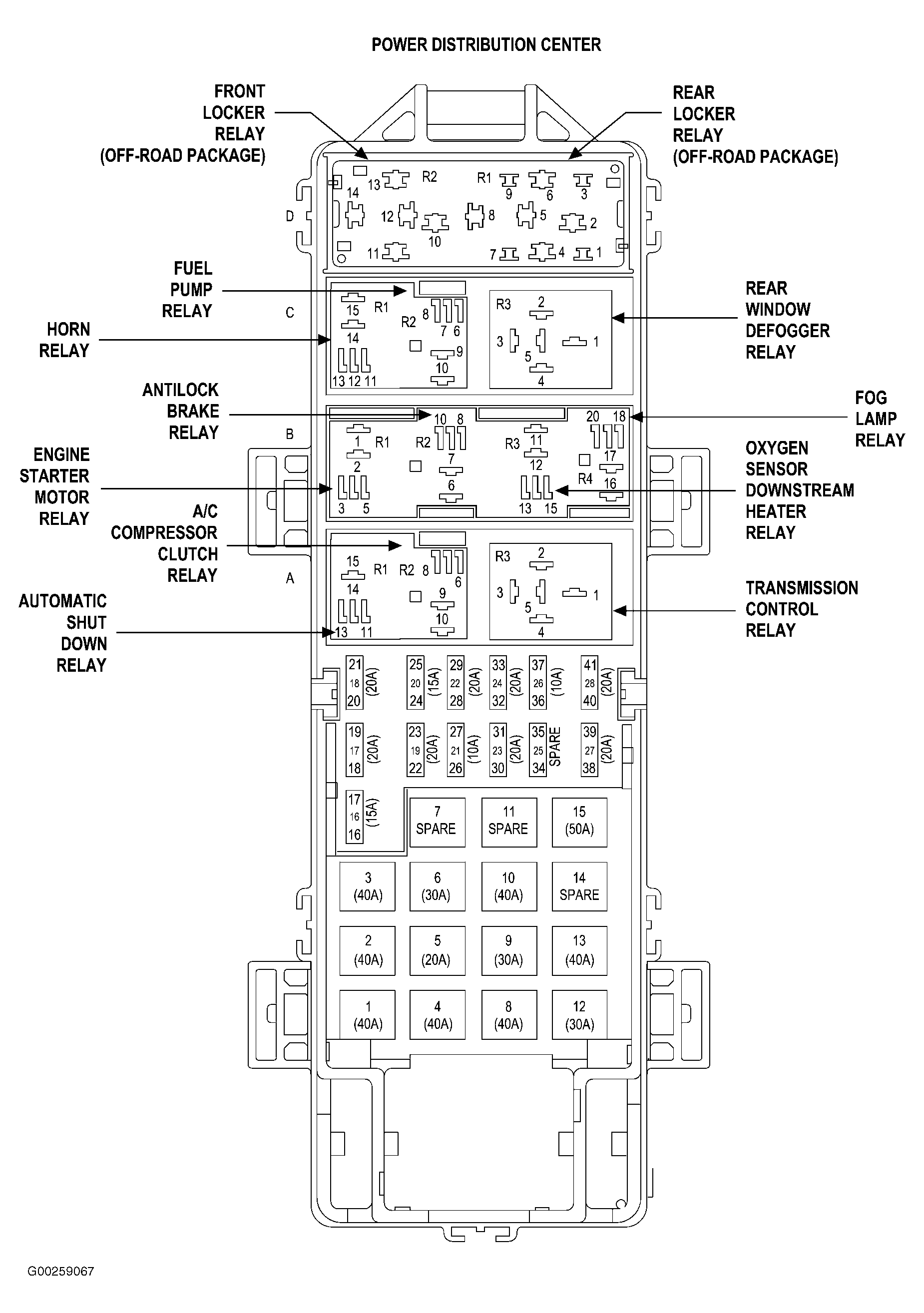

Fig 33: Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.
