Home >> Jeep >> 2004 >> Wrangler SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Communication >> *PCI Bus Communication Failure >> Testing

*PCI Bus Communication Failure: Testing

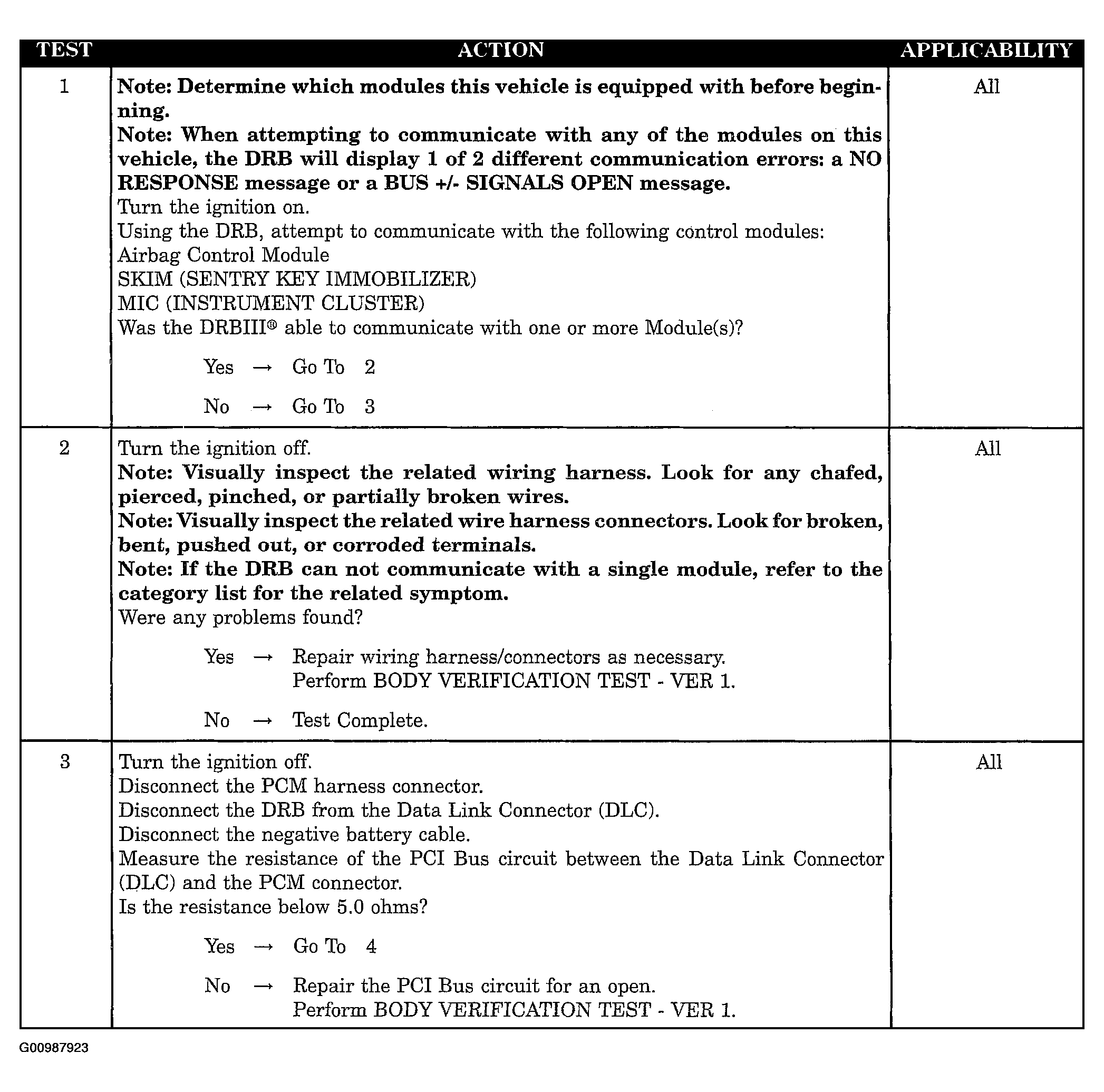

Fig 1: Testing: PCI BUS Communication Failure - 1 Of 2
G00987923Courtesy of DAIMLERCHRYSLER CORP.

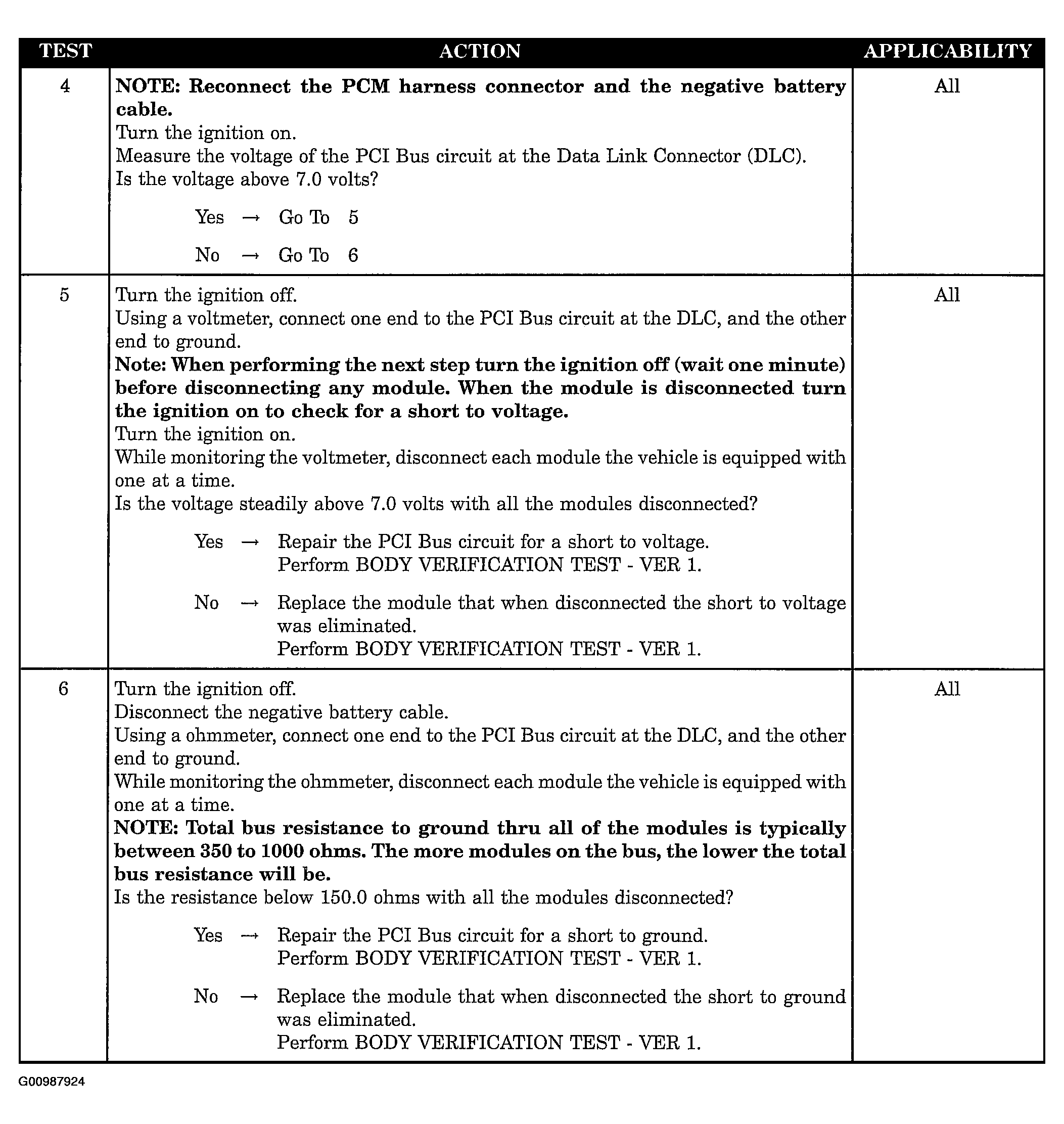

Fig 2: Testing: PCI BUS Communication Failure - 1 Of 2
G00987924Courtesy of DAIMLERCHRYSLER CORP.
