Component Locations: Switches

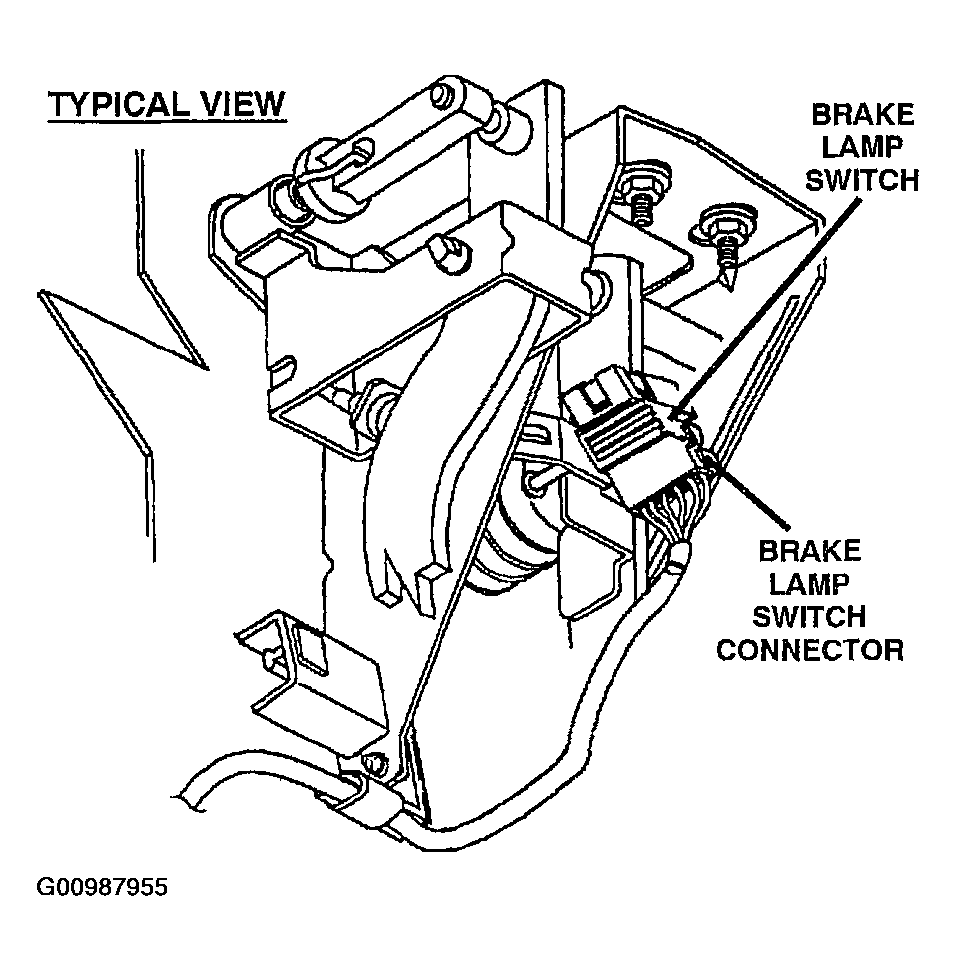

Fig 1: Locating Brake Lamp Switch & Brake Lamp Switch Connector
G00987955Courtesy of DAIMLERCHRYSLER CORP.

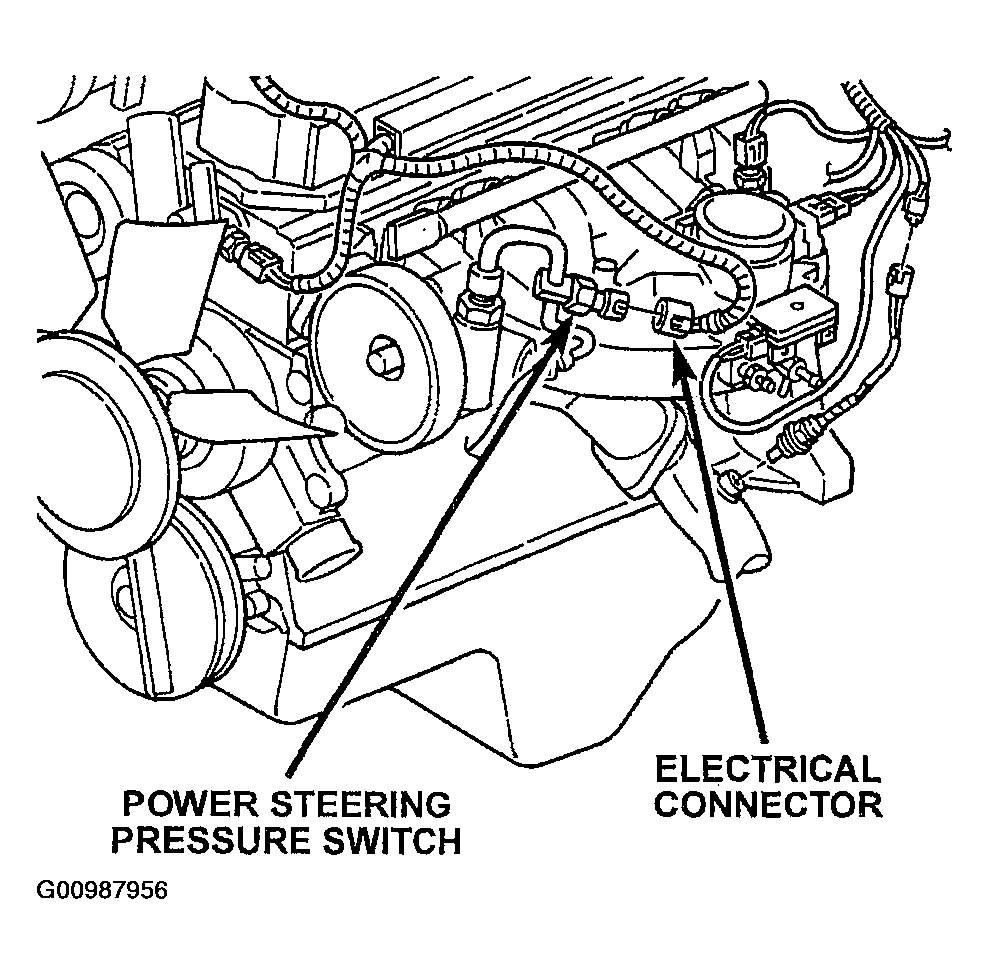

Fig 2: Locating Power Steering Pressure Switch & Electrical Connector
G00987956Courtesy of DAIMLERCHRYSLER CORP.

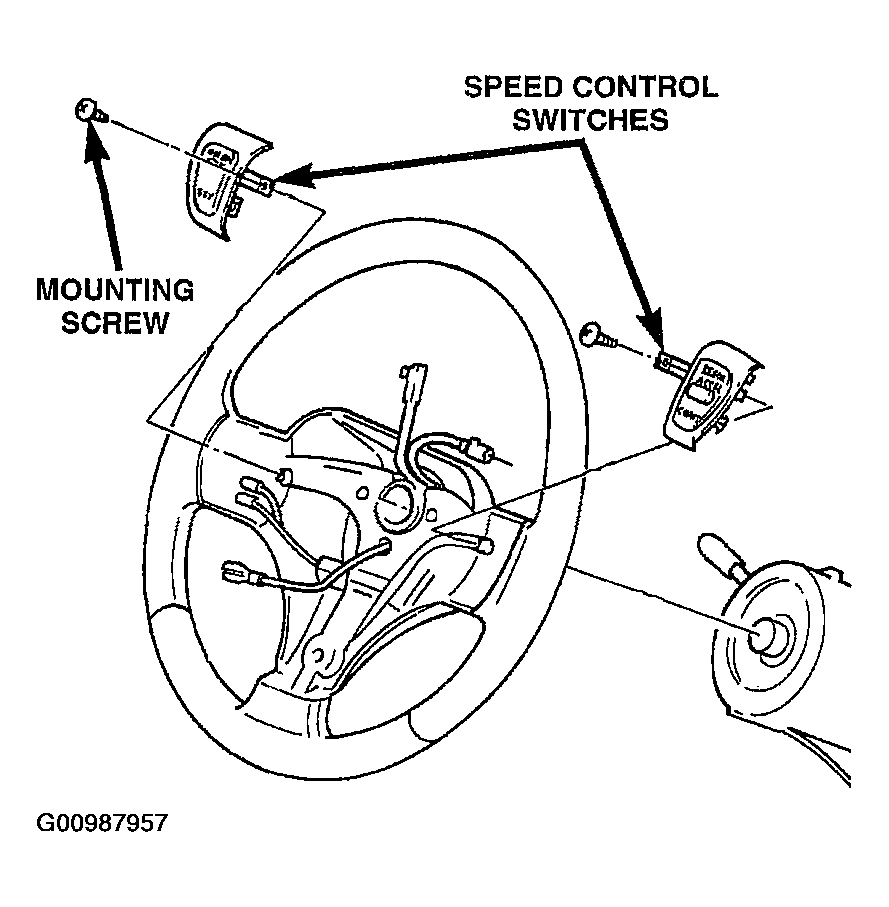

Fig 3: Locating Speed Control Switches
G00987957Courtesy of DAIMLERCHRYSLER CORP.
