Powertrain Control Module C2 - White 32 Way

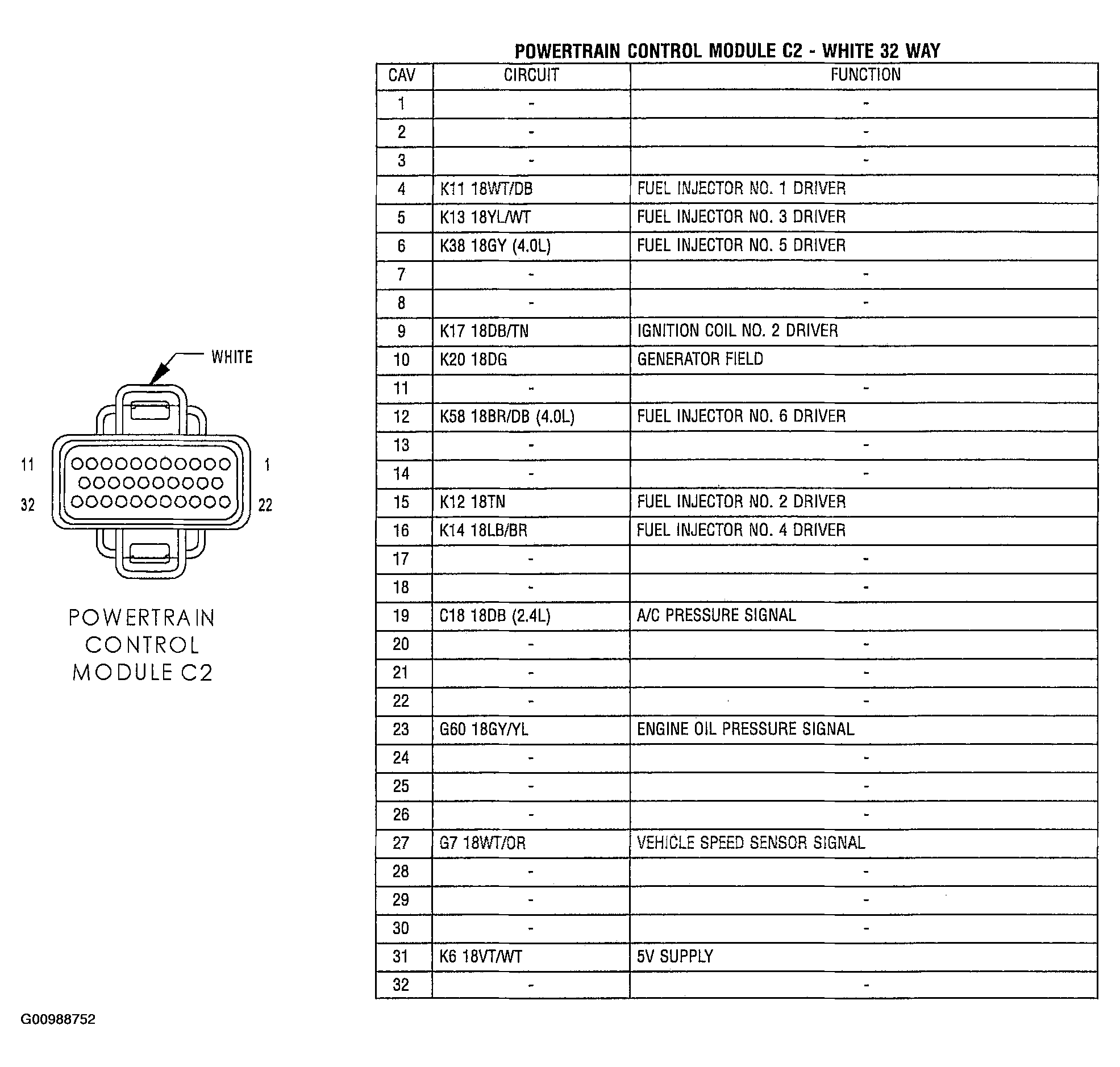

Fig 1: Identifying Powertrain Control Module C2 - White 32 Way

G00988752

Courtesy of DAIMLERCHRYSLER CORP.
