Home >> Jeep >> 2004 >> Wrangler SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Starting >> *Checking Fuel Delivery >> Testing

*Checking Fuel Delivery: Testing

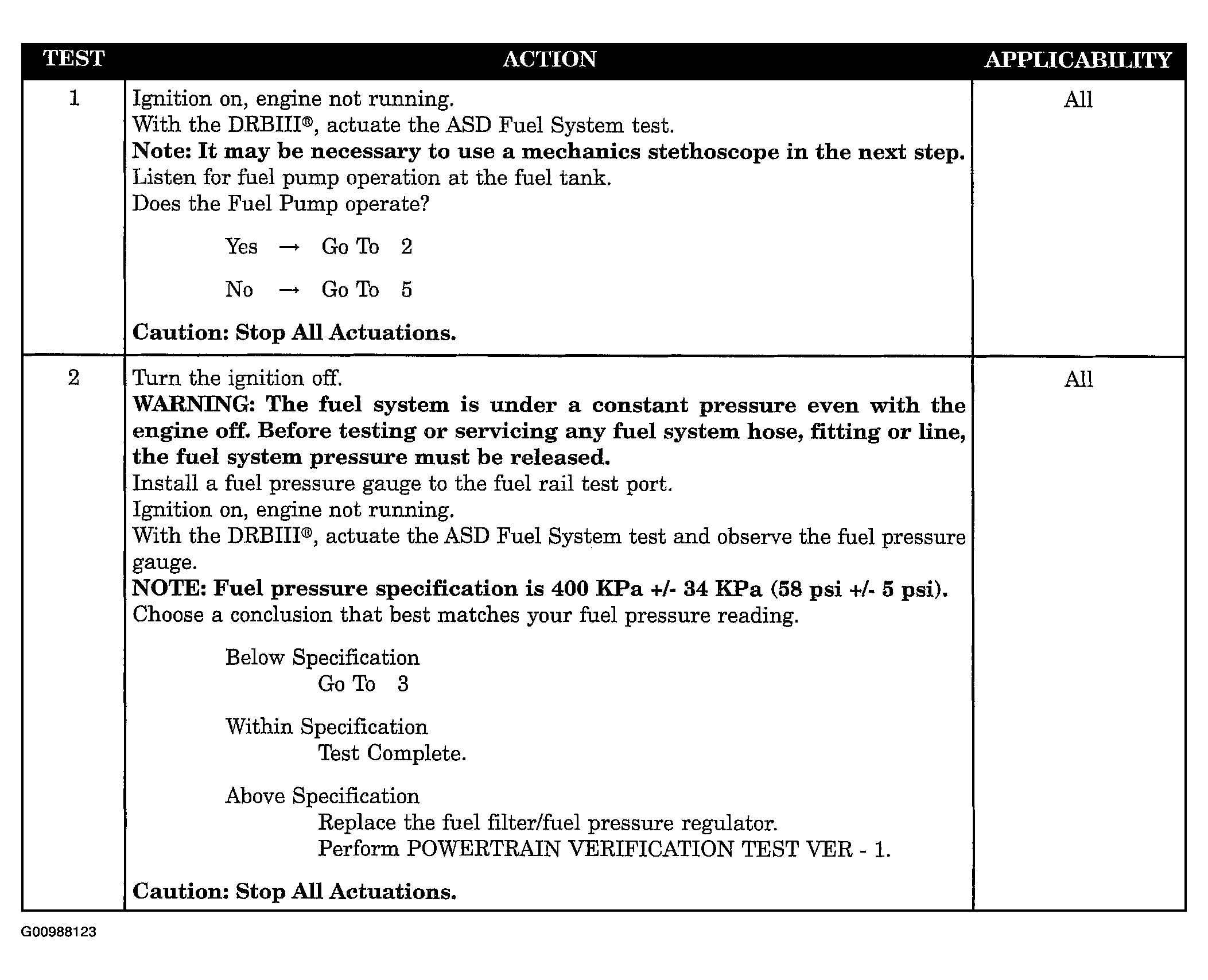

Fig 1: Testing: Checking Fuel Delivery (1 Of 3)
G00988123Courtesy of DAIMLERCHRYSLER CORP.

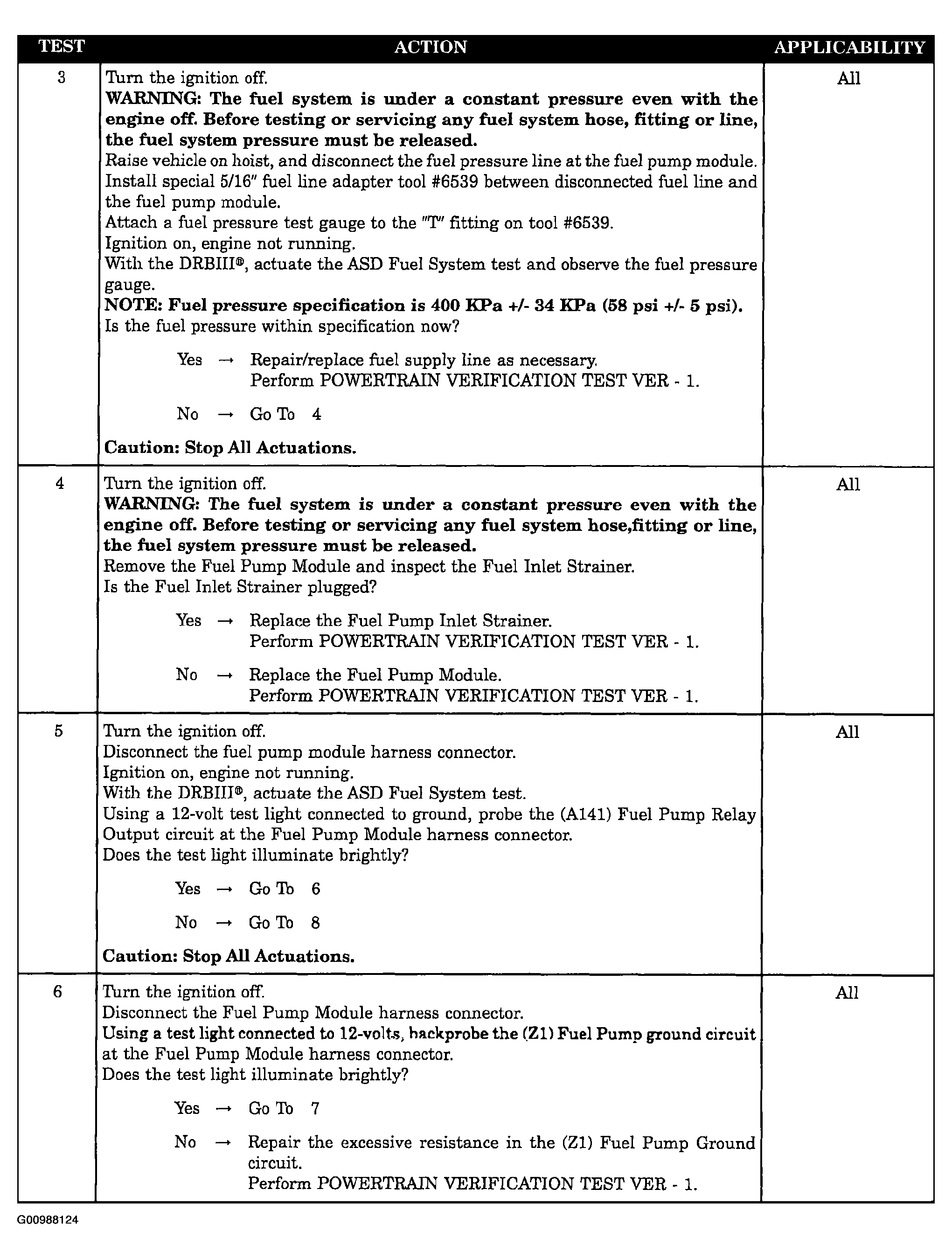

Fig 2: Testing: Checking Fuel Delivery (2 Of 3)
G00988124Courtesy of DAIMLERCHRYSLER CORP.

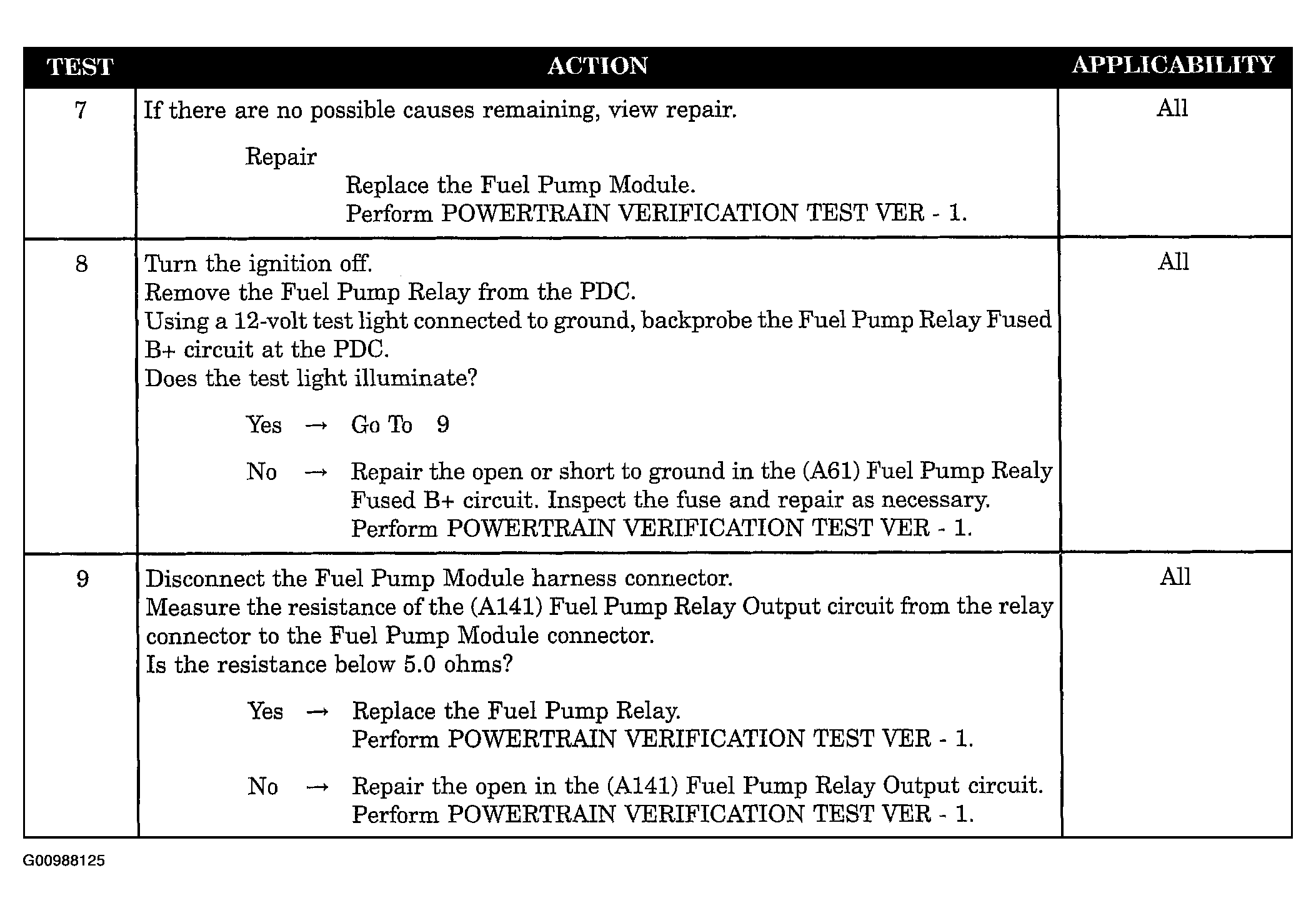

Fig 3: Testing: Checking Fuel Delivery (3 Of 3)
G00988125Courtesy of DAIMLERCHRYSLER CORP.
